QUS-BEFREERemote Control Transmitter

GB BEFREE X1 RADIO CONTROL The radio control in the BeFree x1 series can be used to control (Up – Stop – Down) user commands. Codes are transmitted using an 18-bit random system, which can be used in conjunction with other transmitters in the same series and may be integrated perfectly with SEAV receivers and electronic control units. - Mod. BeFree S1: 433.92 MHz - Mod. BeFree H1: 868.30 MHz TECHNICAL DATA - Alkaline battery powered : 12 V mod. 23 A - Operating frequency : see model - Combinations : 32768 - Max. consumption : 25 mA - Operating temperature : -10 to + 70 °C - Dimensions : 120 x 45 x 15 mm. O PERATING DESCRIPTION The radio control has 3 command buttons - UP, STOP and DOWN - and an indicator LED. The LED flickers when a transmission code is being sent. INITIAL OPERATING CONDITION The radio control is supplied by the manufacturer with default random codes. OPERATING MODES Creating a new random code (Reset): The radio control is supplied by the manufacturer with default random codes. If you want to create a new set of random codes, perform the RESET procedure as follows: press and hold the UP, STOP and DOWN buttons simultaneously for 2 seconds. After the LED lights up, press the UP and DOWN buttons within 5 seconds. The LED will flash 3 times to indicate that the process is complete. WARNING ! The RESET procedure completely deletes the default codes. Copying all the information contained in the radio control: It is only possible to copy all the transmission codes on the radio control if the products are the same model. To copy all the information between radio controls, proceed as follows: connect the two radio controls using the cable supplied as an “optional extra”; press and hold any button on the source radio control for 2 seconds. The LED on the destination radio control the information will flash 3 times to indicate that the operation is complete. WARNING ! The default configuration of the radio control has no password protection; it is therefore possible to copy all information. If the radio control is supplied with a password enabled it will not be possible to carry out the copying process. Other functions using a PC: The radio control can be connected to a Personal Computer using the “SW 2188” software package which is supplied as an optional extra and enables you to utilise further functions. Other functions using a Programmer: The radio control can be connected to a “PGM 2191” portable Programmer which is supplied as an optional extra and enables you to utilise further functions. WARNING − The battery should be replaced every year to guarantee the optimal range of the transmitter. − To replace the exhausted battery, take the plastic lid off, remove the battery and replace it with a new one, observing the correct battery polarities. − Used batteries should be discarded in special collection bins. SEAV s.r.l. hereby declares that the below product: BeFree Series Radio Control complies with the specifications set out in the Directive R&TTE 99/5/EC. -1- Rev. 2.0 27 April 2007 FCC ID: QUS-BEFREE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING Any adjustments or modifications that have not been expressly approved by the holder of the legal conformity certificate may invalidate the user’s rights relating to the operation of the device. 2

GB BEFREE X3 RADIO CONTROL The radio control in the BeFree x3 series can be used to control 3 different (Up – Stop – Down) user commands. Codes are transmitted using an 18-bit random system, which can be used in conjunction with other transmitters in the same series and may be integrated perfectly with SEAV receivers and electronic control units. - Mod. BeFree S3: 433.92 MHz - Mod. BeFree H3: 868.30 MHz TECHNICAL DATA - Alkaline battery powered : 12 V mod. 23 A - Operating frequency : see model - Combinations : 32768 - Max. consumption : 25 mA - Operating temperature : -10 to + 70 °C - Dimensions : 120 x 45 x 15 mm. OPERATING DESCRIPTION The radio control has 3 command buttons: UP, STOP and DOWN, and corresponding red indicator LEDs. There are 2 other function buttons (–) and (+) which are used to select one of the 3 different user commands or the special functions. The LED flickers when a transmission code is being sent. INITIAL OPERATING CONDITION The radio control is supplied by the manufacturer with default random codes. OPERATING MODES Creating a new random code (Reset): The radio control is supplied by the manufacturer with default random codes. If you want to create a new set of random codes, perform the RESET procedure as follows: press and hold the UP, STOP and DOWN buttons simultaneously for 2 seconds. After the LEDs light up, press the UP and DOWN buttons within 5 seconds. The LEDs will flash 3 times to indicate that the process is complete. WARNING ! The RESET procedure completely deletes the default codes. Copying all the information contained in the radio control: It is only possible to copy all the transmission codes on the radio control if the products are the same model. To copy all the information between radio controls, proceed as follows: connect the two radio controls with the cable supplied as an “optional extra”; press and hold any button on the source radio control for 2 seconds. The LEDs on the destination radio control will flash 3 times to indicate that the operation is complete. WARNING ! The default configuration of the radio control has no password protection; it is therefore possible to copy all information. If the radio control is supplied with a password enabled it will not be possible to carry out the copying process. “-” and “+” function buttons: Selecting one of the 3 different user commands: The radio control has two function buttons, (–) and (+), which are used to select the required transmission channel and operate in conjunction with the indicator LEDs. This means that 3 different user commands can be operated at once. Special functions: The radio control has two function buttons, (–) and (+), used to control the special functions. By pressing and holding the (-) or (+) button for at least 2 seconds, a special code is activated and transmitted (this is different for each user command). The special codes may be used in conjunction with the control units that have been set to this type of operation. (For example: in the BeSun control unit, the function buttons are used to activate and deactivate the sun sensor). Simultaneous transmission of all codes: The radio control allows all 3 transmission codes to be sent at the same time (UP, STOP or DOWN). To select this function, press and hold the (–) and (+) buttons for 3 seconds. All the indicator LEDs will light up at the same time, showing that the radio control is ready to send all 3 transmission codes simultaneously. Repeat the above process to restore normal operation. WARNING ! The simultaneous transmission of all 3 codes is in fact carried out in sequence with a 0.5 second gap between each transmission. You must therefore wait a few moments before attempting any other commands. Other functions using a PC: The radio control can be connected to a Personal Computer using the “SW 2188” software package which is supplied as an optional extra and enables you to utilise further functions. Other functions using a Programmer: The radio control can be connected to a “PGM 2191” portable Programmer which is supplied as an optional extra and enables you to utilise further functions. -1- Rev. 2.0 27 April 2007 WARNING − The battery should be replaced every year to guarantee the optimal range of the transmitter. − To replace the exhausted battery, take the plastic lid off, remove the battery and replace it with a new one, observing the correct battery polarities. − Used batteries should be discarded in special collection bins. SEAV s.r.l. hereby declares that the below product: BeFree Series Radio Control complies with the specifications set out in the Directive R&TTE 99/5/EC. FCC ID: QUS-BEFREE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING Any adjustments or modifications that have not been expressly approved by the holder of the legal conformity certificate may invalidate the user’s rights relating to the operation of the device. 2

GB BEFREE X6 RADIO CONTROL The radio control in the BeFree x6 series can be used to control 6 different (Up – Stop – Down) user commands. Codes are transmitted using an 18-bit random system, which can be used in conjunction with other transmitters in the same series and may be integrated perfectly with SEAV receivers and electronic control units. - Mod. BeFree S6: 433.92 MHz - Mod. BeFree H6: 868.30 MHz TECHNICAL DATA - Alkaline battery powered : 12 V mod. 23 A - Operating frequency : see model - Combinations : 32768 - Max. consumption : 25 mA - Operating temperature : -10 to + 70 °C - Dimensions : 120 x 45 x 15 mm. OPERATING DESCRIPTION The radio control has 3 command buttons: UP, STOP and DOWN, and corresponding red indicator LEDs. There are 2 other function buttons (–) and (+) which are used to select one of the 6 different user commands or the special functions. The LED flickers when a transmission code is being sent. INITIAL OPERATING CONDITION The radio control is supplied by the manufacturer with default random codes. OPERATING MODES Creating a new random code (Reset): The radio control is supplied by the manufacturer with default random codes. If you want to create a new set of random codes, perform the RESET procedure as follows: press and hold the UP, STOP and DOWN buttons simultaneously for 2 seconds. After the LEDs light up, press the UP and DOWN buttons within 5 seconds. The LEDs will flash 3 times to indicate that the process is complete. WARNING ! The RESET procedure completely deletes the default codes. Copying all the information contained in the radio control: It is only possible to copy all the transmission codes on the radio control if the products are the same model. To copy all the information between radio controls, proceed as follows: connect the two radio controls with the cable supplied as an “optional extra”; press and hold any button on the source radio control for 2 seconds. The LEDs on the destination radio control will flash 3 times to indicate that the operation is complete. WARNING ! The default configuration of the radio control has no password protection; it is therefore possible to copy all information. If the radio control is supplied with a password enabled it will not be possible to carry out the copying process. “-” and “+” function buttons: Selecting one of the 6 different user commands: The radio control has two function buttons, (–) and (+), which are used to select the required transmission channel and operate in conjunction with the indicator LEDs. This means that 6 different user commands can be operated at once. Special functions: The radio control has two function buttons, (–) and (+), used to control the special functions. By pressing and holding the (-) or (+) button for at least 2 seconds, a special code is activated and transmitted (this is different for each user command). The special codes may be used in conjunction with the control units that have been set to this type of operation.(For example: in the BeSun control unit, the function buttons are used to activate and deactivate the sun sensor). Simultaneous transmission of all codes: The radio control allows all 6 transmission codes to be sent at the same time (UP, STOP or DOWN). To select this function, press and hold the (–) and (+) buttons for 3 seconds. All the indicator LEDs will light up at the same time, showing that the radio control is ready to send all 6 transmission codes simultaneously. Repeat the above process to restore normal operation. WARNING ! The simultaneous transmission of all 6 codes is in fact carried out in sequence with a 0.5 second gap between each transmission. You must therefore wait a few moments before attempting any other commands. Other functions using a PC: The radio control can be connected to a Personal Computer using the “SW 2188” software package which is supplied as an optional extra and enables you to utilise further functions. Other functions using a Programmer: The radio control can be connected to a “PGM 2191” portable Programmer which is supplied as an optional extra and enables you to utilise further functions. -1- Rev. 2.0 27 April 2007 WARNING − The battery should be replaced every year to guarantee the optimal range of the transmitter. − To replace the exhausted battery, take the plastic lid off, remove the battery and replace it with a new one, observing the correct battery polarities. − Used batteries should be discarded in special collection bins. SEAV s.r.l. hereby declares that the below product: BeFree Series Radio Control complies with the specifications set out in the Directive R&TTE 99/5/EC. FCC ID: QUS-BEFREE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING Any adjustments or modifications that have not been expressly approved by the holder of the legal conformity certificate may invalidate the user’s rights relating to the operation of the device. 2

10/04/2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and Section 0.459 pertaining to confidential material. SEAV would like the following documents regarding this submission for FCC ID: QUS-BEFREE to be kept confidential. Documents: 1. Block diagram 2. Bill of material 3. Schematic diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, for SEAV S.r.l Il responsabile Galeazzi Cesare SEAV s.r.l Via S. Sabino n° 34 - 60027 Osimo (AN ) ITALY Tel. + 39 071 7132758 r.a. Fax: + 39 071 7131937 http://www.seav.com

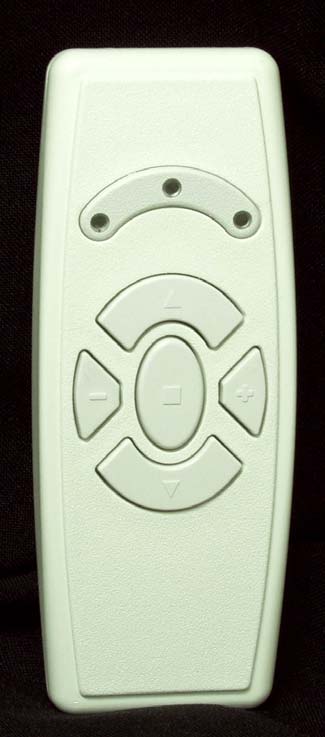

S6 – Front S6 – Back S3 – Front S1 – Front

BeFree Series Operational Description BeFree series devices allow, if used with SEAV electronic panels, remote control of electric and electronic equipment, and they are used for automatic entry control (mainly sun blinds and rolling shutters), where remote control via a radio coded command is required. On the bottom of the remote control there is a connector : by means of an apposite cable CP 2195 is possible to make copies of remote controls or to interface the device with a PC through a specific software. When the user press a key, the microcontroller send a 18 bit code (random code) to the RF section. The code is transmitted with OOK modulation. BeFree S6 is the master model: it has got six channels to control six different applications ( for example six sun blinds in a building). There are 3 buttons – UP, STOP , DOWN – for giving the desired command, and two button (-) and (+), for moving from one channel to an other and for special commands. BeFree S3 is a three-channel remote control with the same features of the master model. BeFree S1 is a one channel radio with UP-STOP-DOWN buttons.

www.nemko.com FCC Part 15 Subpart C, 15.231 : June 2006 Test Report: 85061TRFWL Applicant: SEAV S.R.L. via S. Sabino, 34 60027 Osimo (AN) Italy Apparatus: BeFree S6, S3, S1 FCC ID: QUS-BEFREE In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jin Xu, Wireless Specialist Date: May 3, 2007 Total Number of Pages: 17 Nemko Canada Inc. REPORT SUMMARY Report Number: 85061TRFWL FCC ID: QUS-BEFREE Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 17 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: BeFree S6, S3, S1 Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 85061TRFWL FCC ID: QUS-BEFREE Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 17 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ..................................10 Clause 15.231(b) Radiated Emissions .................................................................................................................11 Clause 15.231(c) 20dB Bandwidth ......................................................................................................................14 Appendix B : Setup Photographs ............................................................................................................ 15 Appendix C : Block Diagram of Test Setups .......................................................................................... 17 Nemko Canada Inc. SECTION 1 : EQUIPMENT UNDER TEST Report Number: 85061TRFWL FCC ID: QUS-BEFREE Specification: FCC Part 15 Subpart C, 15.231 Page 4 of 17 Section 1 : Equipment Un…
