QUS-BESMARTREMOTE CONTROL TRANSMITTER

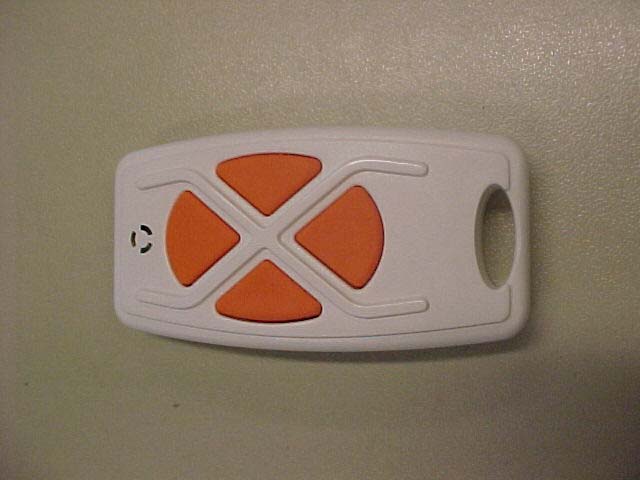

Rev. 1.0 05/04/05 BESMART RADIO CONTROL Radio control with Random 18-bit transmission codes and the ability to copy existing codes from other radio controls in the same series. It may be used in conjunction with other transmitters in the same series and integrates perfectly with all SEAV receivers and electronic control units. - Mod. BeSmart S2: two channels 433.92MHz - Mod. BeSmart S4: four channels 433.92 MHz - Mod. BeSmart H2: two channels 868,30 MHz - Mod. BeSmart H4: four channels 868,30 MHz TECHNICAL DATA - Alkaline battery powered : 12V mod.23A - Operating frequency : 433.92 MHz - Combinations : 262144 - Max. consumption : 25 mA - Operating temperature : -20 to +55 °C - Dimensions : 75x38x15 mm. OPERATING DESCRIPTION Depending on the model, the radio control is equipped with 2 or 4 buttons that are used to control 2 or 4 different functions. INITIAL OPERATING CONDITION The radio control is supplied with default random codes. OPERATION Creating a new random code (Reset): The radio control is supplied with default random codes. If you want to create a new set of random codes, follow the RESET process: press the two buttons (the top and bottom buttons on the 4- channel model and the only two buttons on the 2- channel model) simultaneously and hold them for 10 seconds. After the LED lights up, press the same two buttons within 3 seconds. The LED will flash 3 times to indicate that the process is complete. WARNING! The RESET process completely deletes the default codes. Copying all the information in the radio control: It is only possible to copy all the transmission codes to the radio control from other devices if they are the same model. To copy all the information between radio controls, proceed as follows: remove the cover on the back of the transmitter to provide access to the relevant connector. connect the two radio controls with the cable supplied as “optional” (programming cable CP2195), press any button on the control supplying information and hold it for 4 seconds. The LED on the control receiving the information will flash 3 times to indicate that the operation is complete. WARNING! The default configuration of the radio control has no password protection, it is therefore possible to copy all information. In cases where the control is supplied with an active password it will not be possible to carry out the copying process. Other functions using a PC: The radio control can be connected to a Personal Computer using the “SW 2188” software package which is supplied as optional and enables you to utilise further functions. Other functions using a Programmer: The radio control can be connected to a “PGM 2191” portable Programmer which is supplied as optional and enables you to utilise further functions. WARNING − The battery should be replaced every year to guarantee the optimal transmitter range. − To replace an exhausted battery, remove the plastic cover on the back of the radio control, take the battery out and replace it with a new one, observing the correct battery polarities. − Used batteries should be discarded in special collection bins. IMPORTANT REMARKS Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. DECLARATION OF CONFORMITY SEAV s.r.l. hereby declares that the product below BeSmart Radio control complies with the provisions set forth in the EC/99/5 directive based on the following standards: EN 301489-3; EN 300 220-3; EN 60950 The sample tested meets the essential requirements specified above. GB Rev. 1.0 05/04/05 FCC ID: QUS-BESMART This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAMPLE CONFIDENTIALITY FORM Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. SEAV S.r.l. would like the following documents regarding this submission for FCC ID: QUS-BESMART to be kept confidential. Documents: 1. Block diagram 2. Schematic diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely,

BeSmart Operational Description BeSmart series devices allow, if used with SEAV electronic panels, remote control of electric and electronic equipment, and they are mainly used for automatic entry control (e.g. door - gate opener applications) where remote control via a radio coded command is required. Removing the little cover in the back side of the device, there is a connector : by means of an apposite cable CP 2195 is possible to make copies of remote controls or to interface the device with a PC through a specific software. When the user press a key, the microcontroller send a 18 bit code ( this code is inserted from the user through a PC or a portable programmator, or randomly generated by the microcontroller) to the RF section. The code is transmitted with OOK modulation.

Via S. Sabino n° 34 - 60027 Osimo (AN ) ITALY Tel. + 39 071 7132758 r.a. Fax: + 39 071 7131937 www.seav.com e-mail: [email protected] BILL OF MATERIAL 4 CHANNEL “ TXS 2190 “ 433,92 MHZ 01 01 Res. R1 47 Kohm 1/16W 0805 02 02 Res. R2,R4 100 Kohm 1/16W 0805 03 03 Res. R3,R6,R7 1 Kohm 1/16W 0805 04 01 Res. R5 4,7 Kohm 1/16W 0805 05 01 Res. R8 100 Kohm 1/16W 0805 06 01 Res. R9 680 ohm 1/16W 0805 07 01 Res. R10 470 ohm 1/16W 0805 08 01 Res. R13 470 Kohm 1/16W 0805 09 01 Cond. cer. C1 100 KpF 50 V 0805 10 01 Cond. cer. C2 15 pF 50 V 0805 11 02 Cond. cer. C3 4,7 pF 50 V 0805 12 01 Cond. cer. C4 10 pF 50 V 0805 13 01 Cond. cer. C5 4,7 - 5,6 pF 50 V 0805 14 02 Cond. cer. C6 15 - 10 pF 50 V 0805 15 01 Cond. cer. C7 100 1/16W 0805 16 01 Cond. cer. C10 180 pF 50 V 0805 17 01 Cond. cer. C8 3,9 - 4,7 pF 50V 0805 18 01 Cond. cer. C9 1,5 - 3,3 pF 50V 0805 19 01 Ind. L1 22 nH 1210 20 01 Ind. L2 47 nH 1210 21 04 Diode D1/D4 BAV 70 70 V SOT 23 22 01 Diode Led DL1 LS R976 Hyper Red 0805 23 01 Diode Zener DZ1 5,6V 1/2W SOD 80 24 01 I.C. U1 PIC16F630-I/SN SOIC14 25 01 Transistor. TR1 BC 857B PNP SOT 23 26 02 Transistor. TR2,TR3 BC 817B NPN SOT 23 27 01 Transistor. TR4 BC 847B NPN SOT 23 28 01 Transistor. TR5 BFR 93A NPN SOT 23 29 01 Resonator QZ1 AVX PARS433.92K-04R 433,92 SM – 2 30 04 keys T1/T4 EVQ PAG 07M TRAD 31 01 Connector CN1 MLX 22035055 5 vie TRAD 32 01 Battery holder DX da c.s. 33 01 Battery holder SX da c.s. 34 01 Alkalin battery 12 V mod. 23A 35 01 Printed circuit FR4 met. Sp. 1,0 mm TX 2190-1 36 01 Plastic bottom TX 2190 37 01 Plastic cover “4 channels version” TX 2190 38 01 Battery plastic cover TX 2190 39 01 “4 channel version” keys cover TX 2190 40 01 Trasparent light diffusor TX 2190 41 01 Test label 42 01 3M omologation label 43 01 9 languages technical manual TX 2190 44 01 Paper box 45 01 Stroke code label 5,5 x 1,5 mm. 46 01 Paper box label 71 x 36 mm. Mod. 029 sheet 1 of 1 date 10 Marzo 2005 Via S. Sabino n° 34 - 60027 Osimo (AN ) ITALY Tel. + 39 071 7132758 r.a. Fax: + 39 071 7131937 www.seav.com e-mail: [email protected] BILL OF MATERIAL 2 CHANNEL “ TXS 2190 “ 433,92 MHZ 01 01 Res. R1 47 Kohm 1/16W 0805 02 02 Res. R2,R4 100 Kohm 1/16W 0805 03 03 Res. R3,R6,R7 1 Kohm 1/16W 0805 04 01 Res. R5 4,7 Kohm 1/16W 0805 05 01 Res. R8 300 Kohm 1/16W 0805 06 01 Res. R9 11 Kohm 1/16W 0805 07 01 Res. R10 470 ohm 1/16W 0805 08 01 Res. R13 470 Kohm 1/16W 0805 09 01 Cond. cer. C1 100 KpF 50 V 0805 10 01 Cond. cer. C2 15 pF 50 V 0805 11 02 Cond. cer. C3,C9 3,9 pF 50 V 0805 12 01 Cond. cer. C4 22 pF 50 V 0805 13 01 Cond. cer. C5 5,6 pF 50 V 0805 14 02 Cond. cer. C6,C8 1,5 pF 50 V 0805 15 01 Cond. cer. C7 8,2 pF 50 V 0805 16 01 Cond. cer. C10 180 pF 50 V 0805 17 01 Ind. L1 22 nH 1210 18 01 Ind. L2 47 nH 1210 19 02 Diode D1,D2 BAV 70 70 V SOT 23 20 01 Diode Led DL1 LS R976 Hyper Red 0805 21 01 Diode Zener DZ1 5,6V 1/2W SOD 80 22 01 I.C. U1 PIC16F630-I/SN SOIC14 23 01 Transistor. TR1 BC 857B PNP SOT 23 24 02 Transistor. TR2,TR3 BC 817B NPN SOT 23 25 01 Transistor. TR4 BC 847B NPN SOT 23 26 01 Transistor. TR5 BFR 93A NPN SOT 23 27 01 Resonator QZ1 AVX PARS433.92K-04R 433,92 SM – 2 28 02 Keys T1,T2 EVQ PAG 07M TRAD 29 01 Connector CN1 MLX 22035055 5 vie TRAD 30 01 Battery holder DX da c.s. 31 01 Battery holder SX da c.s. 32 01 Alkalin battery 12 V mod. 23A 33 01 Printed circuit FR4 met. Sp. 1,0 mm TX 2190-1 34 01 Bottom plastic cover TX 2190 35 01 “2 channel version” plastic cover TX 2190 36 01 Battery plastic cover TX 2190 37 01 “2 channel version” keys cover TX 2190 38 01 Trasparent light diffusor TX 2190 39 01 Test label 40 01 3M omologation label 41 01 9 languages technical manual TX 2190 42 01 Paper box 43 01 Strokes codes label 5,5 x 1,5 mm. 44 01 Paper box label 71 x 36 mm. Mod. 029 sheet 1 of 1 date 10 Marzo 2005

TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 5 5 . . 5 5 2 2 4 4 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edit. 2.0 sheet 1 of 21 Issue date: 16/05/2005 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : TRANSMITTER Series: TXS 2190 Model: BE SMART S4 DERIVED MODEL : Modello derivato :: Model: BE SMART S2 REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: SEAV S.R.L. • Mr.: Sig.ra.: ING. DOMENICHETTI CLAUDIA • Address: Indirizzo: VIA SAN SABINO, 34 – 60027 OSIMO (AN) Tel. : Telefono : +39 0717131729 Telefax: Fax : +39 0717131937 • E-mail: [email protected] Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 12/05/2005 Date of start test: 12/05/2005 Data ricevimento campioni: Data inizio prove: Date of end test: 13/05/2005 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Nobody / Nessuno ......................................................... .......................................................... Luca Casiraghi .......................................................... Roberto Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director. La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio. TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 5 5 . . 5 5 2 2 4 4 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edit. 2.0 sheet 2 of 21 Issue date: 16/05/2005 0 0 C C O O N N T T E E N N T T S S Page RevDate 0. CONTENTS..........................................................................................................2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ........3 1.1 Identification .........................................................................................................3 1.2 EUT Classification........................................................................................3 1.3 Modifications incorporated in E.U.T ............................................................3 1.4 Ports identification. .......................................................................................4 1.5 Operating test modes and test Conditions.....................................................5 2. TEST CONDITIONS ...........................................................................................6 2.1 Operating test modes and test conditions......................................................6 3. REFERENCE STANDARD FOR PERFORMED TESTS ..................................6 4. Summary of test results.........................................................................................7 4.1 Emission Tests ..............................................................................................7 4.2 Emission limits .............................................................................................7 5. TEST RESULTS...................................................................................................8 6. EUT TECHNICAL DOCUMENTATION .........................................................17 6.1 Wiring diagrams .........................................................................................17 6.2 Technical manual ........................................................................................17 6.3 Photographic documentation ......................................................................18 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 16/05/05 TEST REPORT E E L L E E C C T T R R O O M M A A G G N N E E T T I I C C C C O O M M P P A A T T I I B B I I L L I I T T Y Y T T E E S S T T E E M M C C . . T T R R . . 0 0 5 5 . . 5 5 2 2 4 4 Prima Ricerca & Sviluppo Srl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edit. 2.0 sheet 3 of 21 Issue date: 16/05/2005 1 TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 E.U.T. identification Brand name: SEAV S.R.L. Manufacturer : SEAV S.R.L. Model name or No. : BE SMART S4 Part number / Serial No.: Not present Country of manufacturer: ITALY 1.2 E.U.T. classification R&TTE category : Transmitter 433,92 MHz Supply voltage: 12 Vdc internal battery Input Power / Current : 25 mA Single or Multiple Unit : Single EUT Dimensions : 70 x 35 x 13 mm Temperature: -20°C ÷ +55°C 1.3 Modifications incorporated in E.U.T. The fo…
