QUX-URC-830-2Universal Receiver

3M Resident Monitoring 7170 W. Donges Bay Road Toll Free: 800-606-0661 Mequon, WI 35092 Office: 414-358-8200 Fax: 414-358-8100 www.3m.com/residentmonitoring Copyright  2012 all rights reserved This document contains information that is proprietary to Attenti Ltd. No part of this publication may be reproduced in any form whatsoever without prior written approval by Attenti. Universal Receiver USER MANUAL URC-830 3M Resident Monitoring Universal Receiver User Manual Page: 2 of 6 TABLE OF CONTENTS 1 Foreword............................................................................................................................................................ 3 1.1.1 Device Selection for relay activation .......................................................................................... 3 1.1.2 System is down command and message ................................................................................... 3 2 FCC Notices ...................................................................................................................................................... 6 3M Resident Monitoring Universal Receiver User Manual Page: 3 of 6 1 FOREWORD The URC-830 should be an external powered device with battery backup, which is designed for use in areas covered by the 3M Resident Monitoring AMS system. The URC-830 will replace the existing method of hard wiring pull cords to corridor lights. 1.1 Device Selection for relay activation The serial number of up to 5 devices (PB, PT, PC, FDU, and UTX) may be defined within the application to match a single relay in a Universal Receiver. When one or more of the 5 (maximum of 5 devices only) devices are activated, the radio frequency transmission is picked up by the Universal Receiver and its internal relay contact changes state to provide a 30VDC flow of power to illuminate the corridor light or to active other alert devices. A set of other 5 HF devices may activate the second relay of the same URC. Inversely, when the all of PB, PT, PC, FDU, and UTX is reset, the Universal Receiver receives the Reset message and disengages the internal relay effectively dropping power from the corridor light / other alert devices and alarm reset message will be sent to the AMS system. 1.2 System is down command and message Both of the URC-830 device relays can be configured to switching ON when “system is down” message is received. Each of relays can be configured individually or together with special command message to work like system is down relay. With the same command message can be set the system number and time- out for “system is down” alarm message. For the end of system is down alarm can be sent special reset command message, otherwise the “system is down” alarm will be cleared after the fixed time-out expired. 3M Resident Monitoring Universal Receiver User Manual Page: 4 of 6 1.3 Main State Machine The URC-830 have three main operation modes (see state machine diagram below): 1.3.1 Off Mode: Following power up, the URC-830 shall enter to OFF mode until ON mode is initiated. During OFF mode, the URC-830 do not transmits and receives any messages. Following the external power supply plugging the device automatically goes from OFF to ON Mode. Also when device goes to ON mode, it will read the configuration DIP Switch input states. 1.3.2 On Mode: When the URC-830 is in ON mode, the device continuously receives an RF messages and monitors for the alarm status, of a dedicated relay devices. During ON mode, the unit transmits a sanity messages once every 60 minutes with: 1. Supervision 2. Battery Status 3. External Power Source Status In ON mode, the external power supply status LED should lit continuously. The battery status LED can light continuously, when battery status is good, or can blink shortly, when has a low battery status. The data reception status LED lit shortly with each regular data reception. The data transmission LED lit shortly with each data transmission. 3M Resident Monitoring Universal Receiver User Manual Page: 5 of 6 1.3.3 Alarm Mode When one of the listed in the URC-830 device (up to 5 for each relay) sends the alarm transmission to the AMS system, then URC-830 should capture this alarm message and if corresponding device is in list of active devices, then URC-830 should activate corresponding relay, and after then should send three strong alarm activation messages within 1 second. After then URC-830 device starts to transmit strong alarm messages every 20 (18-22) seconds. TX status LED should light shortly with each alarm transmission Alarm Reset When all of active listed devices, for corresponding relay, restores their alarm states, then URC-830 device should transmit three strong alarm reset messages, and if there don’t have other relay alarm activated, devices goes back to On mode. If URC-830 device do not receives an alarm messages from devices in corresponding relay list, within 2 minutes alarm time-out interval, then the URC device should transmit three strong alarm reset messages for corresponding relay alarm, and if there don’t have other relay alarm activated, devices goes back to On mode. When device is in alarm mode and after then the external power source is removed, then device should transmit three strong alarm reset messages and directly goes back to On mode. 3M Resident Monitoring Universal Receiver User Manual Page: 6 of 6 2 FCC NOTICES This note is applicable to the American URC-830 NOTE The Universal Receiver complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential i…

Text truncated - open the document above for the full version.

URC-830 Block Diagram 433.92 MHz

3M Resident Monitoring 2 Habarzel St., +972 3 767 1900 Office P.O. Box 13236 +972 3 767 1901 Fax Tel-Aviv 61131, Israel www.3m.com/residentmonitoring 11.06.2012 FCC Confidentiality Form Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen, This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. HomeFree would like the following documents regarding this submission for FCC ID: QUX-URC-830-2to be kept confidential. • Permanent Confidentiality: Schematics • Short-term Confidentiality (180 days): Installation Manual The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Shai Avigdori Director, Quality Assurance

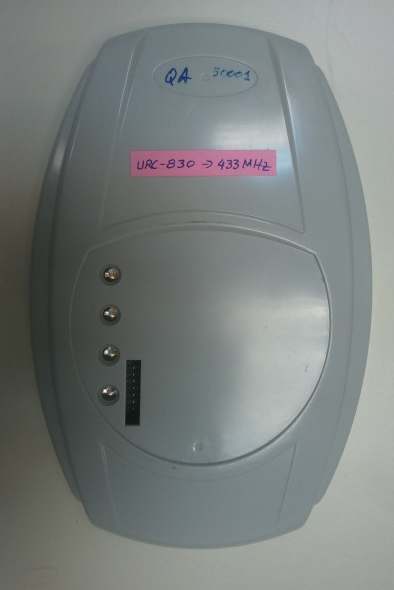

3M Resident Monitoring 2 Habarzel St., +972 3 767 1900 Office P.O. Box 13236 +972 3 767 1901 Fax Tel-Aviv 61131, Israel www.3m.com/residentmonitoring 19.06.2012 External Pictures URC-830-2

Label Location for the URC-830-2

3M Resident Monitoring 2 Habarzel St., +972 3 767 1900 Office P.O. Box 13236 +972 3 767 1901 Fax Tel-Aviv 61131, Israel www.3m.com/residentmonitoring 19.06.2012 Internal Pictures URC-830-2

3M Resident Monitoring 2 Habarzel St., +972 3 767 1900 Office P.O. Box 13236 +972 3 767 1901 Fax Tel-Aviv 61131, Israel www.3m.com/residentmonitoring 11.06.2012 URC-830 Universal Receiver Operational Description The URC-830 is a wall mounted external alarm siren and corridor light switching device for use in various resident monitoring sites and applications. The URC-830 will replace the existing method of hard wiring pull cords to corridor lights. The URC-830 device receives an alarm messages from various resident monitoring devices and turns ON/OFF the corridor light and/or alarm sirens and sends a status or alarm messages back to the AMS system. The URC-830 has two separate device channels, each with dedicated alarm relay, and separate device list. Each device list can be updated (added or cleared) from the AMS system with special commands. Additionally each of device list relay can be assigned like a “System Down” alarm relay. Then the device starts to receive a pager messages and can be turn ON/OFF the alarm relay, depending of the received pager message type. The URC device supports the following commands from the AMS system: 1. Clear and Add devices 1 – Command to clear and add the up to three new devices to device list 1; 2. Clear and Add devices 2 – Command to clear and add the up to three new devices to device list 2; 3. Add device 1 – Command to add the up to three new device to device list 1; 4. Add device 2 – Command to add the up to three new device to device list 2; 5. Read URC device – command to read the single device (with type and ID) from device list 1 or device list 2; 6. Enable/disable system down message – Command to enable or disable the each alarm relay for “System down” message type reception. The URC-830 device transmits the following message types: sanity message - each hour, alarm message – approximately each 18-22 seconds, and acknowledge message – immediately after receiving of the command message from the AMS system. The URC-830 device comprises a 318 or 433 MHz RF transceiver and an integral helical antenna. The unit is powered by a 100-240VAC to 12VDC power adapter and includes an internal 3.6V backup battery.
