QVL-BT815CONTACTLESS SMARTCARD READER

FCC ID: QVL-BT815 Page 1of 7 APPENDIX J TEST SAMPLE MANUAL EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 For further information or to find out more about our range of smart card and biometric solutions, visit BQT Solutions on the web at: www.bqtsolutions.com Alternatively you can contact us at one of our global locations. BT815 MIFARE ACCESS READER INSTALLATION GUIDE Version 2.61 Designed & Manufactured in Australia AUSTRALIA & ASIA PACIFICUNITED KINGDOM & EMEA Level 4, 65 Epping RoadGlobal House,1 Ashley Avenue, Epsom North Ryde NSW 2113, AustraliaSurrey KT 18 5AD United Kingdom phone:+61 (0)2 8817 2800 phone: + 44 (0)20 8823 9350 fax:+61 (0)2 8817 2811fax:+ 44 (0)20 8823 9001 email: [email protected]:[email protected] AMERICASCHINA 15030 Ventura Blvd., Ste. 19-798Suite 1208-1209, Offshore Oil Tower Sherman Oaks, CA 91403583 LingLing Rad, ZuHui District United States of AmericaShanghai, P.R. CHINA 20030 phone:+1 818 994 6888 phone:+86 (21) 5425 5935 fax:+1 818 994 0225fax:+86 (21) 5425 5936 email:[email protected] email:[email protected] NOTE: Information contained in this document is subject to change without notice. Copyright © 2005 BQT Solutions Limited. All rights reserved. BQT Solutions and the BQT Solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd. Mifare is a registered trademark of Philips Electronics. bt815 _8wire_v2.61: Last revised April 2005 WIRING SCHEMATIC NOTE:The 0V or GND reference cable shall be included within the controller cable. The 12Vdc power cable shall NOT be included in the controller Cable. REGULATORY INFORMATION CE Mark The BT815has passed all relevant tests and obtained CE approval. C Tick The BT815 has passed all relevant requirements for application of C Tick. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressively approved by BQT Solutions could void the user's authority to operate this equipment. Designed & Manufactured in Australia RED +12Vdc BLACK GND YELLOW BUZ ORANGE LED GREEN W0 WHITE W1 BROWN/W* T1 BROWN/W* T2 GND BUZ LED Reader Connection Power Supply Controller +12Vdc 0V Power Cable Controller Cable W0 NOTE: If used with a shielded cable, the shield is connected to Building GND. W1 * Tamper cable connection is optional. INTRODUCTION Thank you for purchasing the BT815 Mifare ® Contactless Smart Card Access Reader. The BT815 is used in security applications and interfaces into Wiegand applications. The BT815 is preset with specific 'Keys'. Valid smart cards are issued with the same 'Keys'. This ensures that the system cannot be compromised. The reader incorporates a LED to provide feedback to a person wishing to enter. The LED is controlled by the security system. The BT815 is low profile and can be installed in new installations or as an upgraded reader in existing proximity access control systems. INSTALLATION Remove the cover by holding the unit by the rim and pushing the reader out with your thumbs. - 1 - - 10 - If necessary, drill holes for the mounting screws in the wall or mounting box on which the reader unit will be placed. Use the template provided. 1.Place the controller and power supply cable through the Grommit hole. 2.Drill the holes as indicated by the arrows. NOTE: Make sure that you don't drill through the cable. Check your circuit diagram for the colour coding of the circuit wiring. The reader can be damaged beyond repair if the wiring is connected incorrectly. Read the instructions on the next page first. 30 30 WARRANTY The BT815 comes with a 5 year warranty from the date of dispatch from BQT Solutions. The warranty is void if the instructions contained within this manual have not been adhered to. See the BQT Solutions website for further terms and conditions. SPECIFICATIONS Reader Output Wiegand Power requirements 12Vdc Current Consumption Normal 110mA Activated 120mA Read range 20 - 60mm (0.8” – 2.4”)(typically) Operating temperature -10ºC to +55ºC (14ºF to 131ºF) Relative humidity 90% max, operating non-condensing Reader dimensions 90mm x 90mm x 20mm (3.54" x 3.54" x 0.79") Status LED’s Green and Red Audible tone Tone on matching software key and wired external buzzer control Colour Charcoal & Ivory IP rating IP 67 Wall View - 9 -- 2 - EXTERNAL USE Mount the reader on a suitable external single gang surface mount box. Make sure that the wire bundle to the BT815 has an IP rating of at least IP67. Use warming pads if the temperature of the reader is expected to fall below -10ºC (14ºF). HANDLING Handle the BT815 with care. Do not damage/drop unit before installation. The reader unit will no…

Text truncated - open the document above for the full version.

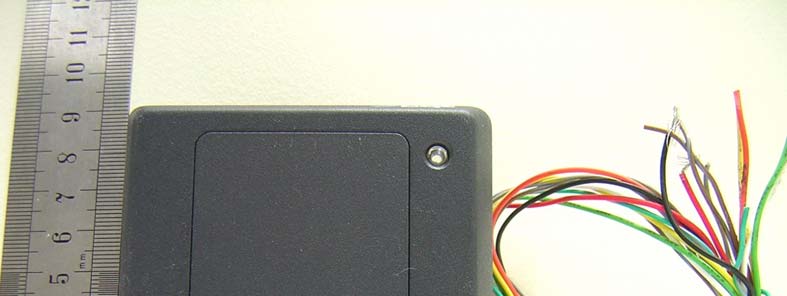

FCC ID: QVL-BT815 Page 1 of 3 APPENDIX B2 PHOTOGRAPHS – TEST SAMPLE EXTERIOR EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815 Page 2 of 3 APPENDIX B2 PHOTOGRAPHS – TEST SAMPLE EXTERIOR Power Supply EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815 Page 3 of 3 APPENDIX B2 PHOTOGRAPHS – TEST SAMPLE EXTERIOR Power Supply Cont’d EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050

FCC ID: QVL-BT815 Page 1of 3 APPENDIX H TEST SAMPLE LABELLING LOCATION EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Location of Label – all 3 products BT815, BT817 and MiP5 Label material is MYLAR. It’s a self-adhesive and permanent when applied. Location and size of label

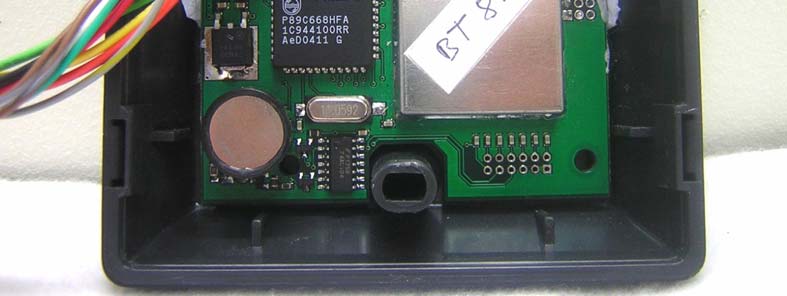

FCC ID: QVL-BT815 Page 1 of 3 APPENDIX B3 PHOTOGRAPHS – TEST SAMPLE INTERIOR EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815 Page 2 of 3 APPENDIX B3 PHOTOGRAPHS – TEST SAMPLE INTERIOR EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815 Page 3 of 3 APPENDIX B3 PHOTOGRAPHS – TEST SAMPLE INTERIOR EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050

Page 1 of 22 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 EMI TEST REPORT for CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER FCC ID:QVL-BT815 Manufacturer:BQT Solutions Test Sample:Contactless Smartcard Reader Model:BT815 Serial No:None Date:18 th May 2005 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, interferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 FCC ID: QVL-BT815Report No. T50314_F Page 2 of 22 EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION FOR CERTIFICATION OF FCC Part 15.225 & FCC PART 15.207 TRANSMITTER FCC ID: QVL-BT815 EMC Technologies Report No. T50314_F Date: 18 th May 2005 CONTENTS 1. SUMMARY of TEST RESULTS 2. GENERAL INFORMATION 3. CONDUCTED EMI RESULTS 4. RADIATED EMI RESULTS 5. FREQUENCY TOLERANCE 6. CONCLUSION APPENDIX A. MEASUREMENT INSTRUMENTATION DETAILS APPENDIX B. PHOTOGRAPHS APPENDIX C. BLOCK DIAGRAM APPENDIX D. OPERATIONAL DESCRIPTION APPENDIX E. TEST SAMPLE SCHEMATICS APPENDIX F. TEST SAMPLE PCB LAYOUTS APPENDIX G. TEST SAMPLE TEST PLAN APPENDIX H. LABELLING – LOCATION APPENDIX I. GRAPHS of EMI MEASUREMENT APPENDIX J. INSTALLATION (USER) MANUAL FCC ID: QVL-BT815Report No. T50314_F Page 3 of 22 EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION OF FCC PART 15.225 & FCC PART 15.207 TRANSMITTER Report Number: T50314_F Test Sample Name: Contactless Smartcard Reader Model Number: BT815 Serial Number: None FCC ID: QVL-BT815 Manufacturer: BQT Solutions Tested For: BQT Solutions Limited Address: Level 4, 65 Epping Road North Ryde NSW 2113 Phone: (02) 8817 2800 Fax: (02) 8817 2811 Responsible Party: Mr Chris Blake Test Standards:FCC Part 15.225 Intentional Radiators FCC Part 15.207 Conducted Limits ANSI C63.4:2003 OET Bulletin No. 65 Test Dates: 12/01/05 and 24/05/05 Testing Officers: Jodie FoyleBruce Holdsworth Gerald Gidah Attestation:I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: Les Dickenson Branch Manager EMC Technologies Pty Ltd Issued by EMC Technologies Pty Ltd, Unit 3/87 Station Road, Seven Hills, NSW, 2147, Australia. Phone: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815Report No. T50314_F Page 4 of 22 EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER on the Contactless Smartcard Reader 1. SUMMARY of RESULTS This report details the results of EMI tests and measurements performed on the Contactless Smartcard Reader, Model: BT815, in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Rules for intentional radiators. All results are detailed in this report. Part 15.31e Amplitude stability with supply variation:Complied Part 15.207 Conducted Emissions:Complied Part 15.225 a, b &c Carrier Signal Field Strength 13.110 – 14.010MHz:Complied Part 15.225 d (15.209) Field Strength Outside 13.110 – 14.010MHz:Complied Part 15.225 e Frequency Tolerance:Complied 2. GENERAL INFORMATION 2.1General Description of Test Sample Manufacturer:BQT Solutions Test Sample:Contactless Smartcard Reader Model:BT815 Serial No:None FCC ID:QVL-BT815 Equipment Type:Intentional Radiator 2.2 Test Sample Functional Description The BQT BT815 is a contactless smartcard reader designed for keyless entry and other personnel identification and entry purposes. The BT815 family of products share a common PCB with the models differing only in their firmware. 2.3 Technical Specifications and System Overview Clock Frequencies:MIFARE 13.56MHz ±30ppm MIFARE IF 847.5kHz ±30ppm Processor 11.0592MHz ± 30ppm Microprocessor:Philips P89C668HFA Case Style & Material:Plastic – no metal coating Power Supply:Internal linear 5V regulated External Switch Mode Power Supply, Model # 30D12150P Refer to Appendix G – Test Plan and Appendix J - Installation Guide. FCC ID: QVL-BT815Report No. T50314_F Page 5 of 22 EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 2.4EUT Configurations The BT815 is to be tested on a table top in the configuration shown in Figure 2 (Appendix G – Customer Test Plan). The cable lengths on the table shall comply with the minimum required under the standard. The BT815 will be connected to a Controller and Power su…

Text truncated - open the document above for the full version.

FCC ID: QVL-BT815 Page 1of 9 APPENDIX I GRAPHS of EMI MEASUREMENTS Conducted Emissions: Graph 1: Active Line 0.145 to 30.5 MHz antenna terminals connected to antenna Graph 2: Neutral Line 0.145 to 30.5 MHz antenna terminals connected to antenna Graph 3: Active Line 0.145 to 30.5 MHz antenna terminals terminated Graph 4: Neutral Line 0.145 to 30.5 MHz antenna terminals terminated Radiated Emissions: Graph 5: Ambients 0.009 to 30 MHz Graph 6: Carrier 13.55 to 13.57 MHz Graph 7: Vertical Polarisation 29 to 1000 MHz Graph 8: Horizontal Polarisation 29 to 1000 MHz EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T50314F Test Date: 24/5/05 GRAPH No. 1 p:\PCF\T50314f_1.PCF EMC Technologies (Sydney) 16/6 Gladstone Rd , Castle Hill , NSW, 21 53 , NSW, Australia Phone +(612) 9899 4599 Fax+(612) 9899 4019 BQT Solutions Limited Smart Card Reader Model: BT815 Antenna terminals connected to antenna. Conducted Emissions (dBuV) T50314Cx Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Active Line 1 2 3 Ver 5.5 Build 107Generic file for any test. t:L0110705 c1:C0020905 c2:NONE p:NONE a:L0030705Site ID: Syd Room#2 Test Officer:Jodie Foyle Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.158 63.4 60.4 65.6 -5.1 54.2 55.6 -1.4 2 13.56 44.2 43.3 60.0 -16.7 43.5 50.0 -6.5 3 22.12 40.5 39.7 60.0 -20.3 39.9 50.0 -10.1 4 0.328 47.2 43.7 59.5 -15.9 37.6 49.5 -11.9 5 0.318 47.4 43.9 59.8 -15.8 37.1 49.8 -12.7 6 0.496 38.9 35.0 56.1 -21.0 31.2 46.1 -14.9 7 0.475 39.2 35.5 56.4 -20.9 31.2 46.4 -15.2 8 0.487 39.1 36.3 56.2 -20.0 28.1 46.2 -18.1 9 0.639 34.5 31.1 56.0 -24.9 27.5 46.0 -18.5 10 27.12 32.7 29.3 60.0 -30.7 28.8 50.0 -21.2 11 0.816 32.4 24.4 56.0 -31.6 19.1 46.0 -26.9 12 1.327 32.3 27.7 56.0 -28.3 19.0 46.0 -27.0 13 1.652 32.7 28.8 56.0 -27.2 17.7 46.0 -28.3 14 1.603 32.5 28.4 56.0 -27.6 17.4 46.0 -28.6 15 0.946 31.3 23.9 56.0 -32.1 15.8 46.0 -30.2 16 2.891 34.3 29.6 56.0 -26.4 15.4 46.0 -30.6 Frequency (MHz) 1 10 .145 30.5 0 10 20 30 40 50 60 70 80 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T50314F Test Date: 11/03/05 GRAPH No. 2 p:\PCF\T50314f_2.PCF EMC Technologies (Sydney) 16/6 Gladstone Rd, Castle Hill, NSW, 2153, NSW, Australia Phone +(612) 9899 4599 Fax+(612) 9899 4019 BQT Solutions Limited Smart Card Reader Model: BT815 Antenna terminals connected to antenna. Conducted Emissions (dBuV) T50314Cx Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Neutral Line 4 5 6 Ver 5.5 Build 107Generic file for any test. t:L0110705 c1:C0020905 c2:NONE p:NONE a:L0030705Site ID: Syd Room#2,Test Officer:Kumar Thambiaiah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 51.5 51.0 60.0 -9.0 51.3 50.0 1.3 2 0.158 61.7 58.4 65.6 -7.1 53.6 55.6 -2.0 3 22.12 40.7 40.0 60.0 -20.0 40.2 50.0 -9.8 4 0.321 45.5 41.9 59.7 -17.8 36.2 49.7 -13.5 5 0.330 45.5 41.8 59.5 -17.7 35.1 49.5 -14.4 6 0.476 36.9 32.7 56.4 -23.7 25.9 46.4 -20.5 7 1.655 34.3 30.6 56.0 -25.4 19.8 46.0 -26.2 8 0.644 30.1 22.6 56.0 -33.4 18.2 46.0 -27.8 9 1.589 33.7 29.4 56.0 -26.6 17.3 46.0 -28.7 10 2.146 34.3 30.1 56.0 -25.9 17.2 46.0 -28.8 11 2.468 34.8 31.2 56.0 -24.8 17.0 46.0 -29.0 12 2.568 34.2 29.0 56.0 -27.0 17.0 46.0 -29.0 13 0.639 30.0 25.0 56.0 -31.0 16.7 46.0 -29.3 14 2.070 33.9 28.9 56.0 -27.1 16.2 46.0 -29.8 15 2.646 34.0 29.8 56.0 -26.2 15.9 46.0 -30.1 16 1.970 33.1 29.6 56.0 -26.4 14.7 46.0 -31.3 Frequency (MHz) 1 10 .145 30.5 0 10 20 30 40 50 60 70 80 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T50314F Test Date: 11/03/05 GRAPH No. 3 p:\PCF\T50314f_3.PCF EMC Technologies (Sydney) 16/6 Gladstone Rd, Castle Hill, NSW, 2153, NSW, Australia Phone +(612) 9899 4599 Fax+(612) 9899 4019 BQT Solutions Limited Smart Card Reader Model: BT815 Antenna terminals terminated. Conducted Emissions (dBuV) T50314Cx Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Active Line 7 8 9 Ver 5.5 Build 107Generic file for any test. t:L0110705 c1:C0020905 c2:NONE p:NONE a:L0030705Site ID: Syd Room#2Test Officer:Kumar Thambiaiah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.283 47.8 45.7 60.7 -15.0 36.3 50.7 -14.4 2 0.416 38.5 37.1 57.5 -20.4 27.0 47.5 -20.5 3 0.561 35.4 32.2 56.0 -23.8 22.2 46.0 -23.8 4 2.843 32.6 29.9 56.0 -26.2 11.6 46.0 -34.4 5 3.049 30.9 28.4 56.0 -27.6 7.5 46.0 -38.5 6 1.663 29.6 28.2 56.0 -27.8 9.6 46.0 -36.4 7 1.419 31.0 28.2 56.0 -27.8 13.5 46.0 -32.5 8 2.977 31.4 28.0 56.0 -28.0 10.9 46.0 -35.1 9 0.696 29.7 28.0 56.0 -28.0 16.6 46.0 -29.4 10 22.12 31.3 31.4 60.0 -28.6 31.3 50.0 -18.7 11 2.558 30.4 26.9 56.0 -29.1 9.8 46.0 -36.2 12 2.715 29.3 26.8 56.0 -29.2 10.7 46.0 -35.3 13 0.838 29.0 26.5 56.0 -29.5 14.8 46.0 -31.2 14 1.841 28.9 25.9 56.0 -30.2 10.3 46.0 -35.7 15 1.946 27.7 25.8 56.0 -30.2 9.7 46.0 -36.3 16 1.139 29.1 25.2 56.0 -30.8 12.7 46.0 -33.3 Frequency (MHz) 1 10 .145 30.5 0 10 20 30 40 50 60 70 80 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T50314F Test Date: 11/03/05 GRAPH No. 4 …

Text truncated - open the document above for the full version.

FCC ID: QVL-BT815 Page 1of 11 APPENDIX G TEST SAMPLE TEST PLAN EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMC TEST PLAN For the BQT BT815 SMARTCARD READER Document No.DescriptionByDate DC20701AInitial ReleaseMKH24-Jun-04 DC20701B • Corrected product model details • Added block diagram • Updated product details • Product renamed to BT815 (previously known as BT810) PJJ6-Apr-05 DC20701CChanged model designators as per request from Tony Lee (2-May-05) PJJ2-May-05 DC20701DSeparated block diagrams & operational description from test plan PJJ31-May-05 PROLIFICX AUSTRALIA Pty Ltd ABN 37 658 594 084 Suite G12 National Innovation Centre Australian Technology Park Eveleigh NSW 2015 Australia Phone+61-2-9209-4640 Fax+61-2-9209-4641 Webwww.prolificx.com DC20701D.docPage 2 of 10 TABLE OF CONTENTS 1PRODUCT DESCRIPTION4 2SPECIFICATIONS RELEVANT TO EMC4 3EUT TESTING CONFIGURATION4 4EUT BUILD DETAILS5 5TESTING REQUIRED5 6EMISSIONS TESTING5 6.1Radiated5 6.1.1Classifications5 6.1.2Requirements6 6.1.3Performance Criteria6 6.2Conducted6 6.2.1HARMONIC CURRENT EMISSIONS6 6.2.1.1Requirements6 6.2.2VOLTAGE FLUCTUATIONS AND FLICKER6 6.2.2.1Requirements6 7IMMUNITY TESTING6 7.1Radiated6 7.1.1Requirements6 7.1.2Frequency Range6 7.1.3Field Strength6 7.1.4Performance Criteria7 7.2Conducted7 7.2.1ELECTROSTATIC DISCHARGE TESTING7 7.2.1.1Requirements7 7.2.1.2Types of Discharges7 7.2.1.3Application Points7 7.2.1.4Number of Discharges7 7.2.1.5Severity Level7 7.2.1.6Performance Criteria7 7.2.2ELECTRICAL FAST TRANSIENT BURST TESTING7 7.2.2.1Requirements7 7.2.2.2Lines to be Tested8 7.2.2.3Duration of Test8 7.2.2.4Polarity Of Test Voltage8 7.2.2.5Severity Level8 7.2.2.6Performance Criteria8 7.2.3ELECTRICAL FAST TRANSIENTS BURST TEST8 7.2.3.1Requirements8 7.2.3.2Lines to be Tested8 7.2.3.3Duration of Test8 DC20701D.docPage 3 of 10 7.2.3.4Severity Level8 7.2.3.5Performance Criteria8 7.2.4CONDUCTED RF, Common Mode9 7.2.4.1Requirements9 7.2.4.2Lines to be Tested9 7.2.4.3Frequency Range9 7.2.4.4Severity Level9 7.2.4.5Performance Criteria9 7.2.5VOLTAGE DIPS and INTERRUPTIONS9 7.2.5.1Requirements9 7.2.5.2Voltage Limits9 7.2.5.3Performance Criteria9 8SAFETY9 9SELV9 DC20701D.docPage 4 of 10 1 PRODUCT DESCRIPTION The BQT BT815 is a contactless smartcard reader designed for keyless entry and other personnel identification and entry purposes. The BT815 family of products share a common PCB with the models differing only in their firmware. See table below: ModelInterface BT815-WGWeigand (configurable via setup card) BT815-DWeigand (configurable via cabled interface) A BT815-WG is being provided for testing. The BT815 is powered from a single 12 Volt DC supply and is connected to a generic controller unit for data transfer. Both power supply and data cabling lengths are between 3m and 1200m for a normal installation. 2 SPECIFICATIONS RELEVANT TO EMC Clock FrequenciesMIFARE 13.56MHz +/- 30ppm, MIFARE IF 847.5kHz +/- 30ppm, Processor 11.0592MHz +/-30ppm MicroprocessorPhilips P89C668HFA Case style & materialPlastic – no metal coating Power SupplyInternal linear 5V regulated 3 EUT TESTING CONFIGURATION The BT815 is to be tested on a table top in the configuration shown in Fig.1. The cable lengths on the table shall comply with the minimum required under the particular test standard. The BT815 will be connected to a Controller and Power Supply as shown. These units will be remote from the test table in all testing performed. To replicate the normal operation of the BT815 a suitable smartcard is to be placed upon the reader’s antenna where it will automatically be read repeatedly. DC20701D.docPage 5 of 10 4 EUT BUILD DETAILS Model Number/NameBT815 VersionWG (Weigand) Serial Number PCB Revision(s)PC20702C Software revision(s) ManufacturerBQT Solutions 5 TESTING REQUIRED Emissions RadiatedComment FCC Part 15.209 & 15.225 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 55022 Emissions Conducted FCC Part 15.207 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 61000_3-2Current Harmonics EN 61000-3-3Voltage Fluctuations & Flicker Immunity Radiated EN 61000-4-3RF radiated Immunity Immunity Conducted EN 61000-4-2Electrostatic Discharge EN 61000-4-4Fast Transients EN 61000-4-5Surges EN 61000-4-6Conducted RF EN 61000-4-11Voltage dips & interruptions SELV EN 60950 6 EMISSIONS TESTING 6.1 Radiated 6.1.1 Classifications ClassificationRelevant ClauseClass ProductETSI EN 300 330 / 7.1.41 Transmitter Power2 ReceiverETSI EN 300 330 / 4.1.13 Duty CycleETSI EN 300 330 / 7.52 DC20701D.docPage 6 of 10 6.1.2 Requirements The following tests are to be performed and reported. Transmitter TestRelevant Clause Radiated H-FieldETSI EN 300 330-1 / 7.2.1YES RF Carrier currentN/A Radiated E-fieldN/A Spurious emissionsYES Receiver TestRelevant Clause Adjacent channel selectivityN/A Blocking or desensitisationN/A Receiver spurious radiationETSI EN 300 330-1 / 7.4YES 6.1.3 Performance Criteria The EUT must meet the limits of • ETSI EN 300 330-1 • ETSI EN 300 330-2 • ETSI EN 301 489-1 [EN 55022]. 6.2 Conducted 6.2.1 HARMONIC CURRENT EMISSIONS 6.2.1.1 Requirements Testing is to be performed using the procedures and criteria contained in EN61000-3-2 and ETSI 301 489. 6.2.2 VOLTAGE FLUCTUATIONS AND FLICKER 6.2.2.1 Requirements Testing is to be performed using the procedures and criteria contained in EN61000-3-3 and ETSI 301 489. 7 IMMUNITY TESTING 7.1 Radiated 7.1.1 Requirements Testing is to be performed using the procedures and criteria contained in EN61000-4-3 and ETSI 301 489. 7.1.2 Frequency Range 80 to 1000 and 1400 to 2000 MHz with a step increment of 1% of the current test frequency. 7.1.3 Field Strength 3 V/m with 1kHz, 80% amplitude modulation DC20701D.docPage 7 of 10 7.1.4 Performance Criteria The EUT does not provide a continuous communications link and as such under clause 6.3 of ETSI EN 301 489-1 the following performance criteria shall be applied. -Degradation of operation permitted during test. -Erroneous dat…

Text truncated - open the document above for the full version.

FCC ID: QVL-BT815 Page 1 of 2 APPENDIX B1 PHOTOGRAPHS – TEST SETUP Conducted Emissions EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-BT815 Page 2 of 2 APPENDIX B1 PHOTOGRAPHS – TEST SETUP Radiated Emissions EMC Technologies Pty Ltd 3/87 Station Rd Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050
