QVL-BT900PCONTACTLESS SMARTCARD READER

Page 1 of 3 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX L OF TEST REPORT T60823_F USER MANUAL FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 9 series_v2.9 Sep06 Drilling Template Copyright © 2006 BQT Solutions Limited. BQT Solutions and the BQT Solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd. Mifare is a registered trademark of Philips Electronics. Specifications Output protocols Wiegand 26-199 bit, RS485 or custom configurations (model dependent) Power requirements 12Vdc Current consumption Normal 120mA Activated 140mA Read range 20 - 60mm (0.8” – 2.4”)(typically) Operating temperature -25ºC to +65ºC (-13ºF to 149ºF) Relative humidity 90% max, operating non-condensing Reader dimensions 140mm (L) x 45mm (W) x 32mm (D) (5.51” x 1.77” x 1.26”) Status LED’s Green & Red Audible tone Internal or external buzzer control Colour Two toned – Silver & Charcoal IP rating IP 67 Information contained in this document is subject to change without notice. For further technical information visit our website at www.bqtsolutions.com or email [email protected]. Alternatively contact us at one of our global locations UNITED KINGDOM & EMEA Global House, 1 Ashley Avenue, Epsom Surrey KT 18 5AD United Kingdom Phone: + 44 (0)20 8823 9350 Fax: + 44 (0)20 8823 9001 AMERICA 30021 Tomas Street, Suite 300 Rancho Santa Margarita CA 92688 United States of America Phone: +1 877 278 2637 (ext 42) Fax:+1 877 278 2637 AUSTRALIA & ASIA PACIFIC Level 4, 65 Epping Road North Ryde NSW 2113 Australia Phone: +61 (0)2 8817 2800 Fax: +61 (0)2 8817 2811 CHINA Suite 1602, No.75, ShengDa Garden, 2518 LongHua Road, XuHui District, Shanghai 200232, P.R.China Tel: +86-21-5407 3638 Fax: +86-21-5407 3738 DF900 - DESFire BT900 - Mifare miP9 - SPEK CSN9 - Card Serial Number miPASS 9 Series Mifare reader models For all 9 Series readers ● 20mm (0.79”) diameter hole for wire entry ● 2 x 4 mm (0.16”) diameter holes for mounting screws ● Minimum reader dimensions are 140mm x 45 mm (5.51" x 1.77") INSTALLATION GUIDE Version 2.9 Regulatory Information CE Mark The 9 Series has passed all relevant tests and obtained CE approval. C Tick The 9 Series has passed all relevant requirements for application of C Tick. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. BT900D, BT900DG, DF990D, DF900DG FCC ID: QVL - BT900P BT900WG FCC ID: QVL -BT900A miP9, CSN9, BT900W FCC ID: QVL MIP9 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressively approved by BQT Solutions could void the user's authority to operate this equipment. Designed & Manufactured in Australia NOTE: z The 0V reference cable shall be included within the controller cable. z The 12Vdc power cable shall NOT be included in the controller Cable. z Only ONE power source is connected from the reader at any one time. z RS485 - OPTIONAL USE 45mm 62mm ➣ ➣ ➣ ➣ 20mm Ø 4mm Ø 4mm Ø Wiring Schematic Reader connections BUZ LED W0 W1 +12Vdc 0V Power Cable Controller Cable RED +12Vdc BLACK 0V YELLOW BUZ ORANGE LED GREEN W0 WHITE W1 YELLOW/W GREEN/W BT900W, BT900WG miP9, CSN9 RS485A RS485B Power Supply Controller NOTE: If used with a shielded cable, the shield is connected to Controller 0V reference DF900D, DF900DG, BT900D, BT900DG 0V 9 series_v2.9.ai 21/09/2006 10:26:36 AM WALL VIEW (not to scale) Introduction Thank you for purchasing a miPASS 9 Series Mifare Contactless Smart Card Reader. Available in 4 different models catering for all security requirements large or small, whether your projects are price or functionality driven. The 9 Series reader models are: DF900 - DESFire BT900- Mifare (standard) miP9 - BQT SPEK CSN9 - Card Serial Number The 9 Series reader is used in security applications and interfaces into Wiegand applications. The 9 Series reader is preset with specific 'Keys'. Valid smart cards are issued with the same 'Keys'. This ensures that the system cannot be compromised. (No 'Keys" used for CSN9 model) The reader incorporates a LED and Buzzer to provide feedback to a person wishing to enter. The control of these is shared by the reader and sec…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), BQT Solutions (BQT), requests that prior to the equipment authorization grant for the test sample the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by BQT and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to BQT, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. The physical construction of the product involves all circuit boards and internal structures being encased within an epoxy potting compound. As such competitors and the general public would not, under normal circumstances, be able to view or directly examine the circuit boards or the internal structure of the product, further protecting details of the circuit design and layout. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, BQT requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: APPENDIX D_Photographs Test Sample Interior.pdf APPENDIX E_Block Diagram.pdf APPENDIX F_Test Sample Schematic.pdf APPENDIX G_Test Sample PCB Layouts.pdf APPENDIX M_Operational Description.pdf Sincerely Yours, Anthony Lee Operations Manager BQT Solutions (Australia) Pty Ltd ABN 85 072 066 641 A BQT Solutions Limited Company Level 4, 65 Epping Road North Ryde NSW 2113 PO Box 827 NSW 1670 phone: 02 8817 2800 fax: 02 8817 2811 email: [email protected] web: www.bqtsolutions.com 10 th October, 2006

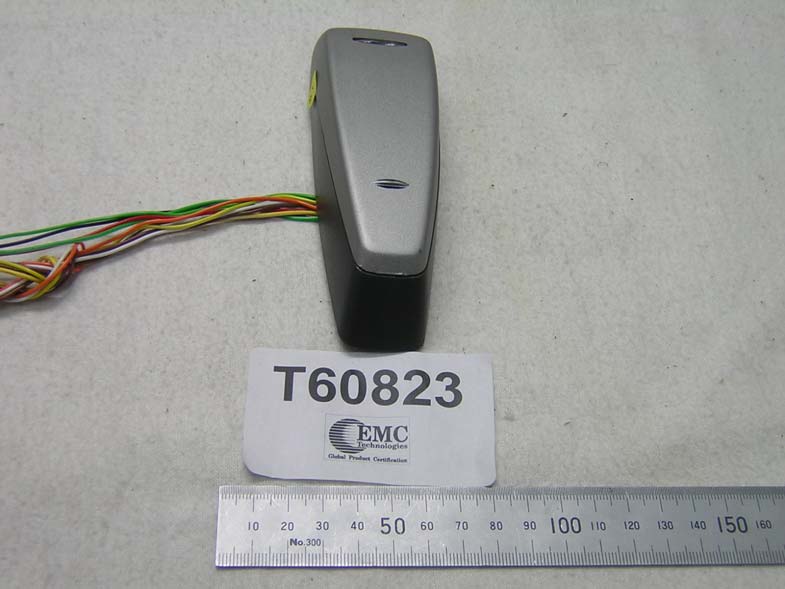

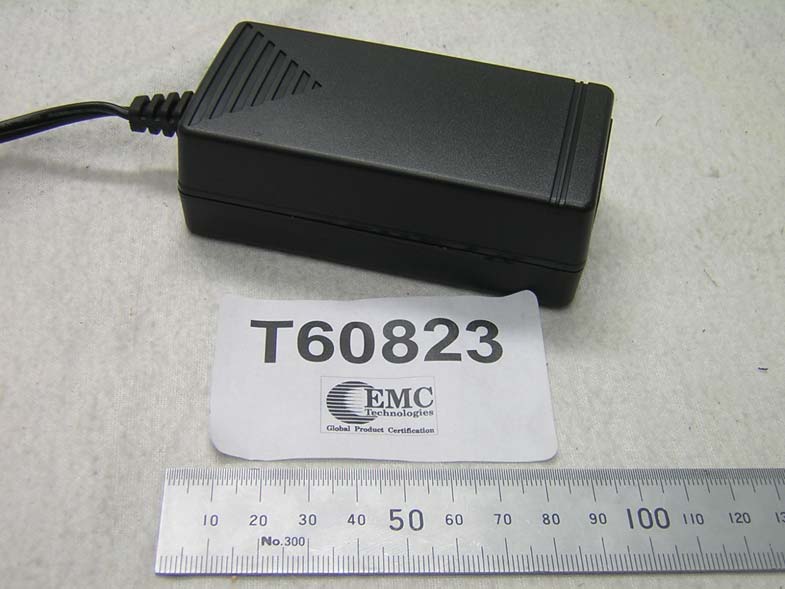

Page 1 of 3 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 9624 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX C OF TEST REPORT T60823_F PHOTOGRAPHS OF TEST SAMPLE (EXTERIOR) FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 FCC ID: QVL-BT900P Report No. T60823_F Appendix C Page 2 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX C1 PHOTOGRAPHS TEST SAMPLE (EXTERIOR) EUT Auxiliary Equipment: Reader Controller FCC ID: QVL-BT900P Report No. T60823_F Appendix C Page 3 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX C2 PHOTOGRAPHS TEST SAMPLE (EXTERIOR) Power Supply

Page 1 of 4 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 962 4 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX I OF TEST REPORT T60823_F LABELLING - LOCATION FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 FCC Label Location – 9 Series Reader ( BT900, 900-PAC, CSN9, MIP9, DF900) FCC Label RED BLACK YELLOW ORANGE WHITE GREEN YELLOW/W GREEN/W +12v GND BUZ LED W1 W0 485A 485B Serial #:BT900-DG FCC ID:QVL-BT900P N12083 www.bqtsolutions.com 012627 RED BLACK YELLOW ORANGE WHITE GREEN YELLOW/W GREEN/W +12v GND BUZ LED W1 W0 485A 485B Serial #:BT900-D FCC ID:QVL-BT900P N12083 www.bqtsolutions.com 012626

Page 1 of 2 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX A OF TEST REPORT T60823_ F MEASUREMENT INSTRUMENTATION DETAILS FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 FCC ID: QVL-BT900P Report No. T60823_F Appendix A Page 2 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX A MEASUREMENT INSTRUMENTATION CALIBRATION DETAILS Equipment Type Make/Model Serial Number Last Cal. DD/MM/YY Due Date DD/MM/YY EMI Receivers HP8546A CISPR Receiver, 9kHz -6GHz S/N: 3549A00288 11/07/06 11/07/07 *2 EMI Receiver ESCI Rohde Schwarz, 9kHz – 3GHz S/N: 100011 31/03/06 31/03/07 *1 Analyzer HP 8593E, 9kHz – 26 GHz S/N 3249A00402 27/09/05 27/09/06 *2 LISN Single Phase: EMCO 3825/2 SN 94112274 16/01/06 16/01/07 *3 LISN Single Phase: Rohde & Schwarz ESH3-Z5 S/N 832479/014 18/01/06 18/01/07 *3 Antenna EMCO 6502 Active Loop S/N 6108-2660, 9 kHz – 30 MHz 29/07/05 29/07/08 *1 Antenna EMCO 3110B Biconical S/N 9603-2350, 20-300 MHz 06/02/06 06/02/07 *3 Antenna EMCO 3146 Log Periodic S/N 9603-4415, 300-1000MHz 06/02/06 06/02/07 *3 Antenna EMCO 3115 Horn Antenna S/N: 3823, 1-18GHz 14/02/05 14/02/08 *3 Preamplifier PRA1G2-35B S/N 659, 30 to 1000 MHz 26/09/05 26/09/06 *3 Preamplifier HP 8449B S/N: 3008A01113, 1-26.5GHz 09/01/06 09/01/07 *3 60Hz Power Source California Instrument, 5001 ix, S/N 57006 15/05/06 15/05/07 *1 Note *1 : National Measurements Laboratory calibration Note *2 : NATA Calibration by Hewlett Packard (Aust) Ltd Note *3 : In-house calibration. Traceable to Australian National Standards. TEST SITES Equipment Type Make/Model Serial Number Last Cal. DD/MM/YY Due Date DD/MM/YY Shielded Room/ Test Laboratory 7.23m × 4.83m × 2.45m N/A N/A Open Area Test Site (OATS) 3/10/30 metre site. 1-4 metre antenna mast. 1.2 metre/1.2 Tonne turntable. (Situated at Upper Colo, NSW) 07/12/06 07/12/07 *3

Page 1 of 12 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 962 4 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX H OF TEST REPORT T60823_F TEST SAMPLE TEST PLAN FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 EMC TEST PLAN For the BQT BT900P SMARTCARD READER Document No.DescriptionByDate DC25504AInitial ReleasePJJ8-Aug-06 DC25505BAdded FCC wiring diagramPJJ18-Sep-06 BQT Solutions Document Release Approval Checked byCheck DateApproved by Approval Date PROLIFICX AUSTRALIA Pty Ltd ABN 37 658 594 084 Suite G12 National Innovation Centre Australian Technology Park Eveleigh NSW 2015 Australia Phone+61-2-9209-4640 Fax+61-2-9209-4641 Webwww.prolificx.com DC25504B.docPage 2 of 11 TABLE OF CONTENTS 1PRODUCT DESCRIPTION4 2SPECIFICATIONS RELEVANT TO EMC4 3EUT TESTING CONFIGURATION4 4EUT BUILD DETAILS5 5TESTING REQUIRED5 6EMISSIONS TESTING5 6.1Radiated5 6.1.1Classifications5 6.1.2Requirements6 6.1.3Performance Criteria6 6.2Conducted6 6.2.1HARMONIC CURRENT EMISSIONS6 6.2.1.1Requirements6 6.2.2VOLTAGE FLUCTUATIONS AND FLICKER6 6.2.2.1Requirements6 7IMMUNITY TESTING6 7.1Radiated6 7.1.1Requirements6 7.1.2Frequency Range6 7.1.3Field Strength6 7.1.4Performance Criteria7 7.2Conducted7 7.2.1ELECTROSTATIC DISCHARGE TESTING7 7.2.1.1Requirements7 7.2.1.2Types of Discharges7 7.2.1.3Application Points7 7.2.1.4Number of Discharges7 7.2.1.5Severity Level7 7.2.1.6Performance Criteria7 7.2.2ELECTRICAL FAST TRANSIENT BURST TESTING7 7.2.2.1Requirements7 7.2.2.2Lines to be Tested7 7.2.2.3Duration of Test8 7.2.2.4Polarity Of Test Voltage8 7.2.2.5Severity Level8 7.2.2.6Performance Criteria8 7.2.3ELECTRICAL FAST TRANSIENTS BURST TEST8 7.2.3.1Requirements8 7.2.3.2Lines to be Tested8 7.2.3.3Duration of Test8 DC25504B.docPage 3 of 11 7.2.3.4Severity Level8 7.2.3.5Performance Criteria8 7.2.4CONDUCTED RF, Common Mode8 7.2.4.1Requirements8 7.2.4.2Lines to be Tested9 7.2.4.3Frequency Range9 7.2.4.4Severity Level9 7.2.4.5Performance Criteria9 7.2.5VOLTAGE DIPS and INTERRUPTIONS9 7.2.5.1Requirements9 7.2.5.2Voltage Limits9 7.2.5.3Performance Criteria9 8SAFETY9 9SELV9 DC25504B.docPage 4 of 11 1 PRODUCT DESCRIPTION The BQT BT900 is a contactless smartcard reader designed for keyless entry and other personnel identification and entry purposes. The BT900 family of products share a common PCB, with the models differing only in their configuration procedures and data interfaces. See table below: ModelInterface BT900-DWiegand (configurable via cabled interface) BT900-DGWiegand (configurable via setup card) The BT900-D and BT900-DG models use a pair of open collector drivers to provide a Wiegand interface. The electrical interfaces for the BT900-D and BT900-DG models are identical. A BT900-D is being provided for testing. The BT900 is powered from a single 12 Volt DC supply and is connected to a generic controller unit for data transfer. Both power supply and data cabling lengths are between 3m and 1200m for a normal installation. 2 SPECIFICATIONS RELEVANT TO EMC Clock FrequenciesMIFARE 13.56MHz +/- 30ppm, MIFARE IF 847.5kHz +/- 30ppm, Processor 11.0592MHz +/-30ppm MicroprocessorPhilips P89C668HFA Case style & materialPlastic – no metal coating Power SupplyInternal linear 5V regulated 3 EUT TESTING CONFIGURATION The BT900 is to be tested on a table top in the configuration shown in Fig.1 and Fig.2. The cable lengths on the table shall comply with the minimum required under the particular test standard. The BT900 will be connected to a Controller and Power Supply as shown. These units will be remote from the test table in all testing performed. To replicate the normal operation of the BT900 a suitable smartcard is to be placed upon the reader’s antenna where it will automatically be read repeatedly. DC25504B.docPage 5 of 11 4 EUT BUILD DETAILS Model Number/NameBT900 VersionD (Wiegand) Serial Number PCB Revision(s)PC25503B (BT900 Rev 5.1) Software revision(s) ManufacturerBQT Solutions 5 TESTING REQUIRED Emissions RadiatedComment FCC Part 15.209 & 15.225 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 55022 Emissions Conducted FCC Part 15.207 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 61000_3-2 Current Harmonics EN 61000-3-3 Voltage Fluctuations & Flicker Immunity Radiated EN 61000-4-3 RF radiated Immunity Immunity Conducted EN 61000-4-2 Electrostatic Discharge EN 61000-4-4 Fast Transients EN 61000-4-5 Surges EN 61000-4-6 Conducted RF EN 61000-4-11 Voltage dips & interruptions SELV EN 60950 6 EMISSIONS TESTING 6.1 Radiated 6.1.1 Classifications ClassificationRelevant ClauseClass ProductETSI EN 300 330 / 7.1.41 Transmitter Power2 ReceiverETSI EN 300 330 / 4.1.13 Duty CycleETSI EN 300 330 / 7.54 DC25504B.docPage 6 of 11 6.1.2 Requirements The following tests are to be performed and reported. Transmitter TestRelevant Clause Radiated H-FieldETSI EN 300 330-1 / 7.2.1YES RF Carrier currentN/A Radiated E-fieldN/A Spurious emissionsYES Receiver TestRelevant Clause Adjacent channel selectivityN/A Blocking or desensitisationN/A Receiver spurious radiationETSI EN 300 330-1 / 7.4YES 6.1.3 Performance Criteria The EUT must meet the limits of • ETSI EN 300 330-1 • ETSI EN 300 330-2 • ETSI EN 301 489-1 [EN 55022]. 6.2 Conducted 6.2.1 HARMONIC CURRENT EMISSIONS 6.2.1.1 Requirements Testing is to be performed using the procedures and criteria contained in EN61000-3-2 and ETSI 301 489. 6.2.2 VOLTAGE FLUCTUATIONS AND FLICKER 6.2.2.1 Requirements Testing is to be performed using the procedures and criteria cont…

Text truncated - open the document above for the full version.

Page 1 of 8 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX K OF TEST REPORT T60823_F GRAPHS OF EMI MEASUREMENT FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 FCC ID: QVL-BT900P Report No. T60823_F Appendix K Page 2 of 8 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX K GRAPHS OF EMI MEASUREMENT CONDUCTED Graph 1: Active Line 0.145 to 30.5 MHz Graph 2: Neutral Line 0.145 to 30.5 MHz RADIATED EMI Graph 3: Magnetic Loop Antenna 9 kHz to 30 MHz Graph 4: Carrier 13.56 MHz 13.552 to 13.568 MHz Graph 5: Vertical Antenna Polarisation 30 to 1000 MHz Graph 6: Horizontal Antenna Polarisation 30 to 1000 MHz EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60823 Test Date: 16-08-2006 GRAPH No. 1 P:\PCF\T60823c_1.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW, 2147, NSW, Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless smart card reader Model No: BT 900 AC Source - 120V/60Hz Conducted Emissions (dBuV) \T60823c Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Active Line 7 8 9 Ver 0.55 Build 120 t:L0110107 c1:C0010906 c2:NONE p:NONE a:L0100407Site ID: Syd Room#2,3/87 Station Rd, Seven Hills, NSW Test Officer:Deepesh Rao Peaks:No Freq Peak QP Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 50.6 50.0 60.0 -10.0 49.3 50.0 -.7 2 22.12 42.0 40.9 60.0 -19.1 40.3 50.0 -9.7 3 0.224 51.7 48.5 62.7 -14.2 38.3 52.7 -14.4 4 0.220 51.9 48.2 62.8 -14.6 37.6 52.8 -15.2 5 0.218 51.8 47.4 62.9 -15.5 36.9 52.9 -16.0 6 0.218 51.9 47.2 62.9 -15.7 36.6 52.9 -16.3 7 27.65 35.7 33.5 60.0 -26.5 33.5 50.0 -16.5 8 16.59 34.4 31.5 60.0 -28.5 31.3 50.0 -18.7 9 0.329 42.1 38.4 59.5 -21.1 29.3 49.5 -20.2 10 15.51 31.5 29.7 60.0 -30.3 29.2 50.0 -20.8 11 0.448 37.6 33.1 56.9 -23.8 23.1 46.9 -23.8 12 2.920 35.7 33.2 56.0 -22.8 20.3 46.0 -25.7 13 2.818 36.4 31.7 56.0 -24.3 19.4 46.0 -26.6 14 1.439 34.5 30.1 56.0 -25.9 18.4 46.0 -27.6 15 3.623 33.0 31.0 56.0 -25.0 18.1 46.0 -27.9 16 1.196 32.5 28.4 56.0 -27.6 17.5 46.0 -28.5 Frequency (MHz) 1 10 .145 30.1 10 20 30 40 50 60 70 80 90 100 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60823 Test Date: 16-08-2006 GRAPH No. 2 P:\PCF\T60823c_2.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW, 2147, NSW, Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless smart card reader Model No: BT 900 AC Source - 120V/60Hz Conducted Emissions (dBuV) \T60823c Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Neutral Line 10 11 12 Ver 0.55 Build 120 t:L0110107 c1:C0010906 c2:NONE p:NONE a:L0100407Site ID: Syd Room#2,3/87 Station Rd, Seven Hills, NSW Test Officer:Deepesh Rao Peaks:No Freq Peak QP Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 46.0 45.3 60.0 -14.7 45.4 50.0 -4.6 2 22.12 42.6 41.4 60.0 -18.6 40.8 50.0 -9.2 3 0.227 50.8 48.3 62.6 -14.3 39.1 52.6 -13.5 4 0.221 51.1 47.9 62.8 -14.9 38.5 52.8 -14.3 5 0.217 51.0 46.4 62.9 -16.5 37.0 52.9 -15.9 6 27.65 35.4 33.8 60.0 -26.2 33.8 50.0 -16.2 7 0.330 42.6 39.5 59.5 -20.0 30.8 49.5 -18.7 8 0.451 37.4 33.2 56.9 -23.6 23.9 46.9 -23.0 9 0.451 37.5 33.1 56.9 -23.7 23.9 46.9 -23.0 10 2.911 37.8 34.0 56.0 -22.0 21.0 46.0 -25.0 11 18.11 32.3 27.5 60.0 -32.5 24.6 50.0 -25.4 12 2.993 37.1 33.7 56.0 -22.3 20.2 46.0 -25.8 13 2.392 36.2 32.3 56.0 -23.7 19.7 46.0 -26.3 14 3.500 33.8 30.1 56.0 -25.9 16.8 46.0 -29.2 15 0.538 31.2 26.3 56.0 -29.7 16.4 46.0 -29.6 16 4.370 33.7 29.4 56.0 -26.6 15.3 46.0 -30.7 Frequency (MHz) 1 10 .145 30.1 10 20 30 40 50 60 70 80 90 100 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60823 Test Date: 14-08-06 GRAPH No. 3 C:\plotting\PCF\T60823f_5.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW, 2147, NSW, Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless Smartcard Reader Model: BT900-D Radiated Emissions (dBuV /m ) rts\AMBeT60823r2 # = Ambient Limits: Legend: Source: _ FCC_loop_3m Fcc Pt15 Subpart C Section 15.209(a) 3Metre Limits __ Ambients __ Emissions 1 2 3 4 1 2 3 4 Ver 5.5 Build 107Colo Radiated Test Setup Active Loop t:A0080408E c1:C0201206 c2:NONE p:NONE a:NONESite ID: OATS#1,1247 Upper Colo Rd. Colo, NSW Test Officer:Bruce Holdsworth Peaks:No Freq Peak Qp Val FCC_loop_3m dL1 (MHz) (dBuV /m) (dBuV /m ) (dB) 1 13.56 45.7 45.4 124.0 -78.6 Frequency (MHz) .1 1 10 .009 30 0 10 20 30 40 50 60 70 80 90 100 110 120 130 v ^ 1 ~ # # # # # # # # # # # # # # # # # # # EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60823 Test Date: 14-08-06 GRAPH No. 4 C:\plotting\PCF\T60823f_6.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW…

Text truncated - open the document above for the full version.

Page 1 of 4 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 9624 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX B OF TEST REPORT T60823_F PHOTOGRAPHS OF TEST SET UP FCC ID: QVL-BT900P Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: BT900-D Serial Number: None Date: 1 st September 2006 FCC ID: QVL-BT900P Report No. T60823_F Appendix B Page 2 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX B1 TEST SETUP PHOTOS Conducted Emissions FCC ID: QVL-BT900P Report No. T60823_F Appendix B Page 3 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX B2 TEST SETUP PHOTOS Radiated Emissions FCC ID: QVL-BT900P Report No. T60823_F Appendix B Page 4 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX B3 TEST SETUP PHOTOS Radiated Emissions Cont’d
