QVL-MIP9CONTACTLESS SMARTCARD READER

Page 1 of 11 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 962 4 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX L OF TEST REPORT T60821_F USER MANUALS FOR THE BQT AND PAC FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: MiP9 and 900-PAC Serial Number: None Date: 29 th August 2006 9 series_v2.8 Aug06 Drilling Template Copyright © 2006 BQT Solutions Limited. BQT Solutions and the BQT Solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd. Mifare is a registered trademark of Philips Electronics. Specifications Output protocols Wiegand 26-199 bit, RS485 or custom configurations (model dependent) Power requirements12Vdc Current consumption Normal 120mA Activated 140mA Read range 20 - 60mm (0.8” – 2.4”)(typically) Operating temperature -25ºC to +65ºC (-13ºF to 149ºF) Relative humidity 90% max, operating non-condensing Reader dimensions140mm (L) x 45mm (W) x 32mm (D) (5.51” x 1.77” x 1.26”) Status LED’s Green & Red Audible tone Internal or external buzzer control Colour Two toned – Silver & Charcoal IP rating IP 67 Information contained in this document is subject to change without notice. For further technical information visit our website at www.bqtsolutions.com or email [email protected]. Alternatively contact us at one of our global locations UNITED KINGDOM & EMEA Global House, 1 Ashley Avenue, Epsom Surrey KT 18 5AD United Kingdom Phone: + 44 (0)20 8823 9350 Fax: + 44 (0)20 8823 9001 AMERICA 30021 Tomas Street, Suite 300 Rancho Santa Margarita CA 92688 United States of America Phone: +1 877 278 2637 (ext 42) Fax:+1 877 278 2637 AUSTRALIA & ASIA PACIFIC Level 4, 65 Epping Road North Ryde NSW 2113 Australia Phone: +61 (0)2 8817 2800 Fax: +61 (0)2 8817 2811 CHINA Suite 1602, No.75, ShengDa Garden, 2518 LongHua Road, XuHui District, Shanghai 200232, P.R.China Tel: +86-21-5407 3638 Fax: +86-21-5407 3738 DF900 - DESFire BT900 - Mifare miP9 - SPEK CSN9 - Card Serial Number miPASS 9 Series Mifare reader models For all 9 Series readers ● 20mm (0.79”) diameter hole for wire entry ● 2 x 4 mm (0.16”) diameter holes for mounting screws ● Minimum reader dimensions are 140mm x 45 mm (5.51" x 1.77") INSTALLATION GUIDE Version 2.8 Regulatory Information CE Mark The 9 Series has passed all relevant tests and obtained CE approval. C Tick The 9 Series has passed all relevant requirements for application of C Tick. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressively approved by BQT Solutions could void the user's authority to operate this equipment. Designed & Manufactured in Australia NOTE:  The 0V reference cable shall be included within the controller cable.  The 12Vdc power cable shall NOT be included in the controller Cable.  Only ONE power source is connected from the reader at any one time.  RS485 - OPTIONAL USE  TAMPER SWITCH AVAILABLE ON REQUEST 45mm 62mm ➣ ➣ ➣ ➣ 20mm Ø 4mm Ø 4mm Ø Wiring Schematic Reader connections BUZ LED W0 W1 +12Vdc 0V Power Cable Controller Cable RED +12Vdc BLACK 0V YELLOW BUZ ORANGE LED GREEN W0 WHITE W1 YELLOW/W GREEN/W BT815 (BT815W or WG) miP5/CSN5 (BT815W ) RS485A RS485B T1 T2 BROWN/W BROWN/W Power Supply Controller NOTE: If used with a shielded cable, the shield is connected to Controller 0V reference DF815/BT815 (BT815D) 0V C M Y CM MY CY CMY K 9 series_v2.8.ai 15/08/2006 11:05:23 AM9 series_v2.8.ai 15/08/2006 11:05:23 AM WALL VIEW (not to scale) Introduction Thank you for purchasing a miPASS 9 Series Mifare Contactless Smart Card Reader. Available in 4 different models catering for all security requirements large or small, whether your projects are price or functionality driven. The 9 Series reader models are: DF900 - DESFire BT900- Mifare (standard) miP9 - BQT SPEK CSN9 - Card Serial Number The 9 Series reader is used in security applications and interfaces into Wiegand applications. The 9 Series reader is preset with specific 'Keys'. Valid smart cards are issued with the same 'Keys'. This ensures that the system cannot be compromised. (No 'Keys" used for CSN9 model) The reader incorporates a LED and Buzzer to provide feedback to a person wishing to enter. The control of these is shared by the reader and secu…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 Subject: Request for Confidentiality for FCC Certification Application Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), BQT Solutions (BQT), requests that prior to the equipment authorization grant for the test sample the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by BQT and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available to BQT, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. The physical construction of the product involves all circuit boards and internal structures being encased within an epoxy potting compound. As such competitors and the general public would not, under normal circumstances, be able to view or directly examine the circuit boards or the internal structure of the product, further protecting details of the circuit design and layout. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, BQT requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant. Exhibits: APPENDIX D_Photographs Test Sample Interior T60821_f.pdf APPENDIX E_Block Diagram T60821_f.pdf APPENDIX F_Test Sample Schematic T60821_f.pdf APPENDIX G_Test Sample PCB Layouts T60821_f.pdf APPENDIX M.pdf Sincerely Yours, Anthony Lee Operations Manager 10 th October, 2006 BQT Solutions (Australia) Pty Ltd ABN 85 072 066 641 A BQT Solutions Limited Company Level 4, 65 Epping Road North Ryde NSW 2113 PO Box 827 NSW 1670 phone: 02 8817 2800 fax: 02 8817 2811 email: [email protected] web: www.bqtsolutions.com

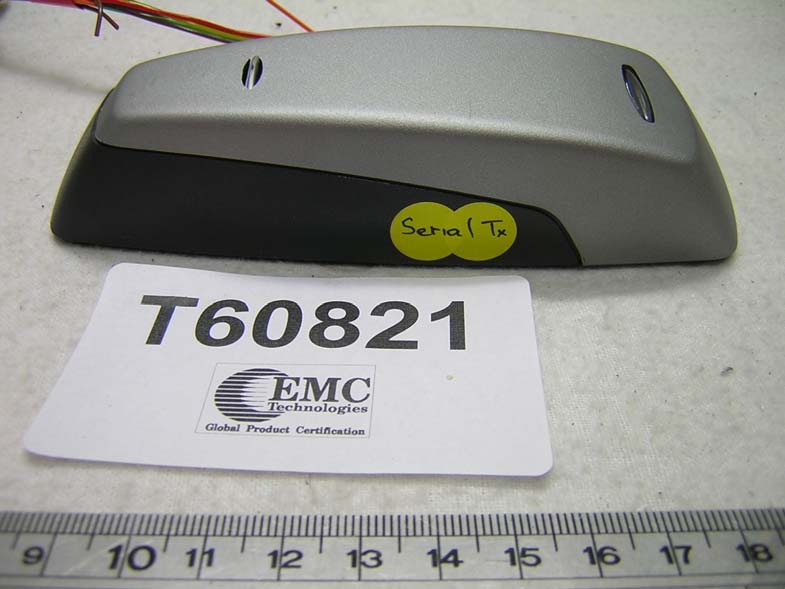

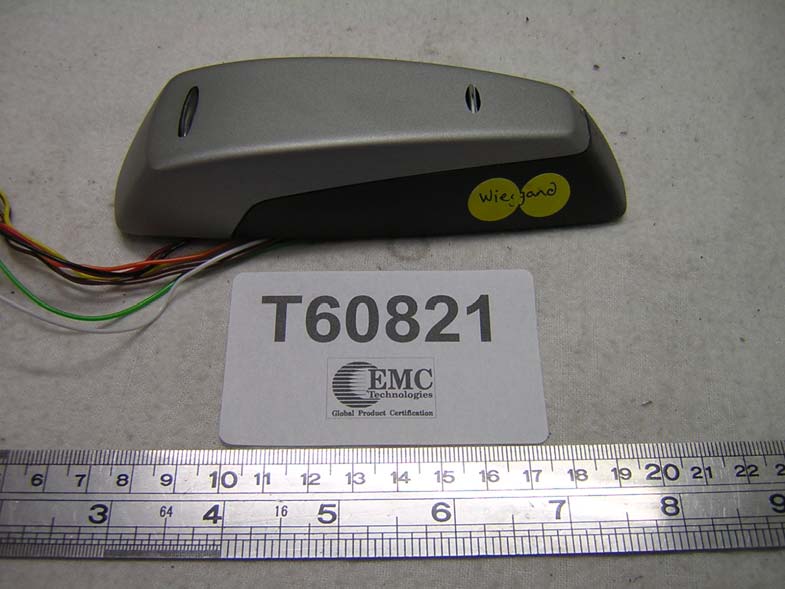

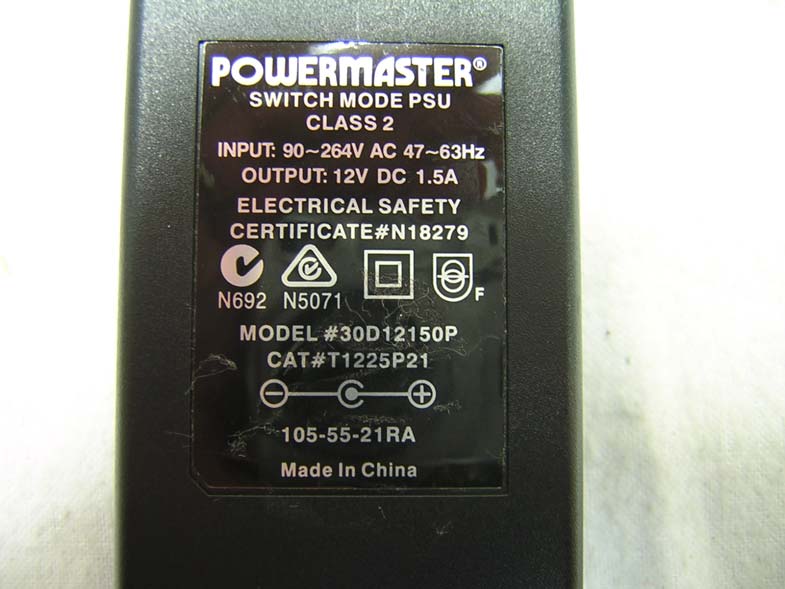

Page 1 of 4 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX C OF TEST REPORT T60821_F PHOTOGRAPHS OF TEST SAMPLE (EXTERIOR) FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: MiP9 and 900-PAC Serial Number: None Date: 29 th August 2006 FCC ID: QVL-MIP9 Report No. T60821_F Appendix C Page 2 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX C1 PHOTOGRAPHS TEST SAMPLE (EXTERIOR) EUT MiP9 EUT 900-PAC FCC ID: QVL-MIP9 Report No. T60821_F Appendix C Page 3 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX C2 PHOTOGRAPHS TEST SAMPLE (EXTERIOR) Power Supply Label FCC ID: QVL-MIP9 Report No. T60821_F Appendix C Page 4 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX C3 PHOTOGRAPHS TEST SAMPLE (EXTERIOR) Auxiliary Equipment: Reader Controller

Page 1 of 2 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 962 4 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX I OF TEST REPORT T60821_F LABELLING - LOCATION FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: MiP9 and 900-PAC Serial Number: None Date: 29 th August 2006 FCC ID: QVL‐MIP9 Label and Location

Page 1 of 12 EMC Technologie s ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 A u Telephone +61 2 962 4 Facsimile +61 2 9838 Email syd@emctech www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX H OF TEST REPORT T60821_F TEST SAMPLE TEST PLAN FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: MiP9 and 900-PAC Serial Number: None Date: 29 th August 2006 EMC TEST PLAN For the BQT MiP9 SMARTCARD READER Document No.DescriptionByDate DC26901AInitial ReleasePJJ24-Jun-05 DC26901BUpdated clock frequency detailsPJJ29-Jun-05 DC26901CAdded RC oscillator frequency detailsPJJ30-Jun-05 DC26901DUpdated PCB revisionPJJ8-Aug-06 DC26901EAdded FCC wiring diagramPJJ18-Sep-06 BQT Solutions Document Release Approval Checked byCheck DateApproved by Approval Date PROLIFICX AUSTRALIA Pty Ltd ABN 37 658 594 084 Suite 213 National Innovation Centre Australian Technology Park Eveleigh NSW 2015 Australia Phone+61-2-9209-4640 Fax+61-2-9209-4641 Webwww.prolificx.com DC26901E.docPage 2 of 11 TABLE OF CONTENTS 1PRODUCT DESCRIPTION4 2SPECIFICATIONS RELEVANT TO EMC4 3EUT TESTING CONFIGURATION4 4EUT BUILD DETAILS5 5TESTING REQUIRED5 6EMISSIONS TESTING5 6.1Radiated5 6.1.1Classifications5 6.1.2Requirements6 6.1.3Performance Criteria6 6.2Conducted6 6.2.1HARMONIC CURRENT EMISSIONS6 6.2.1.1Requirements6 6.2.2VOLTAGE FLUCTUATIONS AND FLICKER6 6.2.2.1Requirements6 7IMMUNITY TESTING6 7.1Radiated6 7.1.1Requirements6 7.1.2Frequency Range6 7.1.3Field Strength6 7.1.4Performance Criteria7 7.2Conducted7 7.2.1ELECTROSTATIC DISCHARGE TESTING7 7.2.1.1Requirements7 7.2.1.2Types of Discharges7 7.2.1.3Application Points7 7.2.1.4Number of Discharges7 7.2.1.5Severity Level7 7.2.1.6Performance Criteria7 7.2.2ELECTRICAL FAST TRANSIENT BURST TESTING7 7.2.2.1Requirements7 7.2.2.2Lines to be Tested7 7.2.2.3Duration of Test8 7.2.2.4Polarity Of Test Voltage8 7.2.2.5Severity Level8 7.2.2.6Performance Criteria8 7.2.3ELECTRICAL FAST TRANSIENTS BURST TEST8 7.2.3.1Requirements8 7.2.3.2Lines to be Tested8 7.2.3.3Duration of Test8 DC26901E.docPage 3 of 11 7.2.3.4Severity Level8 7.2.3.5Performance Criteria8 7.2.4CONDUCTED RF, Common Mode8 7.2.4.1Requirements8 7.2.4.2Lines to be Tested9 7.2.4.3Frequency Range9 7.2.4.4Severity Level9 7.2.4.5Performance Criteria9 7.2.5VOLTAGE DIPS and INTERRUPTIONS9 7.2.5.1Requirements9 7.2.5.2Voltage Limits9 7.2.5.3Performance Criteria9 8SAFETY9 9SELV9 DC26901E.docPage 4 of 11 1 PRODUCT DESCRIPTION The BQT MiP9 is a contactless smartcard reader designed for keyless entry and other personnel identification and entry purposes. The MiP9 family of products share a common PCB, with the models differing only in their data interface configurations. See table below: ModelInterface MiP9Wiegand BT900-WWiegand (Rebadged MiP9) 900-PACSerial Tx The MiP9 and BT900-W models use a pair of open collector drivers to provide a Wiegand interface, whilst the 900-PAC uses only one of these open collector drivers to provide a Serial Tx interface. The electrical interfaces for the MiP9 and BT900-W models are identical, whilst the 900-PAC differs only in that a pull-up resistor (R18) on its Serial Tx output is not fitted. A MiP9 is being provided for testing. So as to gain approval for both interface types (Wiegand & Serial Tx), radiated emissions testing is to be undertaken with the pull-up resistor R18 fitted (Wiegand case) and then re-tested with R18 removed (Serial Tx case). The MiP9 is powered from a single 12 Volt DC supply and is connected to a generic controller unit for data transfer. Both power supply and data cabling lengths are between 3m and 1200m for a normal installation. 2 SPECIFICATIONS RELEVANT TO EMC Clock FrequenciesMIFARE 13.56MHz +/- 30ppm, MIFARE IF 847.5kHz +/- 30ppm, Processor 11.0592MHz +/-30ppm Processor RC Oscillator 7.3728MHz +/-2.5% Processor Watchdog Oscillator 400kHz +20% / -30% MicroprocessorPhilips P89LPC935FDH Case style & materialPlastic – no metal coating Power SupplyInternal linear 5V regulated 3 EUT TESTING CONFIGURATION The MiP9 is to be tested on a table top in the configurations shown in Fig.1 and Fig.2. The cable lengths on the table shall comply with the minimum required under the particular test standard. The MiP9 will be connected to a Controller and Power Supply as shown. These units will be remote from the test table in all testing performed. To replicate the normal operation of the MiP9 a suitable smartcard is to be placed upon the reader’s antenna where it will automatically be read repeatedly. DC26901E.docPage 5 of 11 4 EUT BUILD DETAILS Model Number/NameMiP9 VersionWiegand Serial Number PCB Revision(s)PC26902B (MiP9 Rev 5.1) Software revision(s) ManufacturerBQT Solutions 5 TESTING REQUIRED Emissions RadiatedComment FCC Part 15.209 & 15.225 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 55022 Emissions Conducted FCC Part 15.207 EN 300 330 Part 1 & 2 EN 301 489 Part 1 EN 61000_3-2 Current Harmonics EN 61000-3-3 Voltage Fluctuations & Flicker Immunity Radiated EN 61000-4-3 RF radiated Immunity Immunity Conducted EN 61000-4-2 Electrostatic Discharge EN 61000-4-4 Fast Transients EN 61000-4-5 Surges EN 61000-4-6 Conducted RF EN 61000-4-11 Voltage dips & interruptions SELV EN 60950 6 EMISSIONS TESTING 6.1 Radiated 6.1.1 Classifications ClassificationRelevant ClauseClass ProductETSI EN 300 330 / 7.1.41 Transmitter Power2 ReceiverETSI EN 300 330 / 4.1.13 Duty CycleETSI EN 300 330 / 7.54 DC26901E.docPage 6 of 11 6.1.2 Requirements The following tests are to be performed and reported. Transmitter TestRelevant Clause Radiated H-FieldETSI EN 300 330-1 / 7.2.1YES RF Carrier currentN/A Radiated E-field…

Text truncated - open the document above for the full version.

Page 1 of 14 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 APPENDIX K OF TEST REPORT T60821_F GRAPHS OF EMI MEASUREMENT FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Model: MiP9 and 900-PAC Serial Number: None Date: 29 th August 2006 FCC ID: QVL-MIP9 Report No. T60821_F Appendix K Page 2 of 4 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 APPENDIX K GRAPHS OF EMI MEASUREMENT CONDUCTED Results for the MiP9 Graph 1: Active Line 0.145 to 30.5 MHz Graph 2: Neutral Line 0.145 to 30.5 MHz Results for the 900-PAC Graph 3: Active Line 0.145 to 30.5 MHz Graph 4: Neutral Line 0.145 to 30.5 MHz RADIATED EMI Results for the MiP9 Graph 5: Magnetic Loop Antenna 9 kHz to 30 MHz Results for the 900-PAC Graph 6: Magnetic Loop Antenna 9 kHz to 30 MHz Results for the MiP9 Graph 7: Carrier 13.56 MHz 13.552 to 14.01 MHz Results for the 900-PAC Graph 8: Carrier 13.56 MHz 13.552 to 14.01 MHz Results for the MiP9 Graph 9: Vertical Antenna Polarisation 29 to 1000 MHz Results for the 900-PAC Graph 10: Vertical Antenna Polarisation 29 to 1000 MHz Results for the MiP9 Graph 11: Horizontal Antenna Polarisation 29 to 1000 MHz Results for the 900-PAC Graph 12: Horizontal Antenna Polarisation 29 to 1000 MHz EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60821 Test Date: 17-08-2006 GRAPH No. 1 p:\PCF\T60821_1.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW , 2147, NSW , Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless smart card reader Model No: MiP9 (Wiegard) AC Source - 120VAC 60Hz Conducted Emissions (dBuV) \T60821c Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CO NDUCTED LIMITS (CISPR) _ FCCN_ BAV FCC CLASS B AV CO NDUCTED LIMITS (CISPR) __ Active Line 1 2 3 Ver 0.55 Build 120 t:L0360107 c1:C0010906 c2:NONE p:NONE a:L0100407Site ID: Syd Room#2,3/87 Station Rd, Seven Hills, NSW Test Officer:Kumar Thambiaiah Peaks:No Freq Peak QP Val FCCN_BQP dL1 Av Val FCCN_ BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 27.65 47.9 47.1 60.0 -13.0 47.2 50.0 -2.8 2 22.12 46.4 41.1 60.0 -19.0 40.5 50.0 -9.5 3 0.248 52.8 50.8 61.8 -11.1 38.2 51.8 -13.6 4 0.241 53.6 50.5 62.1 -11.5 38.3 52.1 -13.8 5 0.240 53.5 50.5 62.1 -11.6 38.0 52.1 -14.1 6 0.235 54.1 50.2 62.3 -12.1 35.9 52.3 -16.4 7 0.367 41.0 37.8 58.6 -20.8 29.7 48.6 -18.9 8 0.232 54.3 47.7 62.4 -14.6 33.2 52.4 -19.2 9 0.354 42.3 39.6 58.9 -19.3 27.8 48.9 -21.1 10 0.354 42.6 39.5 58.9 -19.4 27.3 48.9 -21.6 11 0.495 37.9 34.5 56.1 -21.6 23.4 46.1 -22.7 12 0.490 37.9 34.2 56.2 -22.0 23.2 46.2 -23.0 13 0.482 38.0 34.0 56.3 -22.3 22.5 46.3 -23.8 14 0.477 38.3 33.9 56.4 -22.5 22.3 46.4 -24.1 15 0.348 42.7 34.6 59.0 -24.4 24.8 49.0 -24.2 16 0.228 54.3 44.7 62.5 -17.9 27.2 52.5 -25.3 Frequency (MHz) 1 10 .145 30.5 0 10 20 30 40 50 60 70 80 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60821 Test Date: 17-08-2006 GRAPH No. 2 p:\PCF\T60821_2.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW , 2147, NSW , Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless smart card reader Model No: MiP9 (Wiegard) AC Source - 120VAC 60Hz Conducted Emissions (dBuV) \T60821c Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CO NDUCTED LIMITS (CISPR) _ FCCN_ BAV FCC CLASS B AV CO NDUCTED LIMITS (CISPR) __ Neutral Line 4 5 6 Ver 0.55 Build 120 t:L0360107 c1:C0010906 c2:NONE p:NONE a:L0100407Site ID: Syd Room#2,3/87 Station Rd, Seven Hills, NSW Test Officer:Kumar Thambiaiah Peaks:No Freq Peak QP Val FCCN_BQP dL1 Av Val FCCN_ BAV dL2 (MHz) (dBuV) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 27.65 48.2 47.3 60.0 -12.7 47.4 50.0 -2.6 2 22.12 42.5 41.4 60.0 -18.6 40.8 50.0 -9.2 3 0.243 50.6 47.9 62.0 -14.1 38.9 52.0 -13.1 4 0.244 50.7 48.4 62.0 -13.6 38.7 52.0 -13.3 5 13.56 40.3 39.5 60.0 -20.5 36.1 50.0 -13.9 6 0.236 51.3 48.3 62.2 -13.9 37.2 52.2 -15.0 7 19.35 38.0 35.3 60.0 -24.7 34.3 50.0 -15.7 8 0.363 41.6 38.2 58.7 -20.5 31.2 48.7 -17.5 9 0.353 42.4 39.6 58.9 -19.3 29.5 48.9 -19.4 10 0.352 42.5 39.4 58.9 -19.6 29.0 48.9 -19.9 11 0.484 37.1 33.1 56.3 -23.2 23.2 46.3 -23.1 12 0.480 37.5 33.0 56.3 -23.3 23.2 46.3 -23.1 13 0.483 37.0 32.9 56.3 -23.3 23.1 46.3 -23.2 14 0.227 51.0 41.8 62.6 -20.7 27.6 52.6 -25.0 15 3.082 35.5 32.1 56.0 -24.0 18.3 46.0 -27.7 16 2.813 35.2 32.3 56.0 -23.7 17.0 46.0 -29.0 Frequency (MHz) 1 10 .145 30.5 0 10 20 30 40 50 60 70 80 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ *v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ * v ^ 10 ~ * v ^ 11 ~ * v ^ 12 ~ * v ^ 13 ~ * v ^ 14 ~ * v ^ 15 ~ * v ^ 16 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T60821 Test Date: 17-08-2006 GRAPH No. 3 p:\PCF\T60821_5.PCF EMC Technologies (Sydney) 3/87 Station Rd, Seven Hills, NSW , 2147, NSW , Australia Phone +(612) 9624 2777 Fax+(612) 9838 4050 BQT Solutions (Australia) Pty Ltd Contactless smart card reader Model No: MiP9 (Serial Tx) AC Source - 120VAC 60Hz Conducted Emissions (dBuV) \T60821c Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CO NDUCTED LIMITS (CISPR) _ FCCN_ BAV FCC CLASS B AV CO NDUCTED LIMITS (CISPR) __ Active Line 7 8 9 Ver 0.55 Build 120 t:L0360107 c1:C001…

Text truncated - open the document above for the full version.

Page 1 of 27 EMC Technologies Pty Ltd ABN 82 057 105 549 Unit 3/87 Station Road Seven Hills NSW 2147 Australia Telephone +61 2 9624 2777 Facsimile +61 2 9838 4050 Email [email protected] www.emctech.com.au Melbourne 57 Assembly Drive Tullamarine Vic 3043 Tel: +61 3 9335 3333 Fax: +61 3 9338 9260 Sydney Unit 3/87 Station Road Seven Hills NSW 2147 Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 Brisbane 1/15 Success Street Acacia Ridge Qld 4110 Tel: +61 7 3875 2455 Fax: +61 7 3875 2466 Auckland (NZ) 47 MacKelvie Street Grey Lynn Auckland Tel: +64 9 360 0862 Fax: +64 9 360 0861 EMI TEST REPORT for CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Test Sample: Contactless Smart Card Reader Models: MiP9 and 900-PAC Serial Numbers: None Date: 29 th August 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, interferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 FCC ID: QVL-MIP9 Report No. T60821_F Page 2 of 27 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION FOR CERTIFICATION OF FCC Part 15.225 & FCC PART 15.207 TRANSMITTER FCC ID:QVL-MIP9 EMC Technologies Report No. T60821_F Date: 29 th August 2006 CONTENTS 1. SUMMARY OF TEST RESULTS 2. GENERAL INFORMATION 3. CONDUCTED EMI RESULTS 4. RADIATED EMI RESULTS 5. FREQUENCY TOLERANCE 6. CONCLUSION APPENDIX A. MEASUREMENT INSTRUMENTATION DETAILS APPENDIX B. PHOTOGRAPHS TEST SETUP APPENDIX C. PHOTOGRAPHS TEST SAMPLE (EXTERIOR) APPENDIX D. PHOTOGRAPHS TEST SAMPLE (INTERIOR) APPENDIX E. BLOCK DIAGRAM APPENDIX F. TEST SAMPLE SCHEMATICS APPENDIX G. TEST SAMPLE PCB LAYOUTS APPENDIX H. TEST SAMPLE TEST PLAN APPENDIX I. LABELLING – LOCATION APPENDIX K. GRAPHS OF EMI MEASUREMENT APPENDIX L. USER MANUALS FOR THE BQT AND PAC APPENDIX M. OPERATIONAL DESCRIPTION FCC ID: QVL-MIP9 Report No. T60821_F Page 3 of 27 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION OF FCC PART 15.225 & FCC PART 15.207 TRANSMITTER Report Number: T60821_F Test Sample Name: Contactless Smart Card Reader Model Numbers: MiP9 and 900-PAC Serial Number: None FCC ID: QVL-MIP9 Manufacturer: BQT Solutions (Australia) Pty Ltd Tested For: BQT Solutions (Australia) Pty Ltd Address: Level 4, 65 Epping Road North Ryde NSW 2113 Phone: (02) 8817 2800 Fax: (02) 8817 2811 Responsible Party: Tony Lee Test Standards: FCC Part 15.225 Intentional Radiators FCC Part 15.207 Conducted Limits ANSI C63.4:2003 OET Bulletin No. 65 Test Dates: 14/08/06, 15/08/06, 17/08/06, and 28/08/06 Testing Officers: Kumar Thambiaiah Bruce Holdsworth Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: Les Dickenson Branch Manager EMC Technologies Pty Ltd Issued by EMC Technologies Pty Ltd, Unit 3/87 Station Road, Seven Hills, NSW, 2147, Australia. Phone: +61 2 9624 2777 Fax: +61 2 9838 4050 FCC ID: QVL-MIP9 Report No. T60821_F Page 4 of 27 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 EMI TEST REPORT FOR CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER on the Contactless Smart Card Reader 1. SUMMARY of RESULTS This report details the results of EMI tests and measurements performed on the Contactless Smart Card Reader, Model: MiP9 and 900-PAC, in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Rules for intentional radiators. All results are detailed in this report. Part 15.31e Amplitude stability with supply variation: Complied Part 15.207 Conducted Emissions: Complied Part 15.225 a, b &c Carrier Signal Field Strength 13.110 – 14.010MHz: Complied Part 15.225 d (15.209) Field Strength Outside 13.110 – 14.010MHz: Complied Part 15.225 e Frequency Tolerance: Complied 2. GENERAL INFORMATION 2.1 General Description of Test Sample Manufacturer : BQT Solutions (Australia) Pty Ltd Test Sample : Contactless Smart Card Reader Models : MiP9 and 900-PAC Serial Numbers : None FCC ID : QVL-MIP9 Equipment Type : Intentional Radiator 2.2 Test Sample Description The BQT MiP9 is a contactless smartcard reader designed for keyless entry and other personnel identification and entry purposes. The MiP9 use a pair of open collector drivers to provide a Wiedgand interface, whilst the 900-PAC uses only one of these open collector drivers to provide a Serial Tx interface. . FCC ID: QVL-MIP9 Report No. T60821_F Page 5 of 27 EMC Technologies Pty Ltd Unit 3, 87 Station Road Seven Hills NSW 2147 Australia Tel: +61 2 9624 2777 Fax: +61 2 9838 4050 2.3 Technical Specifications and System Overview Clock Circuit Speed: MIFARE 13.56MHz +/- 30ppm, MIFARE IF 847.5kHz +/- 30ppm, Processor 11.0592MHz +/-30ppm Processor RC Oscillator 7.3728MHz +/-2.5% Processor Watchdog Oscillator 400kHz +20% / -30% Microprocessor : Philips P89LPC935FDH Case St…
