QW701202.4 GHz WIRELESS REMOTE CONTROL TRANSMITTER
Hobbyengine Model Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Dec 19, 2011
- Application Purpose
- Original Equipment
- Date of Application
- Dec 19, 2011
- Equipment Note
- 2.4 GHz WIRELESS REMOTE CONTROL TRANSMITTER
- Frequency Range
- 2418.00000000 - 2467.00000000
- Company
- Hobbyengine Model Ltd.
- Country
- Hong Kong
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
ID Label/Location Info
FCC ID: QW70120 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Test Report

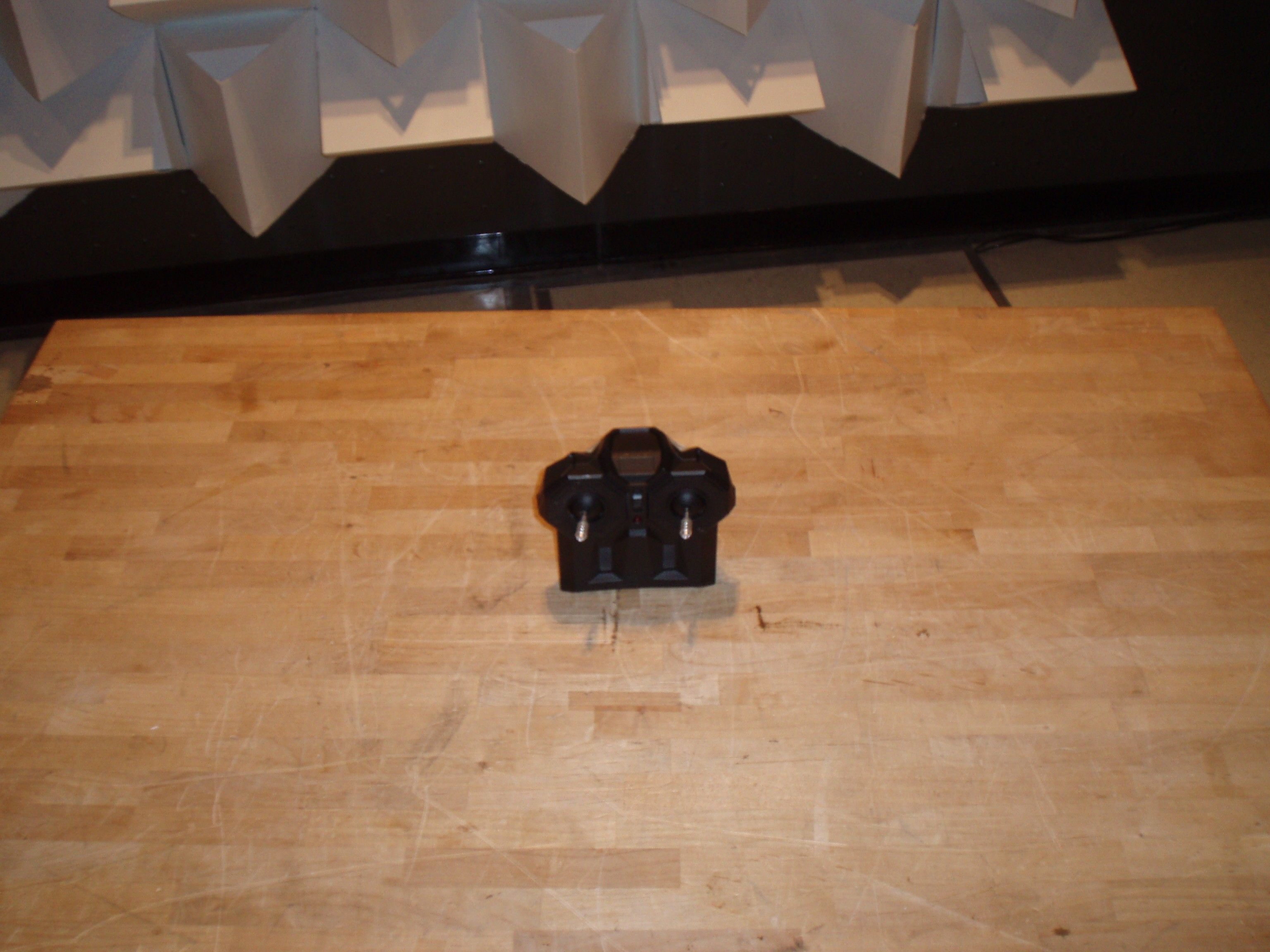

FCC PART 15.249 TEST REPORT UNLICENSED INTENTIONAL RADIATOR Applicant HOBBYENGINE MODEL INDUSTRIAL LTD. Address ROOM 619, 6/F., PENINSULA CENTRE, 67 MODY ROAD, TSIMSHATSUI EAST KOWLOON HONG KONG FCC ID QW70120 Product Description 2.4 GHZ WIRELESS REMOTE CONTROL Date Sample Received 6/17/2011 Date Tested 6/17/2011 Tested By Joe Scoglio Approved By Mario R. de Aranzeta Report Number 845HT11TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: HOBBYENGINE MODEL INDUSTRIAL LTD. FCC ID: QW70120 REPORT #: H\HOBBYENGINE_QW7\845HT11\845HT11TestReport.doc Page 2 of 12 Mdea 9.20.2007 TABLE OF CONTENT GENERAL REMARKS ..................................................................................................................... 3 GENERAL INFORMATION .............................................................................................................. 4 EMC EQUIPMENT LIST.................................................................................................................. 5 TEST PROCEDURES ...................................................................................................................... 6 RADIATION INTERFERENCE ......................................................................................................... 7 OCCUPIED BANDWIDTH ............................................................................................................... 8 BAND EDGE COMPLIANCE ........................................................................................................... 9 POWER LINE CONDUCTED INTERFERENCE .............................................................................. 12 APPLICANT: HOBBYENGINE MODEL INDUSTRIAL LTD. FCC ID: QW70120 REPORT #: H\HOBBYENGINE_QW7\845HT11\845HT11TestReport.doc Page 3 of 12 Mdea 9.20.2007 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 4/28/2011 APPLICANT: HOBBYENGINE MODEL INDUSTRIAL LTD. FCC ID: QW70120 REPORT #: H\HOBBYENGINE_QW7\845HT11\845HT11TestReport.doc Page 4 of 12 Mdea 9.20.2007 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. Applicable Standard Part 15.249 DUT Description 2.4 GHZ WIRELESS REMOTE CONTROL FCC ID QW70120 Operating Frequency TX: (2418 – 2467.6) MHz RX: Same DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications None Test Supporting Equipment Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: HOBBYENGINE MODEL INDUSTRIAL LTD. FCC ID: QW70120 REPORT #: H\HOBBYENGINE_QW7\845HT11\845HT11TestReport.doc Page 5 of 12 Mdea 9.20.2007 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Dipole Kit Electro- Metrics TDA-30/1- 4 153 CHAR 8/10/09 8/10/11 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 8/1/09 8/2/11 Frequency Counter HP 5385A 2730A03025 CAL 9/4/09 9/4/11 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 8/26/09 8/26/11 Digital Multimeter Fluke FLUKE-77 35053830 CAL 11/18/09 11/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Antenna ETS 3117 41534 9/22/2010 9/22/2012 Antenna Electro metrics LPA-25 1122 5/04/2011 5/04/2013 Antenna Electro metrics BIA-25 1171 1/15/2010 1/15/2012 APPLICANT: HOBBYENGINE MODEL INDUSTRIAL LTD. FCC ID: QW70120 REPORT #: H\HOBBYENGINE_QW7\845HT11\845HT11TestReport.doc Page 6 of 12 Mdea 9.20.2007 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the…
Text truncated - open the document above for the full version.
