QW70800Radio Control Toy Transmitter

A4 size ( Black & White ) - English - FRONTBACK Battery Requirement 1. Tank: 6 x AA Batteries 2. Remote: 1 x 9V battery FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruct However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is needed - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Confor mity The product is in conformity with the requirement of EU Directive 1999/5/EC Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental p Please ask at your local community for the correct collection point. Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle is not to be inserted into socket outlets. For Remote 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install 1 new 9V battery with correct polarity (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover 7. Insert the antenna into the top of Transmitter, tighten it by rotating clockwise (viewing from top of Remote) Battery and Antenna Installation For Vehicle 1. Switch OFF the power 2. Unscrew the screw on the battery cover 3. Open the battery cover 4. Install AA battery pack with correct polarities (+/-) as shown inside the battery compartment 5. Close the battery cover 6. Tighten the screw on the battery cover 5F62D72 L’emballage et le mode d’emploi contiennent des informations importantes. Veuillez les conserver à titre de référence. Avertissement! Risque d’étouffement. Ne convient pas aux enfants de moins de 3 ans à cause des petites pièces. Nous nous réservons le droit d’améliorer ou de modifier les spécifications ainsi que les couleurs sans préavis. Avertissement! Ne pas insérer l’antenne du véhicule dans des prises de courant. Notes en matière d’environnement : L'article dans son ensemble n'est pas destiné aux ordures ménagères lorsque sa durée utile prend fin. Vous pouvez l'amener à des lieux de récupération afin que les pièces électroniques et les instruments électroniques soient recyclés Le symbole sur l’article, le manuel d’instruction, l’étiquette ou l’emballage indique clairement ceci. Les matériaux doivent être recyclés selon leurs marques respectives. Le recyclage d’anciens appareils ou autres réutilisations de matériaux contenus ci-après représente une contribution importante à la protection de l’environnement. Veuillez vous informer auprès de votre communauté locale pour connaître le lieu de récupération. Veuillez conserver ce feuillet ainsi que l’adresse pour utilisation future, car ils contiennent des informations importantes. Élimination des piles Les piles ne doivent pas être jetées avec les ordures ménagères. En tant que consommateur, vous êtes tenu légalement de ramener les piles contenant des substances dangereuses et toutes autres piles usagées. Vous pouvez remettre vos vieilles piles aux lieux de récupérations publics de votre région ou aux lieux de vente. Vous trouverez ces abréviations chimiques ainsi qu’un bac à déchets biffé sur les piles contenant des substances dangereuses: Pb = pile contenant du plomb Cd = pile contenant du cadmium Hg = pile contenant du mercure A4 size: (black & White) - FR -FrontA4 size: (black & White) - ES -Front Énoncé de conformité FCC : Cet appareil est conforme aux règlements de la FCC, article 15. Le fonctionnement est soumis aux deux conditions suivantes : 1. Cet appareil ne doit pas causer d'interférences nuisibles, et 2. cet appareil doit accepter toute interférence reçue, incluant…

Text truncated - open the document above for the full version.

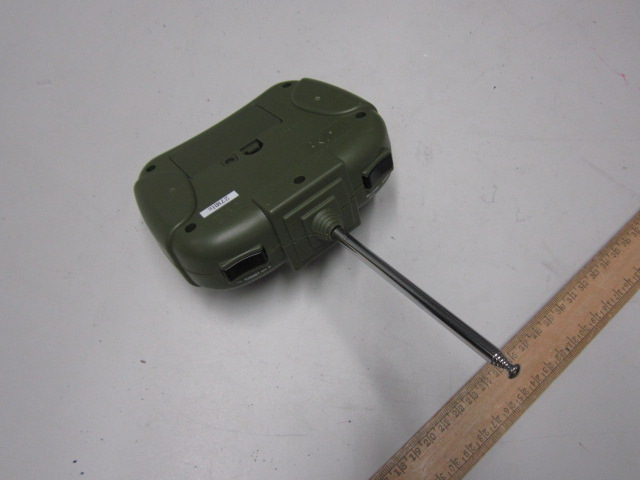

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 1 von 1 Page 1 of 1 External view External view

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 5 von 8 Page 5 of 8 FCC label and location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 1 von 5 Page 1 of 5 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 2 von 5 Page 2 of 5 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 3 von 5 Page 3 of 5 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 4 von 5 Page 4 of 5 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 5 von 5 Page 5 of 5 Transmitter (Internal view) Transmitter (Internal view)

www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 2 of 11 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 3 of 11 Contents List of Test and Measurement Instruments ......................................................... 4 General Product Information ................................................................................ 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details ........................................................................................................... 5 Independent Operation Modes ...................................................................................................... 6 Submitted Documents ................................................................................................................... 6 Related Submittal(s) Grants .......................................................................................................... 6 Test Set-up and Operation Mode.......................................................................... 7 Principle of Configuration Selection ............................................................................................ 7 Test Operation and Test Software ................................................................................................ 7 Special Accessories and Auxiliary Equipment ............................................................................ 7 Countermeasures to achieve EMC Compliance .......................................................................... 7 Test Methodology .................................................................................................. 8 Radiated Emission .......................................................................................................................... 8 Field Strength Calculation ............................................................................................................. 8 Test Results ........................................................................................................... 9 Radiated Emission of Carrier Frequency Subclause 15.227(a) ............................................... 9 Spurious Radiated Emissions Subclause 15.227(b) .............................................................. 10 Bandwidth Measurement Subclause 15.227(b) and 15.215 ................................................... 11 Appendix 1 Test Protocol Appendix 2 Test Setup Appendix 3 EUT External Photo Appendix 4 EUT Internal Photo Appendix 5 Technical Description, Block Diagram, Schematics, BOM, Label and User manual Appendix 6 RF exposure information www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 4 of 11 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Radiated Emission Equipment Manufacturer Type Cal. Date Cal. Due date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) Mar. 28 2015 Mar. 27 2017 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) N/A N/A ESU EMI Test Receiver R&S ESU26 June. 27 2014 June. 27 2015 Loop Antenna Zhinan ZN30900A June. 27 2014 June. 27 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 Mar. 09 2014 Mar. 08 2016 Double-ridged horn antenna SCHWARZBECK 9120D Mar. 09 2014 Mar. 08 2016 Horn Antenna ETS-LINDGREN 3160-09 Mar. 09 2014 Mar. 08 2016 RF Amplifier HP 8347A June. 27 2014 June. 27 2015 RF Amplifier HP 8349B June. 27 2014 June. 27 2015 EMI Test Software AUDIX E3 N/A N/A Coaxial cable GTS N/A June. 27 2014 June. 27 2015 Coaxial Cable GTS N/A June. 27 2014 June. 27 2015 Thermo meter N/A N/A June. 27 2014 June. 27 2015 Bandedge Measurement Equipment Manufacturer Type Cal. Date Cal Due Date Spectrum Analyzer Rohde& Schwarz FSP30 Jan. 12 2015 Jan. 12 2017 www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 5 of 11 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145MHz. The EUT has 2 control rods to command the forward, backward, left and right movement of the associated receiver. And it has 2 buttons to control the movement of the turret and trigger the sound of the receiver. FCC ID: QW70800 Model Product description 5F62D72 Remote controller of RC Toy Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : Telescopic Antenna Antenna length : 48 cm Power supply : 1 x 9VDC battery Ports : none Protection Class : III www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 6 of 11 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy Car. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork - Bill of materials Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 7 of 11 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14039437 001 Date: 12.05.2015 Page 8 of 11 Test Methodology Radiated Emission The radiated emission m…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 1 von 1 Page 1 of 1 Bandwidth Att 10 dB -184.32 kHz A -184.32 kHz RBW 10 kHz -184.32 kHzVBW 30 kHz-184.32 kHz SWT 5 ms -184.32 kHz-184.32 kHz limit reached Start 26.96 MHz -184.32 kHz Stop 27.28 MHz -184.32 kHz 32 kHz/ -184.32 kHz 1 PK -184.32 kHz MAXH -184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz-184.32 kHz -130 -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -184.32 kHz 1 Marker 1 [T1 ] -51.25 dB m 27.144320000 MHz 2 Delta 2 [T1 ] -33.95 dB 135.680000000 kHz 3 Delta 3 [T1 ] -37.14 dB -184.320000000 kHz DELTA MARKER 3 -184.32 kHz limit reached Date: 3.APR.2015 18:20:52

www.tuv.com Appendix 6 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 1 von 1 Page 1 of 1 RF exposure Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 24.145 -22.4 0.006 According to KDB 447498 D01: At frequencies below 100 MHz, the following may be considered for SAR test exclusion: a) The power threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm b) The power threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Result: The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Conclusion: No SAR is required.

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14039437 001 Seite 1 von 1 Page 1 of 1 Set-up of Radiation Emission below 30MHz Set-up of Radiation Emission from 30 – 1000MHz
