Use’s Guide Model:TBD-1083B Please read carefully before use. I 1. Introduction ................................................................................................ 1 1.1 Thank You .......................................................................................................... 1 1.2 Warnings And Cautions ................................................................................... 1 1.3 MID Accessories Introduction ......................................................................... 2 2. Introduce MID ............................................................................................ 3 2.1 Appearance And Accessories ....................................................................... 3 2.2 Physical picture ................................................................................................ 4 2.3 MID state and notice ........................................................................................ 5 Iconography for notification ............................................................................................. 5 3. Getting Started Guide ............................................................................... 6 3.1 Battery Charging .............................................................................................. 6 Power adapter .................................................................................................................... 6 Way to charging battery ................................................................................................... 6 3.2 Getting Started .................................................................................................. 6 Turn the MID on.................................................................................................................... 6 Turn the MID off ................................................................................................................... 7 3.3 Turn The Screen On And Off ............................................................................ 7 3.4 Unlocking The Screen ...................................................................................... 7 3.5 Use of touch screen ......................................................................................... 8 Setting mode in MID ........................................................................................................... 8 Click to select ...................................................................................................................... 8 Press on ................................................................................................................................. 8 Slide quickly or slide ............................................................................................................ 8 Drag....................................................................................................................................... 8 Rotate ................................................................................................................................... 8 3.6 Homepage Interface ....................................................................................... 9 Outstretched homepage interface ................................................................................. 9 Change desktop wallpaper .............................................................................................. 9 Add widgets ......................................................................................................................... 9 3.7 Access to application program.................................................................... 10 How to visit aplication program of MID: ........................................................................ 10 3.8 USB connection .............................................................................................. 11 Storage setting of MID ...................................................................................................... 11 Copy the document to storage card ........................................................................... 11 Content of MID storage device ...................................................................................... 11 3.9 Memory card .................................................................................................. 11 Copy the document to storage card ........................................................................... 11 Delete documents on the storage card of MID .......................................................... 12 II Removing storage card when the MID is in starting up state .................................... 12 3.10 Character input ............................................................................................ 12 Use screen keyboard ........................................................................................................ 12 Select the input method you need to use .................................................................... 12 Use and switch input method ......................................................................................... 12 3.11 Application Technique ................................................................................ 13 Open the application procedure that is employed recently. .................................. 13 Add the small tool on the desk ....................................................................................... 14 Switch of Input Language ............................................................................................... 14 Factory Default .................................................................................................................. 14 Rapid Screenshot .............................................................................................................. 14 Speedily Set Such Functions as Fly Mod…

Text truncated - open the document above for the full version.

PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED Tel:0755-86672202 Fax:0755-86655045 PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: SUBJECT: FCC Application for ( FCCID: QWK109R-TBD1083B) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Date:2013-1-7 Name: Lin Lei Title: sales Tel: +86-755-86672202858

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED 2012-12-28 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): ( Tablet,Model: TBD1083B, FCC ID:QWK109R-TBD1083B) We affirm that between SIEMIC and ___ PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Lin Lei / sales Contact information / address : NO.689, NONGSHAN ROAD, SHITING TOWN, HANJIANG DISTRICT, PUTIAN CITY,FUJIAN, CHINA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED 2012-12-28 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: QWK109R-TBD1083B We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Lin Lei / sales Contact information / address : NO.689, NONGSHAN ROAD, SHITING TOWN, HANJIANG DISTRICT, PUTIAN CITY,FUJIAN, CHINA

Date:2012-12-15 FCC ID: QWK109R-TBD1083B Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Lin Lei Title: sales Tel: +86-755-86672202858

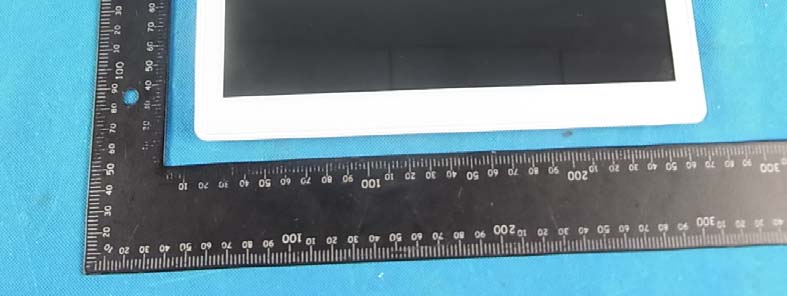

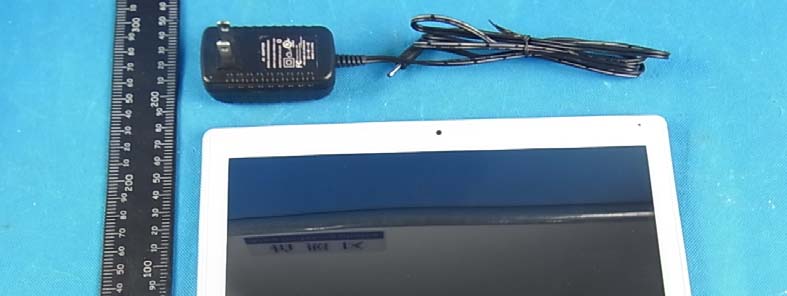

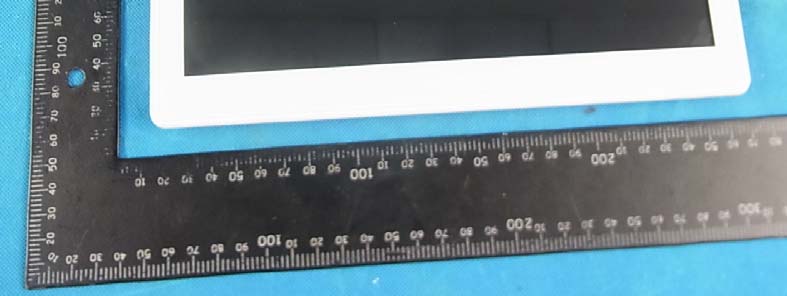

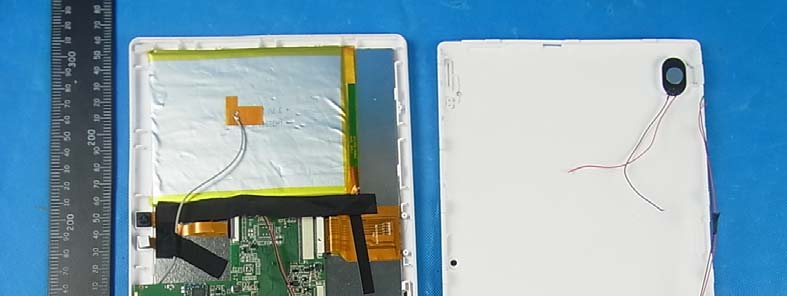

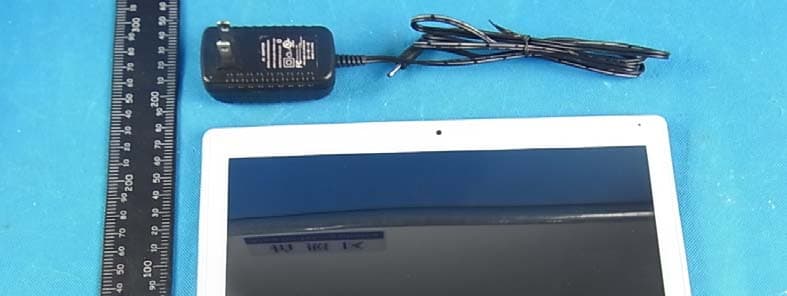

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power. 802.11B frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power(AV) (dBm) Maximum Conducted Output Power (mW) 2412 11.95 9.45 8.81 2437 11.72 9.32 8.55 2462 11.84 9.12 8.17 802.11G frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power(AV) (dBm) Maximum Conducted Output Power (mW) 2412 9.76 7.43 5.53 2437 9.87 7.25 5.31 2462 9.57 7.19 5.24 802.11N frequency range Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power(AV) (dBm) Maximum Conducted Output Power (mW) 2412 8.97 7.01 5.02 2437 8.68 6.68 4.66 2462 8.55 6.54 4.51 Referto44749825D01GeneralRFExposureGuidancev05AppendixA, youseethatfor Maximum Conducted Output Power8.81mW(<10mW),sonoSAR is required.

FCC RADIO TEST REPORT FCC ID:QWK109R-TBD1083B Product： Tablet Trade Name： ZEKI Model Name： TBD1083B Serial Model： N/A Report No.： NTEK- 2012NT1211494F Prepared for PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED NO.689, NONGSHAN ROAD, SHITING TOWN, HANJIANG DISTRICT, PUTIAN CITY, FUJIAN, CHINA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 72 Report No.: NTEK-2012NT1211494F TEST RESULT CERTIFICATION Applicant’s name ................. : PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC COMPANY LIMITED Address ................................. : NO.689, NONGSHAN ROAD, SHITING TOWN, HANJIANG DISTRICT, PUTIAN CITY, FUJIAN, CHINA Manufacture's Name ............ : PUTIAN HANJIANG BAILI ELECTRONIC PLASTIC (XIE GANG) COMPANY LIMITED Address ................................. : YAO SHAN INDUSTRY AREA, YAO SHAN XIE GANG TOWN, DONG GUAN CITY, GUANG DONG, CHINA Product description Product name ........................... : Tablet Model and/or type reference : TBD1083B Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 14 Dec. 2012 ~17 Dec. 2012 Date of Issue ........................................... : 18 Dec. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 72 Report No.: NTEK-2012NT1211494F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . BANDWIDTH TEST 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 TEST PROCEDURE 61 Page 4 of 72 Report No.: NTEK-2012NT1211494F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 61 5.1.3 TEST SETUP 61 5.1.4 EUT OPERATION CONDITIONS 61 5.1.5 TEST RESULTS 62 6 . PEAK OUTPUT POWER TEST 68 6.1 APPLIED PROCEDURES / LIMIT 68 6.1.1 TEST PROCEDURE 68 6.1.2 DEVIATION FROM STANDARD 68 6.1.3 TEST SETUP 68 6.1.4 EUT OPERATION CONDITIONS 68 6.1.5 TEST RESULTS 69 7 . ANTENNA REQUIREMENT 70 7.1 STANDARD REQUIREMENT 70 7.2 EUT ANTENNA 70 8 . EUT TEST PHOTO 71 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 72 Report No.: NTEK-2012NT1211494F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 72 Report No.: NTEK-2012NT1211494F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 72 Report No.: NTEK-2012NT1211494F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet Trade Name ZEKI Model Name TBD1083B Serial Model N/A Model Difference N/A Product Description The EUT is a Tablet Operation Frequency: 802.11b/g/n:2412~2462 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n:72.2/52/6.5 Mbps Number Of Channel 802.11b/g/n: 11CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 11.95 dBm (Max.) 802.11g: 9.87 dBm (Max.) 802.11n: 8.97 dBm (Max.) Antenna Gain (dBi) 1.0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer …

Text truncated - open the document above for the full version.

Page 71 of 72 Report No.: NTEK-2012NT1211494F 8. EUT TEST PHOTO Radiated Measurement Photos Page 72 of 72 Report No.: NTEK-2012NT1211494F Conducted Measurement Photos
