QWP-60V100060 GHz Outdoor Wireless Gigabit Ethernet Bridge

REGULATORY USER GUIDE 60 GHz cnWave Products System Release 1.0 pmp-5196_000v004 October 2020 Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. Cambium reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Cambium does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Cambium products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Cambium intends to announce such Cambium products, programming, or services in your country. Copyrights This document, Cambium products, and 3 rd Party software products described in this document may include or describe copyrighted Cambium and other 3 rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Cambium, its licensors, and other 3 rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Cambium, its licensors, or the 3 rd Party software supplied material contained in the Cambium products described in this document may not be copied, reproduced, reverse engineered, distributed, merged or modified in any manner without the express written permission of Cambium. Furthermore, the purchase of Cambium products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Cambium or other 3rd Party supplied software, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Restrictions Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Cambium. License Agreements The software described in this document is the property of Cambium and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. High Risk Materials Cambium and its supplier(s) specifically disclaim any express or implied warranty of fitness for any high- risk activities or uses of its products including, but not limited to, the operation of nuclear facilities, aircraft navigation or aircraft communication systems, air traffic control, life support, or weapons systems (“High Risk Use”). This product is not restricted in the EU. Any High Risk is unauthorized, is made at your own risk and you shall be responsible for any and all losses, damage or claims arising out of any High-Risk Use. © 2020 Cambium Networks Limited. All rights reserved 3 Contents Contents ...................................................................................................................................................... 3 Chapter 1: About This User Guide ................................................................................................................ 7 Purpose .................................................................................................................................................... 7 Cross-references ..................................................................................................................................... 7 Feedback .................................................................................................................................................. 7 Important regulatory information ........................................................................................................... 7 Complying with rules for the country of operation .............................................................................. 7 Application firmware ........................................................................................................................... 9 Ethernet networking skills ................................................................................................................... 9 Lightning protection .......................................................................................................................... 10 Specific expertise and training for professional installers .................................................................. 10 Problems and warranty ......................................................................................................................... 10 Reporting problems ........................................................................................................................... 10 Repair and service .............................................................................................................................. 10 Hardware warranty ........................................................................................................................... 10 Warnings, cautions, and notes .............................................................................................................. 11 In non-EU …

Text truncated - open the document above for the full version.

Telecommunication Certification Body UL International (UK) Ltd Units 1-3, Horizon Wade Road Kingsland Business Park Basingstoke Hampshire RG24 8AH United Kingdom Date: 29 th October 2020 Subject: Authorisation Letter To whom it may concern This is to certify that Cambium Networks Ltd hereby authorises UL International (UK) Ltd to act as the TCB for the application of the 60 GHz cnWave V1000 Client Node, FCC ID: QWP- 60V1000 to the FCC. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours faithfully, Donald W Reid CEng MIET Principal Regulatory Engineer Cambium Networks Ltd

Telecommunication Certification Body UL International (UK) Ltd Units 1-3, Horizon Wade Road Kingsland Business Park Basingstoke Hampshire RG24 8AH United Kingdom Date: 6 th November 2020 Subject: Permanent Confidentiality Request Certification Application FCC ID: QWP-60V1000 To whom it may concern Pursuant to Sections 0.457(d) and 0.459 of CFR 47, Cambium Networks Ltd request that the following information, provided to support the FCC application for the 60 GHz cnWave V1000 Client Node, FCC ID: QWP-60V1000 be held permanently confidential: • Schematics • Block Diagrams • Parts List (BOM) • Tune Up Procedure • Operational Description The above material contains trade secrets not customarily released to public that are judged to have the potential to cause detriment to the applicant and provide unjustified benefits to its competitors. This information should not be available for public disclosure for an indefinite period of time. Yours faithfully, Donald W Reid CEng MIET Principal Regulatory Engineer Cambium Networks Ltd

Telecommunication Certification Body UL International (UK) Ltd. Units 1-3, Horizon Wade Road Kingsland Business Park Basingstoke Hampshire RG24 8AH United Kingdom Date: 10 th November 2020 Subject: Short Term Confidentiality Request FCC ID: QWP-60V1000 To whom it may concern In accordance with §0.457 and §0.459 of CFR 47, Cambium Networks Ltd requests the short term confidentiality of the items listed below for 180 days from issuing the grant of FCC ID: QWP-60V1000 • External Photos • Internal Photos • Test set up photos • User Guide These items contain proprietary information related to the design of the product which has not yet been released to the market. The public disclosure of this information prior to public launch may be harmful to Cambium Networks Ltd and provide unjust benefits to its competitors. A period of 180 days from issuing the grant is requested to protect this information before formal market launch. If the launch date is re-scheduled to be earlier than 180 days from issuing the grant, Cambium Networks Ltd will inform again to cancel this restriction. Please contact the undersigned if there are any further questions or additional information needed in this matter. Yours faithfully, Donald W Reid CEng MIET Principal Regulatory Engineer Cambium Networks Ltd

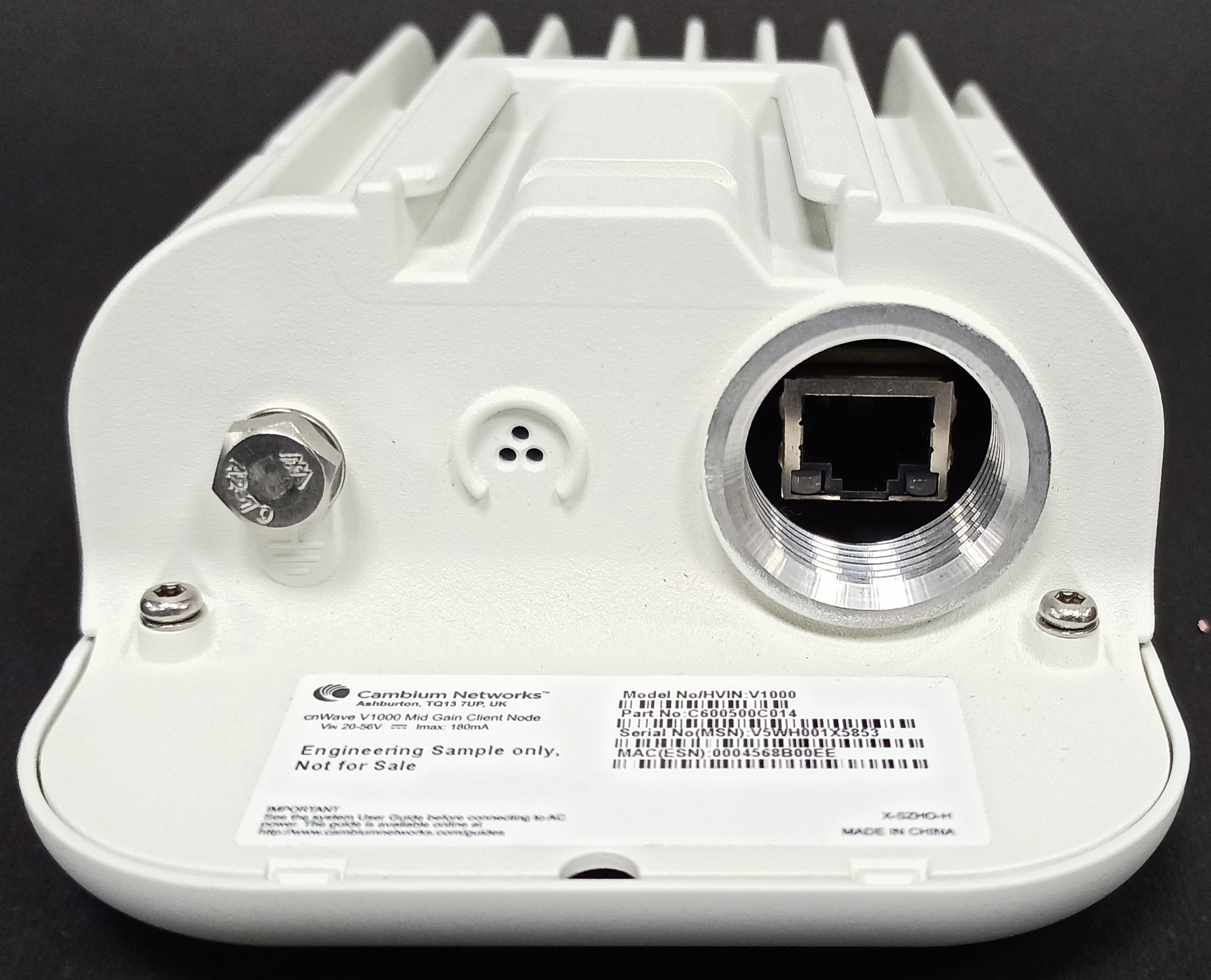

V1000 Front View Page 2 of 3 V1000 Rear View V1000 Left Hand View Page 3 of 3 V1000 Right Hand View V1000 Connector View

60 GHz cnWave V1000 Label Location Close Up)

60GHz cnWave V1000 FC/IC Label with US Power Cord 60 GHz cnWave V1000 Label with No Power Cord

V1000 SSAXA-001001 in Casting Front View Page 2 of 6 V1000 SSAXA-001001 PCBA Top View Page 3 of 6 V1000 SSAXA-001001 PCBA Bottom View Page 4 of 6 V1000 SSPXA-001326 SWL-QD46 RF Tile Installed View Page 5 of 6 SSPXA-001326 SWL-QD46 RF Tile Top View SSPXA-001326 SWL-QD46 RF Tile Bottom (Antenna) View Page 6 of 6 SSPXA-001326 SWL-QD46 RF Tile Top View (Can Removed)

UL VS LTD Unit 1-3 Horizon, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP13194254-616A Manufacturer : Cambium Networks Ltd Model No. : 60 GHz cnWave V1000 FCC ID : QWP-60V1000 Test Standard(s) : FCC Parts 15.207, 15.209, 15.215 & 15.255 1. This test report shall not be reproduced except in full, without the written approval of UL VS LTD. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 1.0. Date of Issue: 16 October 2020 Checked by: Sarah Williams RF Operations Leader, Radio Laboratory Company Signatory: Ian Watch Senior Test Engineer, Radio Laboratory UL VS LTD This laboratory is accredited by UKAS. The tests reported herein have been performed in accordance with its terms of accreditation. TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 Page 2 of 43 UL VS LTD This page has been left intentionally blank. TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 UL VS LTD Page 3 of 43 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 7 3.5. EUT Settings 7 3.6. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter EIRP 16 5.2.3. Transmitter Peak Conducted Output Power 19 5.2.4. Transmitter 6 dB Bandwidth 21 5.2.5. Transmitter 20 dB Bandwidth 24 5.2.6. Transmitter Radiated Spurious Emissions 27 5.2.7. Transmitter Frequency Stability (Temperature Variation) 38 5.2.8. Transmitter Frequency Stability (Voltage Variation) 40 6. Measurement Uncertainty ........................................................................................................42 7. Report Revision History ...........................................................................................................43 TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 Page 4 of 43 UL VS LTD 1. Customer Information Company Name: Cambium Networks Ltd Address: Unit B2 Linhay Business Park Eastern Road Ashburton Devon TQ13 7UP United Kingdom TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 UL VS LTD Page 5 of 43 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.255 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Radio Frequency Devices) – Section 15.255 Specification Reference: 47CFR15.207, 47CFR15.209 and 47CFR15.215 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Sections 15.207, 15.209 & 15.215 Site Registration: 621311 Location of Testing: Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 03 July 2020 to 28 September 2020 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.207 Transmitter AC Conducted Emissions Part 15.255(c)(1)(i) Transmitter EIRP Part 15.255(e) Transmitter Peak Output Power Part 15.255(e)(1) Transmitter 6 dB Bandwidth Part 15.215(c) Transmitter 20 dB Bandwidth Part 15.255(d) / 15.209 Transmitter Spurious Emissions Part 15.255(f) Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.10-2013 Title: American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Reference: KDB 174176 D01 Line Conducted FAQ v01r01 June 3, 2015 Title: AC Power-Line Conducted Emissions Frequently Asked Questions 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 Page 6 of 43 UL VS LTD 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Cambium Networks Model Name or Number: 60 GHz cnWave V1000 Test Sample Serial Number: X100108B009D Hardware Version: P5 Software Version: DM Tools 3.2.0.1 Firmware Version: 10.11.1.10448236 FCC ID: QWP-60V1000 3.2. Description of EUT The equipment under test was a point-to-multipoint mid gain client node operating in the 57-71 GHz band. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: UL-RPT-RP13194254-616A VERSION 1.0 ISSUE DATE: 16 OCTOBER 2020 UL VS LTD Page 7 of 43 3.4. Additional Information Related to Testing Category of Equipment: Transceiver Channel Spacing: 2.16 GHz Modulation Type: BPSK, QPSK & 16QAM Antenna Type: Integrated Antenna Gain: 22.5 dBi Transmit Frequency Range: 57 G…

Text truncated - open the document above for the full version.

Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 1 Test Setup Photographs for the 60 GHz cnWave V1000 1. Radiated Emissions 1.1. Configuration 1: < 30 MHz Photo 1 Photo 2 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 2 Radiated Emissions (continued) 1.2. Configuration 2: 30 MHz to 1 GHz Photo 1 Photo 2 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 3 Radiated Emissions (continued) 1.3. Configuration 3: 1 GHz to 40 GHz Photo 1 Photo 2 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 4 Radiated Emissions (continued) 1.4. Configuration 4: 40 GHz to 200 GHz Photo 1 Photo 2 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 5 2. AC Conducted Emissions Photo 1 Photo 2 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 6 3. Radiated Transmitter EIRP Photo 1 Photo 1 Cambium Networks Ltd FCC ID: QWP-60V1000 UL-RPT-RP13194254-616 IC: 109AO-60V1000 UL VS LTD 7 Radiated Transmitter EIRP (continued) Photo 3
