QWTAVS-5801T5.8 GHz Audio/Video Sender

Model: AVS-5801 5.8 GHz Audio/Video Sender 1. Package Content......................................................1 2. Panel Control and Function..........................................2 3. Setup Guide............................................................4 4. Orient Transmitter/Receiver for optimal performance...........5 5. Important Safety Information.........................................6 Check to make sure that all units shown as below are enclosed. If something missed, please contact your dealer. 1. 5.8GHz Transmitter x 1 2. 5.8GHz Receiver x 1 UHF: 433.92MHz (European) UHF: 418MHz (USA Standard) 3. IR Mouse x 1 / fasten strips x 2 4. Accessories 1. Package Content 1 Contents 2507V58RL01B European Standard: (1) Power Adapters (230V) x 2 (2) RCA to Scart cable x 2 USA Standard (1) Power Adapters (120V) x 2 (2) RCA Cable x 2 1. – Channel selection switch to find optimal reception, the transmitter and receiver must to be Configured as the same channel. 2A –Remote control LED sends IR rays, to remotely control the source AV equipment. 2B –Remote control LED receives IR rays from remote controller. 3A – Directional 5.8GHz A/V antenna sends A/V signal from source equipment. 3B – Directional 5.8GHz A/V antenna receives audio and video signal. 4 – Power on/off switch. 5 – DC power input, connect to power supply. (9v). 6 – IR Mouse output, to remotely control source AV equipment. 7A –Video Jack, (yellow), input from source AV equipment. 7B –Video Jack, (yellow), output to TV. 8A –Audio Jack, Right (red), input from source AV equipment. 8B –Audio Jack, Right (red), output to TV. 9A –Audio Jack, Left (white), input from source AV equipment. 9B –Audio Jack, Left (white), output to TV. 10 –Power LED. 2. Panel Control and Function 3 2 To enjoy a life of wireless video and audio, just connect the transmitter to any A/V source you like and connect the receiver to a TV, monitor or speaker in another location. Transmitter Receiver For optimal performance, both the audio/video and remote control antennas should be carefully oriented as described below. For maximum transmitting range, try to minimize obstacles (e.g. your TV or other electronics, large furniture) where between the transmitter and receiver. Orients the 5.8GHz A/V Antennas NOTE: Make sure the ON/OFF switch is in the OFFposition before connection 3. Setup Guide 1. Connect one end of the RCA cable (or scart cable) to the audio and video jacks, and connect the other end to a source device via its “AV output”. 2. Connect the DC plug of the adapter to the DC jack, and connect the power supply to an outlet. 3. Fix IR mouse next to or in front of IR sensor of source device, or alternatively have transmitter facing directly toward the source device. 4. Orient Transmitter/Receiver for optimal performance The system delivers high-quality audio and video by using directional antennas, which must be oriented in the best ways. The antennas are designed to be able to vertically and horizontally pivot and rotate in almost any direction. In most situations, the flat-pitted face of the antennas on both the transmitter and receiver should be facing one another and perpendicular (at a right angle) to an imaginary line drawn between the two units. Three examples are shown as Fig-1, Fig-2 and Fig-3. Since all homes are different, for optimal reception, additional slight pivots or rotations may be necessary. If the transmitter and receiver are less than 10 feet apart, suggest that the antennas are lying on their casings since the distance is so short. 1 Connect one end of the RCA cable (or scart cable) to the audio and video jacks and connect the other end to a TV (or monitor, speakers) via its “AV input”. 2 Connect the DC plug of the adapter to the DC jack, and connect the power supply to an outlet. 4 5 3. Keep the IR window oriented toward front when using your source device remote controller. To prevent fire or shock hazard, do not expose this product to rain and moisture. For example: do not use near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or nearby a swimming pool. To avoid electric shock, do not take apart this product, provided as an accessory. This product should be operated only under power supply. Do not overload wall outlets and extension outlets as this can result in the risk of fire or electric shock. 6 5. Important Safety Information NOTE: This equipment has been tested and found to comply with the limits regulated by FCC and CE. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. The change or modifications no expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

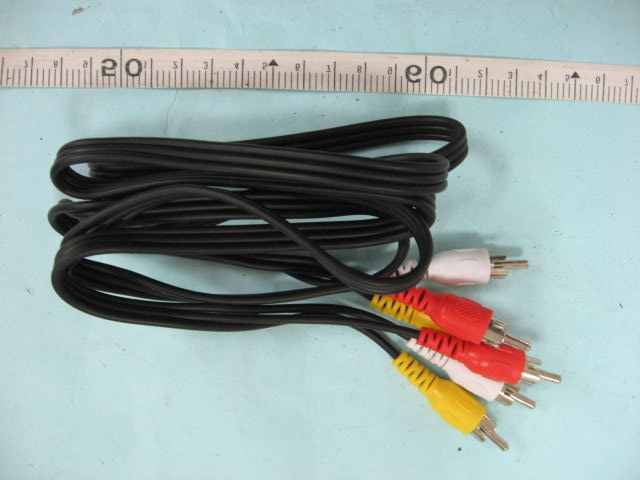

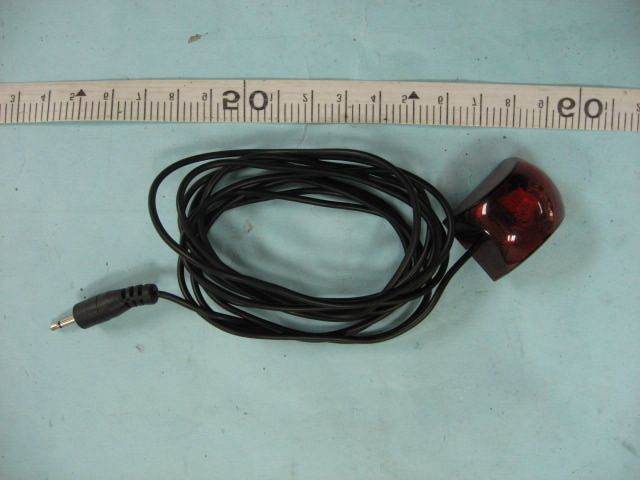

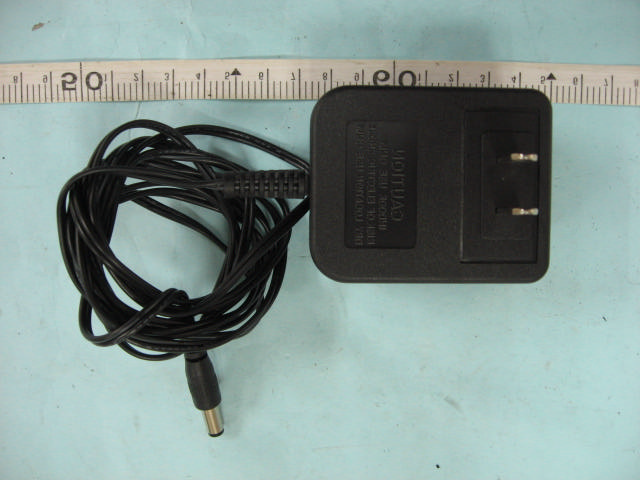

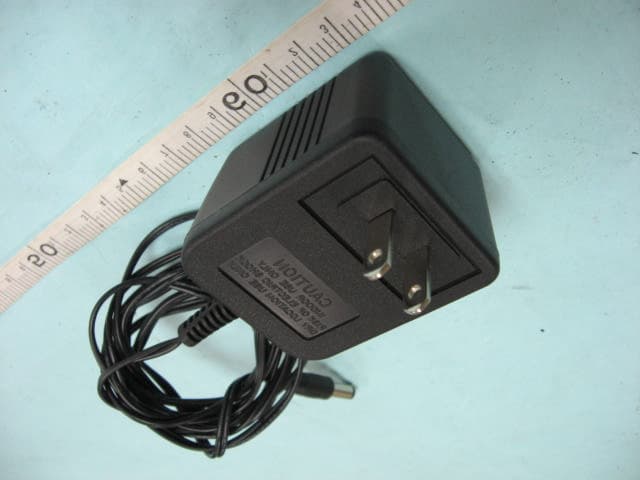

ETC Report No. : 07-07-RBF-006-05 Sheet 1 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Front View of EUT ETC Report No. : 07-07-RBF-006-05 Sheet 2 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Rear View of EUT ETC Report No. : 07-07-RBF-006-05 Sheet 3 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 5. Side View of EUT 6. Bottom View of EUT ETC Report No. : 07-07-RBF-006-05 Sheet 4 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 7. Total View of IR Calbe 8. Total View of AV Cable ETC Report No. : 07-07-RBF-006-05 Sheet 8 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Mode: Adaptor 1. Front View of Adaptor 2. Side View of Adaptor ETC Report No. : 07-07-RBF-006-05 Sheet 9 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 3. Side View of Adaptor 4. Rear View of Adaptor

Model : AVS-5801 FCC ID : QWTAVS5801T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 36 mm 24 mm

ETC Report No. : 07-07-RBF-006-05 Sheet 5 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 9. Internal View of EUT ETC Report No. : 07-07-RBF-006-05 Sheet 6 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 10. Component View of PCB 11. Solder View of PCB ETC Report No. : 07-07-RBF-006-05 Sheet 7 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 12. Component View of PCB 13. Solder View of PCB ETC Report No. : 07-07-RBF-006-05 Sheet 10 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of Adaptor ETC Report No. : 07-07-RBF-006-05 Sheet 11 of 11 Sheets FCC ID.: QWTAVS-5801T Rev. No 2.0 CONSTRUCTED PHOTOS of EUT 6. Component View of Adaptor’s PCB 7. Solder View of Adaptor’s PCB

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 5.8 GHz Audio/Video Sender MODEL : AVS-5801 FCC ID. : QWTAVS-5801T for APPLICANT : Chung-Hsin Electric & Machinery Mfg. Corp. ADDRESS : No. 25, Wen-Ten Rd., Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http// [email protected] Report Number : 07-07-RBF-006-05 ETC Report No. : 07-07-RBF-006-05 FCC ID. : QWTAVS-5801T Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : Chung- Hisn Electric & Machinery Mfg. Corp. No. 25, Wen-Te Rd., Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Manufacturer : Chung- Hisn Electric & Machinery Mfg. Corp. No. 25, Wen-Te Rd., Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Description of EUT a) Type of EUT : 5.8 GHz Audio/Video Sender b) Trade Name : CHEM-Link c) Model No. : AVS-5801 d) Power Supply : I/P: 120Vac 60Hz 7.5W; O/P: 9Vdc 500mA e) Frequency Range : 5725MHz-5875MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 21, 2007 Test Engineer : (Vincent Chang) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 07-07-RBF-006-05 FCC ID. : QWTAVS-5801T Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE.......................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation........................................................................................................5 2.4 Labeling Requirement.....................................................................................................................5 2.5 User Information............................................................................................................................6 3. SYSTEM TEST CONFIGURATION...........................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System.............................................................................................................7 4 RADIATED EMISSION MEASUREMENT..............................................................................8 4.1 Applicable Standard.......................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument...................................................................................................................10 4.4 Radiated Emission Data................................................................................................................11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Rx Portion...............................................................................................................................14 4.4.3 Other Emissions........................................................................................................................15 4.5 Field Strength Calculation.............................................................................................................15 4.6 Photos of Radiation Measuring Setup............................................................................................16 5 CONDUCTED EMISSION MEASUREMENT........................................................................17 5.1 Standard Applicable.....................................................................................................................17 5.2 Measurement Procedure...............................................................................................................17 5.3 Conducted Emission Data.............................................................................................................18 5.4 Result Data Calculation.................................................................................................................20 5.5 Conducted Measurement Equipment..............................................................…
