QWTCMC-3000Webpad

Mobile Computer User Manual This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. - 2 - - Contents - 1. Safety precautions........................................................ 1 2. Specifications ............................................................... 1 3. List of included items .................................................... 2 4. Exterior ......................................................................... 3 5. Operation...................................................................... 6 5.1 Main battery and charging ....................................... 6 5.2 System reset............................................................ 7 5.3 Use and care of the touch panel.............................. 7 5.4 Change the Backlight Setting .................................. 7 5.5 Using the Transcriber (Hand writing recognizer) ..... 8 5.6 Data Backup ............................................................ 8 5.7 Right click Function ................................................. 7 6. ActiveSync.................................................................... 9 7. Using the (optional) Bluetooth wireless network ........ 12 070710 1. Safety precautions For your safety, please read the following: (1) Please use only the accessories from the original manufacturer. Use of any accessories not provided by the manufacturer may damage the device and invalidate the product warranty. (2) Do not place the device in environments that exceed the specified temperature or humidity limits. Doing so may result in damage to the device. (3) Please keep all I/O ports covered when not in use to prevent water, dirt, metal or other objects from entering the device and causing damage. (4) Do not disassemble or modify the device, in order to prevent damage to the unit or electrical shock. Any disassembly or modification of the device automatically invalidates the product warranty. 2. Specifications OS Windows CE.NET 4.2 CPU Intel PXA255 400MHz Power (Adapter) AC In: 100~240V, 50~60Hz DC Output: 12V, 2.5A Power (Battery) Lithium Ion, 7.4V, 4400 mAH Dimensions 267 x 203 x 40 mm Weight 1.55 kg Operating temperature 0 ~ + 50 °C°C Storage temperature -20 ~ + 70 °C°C Relative humidity 0 % ~ 80 % (without condensation) Ingress protection IP54 Drop specification 1.2m - 2 - 3. List of included items Upon opening the packaging, please check that the following items are included: (1) CMC-3000 mobile computer (2) Battery (3) Charging cable and adaptor (4) Microsoft ActiveSync installation CD (5) USB cable (6) Stylus strap (7) Pulling pad (Help to dismount memory cards from device) (8) Quick guide (1) (2) (3) (4) (5) (6) (7) (8) Adhere the pad the to the SD card on the same side with the connector - 3 - 4. Exterior 7 6 5 8 9 10 11 12 1 2 3 13 14 15 16 19 17 18 21 4 20 22 - 4 - 1. Multipurpose communications port for: (1) USB client – use the USB cable included to link the device to a PC for data synchronization, software installation, etc. (2) RS-232 – supports standard RS-232 port functions 2. USB host port: the device features two USB host ports, for use with: (1) USB memory drive (2) Keyboard (3) Mouse 3. VGA port: for standard VGA signal output 4. Built-in microphone 5. Alarm LED: programmable flashing indicator for use with system or application 6. Wireless connection LED: flashes when Bluetooth connection is in use 7. Charging status LED operates as follows: (1) Unlit: currently not charging (2) Red, constant: charging battery (3) Green, constant: battery fully charged 8. On/Off button 9. Directional arrow keys for moving the cursor - 5 - 10. Hot keys: four programmable hot keys; click icon in lower right corner of the display to define key functions (shown below) 11. Keyboard function key: click this key to open/close the onscreen keyboard 12. Cradle connector pins: connection between cradle and device for battery charging and transferring data 13. IrDA data transfer interface 14. CompactFlash slot: supports both CF memory and I/O cards 15. SD slot: supports SD/MMC memory cards 16. Earphone jack: for 3.5mm stereo earphone 17. Stylus 18. Integrated wireless module and backup battery 19. Power adaptor jack 20. Speaker 21. Main battery 22. System reset button - 6 - 5. Operation 5.1 Main battery and charging (1) When shipped from the factory, the main battery is minimally charged. To prolong battery life, fully charge the battery before first use. (2) When battery power is nearly depleted, a popup window will warn user to recharge the main battery. Failure to recharge the battery before power is completely deleted may result in loss of data saved on the device. (3) Before…

Text truncated - open the document above for the full version.

1 Lucy Tsai From: Joe Hsieh [[email protected]] Sent: Tuesday, October 23, 2007 2:49 AM To: Lucy Tsai Subject: Re: CHUNG-HSIN ELECTRIC& MACHINERY MFG.. CORP, FCC ID: QWTCMC-3000, Assessment NO.: AN07T7286, Notice#1 Attachments: Schematics_BT.pdf; Antenna Spec.pdf; Block Diafram_BT.pdf; Block Diagram.pdf; BT Declaration per FCC15.247 Requirements.pdf; Cover Letter.pdf; Operational Principle.pdf Dear Lucy, Re‐Q1: Attached please find the revise Cover Letter. Re‐Q2: Attached please find the Bluetooth module's schematics, block diagram and revise system Block Diagram. Re‐Q3: Attached please find the separate operational principle and antenna specification. Re‐Q4: Attached please find the Bluetooth declaration per FCC 15.247 requirements. Any questions please feel free to contact with me. Best regards, Joe ‐‐‐‐‐ Original Message ‐‐‐‐‐ From: "Lucy Tsai" <[email protected]> To: <[email protected]> Sent: Thursday, October 18, 2007 8:01 PM Subject: FW: CHUNG‐HSIN ELECTRIC& MACHINERY MFG.. CORP, FCC ID: QWTCMC‐3000, Assessment NO.: AN07T7286, Notice#1 Hi Joe, Please address following issues. Q#1: The FCC ID indicates on Authorization letter is QWTQWT‐3000 which is different from QWTCMC‐3000 indicates on the application and operational description, please confirm which one is correct and correct as well. Q#2: Please provide Bluetooth module's schematics and block diagram. Also, please indicate the Bluetooth module from the system block diagram. Q#3: Page 2 of theory of operation is the antenna specification, please separate them and submit again. Q#4: Please demonstrate that this Bluetooth device has complied with FCC 15.247 requirement as below: Is the hopping sequence pseudorandom, based on the technical description? Is each channel used equally on average, based on the technical description? Does the associated system receiver have a compliant input bandwidth, based on the measured 20 dB emission bandwidth? Does the associated system receiver have the ability to hop in synchronization with the transmitter, based on the technical description? 2 15.247(g) Does the design of the frequency hopping system allow it to comply with all pertinent requirements when presented with a lengthy data stream? 15.247(h) Does the frequency hopping system comply with the non‐coordination requirement? Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e‐mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted Any questions about the content of this correspondence should be directed to the e‐mail address listed below the name of the sender.

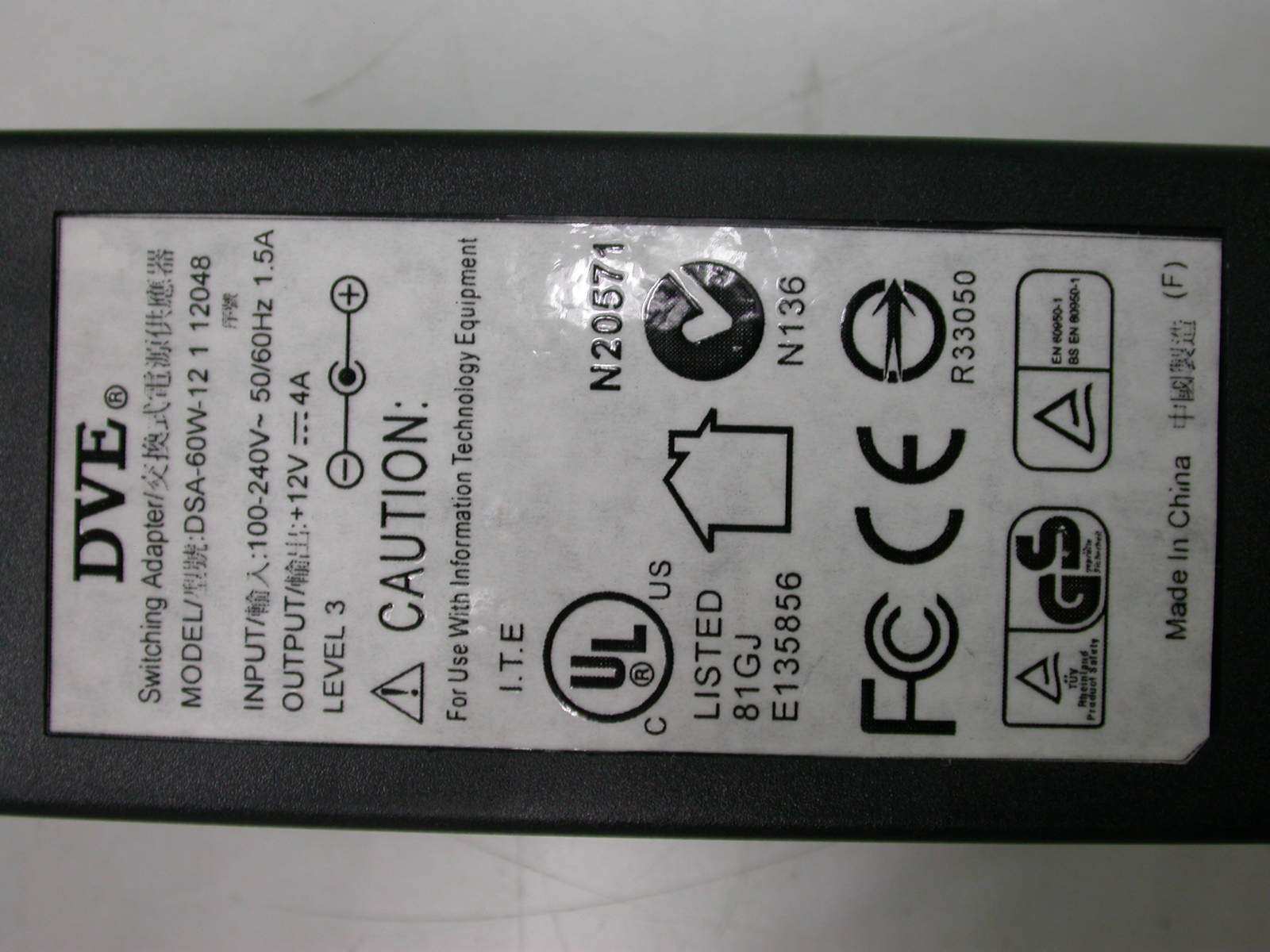

ETC Report No.: 06-12-MAS-251-03 Page A1 of A4 FCC ID.: QWTCMC-3000 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT ETC Report No.: 06-12-MAS-251-03 Page A2 of A4 FCC ID.: QWTCMC-3000 3. Outside view 3 of EUT 4. Outside view 4 of EUT ETC Report No.: 06-12-MAS-251-03 Page A3 of A4 FCC ID.: QWTCMC-3000 5. Outside view 5 of EUT 6. Adaptor ETC Report No.: 06-12-MAS-251-03 Page A4 of A4 FCC ID.: QWTCMC-3000 7. battery

ETC Report No.: 06-12-MAS-251-03 Page B1 of B10 FCC ID.: QWTCMC-3000 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside view 1 of EUT 2. Inside view 2 of EUT (Battery) ETC Report No.: 06-12-MAS-251-03 Page B2 of B10 FCC ID.: QWTCMC-3000 3. Inside view 3 of EUT 4. Inside view 4 of EUT ETC Report No.: 06-12-MAS-251-03 Page B3 of B10 FCC ID.: QWTCMC-3000 5. Inside view 5 of EUT 6. Inside view 6 of EUT ETC Report No.: 06-12-MAS-251-03 Page B4 of B10 FCC ID.: QWTCMC-3000 7. Inside view 7 of EUT 8. Inside view 8 of EUT ETC Report No.: 06-12-MAS-251-03 Page B5 of B10 FCC ID.: QWTCMC-3000 9. Inside view 9 of EUT 10. Inside view 10 of EUT ETC Report No.: 06-12-MAS-251-03 Page B6 of B10 FCC ID.: QWTCMC-3000 11. Inside view 11 of EUT 12. PCB1 ETC Report No.: 06-12-MAS-251-03 Page B7 of B10 FCC ID.: QWTCMC-3000 13. Front view of PCB2 14. Rear view of PCB2 ETC Report No.: 06-12-MAS-251-03 Page B8 of B10 FCC ID.: QWTCMC-3000 15. Front view of PCB3 16. Rear view of PCB3 ETC Report No.: 06-12-MAS-251-03 Page B9 of B10 FCC ID.: QWTCMC-3000 17. Front view of PCB4 18. Rear view of PCB4 ETC Report No.: 06-12-MAS-251-03 Page B10 of B10 FCC ID.: QWTCMC-3000 19. Front view of PCB5 20. Rear view of PCB5

www.rainsun.comJun, 2006 RainSun Corporation AN9520 Multilayer Chip Antenna Application : Bluetooth, 2.4 GHz WLAN, .... Key Features yLight weight and low profile 9.5mm(L)×2.0mm(W)×1.0mm(H) yOmni-directional in azimuth yLead (Pb) Free Return LossRadiation Pattern Quick Reference Data SpecificationItem 50 Ω Impedance Omni-directional Pattern Linear Polarization 2.0 (max) VSWR 1.5 dBi Peak Gain (typ.) 200 MHz Bandwidth (typ.) 2.45 GHz Center Frequency AN9520 H‐Plane AN9520 E‐Plane

ETC Report No. : 06-12-MAS-251-03 Sheet 1 of 58 Sheets FCC ID: QWTCMC-3000 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 06-12-MAS-251-03 Client: CHUNG-HSIN ELECTRIC& MACHINERY MFG.. CORP Product: Webpad Model: CMC-3000 FCC ID: QWTCMC-3000 Manufacturer/supplier: CHUNG-HSIN ELECTRIC& MACHINERY MFG.. CORP Date test item received: 2006/12/28 Date test campaign completed: 2007/10/08 Date of issue: 2007/10/11 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 58 pages Total number of pages of photos: External photos 4 pages Internal photos 10 pages Setup photos 2 pages Test Engineer Checked By Approved By David You James Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 06-12-MAS-251-03 Sheet 2 of 58 Sheets FCC ID: QWTCMC-3000 Rev. No 1.0 Client : CHUNG-HSIN ELECTRIC& MACHINERY MFG.. CORP Address : NO.25,Wen-Te Rd.,Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Manufacturer : CHUNG-HSIN ELECTRIC& MACHINERY MFG.. CORP Address : NO.25,Wen-Te Rd.,Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. EUT : Webpad Trade name : Mobia Model No. : CMC-3000 Power Source : Adapter Input: 100-240Vac, 50/60Hz, 1.5A Output: DC ±12V, 4A Regulations applied : FCC 47 CFR, Part 15 Subpart C (2006) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 06-12-MAS-251-03 Sheet 3 of 58 Sheets FCC ID: QWTCMC-3000 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ..............................................................................................................5 1.1 Product Description.............................................................................................................................. 5 1.2 Characteristics of Device ..................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................ 5 1.4 Modifiction List of EUT ...................................................................................................................... 5 1.5 Test Facility.......................................................................................................................................... 5 2 PROVISIONS APPLICABLE .............................................................................................................6 2.1 Definition ............................................................................................................................................. 6 2.2 Requirement for Compliance ............................................................................................................... 7 2.3 Restricted Bands of Operation ............................................................................................................. 9 2.4 Labeling Requirement .......................................................................................................................... 9 2.5 User Information ................................................................................................................................ 10 3. SYSTEM TEST CONFIGURATION ...............................................................................................11 3.1 Justification ........................................................................................................................................ 11 3.2 Devices for Tested System ................................................................................................................. 11 4 RADIATED EMISSION MEASUREMENT ...................................................................................12 4.1 Applicable Standard ........................................................................................................................... 12 4.2 Measurement Procedure..................................................................................................................... 12 4.3 Measuring Instrument ........................................................................................................................ 14 4.4 Radiated Emission Data ..................................................................................................................... 15 4.5 Field Strength Calculation.............................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 06-12-MAS-251-03 Sheet 1 of 2 Sheets FCC ID.: QWTCMC-3000 Photos of Radiation Measuring Setup ETC Report No. : 06-12-MAS-251-03 Sheet 2 of 2 Sheets FCC ID.: QWTCMC-3000 Photos of Conduction Measuring Setup
