QWTVS5811RAudio/Video Sender

From: S. S. Liou [[email protected]] Sent: Wednesday, April 30, 2003 1:53 AM To: Mike Kuo Subject: Re: Chung-Hsin Electric & Machinery Mfg. Corp., FCC ID:QWTVS5811R, AN03T2694 Hi Mike, For your questions, 1. Please refer to revised test report. The description of transmission time is corrected. 2. Please refer to revised ID label. regards, S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "ETC/Iris (E-mail)" <[email protected]>; "Will Yauo (E-mail)" <[email protected]> Sent: Friday, April 25, 2003 5:36 AM Subject: FW: Chung-Hsin Electric & Machinery Mfg. Corp., FCC ID:QWTVS5811R, AN03T2694 > > > -----Original Message----- > From: CERTADM > Sent: Thursday, April 24, 2003 2:35 PM > To: '[email protected]' > Subject: Chung-Hsin Electric & Machinery Mfg. Corp., FCC ID:QWTVS5811R, > AN03T2694 > > > Notice_content > ------------- > Question #1: Page 12 section 4.5 of test report indicates the "This Panic > Watch is operated by Manual, and Activate Time is less than 5 second after > being released" What is this Panic Watch in associated with the device ? > > Question #2: The FCC ID number listed in the proposed FCC ID label format > does not agree with the one listed in the TCB application form. Please > provide revised FCC ID label format. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

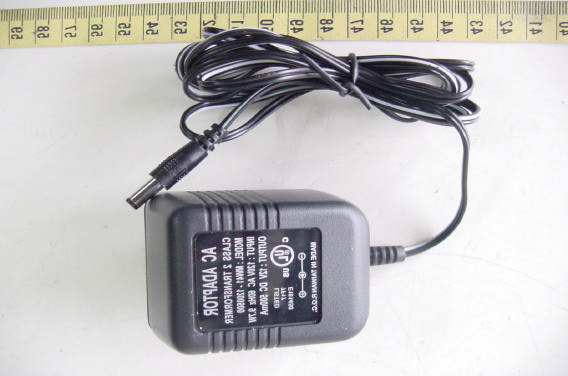

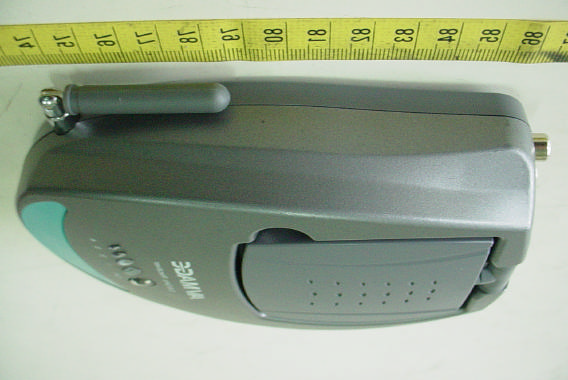

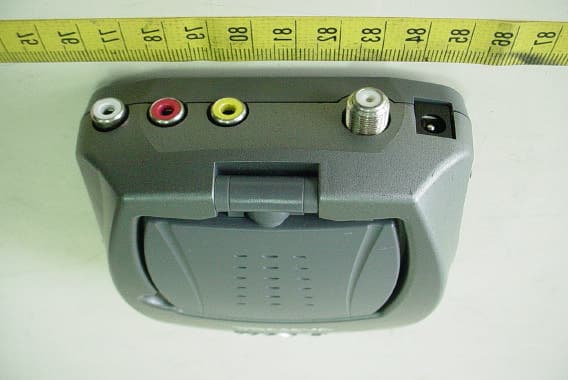

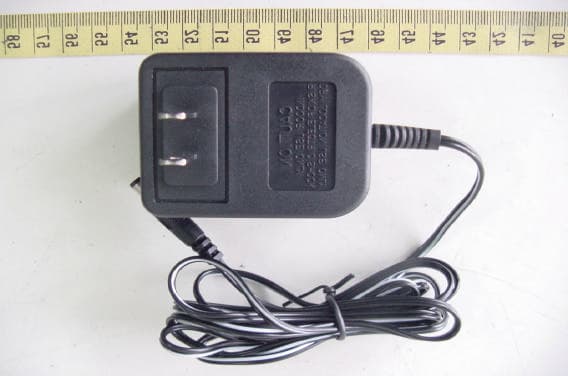

ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Side View of EUT ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Bottom View of EUT Open View of EUT ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of Adaptor Rear View of Adaptor

ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor Component View of Adaptor’s PCB ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Adaptor’s PCB

Rev. No 1.0 FCC PART 15 EMI TEST REPORT of E.U.T. : 5.8GHz Audio/Video Sender FCC ID. : QWTVS5811R MODEL : VS5811R for APPLICANT : Chung-Hsin Electric & Machinery Mfg. Corp. ADDRESS : No.25, Wen-Te Rd, Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : ET92R-01-033-01 ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Chung-Hsin Electric & Machinery Mfg. Corp. No.25, Wen-Te Rd, Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Manufacturer : Chung-Hsin Electric & Machinery Mfg. Corp. No.25, Wen-Te Rd, Lo-Shan Village, Kwei Shan Hsiang, Taoyuan Hsien, Taiwan, R.O.C. Description of EUT : a) Type of EUT : 5.8GHz Audio/Video Sender b) Trade Name : AVMAGE c) Model No. : VS5811R d) FCC ID : QWTVS5811R e) Power Supply : Adaptor(MW41); I/P: 120Vac, 60Hz;9.7W O/P: 12Vdc DC 500mA f) Frequency Range : 419.141 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Mar. 08, 2003 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.3.1 TX Port...............................................................................................................................................................................8 4.3.1 Rx Portion..........................................................................................................................................................................9 4.3.3 Other Emissions..............................................................................................................................................................12 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................12 4.5 ACTIVATE TIME...........................................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 4.8 Radiated Measurement Photos ETC Report No.:ET92R-01-033-01 FCC ID.: QWTVS5811R Rev. No 1.0 6.4 Photos of Conduction Measuring Setup
