QWU-02CSonicPoint

Page 1 SonicWALL SonicPoint - Model APL13-02C FCC Part 15 Class A Notice NOTE: This equipment was tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. And if not installed and used in accordance with the instruction manual, the device may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user is required to correct the interference at his own expense. Complies with EN 55022 Class A and CISPR22 Class A. *Refer to the label on the bottom of the unit for device information including Class A or Class B FCC information. Caution: Modifying this equipment or using this equipment for purposes not shown in this manual without the written consent of SonicWALL, Inc. could void the user’s authority to operate this equipment. BSMI Statement VCCI Statement Page 2 Canadian Radio Frequency Emissions Statement This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à toutes la norme NMB-003 du Canada. CISPR 22 (En 55022) Class A Warning: This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimetres (7.9 inches) between the radiator (antenna) and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For more information regarding the above statement, please contact SonicWALL, Inc. at 1143 Borregas Avenue, Sunnyvale, CA 94089-1306 or 1-408-745-9600. Cable Connections All Ethernet and RS232 (Console) cables are designed for intra-building connection to other equipment. Do not connect these ports directly to communication wiring or other wiring that exits the building where the SonicWALL is located. Power Supply Information If the power supply is missing from your SonicWALL product package, please contact SonicWALL Technical Support at 408-752-7819 for a replacement. This product should only be used with a UL listed power supply marked “Class 2” or “LPS”, with an output rated 5 VDC, minimum 1.66 A. Declaration of Conformity Application of council DirectiveDirective 89/336/EEC (EMC) and 72/23/EEC (LVD) Directive 1999/5/EC (R&TTE) and standards EN 301 489-1/-17 and EN 300 328-1/-2 Standards to which conformity is declaredEN 55022 (1998) Class A EN 55024 (1998) EN 61000-3-2 (1995) + A1, A2, A14 EN 61000-3-3 (1994) EN 60950 (1992) + A1, A2, A4, A11 National Deviations: AT, AU, BE, CH, CN, CZ, DE, DK, FI, FR, GB, GR, HU, IE, IL, IN, IT, JP, KR, NL, NO, PL, SE, SG, SI Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canada (IC): To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Canada (IC): To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Page 3 Wall Mounting the SonicWALL SonicPoint Follow the instructions below to mount the SonicPoint on the wall. 1. Using the mounting plate as a template, mark the places to insert the mounting anchors. 2. Using a #2 Phillips screw driver, press the tip of the anchor into the marked places on the hollow wall. 3. Turn the screwdriver clockwise until the anchor is flush with the wall. Repeat for the second anchor. 4. Insert a #6 x 1 1/4” pan head Phillips self-tapping screw into each anchor leaving a gap for the mounting plate. 5. Hang the mounting plate on the screws. Use the middle row of mounting holes. Page 4 6. Slide the plate down to the narrowest part of the keyhole so that the mounting plate rests on the screws. 7. Tighten the mounting screws to s…

Text truncated - open the document above for the full version.

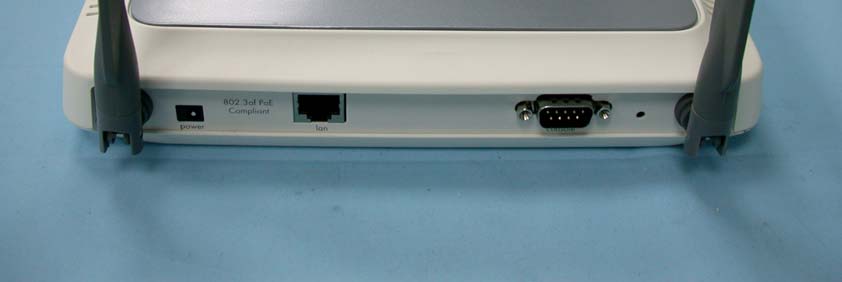

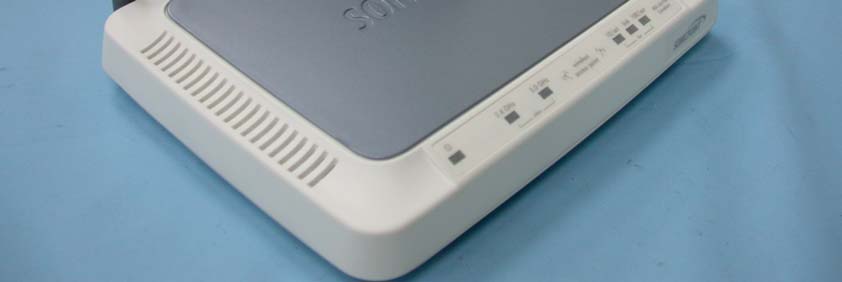

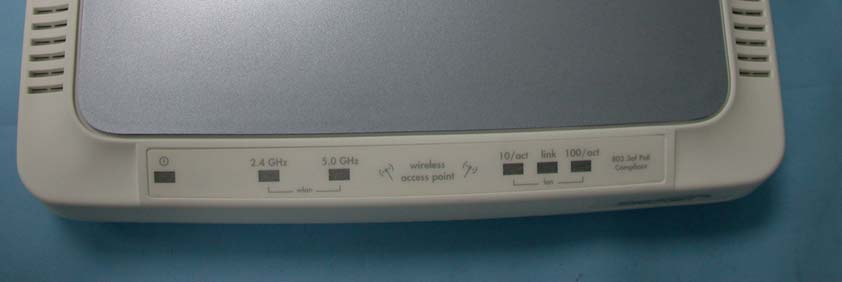

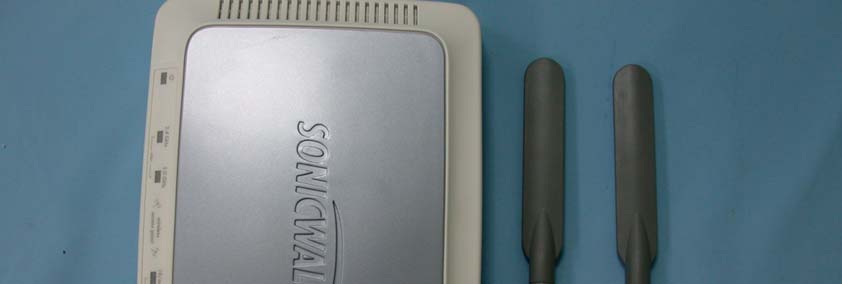

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Label Location

Silver Label, 3.36"x2.81" (Dom, Int, WiFi) A A 16 APR 03 341-000288-00 SHEET 1 OF 1CAD FILE: NONESCALE: NONE B NOTES: 1. Material: SILVER COLOR, UL recognized to category PGDQ2 2. Adhesive: PERMANENT 3. Text Color: BLACK 4. Material/Adhesive/Ink system must be UL recognized to category PGJI2. 5. Artwork must be approved by SonicWall PROCESS NOTES: 1. When additional printing is required to the surface of this label in production, the combination of label material, ribbon (ink), and the printing process must be UL recognized to category PGJI2. LCW Initial Release 341-000XXX- (47CFR 15.247) FCC ID: QWU-02C IC:4408A-02C REN: 0.0B COMPATIBLE ™ Model / TypeSerial Number: SONICWALL SonicPoint APL13-02C Authentication Code Assembly:Input: Made In China 5 V 101-500xxx-00 X-DDDDD Rev. xx 2.4 A

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: QWU-02C Report No.: RF920804R01B Technical Description The transmitter of the EUT (SonicPoint) is powered by power adapter and connected with managing computer through RJ45 port. The antenna is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a SonicPoint which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: QWU-02C Report No: RF920804R01B 1 RF EXPOSURE REPORT REPORT NO.: RF920804R01B MODEL NO.: APL13-02C ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Sonicwall Inc. ADDRESS: 1143 Borregas Ave., Sunnyvale, CA 94089. U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: QWU-02C Report No: RF920804R01B 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QWU-02C Report No: RF920804R01B 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QWU-02C Report No: RF920804R01B 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 4dBi or 2.51 (numeric) for 2.4GHz and 5dBi or 3.16 (numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.4990.0491.0 6243789.3310.0451.0 11246296.1610.0481.0 For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241296.8280.0481.0 6243781.6580.0411.0 11246279.6160.0401.0 For 802.11a (5GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518037.5840.0241.0 4524034.2770.0221.0 5526095.7190.0601.0 8532086.4970.0541.0 9574580.5380.0511.0 12580583.5600.0531.0 Note: Both of the 2.4GHz and 5GHz bands can transmit simultaneously, the maximum power density value is 0.109 mW/cm 2 , which is less than the 1mW/cm 2 limit.

FCC ID: QWU-02C Report No.: RF920804R01B1Issued: May 24, 2004 FCC TEST REPORT REPORT NO.: RF920804R01B MODEL NO.: APL13-02C RECEIVED: Apr. 29, 2004 TESTED: May 19, 2004 APPLICANT:Sonicwall Inc. ADDRESS: 1143 Borregas Ave., Sunnyvale, CA 94089, USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 164 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: QWU-02C Report No.: RF920804R01B2Issued: May 24, 2004 Table of Contents 1.CERTIFICATION .................................................................................................................. 5 2.SUMMARY OF TEST RESULTS.......................................................................................... 6 3.GENERAL INFORMATION .................................................................................................. 8 3.1GENERAL DESCRIPTION OF EUT .................................................................................... 8 3.2DESCRIPTION OF TEST MODES .................................................................................... 10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................... 11 3.4DESCRIPTION OF SUPPORT UNITS............................................................................... 12 3.5CONFIGURATION OF SYSTEM UNDER TEST ............................................................... 12 4.TEST TYPES AND RESULTS (FOR PART 802.11b & DRAFT 802.11g) .......................... 14 4.1CONDUCTED EMISSION MEASUREMENT..................................................................... 14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................. 14 4.1.2TEST INSTRUMENTS ....................................................................................................... 14 4.1.3TEST PROCEDURES ........................................................................................................ 15 4.1.4DEVIATION FROM TEST STANDARD .............................................................................. 15 4.1.5TEST SETUP ..................................................................................................................... 16 4.1.6EUT OPERATING CONDITIONS....................................................................................... 16 4.1.7TEST RESULTS ................................................................................................................. 17 4.2RADIATED EMISSION MEASUREMENT.......................................................................... 23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ....................................................... 23 4.2.2TEST INSTRUMENTS ....................................................................................................... 24 4.2.3TEST PROCEDURES ........................................................................................................ 25 4.2.4DEVIATION FROM TEST STANDARD .............................................................................. 25 4.2.5TEST SETUP ..................................................................................................................... 26 4.2.6EUT OPERATING CONDITIONS....................................................................................... 26 4.2.7TEST RESULTS ................................................................................................................. 27 4.36dB BANDWIDTH MEASUREMENT ................................................................................. 37 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT .............................................................. 37 4.3.2TEST INSTRUMENTS ....................................................................................................... 37 4.3.3TEST PROCEDURE .......................................................................................................... 37 4.3.4DEVIATION FROM TEST STANDARD .............................................................................. 38 4.3.5TEST SETUP ..................................................................................................................... 38 4.3.6EUT OPERATING CONDITIONS....................................................................................... 38 4.3.7TEST RESULTS ................................................................................................................. 39 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................. 47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................. 47 4.4.2INSTRUMENTS ................................................................................................................. 47 4.4.3TEST PROCEDURES ........................................................................................................ 48 4.4.4TEST SETUP ..................................................................................................................... 48 4.4.5EUT OPERATING CONDITIONS....................................................................................... 48 4.4.6TEST RESULTS ................................................................................................................. 49 4.5POWER SPECTRAL DENSITY MEASUREMENT............................................................ 50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ......................................... 50 4.5.2TEST INSTRUMENTS ....................................................................................................... 50 4.5.3TES…

Text truncated - open the document above for the full version.

FCC ID: QWU-02C Report No.: RF920804R01B161Issued: May 24, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QWU-02C Report No.: RF920804R01B162Issued: May 24, 2004 RADIATED EMISSION TEST (EUT powered by AC Adapter) FCC ID: QWU-02C Report No.: RF920804R01B163Issued: May 24, 2004 (EUT powered by POE)
