QWU-046Ethernet Firewall/VPN/Router with Wireless LAN

DRAFT not for production SonicWALL TZ 190 Wireless Getting Started Guide Page 1 SonicWALL TZ 190 Wireless Getting Started Guide This Getting Started Guide contains installation procedures and configuration guidelines for deploying a SonicWALL TZ 190 Wireless appliance on your network. SonicWALL TZ 190 Wireless Wireless provides a flexible, total Internet security platform for wired and wireless users over Wireless Wide Area Networks (WWAN). This easy to configure appliance delivers the office-on-a-park-bench mobility and convenience of WWAN technology along with the powerful protection of true layered security, integrating gateway anti-virus, gateway anti-spyware, intrusion prevention and content filtering capabilities in an easy-to-use, low cost platform. This Getting Started Guide provides instructions for basic installation and configuration of the SonicWALL TZ 190 appliance using a SonicWALL approved WWAN PC card and service from a third-party wireless provider. After you complete this guide, you will have secure Internet access (WAN / WWAN) and a secure Local Area Network (LAN) / Wireless Local Area Network (WLAN). The SonicWALL TZ 190 appliance requires the use of a SonicWALL approved WWAN PC card along with a data account from a supported third-party wireless service provider. For an updated list of SonicWALL approved WWAN cards and service providers, visit the SonicWALL TZ 190 Wireless Wireless product page at: <http://www.sonicwall.com/products/tz190_details.html> Alert:DO NOT INSERT YOUR WWAN PC CARD INTO ANY DEVICE UNTIL YOU HAVE READ THIS GUIDE. INSERTING YOUR WWAN PC CARD INTO A DEVICE BEFORE PROPER SETUP AND PROVISIONING HAS TAKEN PLACE CAN RESULT IN CONNECTIVITY ISSUES. Note:SonicWALL makes no warrants, representations or claims that the user of this product will experience continuous broadband-like speeds. The speed of the WWAN connection will vary depending on available wireless technology (GPRS/ HSDPA/EV-DO), WWAN card, wireless service area and other factors. DRAFT not for production Page 2 Important Information Regarding WWAN Service Providers It is important to understand that not all WWAN service providers operate in the same way, nor do they all support the same feature sets. Because of this, there exists some inherent “service provider-specific” variances in service area and more importantly, in supported features. Along with feature limitations may also come certain restrictions such as bandwidth constraints and networking limitations. Before purchasing a WWAN PC card and service plan, check to make sure that the WWAN service provider offers support for the features you need. Before committing to a service contract with a WWAN service provider, it may be helpful to ask these questions: •What types of traffic are allowed over the WWAN network? •Do they offer “static” or “dynamic” IP addressing? •Are there any inbound connection limitations? •Are single or multiple hosts allowed? •Do they support VPN traffic? •What are the data transfer limits (inbound and outbound)? •What are common data transfer speeds and how much of the coverage area supports 3G or faster technology? Document Contents This document contains the following sections: Completing Pre-Configuration Tasks Preparing Your WWAN PC Card Registering Your SonicWALL TZ 190 Wireless Appliance Setting Up Your SonicWALL TZ 190 Wireless Appliance Using the SonicWALL Configuration Wizard Verifying Your WWAN Connection Connecting the SonicWALL TZ 190 Wireless to Your Network 1 2 3 4 5 6 7 DRAFT not for production SonicWALL TZ 190 Wireless Getting Started Guide Page 3 Completing Pre-Configuration Tasks This section contains the following sub-sections: •“Before You Begin” on page 3 •“Checking Package Contents” on page 4 •“Recording Configuration Information” on page 5 •“Recording Internet Service Provider (ISP) Information” on page 6 •“Overview of the SonicWALL TZ 190 Wireless Appliance” on page 7 Before You Begin Before you begin the setup process, check to ensure that you have the following required components available: •A SonicWALL approved WWAN Wireless PC Card and a service contract with a WWAN service provider •Your WWAN service provider’s installation software •A laptop computer with: •Windows XP or Windows 2000 •One available PC card slot •40MB of disk space available •A Web browser supporting Java and HTTP uploads. Internet Explorer 6.0 or higher, Netscape Navigator 4.7 or higher, Mozilla 1.7 or higher, or Firefox are recommended Note:For an updated list of SonicWALL approved WWAN cards and service providers, visit the SonicWALL TZ 190 Wireless product page at: <http://www.sonicwall.com/us/tz190cards.html> 1 DRAFT not for production Page 4 Checking Package Contents One SonicWALL TZ 190 appliance Wireless antenna pair One standard power adaptor* One DB9 -> RJ45 (CLI) Cable One Ethernet Cable One SonicWALL Resource CD One Getting Started Guide Document One Release Notes Document One Thank You Card One Security Subscription Card * The included power cord is intended for use in North America only. For European Union (EU) customers, a power cord is not included. * Das eingeschlossene Netzkabel ist für Gebrauch in Nordamerikas nur vorgehabt. Für Europaïsche Union (EU) Kunden, ist ein Netzkabel nicht eingeschlossen. Any Items Missing? If any items are missing from your package, please contact SonicWALL support. A listing of the most current support options is available online at: <http://www.sonicwall.com/us/support.html> 1 2 3 4 5 6 7 8 9 10 wan optwwan SonicWALL Resource CD PRO 2040 SonicPoint Thank You For selecting SonicWALL Protection SonicWALL offers a wide range of high performance network security 1 3 5 7 6 8 9 4 2 SonicWALL Getting Started Guide COMPREHENSIVE INTERNET SECURITY DRAFT not for production SonicWALL TZ 190 Wireless Getting Started Guide Page 5 Recording Configuration Information Before continuing, record the following configuration information for your reference: WWAN Connection Information R…

Text truncated - open the document above for the full version.

AR2414 40MHz X’TAL EEPROM Mni-PCI Interface 1.8V (PNP) ATT PA BPF L N A LPF Switch Main Aux Coupler P_Det2 3.3V 3.3V NMP-3601 Block Diagram DON'T COPY

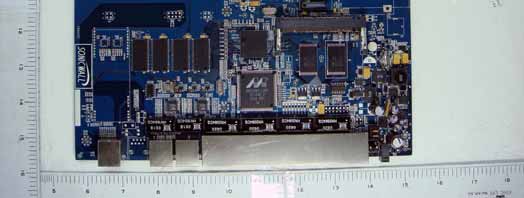

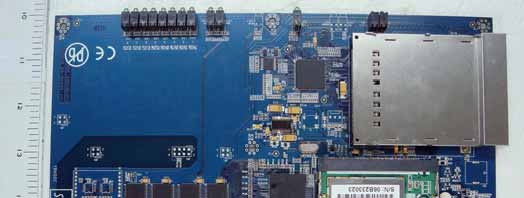

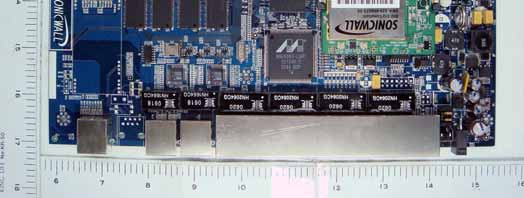

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 1 of 12 FCC Test Report: FI06112101-A Appendix A. Photographs of EUT 06112101-A 06112101-A

Scale 1:1 Outline Only (Does Not Print) 65 mm 95 mm Assembly: 101-500160-50 Rev. A (47CFR 15.247) FCC ID: QWU-046 341-000459-03 SONICWALL TZ 190 WIRELESS Serial Number: Authentication Code: XXXX-XXXX IC:4408A-046 Model/Type : APL1 8 -046 D-06333 Input: 12 V 1.66 A Made in Taiwan CE mark is 5mm COMPATIBLE ™ ICES-003 CLASS BNMB-003 CLASSE B This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) This device may not cause harmful interference, and2) this device must accept any interference received,including interference that may cause undesired operation. 0560 N11597 RoHS 2002/95/EC

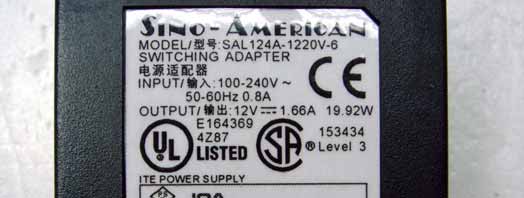

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 2 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 3 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 4 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 5 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 6 of 12 FCC Test Report: FI06112101-A Adapter Model: SAL124A-1220V-6 06112202-A 06112202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 7 of 12 FCC Test Report: FI06112101-A 06112202-A 06112202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 8 of 12 FCC Test Report: FI06112101-A Adapter Model: VE20-120 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 9 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 10 of 12 FCC Test Report: FI06112101-A Adapter Model: NU20-8120166-I1 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 11 of 12 FCC Test Report: FI06112101-A 06112101-A 06112101-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 12 of 12 FCC Test Report: FI06112101-A 06112101-A

品號： 1101A0103000 品名： NMP-3601 (FCC)(SonicWall) PRODUCT LF P 頁次: 1/1 版次： 100 Status ========================================================= ============================================================== 序號 零件料號 品名 數 量 插件位置/Comment ========================================================= ============================================================== 10 510002A01830 NMP-3601(FCC)(SonicWall) ASSEM LFP 1 ASSEM 20 6604A0510000 BAG PE ANTISTATIC 70*100mm (SL- 1 靜電袋 2511MP(JPN) ASSEM) LFP 30 6605A0013000 PAD DESICCANT SILICAGEL 2G LFP 1 乾燥劑 40 6606A4353000 PACKING CARTON (NL-2511CF PLUS TRAY) LF P 0.11 脆盤 50 6606A6683000 PACKING CARTON 350*230*95mm(WITHOUT SPA CE 0.01 外箱 PLATE) LFP 60 6606A6693000 PACKING SPACE PLATE 220*340mm LFP 0.02 隔板 70 6710A0309000 LABEL BLANK(W) 30*15mm LFP 1 序號條碼標籤 80 6710A1334000 STATIC PREVENTION LABEL 2.8*3CM LFP 1 防靜電標籤 90 6710A1529000 BLANK LABEL(10cm*7.5cm) LFP 0.02 外箱標示標籤 110 6710A0419000 BLANK LABEL 35*10mm LFP 1 屏蔽上蓋條碼 =============================================================== ======================================================== 品號： 510002A01830 品名： NMP-3601(FCC)(SonicWall) ASSEM LFP 頁次: 1/1 版次： 100 Status ========================================================= ============================================================== 序號 零件料號 品名 數 量 插件位置/Comment ========================================================= ============================================================== 10 5216A0210010 NMP-3601(FCC)ADJUST LFP 1 ADJUST 30 6710A0643000 BLANK LABEL(Y) 35*6mm(3054UB5) LFP 1 過站標籤 50 6517A0923010 SHIELD COV SPACE-B-V1(NMP-3602)LFP 1 隔離框上蓋(印 Sonic Wall) =============================================================== ======================================================== 品號： 5216A0210010 品名： NMP-3601(FCC)ADJUST LFP 頁次: 1/1 版次： 100 Status ========================================================= ============================================================== 序號 零件料號 品名 數 量 插件位置/Comment ========================================================= ============================================================== 10 5816A0210010 NMP-3601(FCC) SMT LFP 1 SMT =============================================================== ======================================================== 品號： 5816A0210010 品名： NMP-3601(FCC) SMT LFP 頁次: 1/2 版次： 100 Status ========================================================= ============================================================== 序號 零件料號 品名 數 量 插件位置/Comment ========================================================= ============================================================== 20 6710A0280000 BLANK LABEL(Y) 25*8mm (SN-458RU) LFP 1 過站標籤 30 7016A0210000 PCB NMP-3602-1.00 LFP 1 PCB 40 7024A0070000 RFJACK MHF F 180 度 20279-001E-01 SMD LFP 2 ANT1,ANT2 50 7125A1310000 FILTER CER 2450M/100M MDR767F-T SMD LFP 1 FL1 60 7135A0001000 X'TAL 40MHZ 10ppm 15pF 91-309-4000571 S MD 1 X1 LFP 70 72E0810*0066 R 0R J 0402 LFP 22 R12,R15,R19,R20,R23,R24,R30,R34,R38,R41,R42,R45,R49 ,R50,R58,R59,R60,R61,R65,R66,R68,R71 80 72E081010266 R 1K J 0402 LFP 1 R16 90 72E081010366 R 10K J 0402 LFP 4 R33,R35,R63,R67 100 72E081012366 R 12K J 0402 LFP 1 R48 110 72E081015266 R 1K5 J 0402 LFP 1 R32 120 72E081018166 R 180R J 0402 LFP 2 R1,R2 130 72E081022166 R 220R J 0402 LFP 2 R53,R54 140 72E081039166 R 390R J 0402 LFP 1 R28 150 72E081047066 R 47R J 0402 LFP 2 R43,R51 160 72E081047266 R 4K7 J 0402 LFP 1 R29 170 72E081047366 R 47K J 0402 LFP 1 R25 180 72E081056066 R 56R J 0402 LFP 2 R27,R47 190 72E081056266 R 5K6 J 0402 LFP 2 R46,R64 200 72E1800*0066 R 0R J 0603 LFP 1 R56 210 72E18001*066 R 1R J 0603 LFP 1 R26 220 72E2980*0066 R 0R J 0805 LFP 4 R13,R5,R55,R6 230 73D01*060006 L 1nH S 0402 (LEAD-FREE) 4 L14,L4,L5,L8 240 73D01*560006 L 1n5H S 0402 (LEAD-FREE) 1 L12 250 73D018010006 L 18nH J 0402 (LEAD-FREE) 2 L6,L7 260 73D03*360006 L 3n3H S 0402 (LEAD-FREE) 3 L13,L2,L3 270 73D04*760006 L 4n7H S 0402 (LEAD-FREE) 1 L10 280 741A76300706 DIODE SCH SMS7630-079LF SC79 LFP 1 D2 290 742A24140009 IC BB AR2414A-001 PBGA224 LFP 1 U1 300 742A24326006 IC ROM-EEP M24C32WMN6-T6 SO8 LFP 1 U3 310 742A52020006 IC SW TQS5202 VQFN-12 LFP 1 U5 320 742A61537806 IC RFAMP AWL6153M7UP8 SMD LFP 1 U4 330 745A29070026 TR BJT CXT2907A PNP SOT89 LFP 1 Q2 340 745A30310506 TR HBT NESG3031M05 SMD LFP 1 Q5 350 83B040822686 T/C 22u/6.3V M CASE-A LFP 1 C23 360 89B0017*7526 L/C p75/50V C COG 0402 LFP 2 C30,C31 370 89B00171*026 L/C 1p/50V C COG 0402 LFP 4 C16,C39,C40,C41 380 89B001710036 L/C 10p/50V D COG 0402 LFP 17 C13,C17,C20,C24,C43,C45,C46,C48,C49,C60,C61,C72,C78 ,C79,C80,C82,C94 390 89B001712166 L/C 120p/50V J COG 0402 LFP 1 C14 410 89B00172*026 L/C 2p/50V C COG 0402 LFP 4 C15,C18,C47,C55 420 89B001722066 L/C 22p/50V J COG 0402 LFP 6 C19,C29,C38,C57,C62,C63 430 89B00177*036 L/C 7p/50V D COG 0402 LFP 1 C21 440 90B001410376 L/C 10n/25V K X7R 0402 LFP 5 C68,C69,C75,C76,C83 450 90B001710276 L/C 1n/50V K X7R 0402 LFP 6 C22,C70,C71,C77,C81,C84 460 90B030810596 L/C 1uF/6.3V Z Y5V 0402 LFP 2 C86,C88 470 90B036210496 L/C 100n/16V Z Y5V 0402 LFP 6 C66,C67,C73,C74,C87,C89 480 90B101710476 L/C 100n/50V K X7R 0603 LFP 2 C12,C9 490 90B306222576 L/C 2.2uF/16V K X7R 1206 LFP 2 C85,C90 500 90B336247596 L/C 4u7/16V Z Y5V 1206 LFP 1 C11 510 73D01*260006 L 1n2H S 0402 LFP 1 R70 520 89B00173*026 L/C 3p/50V C COG 0402 LFP 1 R69 =============================================================== ========================================================

1.1. Test Result of RF Exposure Evaluation . Product: Ethernet Firewall/VPN/Router 10/100 MB with Wireless LAN . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 5.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Dec. 20, 2006 Temperature: 25 Humidity: 65% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 23.40 0.138 06 2437 23.11 0.129 11 2462 23.06 0.127 Modulation Standard: IEEE 802.11g Test Date: Dec. 20, 2006 Temperature: 25 Humidity: 65% Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 19.46 0.056 06 2437 19.47 0.056 11 2462 19.57 0.057 Modulation Standard: IEEE 802.11 Super G (108Mbps) Test Date: Dec. 20, 2006 Temperature: 25 Humidity: 65% Channel Frequency (MHz) Peak Power Output (dBm) Power Density (S) (mW/cm 2 ) 01 2412 --- --- 06 2437 20.43 0.069 11 2462 --- --- The MPE is calculated as 0.138 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 1 of 119 FCC Test Report: FI06112101-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant SonicWALL Inc. Address 1143 Borregas Ave. Sunnyvale CA 94089-1306 USA Equipment Ethernet Firewall/VPN/Router 10/100 MB with Wireless LAN Model No. APL18-046 FCC ID QWU-046 Trade Name SonicWALL Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 2 of 119 FCC Test Report: FI06112101-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software.....................................................................................................7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment ......................................................................................................... 12 4.5 Test Result and Data................................................................................................................13 4.6 Test Photographs .....................................................................................................................25 5. Test of Radiated Emission ...............................................................................................................26 5.1 Test Limit.................................................................................................................................. 26 5.2 Test Procedures.......................................................................................................................27 5.3 Typical Test Setup ....................................................................................................................28 5.4 Measurement equipment ......................................................................................................... 28 5.5 Test Result and Data................................................................................................................29 5.6 Test Photographs .....................................................................................................................95 6. 6dB Bandwidth Measurement Data .................................................................................................96 6.1 Test Limit .................................................................................................................................. 96 6.2 Test Procedures .......................................................................................................................96 6.3 Test Setup Layout ....................................................................................................................96 6.4 Measurement equipment ......................................................................................................... 96 6.5 Test Result and Data................................................................................................................96 7. Maximum Peak Output Power .......................................................................................................101 7.1 Test Limit ................................................................................................................................101 7.2 Test Procedures .......................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 25 of 119 FCC Test Report: FI06112101-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jan. 18, 2007 95 of 119 FCC Test Report: FI06112101-A 5.6 Test Photographs Front View Rear View
