QWU-054Ethernet Firewall/VPN/Router 10/100MB with WLAN

SonicWALL TZ 150 Wireless Getting Started Guide Page 1 SonicWALL TZ 150 Wireless Security Appliance Getting Started Guide The SonicWALL ® TZ 150 Wireless is a total security platform for both your wired and wireless network, delivering true layered security by integrating gateway anti-virus, intrusion prevention and content filtering capabilities for small networks in an easy-to-use, low cost platform. This Getting Started Guide provides instructions for basic installation and configuration of the SonicWALL TZ 150 Wireless. After you complete this guide, up to 10 computers on your Local Area Network (LAN) will have secure Internet access. Note: For complete documentation, refer to the SonicOS Standard Administrator’s Guide on the SonicWALL Resource CD or at: <http://www.sonicwall.com/us/support.html>. Before You Begin Check Package Contents •One SonicWALL TZ 150 Wireless security appliance •One SonicWALL TZ 150 Wireless Getting Started Guide •One SonicOS Standard 3.1 Release Notes •One Ethernet cable •One 12V, 1.66A power supply •One SonicWALL Resource CD, which contains product documentation and software utilities. Any Items Missing? If any items are missing from your package, contact: SonicWALL Support Web: <http://www.sonicwall.com/support/> E-mail: [email protected] Page 2 SonicWALL TZ 150 Wireless Configuration This Getting Started Guide covers the following procedures. Procedures 1 through 6 are required for initial configuration of your SonicWALL TZ 150 Wireless security appliance. Collect Required Informationpage 3 Applying Power to the SonicWALL TZ 150 Wirelesspage 4 Connecting the SonicWALL TZ 150 Wirelesspage 5 Accessing the Management Interfacepage 7 Using the SonicWALL Setup Wizardpage 9 Registering Your SonicWALL TZ 150 Wirelesspage 20 Activating SonicWALL Security Servicespage 25 Connecting Wireless Clients to the SonicWALL TZ 150 Wirelesspage 29 Connecting Computers to Your SonicWALL TZ 150 Wireless page 33 Wall Mounting the SonicWALL TZ 150 Wirelesspage 36 What You Need to Begin •A computer to use as a management station for initial configuration of the SonicWALL TZ 150 Wireless •An Internet connection •A Web browser for accessing the SonicWALL TZ 150 Wireless’s Web-based management interface. The Web browser must support Java and HTTP uploads. Internet Explorer 5.0 or higher or Netscape Navigator 4.7 or higher are recommended. 1 2 3 4 5 6 7 8 9 10 SonicWALL TZ 150 Wireless Getting Started Guide Page 3 Collect Required Information Internet Service Provider (ISP) Information Collect the following information about your Internet service: Note: If you are not using one of the network configurations above, refer to the SonicOS Standard Administrator’s Guide available on the SonicWALL Resource CD and on the Web at: <http://www.sonicwall.com/us/support.html>. If you connect via You probably use Please record Cable modem, DSL with a router DHCPYou do not need to provide any Internet connection information. Home DSLPPPoEUser Name: Password: Note: Your ISP may require your user name in the format: [email protected] T1, Static broadband, Cable or DSL with a static IP Static IPIP Address: Subnet Mask: Default Gateway ( R o u t e r A d d r e s s ) : Primary DNS: S e c o n d a r y D N S ( o p t i o n a l ) : Dial in to a serverPPTPServer Address: User Name: Password: 1 Page 4 Other Information SonicWALL Management Interface To access the SonicWALL TZ 150 Wireless Web-based management interface. These are the default settings, which you can change: User Name: admin Password: password Applying Power to the SonicWALL TZ 150 Wireless 1. Plug the power supply into back of the security appliance and into an appropriate power outlet. The Power LED on the front panel lights up green when you plug in the SonicWALL TZ 150 Wireless. The Test LED may light up and may blink while the appliance performs a series of diagnostic tests. When the Test light is no longer lit, the security appliance is ready for configuration. If the Test LED remains lit after the SonicWALL TZ 150 Wireless has booted, Restart the security appliance. For more trouble shooting information, refer to the SonicOS Standard Administrator’s Guide available on the SonicWALL Resource CD and on the Web at: <http://www.sonicwall.com/us/support.html> 2 SonicWALL TZ 150 Wireless Getting Started Guide Page 5 Connecting the SonicWALL TZ 150 Wireless Connecting the Ethernet Cables Connect the WAN Cable 1. Connect one end of an Ethernet cable to your Internet connection, such as a DSL modem or cable modem. This cable may already be connected between your computer and your modem. If so, disconnect it from your computer, and leave it connected to the Internet. 2. Connect the other end of the cable to the WAN port on the back of your SonicWALL TZ 150 Wireless. The WAN LEDs on the front panel light up indicating an active connection. 3 WAN Modem or Router Internet Page 6 Connect the LAN Cable 1. Connect one end of another Ethernet cable to the computer you are going to use to manage the SonicWALL TZ 150 Wireless. 2. Connect the other end of the cable to port # 1 on the back of your SonicWALL TZ 150 Wireless. The port # 1 LEDs on the front panel light up indicating an active connection. Management Station port 1 SonicWALL TZ 150 Wireless Getting Started Guide Page 7 Accessing the Management Interface To access the Web-based management interface of the SonicWALL TZ 150 Wireless: 1. On the computer you have connected to port # 1, Start your Web browser. Alert: Turn off pop-up blocking software before accessing the SonicWALL management interface. Your Web browser must support Java and HTTP uploads. Internet Explorer 5.0 or higher or Netscape Navigator 4.7 or higher are recommended. 2. Enter http://192.168.168.168 in the Location or Address field. 3. The SonicWALL Setup Wizard launches and guides you through the configuration and setup of your SonicWALL TZ 150 Wireless. 4 Page 8 If the SonicWALL Setup Wizard Does Not Appear If you cannot c…

Text truncated - open the document above for the full version.

Request for non-disclosure RF_501_02 SonicWALL Inc. 1143 Borregas Avenue, Sunnyvale, CA 94089-1306 USA To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: QWU-054) Reference number: APL15-054 Date: 2007/ 11/ 02 Dear FCC TCB, Pursuant to 47 CFR Section 0.459(a) & (b), SonicWALL Inc. hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( QWU-054) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. SonicWALL Inc. understands that pursuant to 47 CFR section 0.457(d) (1) (ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Signature:___________________ Rick Linford/ SonicWALL Inc.

RF_160, Issue 01 Declaration of Authorization We Name: SonicWALL Inc. Address: 1143 Borregas Avenue, City: Sunnyvale, CA 94089-1306 Country: USA Declare that: Name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product Description: Ethernet Firewall/VPN/Router 10/100MB with Wireless LAN Model: APL15-054 Brand: Belkin on our behalf. Date: 2007/ 11/ 02 City: California Name: Rick Linford Signature:

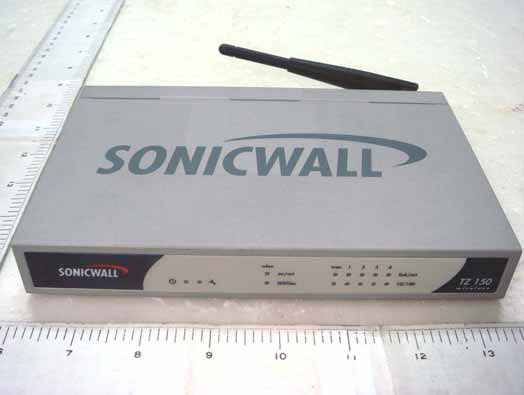

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 1 of 8 FCC Test Report: FI07103001-A Appendix A. Photographs of EUT 07103001-A 07103001-A

Label & Location

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 2 of 8 FCC Test Report: FI07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 3 of 8 FCC Test Report: FI07103001-A 07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 4 of 8 FCC Test Report: FI07103001-A 07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 5 of 8 FCC Test Report: FI07103001-A 07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 6 of 8 FCC Test Report: FI07103001-A 07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 7 of 8 FCC Test Report: FI07103001-A 07103001-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 8 of 8 FCC Test Report: FI07103001-A 07103001-A 07103001-A

1.1. Test Result of RF Exposure Evaluation . Product: Ethernet Firewall/VPN/Router 10/100MB with Wireless LAN . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance 20 cm Test Mode1: Modulation Standard: IEEE 802.11b Test Date: Nov. 06, 2007 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 23.55 0.071 06 2437 23.44 0.070 11 2462 23.82 0.076 Modulation Standard: IEEE 802.11g Test Date: May. 21, 2007 Temperature: 25 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 19.91 0.031 06 2437 20.32 0.034 11 2462 20.43 0.035 Modulation Standard: IEEE 802.11 SuperG Test Date: May. 21, 2007 Temperature: 25 Humidity: 68 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 06 2437 20.14 0.033 The MPE is calculated as 0.076 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 1 of 65 FCC Test Report: FI07103001-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : SonicWALL Inc. Address : 1143 Borregas Ave. Sunnyvale CA 94089-1306 USA Equipment : Ethernet Firewall/VPN/Router 10/100 MB with Wireless LAN Model No. : APL15-054 FCC ID : QWU-054 Trade Name : SonicWall Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 2 of 65 FCC Test Report: FI07103001-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode & Test Software ........................................................................................................ 7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 Measurement Uncertainty .......................................................................................................... 9 2.8 History of this test report ..........................................................................................................10 3. Antenna Requirements..................................................................................................................... 11 3.1 Standard Applicable ................................................................................................................. 11 3.2 Antenna Construction and Directional Gain............................................................................. 11 4. Test of Conducted Emission............................................................................................................12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures .......................................................................................................................12 4.3 Typical Test Setup ....................................................................................................................13 4.4 Measurement equipment ......................................................................................................... 13 4.5 Test Result and Data................................................................................................................14 4.6 Test Photographs .....................................................................................................................18 5. Test of Radiated Emission ...............................................................................................................19 5.1 Test Limit .................................................................................................................................. 19 5.2 Test Procedures .......................................................................................................................19 5.3 Typical Test Setup ....................................................................................................................20 5.4 Measurement equipment ......................................................................................................... 20 5.5 Test Result and Data................................................................................................................21 5.6 Test Photographs .....................................................................................................................43 6. 6dB Bandwidth Measurement Data .................................................................................................44 6.1 Test Limit .................................................................................................................................. 44 6.2 Test Procedures .......................................................................................................................44 6.3 Test Setup Layout ....................................................................................................................44 6.4 Measurement equipment ......................................................................................................... 44 6.5 Test Result and Data................................................................................................................44 7. Maximum Peak Output Power .........................................................................................................49 7.1 Test Limit ..........................................................................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 18 of 65 FCC Test Report: FI07103001-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 06, 2007 43 of 65 FCC Test Report: FI07103001-A 5.6 Test Photographs Front View Rear View
