QWU-083Access Point 802.11 a/b/g/n

Safety and Regulatory Information for the SonicWALL SonicPoint Wireless Appliance Mounting the SonicWALL •Mount in a location away from direct sunlight and sources of heat. A maximum ambient temperature of 104º F (40º C) is recommended. •Route cables away from power lines, fluorescent lighting fixtures, and sources of noise such as radios, transmitters, and broadband amplifiers •The included power cord is intended for use in North America only. For European Union (EU) customers, a power cord is not included. •Ensure that no water or excessive moisture can enter the unit. •Allow unrestricted airflow around the unit and through the vents on the side of the unit. A minimum of 1 inch (25.44mm) clearance is recommended. •Consideration must be given to the connection of the equipment to the supply circuit and the effect of over- loading the circuits has minimal impact on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings must be used when addressing this concern. Cable Connections All Ethernet and RS232 (Console) cables are designed for intra- building connection to other equipment. Do not connect these ports directly to communication wiring or other wiring that exits the building where the SonicWALL is located. Power Supply Information If the power supply is missing from your SonicWALL product package, please contact SonicWALL Technical Support at 408- 752-7819 for a replacement. This product should only be used with a UL listed power supply marked “Class 2” or “LPS”, with an output rated 48 VDC, minimum 0.35 A. Regulatory Model/TypeProduct Names APL21-083 SonicPoint-Ni SonicWALL SonicPoint Wireless Appliance Sicherheit und gesetzliche Vorschriften Weitere Hinweise zur Montage •Wählen Sie für die Montage einen Ort, der keinem direkten Sonnenlicht ausgesetzt ist und sich nicht in der Nähe von Wärmequellen befindet. Die Umgebungstemperatur darf nicht mehr als 40 °C betragen. •Führen Sie die Kabel nicht entlang von Stromleitungen, Leuchtstoffröhren und Störquellen wie Funksendern oder Breitbandverstärkern. •Das beigefügte Netzkabel ist nur für den Betrieb in Nordamerika vergesehen. Für Kunden in der Europäischen Union ist kein Kabel beigefügt. •Stellen Sie sicher, dass das Gerät vor Wasser und hoher Luftfeuchtigkeit geschützt ist. •Stellen Sie sicher, dass die Luft um das Gerät herum zirkulieren kann und die Lüftungsschlitze an der Seite des Gehäuses frei sind. Hier ist ein Belüftungsabstand von mindestens 26 mm einzuhalten. •Vergewissern Sie sich, dass das Gerät sicher im Rack befestigt ist. Kabelverbindungen Alle Ethernet- und RS232-C-Kabel eignen sich für die Verbindung von Geräten in Innenräumen. Schließen Sie an die Anschlüsse der SonicWALL keine Kabel an, die aus dem Gebäude herausgeführt werden, in dem sich das Gerät befindet. Informationen zur Stromversorgung Sollte das Netzteil nicht im Lieferumfang der SonicWALL enthalten sein, wenden Sie sich diesbezüglich an den technischen Support von SonicWALL (Tel.: +1-408-752-7819). Dieses Produkt darf nur in Verbindung mit einem nach den Normen der Underwriter Laboratories, USA als „UL-gelistet“ zugelassenen Netzteil der Kategorie „Class 2“ oder „LPS“ verwendet werden. Ausgang: 48 VDC Gleichsspannung, mind. 0,35 A. FCC Part 15 Class B Notice for the SonicWALL SonicPoint Wireless Appliance NOTE: This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. And, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference using one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment into an outlet on a circuit different from the receiver connection. •Consult SonicWALL for assistance. Complies with EN55022 Class B and CISPR22 Class B. *Refer to the label on the bottom of the unit for device information including Class A or Class B FCC information. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. FCC and IC RF Radiation Exposure Statement This equipment complies with FCC and IC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (7.9 inches) between the radiator (antenna) and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For more information regarding the above statement, please contact SonicWALL, Inc. at: 1143 Borregas Avenue Sunnyvale, CA, 94089-1306 1-408-745-9600 North American Authorized Channels SonicWALL declares that the APL21-083 (F CC ID: QWU-083) (IC: 4408 A-083) when sold in US or Canada is limited to CH1~CH11 by specified firmware controlled in the USA. Canadian Radio Frequency Emissions Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: FCC and IC (1) This device may not cause harmful interference, and (2) this device must accept any interference…

Text truncated - open the document above for the full version.

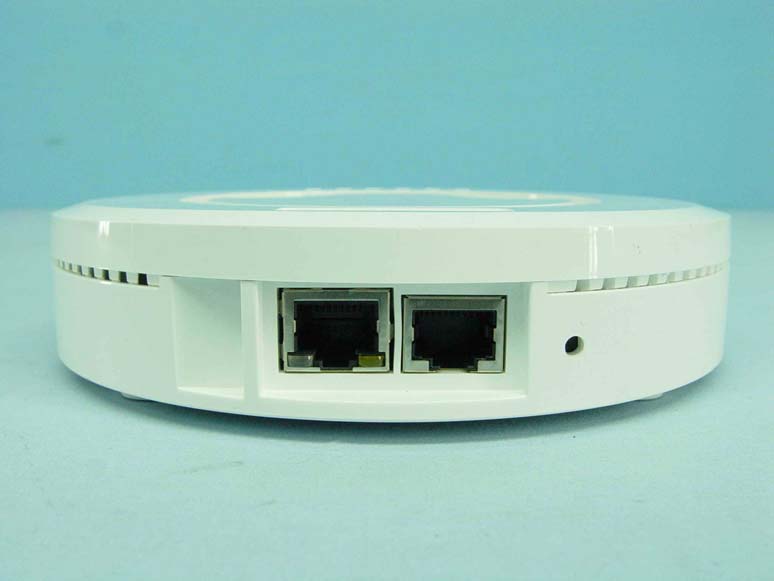

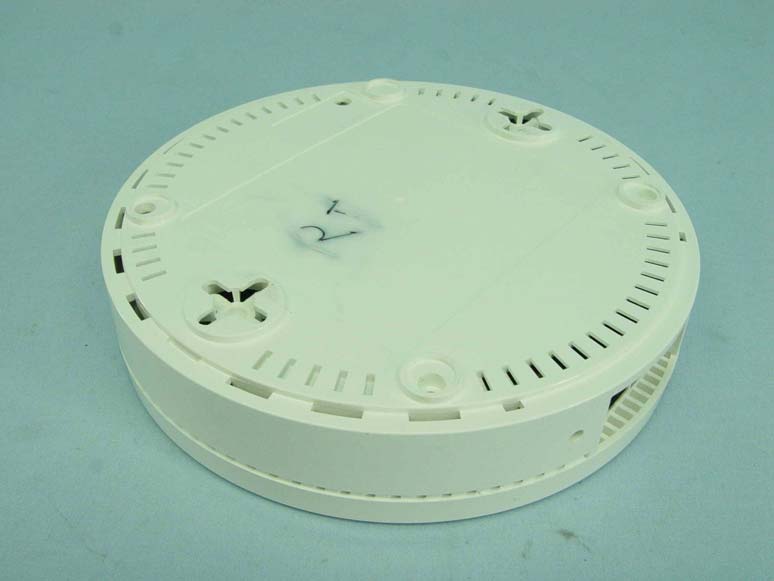

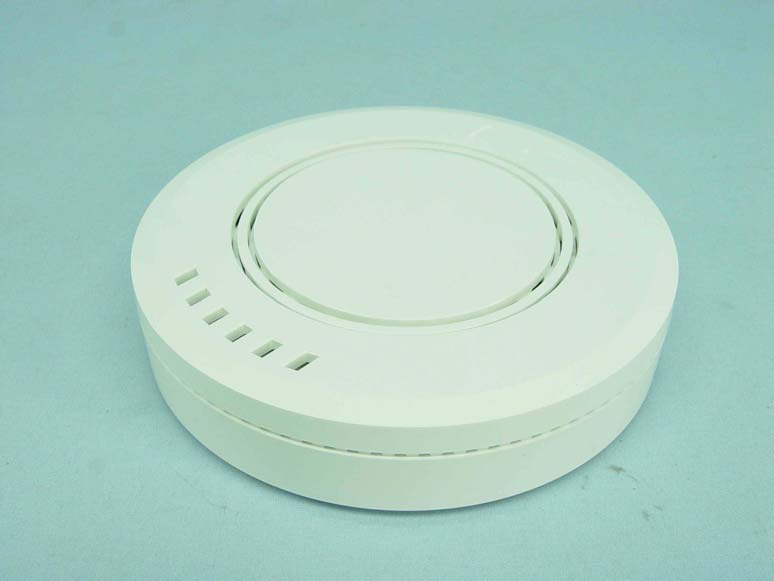

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) This device may not cause harmful interference, and2) this device must accept any interference received,including interference that may cause undesired operation. 0560 RoHS 2002/95/EC COMPATIBLE ™ N11597 R Input: 48 V 0.35 A Assembly: 101-500216-50 Rev. XX Model/Type : APL21-083 D-09012 SONICPOINT-Ni SONICWALL Serial Number: Authentication Code: XXXX-XXXX 341-000314-56 FCC ID: QWU-083 IC:4408A-083 Made in Taiwan

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: QWU-083 Report No.: RF990419C03 Operational Description This device is an Access Point 802.11 a/b/g/n, which operates in both of the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the POE. The antenna is PIFA antenna with IPEX antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA990419C03 Report Format Version 3.0.1. 1 RF EXPOSURE REPORT REPORT NO.: SA990419C03 MODEL NO.: APL21-083 FCC ID: QWU-083 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Sonicwall, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990419C03 Report Format Version 3.0.1. 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 25.3 3 20 0.135 1.00 5180-5240 16.9 4 20 0.024 1.00 5745-5825 24.8 4 20 0.151 1.00

Report No.: RF990419C03 1 Report Format Version 3.0.1 FCC TEST REPORT (15.247) REPORT NO.: RF990419C03 MODEL NO.: APL21-083 RECEIVED: Apr. 19, 2010 TESTED: Apr. 23 ~ May 03, 2010 ISSUED: May 06, 2010 APPLICANT: Sonicwall, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 115 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990419C03 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 14 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 14 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................. 15 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 15 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 15 4.1.2 TEST INSTRUMENTS................................................................................................ 16 4.1.3 TEST PROCEDURES ................................................................................................ 17 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 17 4.1.5 TEST SETUP.............................................................................................................. 18 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 18 4.1.7 TEST RESULTS ......................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 32 4.2.2 TEST INSTRUMENTS................................................................................................ 32 4.2.3 TEST PROCEDURES ................................................................................................ 33 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 33 4.2.5 TEST SETUP.............................................................................................................. 34 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 34 4.2.7 TEST RESULTS ......................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................... 37 4.3.2 TEST INSTRUMENTS................................................................................................ 37 4.3.3 TEST PROCEDURE................................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 37 4.3.5 TEST SETUP.............................................................................................................. 38 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 38 4.3.7 TEST RESULTS ......................................................................................................... 39 4.4 MAXIMUM OUTPUT POWER .................................................................................... 43 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT..................................... 43 4.4.2 INSTRUMENTS .......................................................................................................... 43 4.4.3 TEST PROCEDURES ................................................................................................ 43 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 44 4.4.5 TEST SETUP.............................................................................................................. 44 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 44 4.4.7 TEST RESULTS ......................................................................................................... 45 4.5 POWER SPECTRAL DENSITY MEASUREMENT ..................................................... 46 4.5.…

Text truncated - open the document above for the full version.

Report No.: RF990419C03-1 1 Report Format Version 3.0.1 FCC TEST REPORT (15.407) REPORT NO.: RF990419C03-1 MODEL NO.: APL21-083 RECEIVED: Apr. 19, 2010 TESTED: Apr. 23 ~ May 03, 2010 ISSUED: May 06, 2010 APPLICANT: Sonicwall, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990419C03-1 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY................................................................................ 5 3. GENERAL INFORMATION ........................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 6 3.2 DESCRIPTION OF TEST MODES ............................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4. TEST TYPES AND RESULTS .................................................................................... 12 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 12 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS .............. 12 4.1.3 TEST INSTRUMENTS................................................................................................ 13 4.1.4 TEST PROCEDURES ................................................................................................ 14 4.1.5 DEVIATION FROM TEST STANDARD....................................................................... 14 4.1.6 TEST SETUP.............................................................................................................. 15 4.1.7 EUT OPERATING CONDITION.................................................................................. 15 4.1.8 TEST RESULTS ......................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 25 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 25 4.2.2 TEST INSTRUMENTS................................................................................................ 25 4.2.3 TEST PROCEDURES ................................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 26 4.2.5 TEST SETUP.............................................................................................................. 27 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 27 4.2.7 TEST RESULTS ......................................................................................................... 28 4.3 MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................... 30 4.3.1 LIMITS OF MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT............. 30 4.3.2 TEST INSTRUMENTS................................................................................................ 30 4.3.3 TEST PROCEDURE................................................................................................... 31 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 31 4.3.5 TEST SETUP.............................................................................................................. 31 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 31 4.3.7 TEST RESULTS ......................................................................................................... 32 4.4 PEAK POWER EXCURSION MEASUREMENT ........................................................ 36 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...................................... 36 4.4.2 TEST INSTRUMENTS................................................................................................ 36 4.4.3 TEST PROCEDURE................................................................................................... 36 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 37 4.4.5 TEST SETUP.............................................................................................................. 37 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 37 4.4.7 TEST RESULTS ......................................................................................................... 38 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT ................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
