QWWFG-BT-1505Bluetooth Slim GPS Transceiver

Fortuna Electronic Corporation 2005/04/20 All Rights Reserved Fortuna Slim Bluetooth GPS Receiver Product specification Reference Manual Overview The Fortuna Slim Bluetooth GPS receiver is a Global Positioning System Receiver with Bluetooth wireless technology. This Bluetooth GPS receiver allows you to receive GPS data and send GPS position data over Bluetooth. You can position the receiver for the best reception without wires. The Fortuna Slim Bluetooth GPS integrates Bluetooth module into GPS device. It shows the high performance, low power consumption, easily portable, and wireless data transmission. If you have a Pocket PC or other portable devices enabled with Bluetooth function, you can take advantage of your device's Bluetooth capability to wirelessly add GPS positioning technology. When you choose suitable navigation software, you can apply to personal, vehicle, and marine navigation. Introduction 1 Items included in the package 1.Battery 2.Screw 3.Screw driver 4.DC to USB cable 5.USB DC adapter 6.USB car lighter adapter 7.User's manual *Three LED at the top of the device shows Bluetooth, GPS and Power Status. *Detachable 1200mA Lithium-Polymer battery lasts up to 8.5 Operating hours *Dimension: L= 74 mm, W= 38mm, H= 23 mm *Weight: 80g *On/Off Switch *12 Channels ( All-In-View ) Tracking (up to 20 channels) *Cold/ Warm/ Hot Start Time: 42/38/1 Seconds *Reacquisition Time: 0.1 seconds *Standard NMEA-0183 output at 38400 bps baud rate *Compatible with Bluetooth devices with Serial Port Profile (SPP) Main Features 2 Installation Instruction 1.Slide open the battery cover then place the battery into the battery compartment properly. 2.Slide the battery case back on and use the screwdriver to make sure the case will not be removable. Caution: Please do not use any battery other than Slim Bluetooth GPS original battery. Bluetooth connection 1.Switch on the Slim BTGPS. 2.Turn on your PDA device. 3.Go to Bluetooth Manager on PDA device. 4.Select Search for BT devices. 5.After found the Slim BTGPS then Select and Save it. 6.Go to Action and select SPP slave. 7.Enter the pass key 0000 if required. 8.Click on the Slim BTGPS icon and then a 2 way arrow shows the Bluetooth is linking. 9.The Slim Bluetooth GPS LED light should be on and it means the Bluetooth link has been established. 10.Start your navigation software application. 11.Please select the Baud rate at NMEA 38400 and proper com-port. 3 4 Technical Specifications Electrical Characteristics General Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate Channels 12 Channels ( All-In-View ) Tracking (up to 20 Channels) Antenna Type Built-in Ceramic patch antenna Accuracy Position 10 meters, 2D RMS 5 meters 2D RMS, WAAS corrected 2.5 meters, DGPS corrected Velocity 0.1 meters/ second Time 1 microsecond synchronized to GPS time Datum Default WGS-84 Acquisition Rate( Open sky, stationary) Reacquisition 0.1 sec., average Snap start 2 sec., average Hot start 1 sec., average Warm start 38 sec., average Cold start 42 sec., average 5 Dynamic Conditions Altitude 18,000 meters (60,000 feet) max. Velocity 515 meters/second ( 1000 knots) max. Acceleration 4g, max. Power Operational Power 3.3 VDC +10% Input Power 5VDC + 10% Battery Source rechargeable and detachable lithium Polymer battery with 5V DC input charging circuit (1200 mA) Operation Time 8.5 hours continuous operating after full charge Battery Charge time 3 Hours Approx. Battery Low Approx. 30 min to stop operation _ _ 6 Main Interface Connection: Communication with host platform via Bluetooth Serial Port Profile Protocol messages NMEA 0183 output protocol Baudrate: 38400 bps Data bit: 8 Stop bit: 1 Output format: GGA ( 1 sec), GSA ( 1 sec), GSV ( 5 sec), RMC ( 1 sec), VTG ( 1 sec) Environmental Characteristics oo Operating temperature range -20C to +60C Humidity range 5% to 95 % No condensing Physical Characteristics Length 74 mm Width 38 mm Height 23 mm Weight 80 g 7 Copyright Statement Copyright 2004 by Fortuna Electronic Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of the Fortuna Electronic Corp. Disclaimer Fortuna Electronic Corp. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Furthermore, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of the Fortuna Electronic Corp. to notify any person of such revision or changes. 8 ALL INFORMATION IS PROVIEDED BY FORTUNA ELECTRONIC CORP. ON AN AS IS BASIS ONLY. THIS COMPANY PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT. FCC&CE Compliance Statement The Slim Bluetooth GPS compliant with Part 15 of FCC limits for Class B (DoC). This device has been shown to be in compliance with and was tested in accordance with the measurement procedures specified in the standards Specification listed above. This product is for home and office use only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with a…

Text truncated - open the document above for the full version.

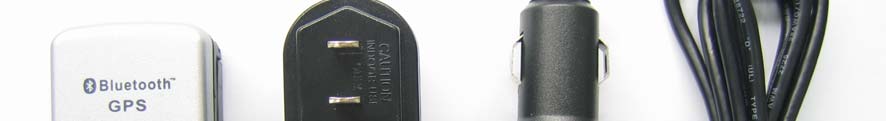

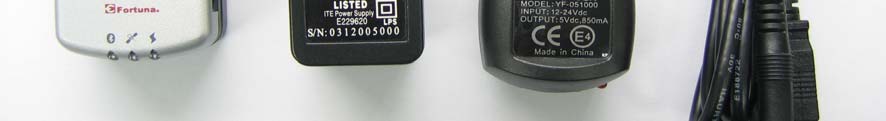

REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 PHOTOGRPHS OF EUT REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA All View of EUT Front View of EUT REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Back View of EUT Side View of EUT REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Side View of EUT Side View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Fotuna Electonic Corp. FCC ID: QWWFG-BT-1505 FCC ID: QWWFG-BT-1505 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 PHOTOGRPHS OF EUT REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Internal of EUT -1 REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT-2

Fortuna Electronic Corporation Version 1.0 2005/04/01 All Rights Reserved Fortuna Slim Bluetooth GPS Receiver Product specification Reference Manual G P S B l u e t o o t h F o r t u n a R O N O F F Overview The Fortuna Slim Bluetooth GPS receiver is a Global Positioning System Receiver with Bluetooth wireless technology. This Bluetooth GPS receiver allows you to receive GPS data and send GPS position data over Bluetooth. You can position the receiver for the best reception without wires. The Fortuna Slim Bluetooth GPS integrates Bluetooth module into GPS device. It shows the high performance, low power consumption, easily portable, and wireless data transmission. If you have a Pocket PC or other portable devices enabled with Bluetooth function, you can take advantage of your device's Bluetooth capability to wirelessly add GPS positioning technology. When you choose suitable navigation software, you can apply to personal, vehicle, and marine navigation. Introduction 1 Items included in the package 1.Battery 2.Screw 3.Screw driver 4.DC to USB cable 5.USB DC adapter 6.USB car lighter adapter 7.User's manual *Three LED at the top of the device shows Bluetooth, GPS and Power Status. *Detachable 1200mA Lithium-Polymer battery lasts up to 8.5 Operating hours *Dimension: L= 74 mm, W= 38mm, H= 23 mm *Weight: 80g *On/Off Switch *12 Channels ( All-In-View ) Tracking *Cold/ Warm/ Hot Start Time: 42/38/1 Seconds *Reacquisition Time: 0.1 seconds *Standard NMEA-0183 output at 38400 bps baud rate *Compatible with Bluetooth devices with Serial Port Profile (SPP) Main Features 2 Installation Instruction 1.Slide open the battery cover then place the battery into the battery compartment properly. 2.Slide the battery case back on and use the screwdriver to make sure the case will not be removable. Caution: Please do not use any battery other than Slim Bluetooth GPS original battery. Bluetooth connection 1.Switch on the Slim BTGPS. 2.Turn on your PDA device. 3.Go to Bluetooth Manager on PDA device. 4.Select Search for BT devices. 5.After found the Slim BTGPS then Select and Save it. 6.Go to Action and select SPP slave. 7.Enter the pass key 0000 if required. 8.Click on the Slim BTGPS icon and then a 2 way arrow shows the Bluetooth is linking. 9.The Slim Bluetooth GPS LED light should be on and it means the Bluetooth link has been established. 10.Start your software application. 11.Please select the Baud rate at NMEA 38400 and proper com-port. 3 4 Technical Specifications Electrical Characteristics General Chipset SiRF Star III Frequency L1, 1575.42 MHz C/A code 1.023 MHz chip rate Channels 12 channel all-in-view tracking Antenna Type Built-in Ceramic patch antenna Accuracy Position 10 meters, 2D RMS 5 meters 2D RMS, WAAS corrected 2.5 meters, DGPS corrected Velocity 0.1 meters/ second Time 1 microsecond synchronized to GPS time Datum Default WGS-84 Acquisition Rate( Open sky, stationary) Reacquisition 0.1 sec., average Snap start 2 sec., average Hot start 1 sec., average Warm start 38 sec., average Cold start 42 sec., Average 5 Dynamic Conditions Altitude 18,000 meters (60,000 feet) max. Velocity 515 meters/second ( 1000 knots) max. Acceleration 4g, max. Power Operational Power 3.3 VDC +10% Input Power 5VDC + 10% Battery Source rechargeable and detachable lithium Polymer battery with 5V DC input charging circuit (1200 mA) Operation Time 8.5 hours continuous operating after full charge Battery Charge time 3 Hours Approx. Battery Low Approx. 30 min to stop operation _ _ 6 Main Interface Connection: Communication with host platform via Bluetooth Serial Port Profile Protocol messages NMEA 0183 output protocol Baudrate: 38400 bps Data bit: 8 Stop bit: 1 Output format: GGA ( 1 sec), GSA ( 1 sec), GSV ( 5 sec), RMC ( 1 sec), VTG ( 1 sec) Environmental Characteristics oo Operating temperature range -20C to +60C Humidity range 5% to 95 % No condensing Physical Characteristics Length 74 mm Width 38 mm Height 23 mm Weight 80 g 7 Copyright Statement Copyright 2004 by Fortuna Electronic Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of the Fortuna Electronic Corp. Disclaimer Fortuna Electronic Corp. makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Furthermore, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of the Fortuna Electronic Corp. to notify any person of such revision or changes. 8 ALL INFORMATION IS PROVIEDED BY FORTUNA ELECTRONIC CORP. ON AN AS IS BASIS ONLY. THIS COMPANY PROVIDES NO REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY AND NONINFRINGEMENT. FCC&CE Compliance Statement The Slim Bluetooth GPS compliant with Part 15 of FCC limits for Class B (DoC). This device has been shown to be in compliance with and was tested in accordance with the measurement procedures specified in the standards Specification listed above. This product is for home and office use only. F Made in Taiwan Part No.: 121-090010003

Digital Camera Personal Digital Assistance Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK Bluetooth PC Card MP3 Player Access Point Bluetooth Adapter USB Printer Digital Video Camera Modem Access Point Information and Data Service WWW CABPB 0715 Bluetooth Adapter CABPB1240 1212T4 mm CABPB 0730 77T3 mm CABPB 0715 77T 1.5 mm Bluetooth Unit Built-In Type Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK Polarized wave-1 Polarized wave-2 GND b (CABPB124 0 :4040mm) 230 °C 180 °C 245 °C 150 °C : 60 to 120 sec. 10 to 30 sec. Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK CABPB1240 : 4040 mm/CABPB 0730, 0715 : 3030 mm CABPB1240 0 dB dBi GHz 5 0 5 10 15 20 25 30 0 2 4 6 8 10 12 14 2.32.352.42.452.52.552.6 Return Spec. CABPB0730 dBi dB GHz 5 0 5 10 15 20 25 30 0 2 4 6 8 10 12 14 2.32.352.42.452.52.552.6 2.5 Return Spec. CABPB0715 dB dBi GHz 5 0 5 10 15 20 25 30 0 2 4 6 8 10 12 14 2.32.352.42.452.52.552.6 Return Spec. dBi dB CABPB1240 2 max. 50 6 max. 3 max. CABPB 0730 1 max. 50 2.5 max. 7 max. CABPB 0715 3 max. 50 2 max. 8.5 max. CABPB1240 : 4040 mm/CABPB 0730, 0715 : 3030 mm 2442.5MHz 24002485MHz 85MHz 3085 090%RH 38 4085 230 °C 200 °C 150 °C : 60 to 120 sec. 20 sec. max. Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK Horizontal polarization 5 ( dBi ) -25 -5 270 18 0 90 0 -15 5 ( dBi ) -25 -5 270 18 0 90 0 -15 5 ( dBi ) -25 -5 270 18 0 90 0 -15 5 ( dBi ) -25 270 18 0 90 0 -15 -5 5 ( dBi ) -25 -5 270 18 0 90 0 -15 5 ( dBi ) -25 -5 270 18 0 90 0 -15 1 3 2 270 18 0 90 0 270 18 0 90 0 270 18 0 90 0 18 0 27090 0 18 0 27090 0 18 0 27090 0 2465MHz / CANPB1240 1 3 4cm 4cm 7.43.77.49.27.46.4 10.65.28.514.09.59.6 6.37.08.56.47.46.7 1 3 2 dBi Vertical polarization at 2465MHz Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK 0 ° 90 ° 270 180 ° ° 0 ° 90 ° 270 180 ° ° 0 ° 90 ° 270 180 ° ° Tx antenna: Horn(Condor Systems)Standard antenna: Standard dipole(Anritsu) 40mm (30mm ) 40mm (30mm) 50 feed line l /4 Coaxial cable 0.5mm CABPB CABPB Sperrtoph GND SMA connector Network analyzer Port1 Port2 50 50 1.8m min. 1m min. DUT Turn table STD gain antenna 2.5m min.1m min. Anechoic chamber 5 -25 ( dBi ) 270 18 0 90 0 -15 -5 270 18 0 90 0 270 18 0 90 0 270 18 0 90 0 2.4GHz 2.442GHz 2.485GHz Vertical polarization 2.4GHz 2.442GHz 2.485GHz Horizontal polarization 270 18 0 90 0 270 18 0 90 0 5 -25 ( dBi ) -15 -5 5 -25 ( dBi ) -15 -5 5 -25 ( dBi ) -15 -5 5 -25 ( dBi ) -15 -5 5 -25 ( dBi ) -15 -5 CABPB1240 CABPB 0730, 0715 Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK Tx antenna: Horn(Condor Systems)Standard antenna: Standard dipole(Anritsu) 2.4GHz 2.442GHz 2.485GHz Vertical polarization 2.4GHz 2.442GHz 2.485GHz Horizontal polarization 2.4GHz 2.442GHz 2.485GHz Vertical polarization 2.4GHz 2.442GHz 2.485GHz Horizontal polarization CABPB0715 0 ° 90 ° 270 180 ° ° 0 ° 90 ° 270 180 ° ° 0 ° 90 ° 270 180 ° ° 0 270 18 0 90 0 -30 -40 ( dBi ) 0 270 18 0 90 0 -20 -30 -40 ( dBi ) 0 270 18 0 90 0 -30 -40 ( dBi ) 270 18 0 90 0 -10 -20 -30 0 270 18 0 90 0 -20 -30 -40 ( dBi ) 0 270 18 0 90 0 -30 -40 ( dBi ) 0 270 18 0 90 0 -20 -40 ( dBi ) 0 270 18 0 90 0 -30 -40 ( dBi ) 0 270 18 0 90 0 -10 -40 ( dBi ) 0 270 18 0 90 0 -30 -40 ( dBi ) 0 270 18 0 90 0 -20 -40 ( dBi ) 270 18 0 90 0 0 -10 -20 -30 -40 ( dBi ) -10 -30 -10 -20 -10 -30 -10 -20 -20 -30 -10 -20 -10 0 -10 -20 -10 -10 -20 -40 ( dBi ) CABPB0730 important notice Questions ...... Product Update File November/2001 The revised edition in November, 2004 Ceramic Patch Antennas for Bluetooth & 2.4GHz W-LAN, CABPB series MADE by TDK 16 3 5 5 3 3535 8- 0.6 50 line 0.5 2.5 3.5 16 4 2 CABPB1240 12 0.3 120.3 4 0.3 1.2 : 2.6g : mm GND 4- 0.3C CABPB0730 3.0 0.3 70.3 0.7 7 0.3 : 0.8 g : mm GND 4- 0.3C 3 2.2 2.2 2.8 2.8 10 2.4 1.8 0.6 10 9- 0.6 50 line 2.22.22.8 2.8 2 1. 2 0.7 2.2 16.4 12 8-3 3 2 2 16 12 : mm CABPB0715 : 0.4 g : mm 1.5 0.3 0.5 GND 4- 0.3C 70.3 7 0.3 2.6 0.7 1.6 10.2 7 7 10.2 8 -2.0 2.0 2 1 1.2 1.2 : mm

<Doc>1.0 Fortuna Electronic Corp. A3 11Tuesday, March 08, 2005 Title SizeDocument NumberRev Date:Sheetof VCC_IN VCC_IN VCC_IN VCC_IN VCC_IN VDDIN VDDIN VBAT VBAT VDDIN VBAT VDDIN VCC_IN VDDIN TXDA RXDA RXDA TXDA RXDA TXDA BOOTset BOOTset U2 GINI 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 Antenna_IN GND GPIO_A GPIO_B GPIO_C GPIO_D 1PPS BOOTset VCC GND1 Backup_PW R nSRESET RXDB TXDB RXDA TXDA LED3 BLUE LED1 RED/GREEN 21 43 R18 68K U7 XC61CC3302MR 2 3 1 V S S V I N V O U T D1RB705D 1 3 2 C1 470pf C3100pf/0603 Q2 NDS356AP 1 23 L1 100nH D3 RB705D 1 3 2 R1 1K U6 XC6209303 1 2 34 5 VIN GND nSHTDNBYP VOUT LED2 RED/GREEN 21 43 R14 39K R15 1.5K D2 HSMA4007 R1223.2K R8 300 R7 300 R17680 R16680 C8 10uf/0805 C9 4.7uf/0805 U5 XC61CC6002MRN 2 3 1 V S S V I N V O U T SW 1 HCH SST-1200 123 Q5 MMBT3904 3 1 2 Q6 MMBT3904 3 1 2 R11 1K U8NC7SZ14 24 5 3 U1 BLUETOOTH MODULE 6 5 4 11 12 13 7 8 9 10 15 16 18 1 2 3 14 17 21 19 20 22 23 24 25 26 27 28 29 30 31 32 33 34 RESET AIO(1) AIO(0) UART_CTS UART_TX UART_RTS SPI_MISO SPI_CSB SPI_CLK SPI_MOSI +1.8V +3.3V PCM_OUT GND VDD_PA GND_PA UART_RX GND PCM_CLK PCM_SYNC PCM_IN D+ D- PIO7 PIO6 PIO5 PIO4 PIO3 PIO2 PIO1 PIO0 GND RF GND R5 470 R13 100K U3 BGA2001 1 23 4 GND INGND1 OUT R4 300 R3 300 J7 CON3 1 2 3 J6 DC JACK 1 2 3 C6 0.1uf ANT1 BT-ANT J3 CON5 1 2 3 4 5 ANT2 GPS-ANT C7 1uF R100R/0603 C4 2pf R61K R91K C5 C L2 6.8nH BT1 BATTERY C10 4.7uf/0805 C11 100pf C2 0.1uf C12 2.2uf/0805 Q7 NDS356AP 1 2 3 R211M C14 0.1uf U4 BQ24010DRC 1 8 10 2 3 4 9 7 56 IN TS OUT VCC STAT1 STAT2 BAT PG VSSISET R1968K R2068K C13 .01uF Q1 MMBT3904 3 1 2 R2 220 Q4 MMBT3904 3 1 2 Q3 MMBT3904 3 1 2 N.U BAT+ TS BAT-

REPORT NO: ER/2005/40003 ID:QWWFG-BT-1505 DATE: Apr. 26, 2005 Page: 1 of 54 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Slim GPS Brand Name: Fotuna Model Name: Slim GPS Model Differences: N/A FCC ID: QWWFG-BT-1505 Report No.: ER/2005/400003 Issue Date: Apr. 22, 2005 FCC Rule Part: §15.247 Prepared for: Fotuna Electonic Corp. 3F,No9,Sec.1,ChangAn East Rd.,Taipei,Taiwan,R.O.C. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Fotuna Electonic Corp . 3F,No9,Sec.1,ChangAn East Rd.,Taipei,Taiwan,R.O.C. Equipment Under Test: Fotuna Brand Name: Slim GPS FCC ID Number: QWWFG-BT-1505 Model No.: Slim GPS Model Difference: N/A File Number: ER/2005/40003 Date of test: Apr. 12, 2005 ~ Apr. 25, 2005 Date of EUT Received: Apr. 11, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr. 26, 2005 Alex Hsieh Prepared By: Date Apr. 26, 2005 Gigi Yeh Approved By: Date Apr. 26, 2005 Vincent Su REPORT NO: ER/2005/40003 ID: QWWFG-BT-1505 DATE: Apr. 26, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION .........................................................................................................6 1.1. Product Description ............................................................................................................................6 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................6 1.3. Test Methodology ...............................................................................................................................6 1.4. Test Facility.........................................................................................................................................6 1.5. Special Accessories .............................................................................................................................6 1.6. Equipment Modifications....................................................................................................................6 2. SYSTEM TEST CONFIGURATION ............................................................................................7 2.1. EUT Configuration .............................................................................................................................7 2.2. EUT Exercise ......................................................................................................................................7 2.3. Test Procedure.....................................................................................................................................7 2.4. Configuration of Tested System..........................................................................................................8 3. SUMMARY OF TEST RESULTS .................................................................................................9 4. DESCRIPTION OF TEST MODES ..............................................................................................9 5. CONDUCTED EMISSION TEST................................................................................................10 5.1. Standard Applicable ..........................................................................................................................10 5.2. EUT Setup.........................................................................................................................................10 5.3. Measurement Procedure....................................................................................................................10 5.4. Measurement Equipment Used: ........................................................................................................11 5.5. Measurement Result..........................................................................................................................11 6. PEAK OUTPUT POWER MEASUREMENT............…
