QYDBT315H01Bluetooth Mobile Headset

m 1 Bluetooth Mobile Headset BT315H User Manual m 2 Copyright disclosure The product itself, together with accessories, user manual and packing, remains the proprietary property of the company. It is forbidden to duplicate, imitate, transcribe or translate via any means without prior authorization from the company. The operating description, product specifications and related information disclosed in this user manual are intended as references, and the company cannot be held liable to damages arisen from erroneous use or those other than the intended purposes; the manual may from time to time be modified without separate notice. Note: The Bluetooth trademarked is the property of Bluetooth SIG, Inc. Index 1. Introduction „ About the Bluetooth Mobile Headset We thank you for purchasing the product. The BT315H, featuring a ear-mount Bluetooth wireless headset, operates on Bluetooth wireless communication technology to link the product to communicate with your Bluetooth handset, as you will be able to receive incoming calls within a 10 meter radius where your handset is located to achieve a hands-free function for added mobility and convenience, where the adjustable ear-mount headset can be fully adjusted to your preferences. Please take a few minutes to peruse the user manual and be cautioned of operating details, and refer to the manual whenever you need references in pairing the product with your Bluetooth handset ensuring a complete compatibility between the product and your Bluetooth handset. We thank you once again for purchasing our product. „ Origin of Bluetooth Bluetooth, a short-distance wireless communications technology characterized by short-distance communication of low power consumption and interference resistant, helps you to streamline various peripheral electronic products and interconnects, under the same wireless frequency band, for intercommunication among your handset, PC, PDA, Bluetooth Mobile Headset, printer, keyboard, mouse and so on, forming a minute, personalized wireless communication network. Now won’t you join us to enjoy the sensation of brought by Bluetooth. „ Product overview 8Product kit The standard product kit consists of, m 3 1). One unit of the BT315H. 2). One charger. 3). One user manual. 8Appearance introduction 1). Connect /disconnect button 2). Volume up button 3). Volume down button 4). LED 5). Hook 6). Mic 7). Ear set 8). Axle 9). DC jack „ The battery Operated on Li-polymer battery, please ensure that the battery of the Blouetooth headset is fully charged for six hours for first time using. When the capacity of battery on headset is low, the headset will emit an alert, together with light of red LED, please recharge the unit using the charger included in the product kit. 2. Product initiation „ How to wear your Bluetooth Mobile Headset The Bluetooth Mobile Headset can be worn to the left ear or the right ear, where you only need to adjust the ear hook to alter the direction of wear; following provides illustrated depiction for warning the device on the left ear： 1). Gently hold on to the unit using your thumb, index and middle fingers. 8 32 1 4 5 6 9 7 m 4 2). Tab lightly to extend the soft ear hook outwards. 3). Apply the soft ear hook to fit over the contour of your left ear and aim the receiver at your ear cavity to complete wearing the device. „ Switching the power On/Off When the headset is power on mode and the “Connect” button is pressed down for three seconds, the LED indicator will goes off as the headset enters power off status. When the headset is power off mode and the “Connect” button is pressed down for three seconds, the LED indicator will begin to flicker as the headset is reverted to m 5 its previous mode. „ Paring with Bluetooth mobile phone Prior to operating the Bluetooth Mobile Headset, you have to pair it with your Bluetooth mobile phone for establish a Bluetooth identification, a process that is described as 「pairing」; please following the hereunder steps to complete the pairing process： 1). Ensure that both your Bluetooth mobile phone and Bluetooth Mobile Headset are power on. 2). Depending on your Bluetooth mobile phone support Bluetooth Mobile Headset profile or hands-free profile and turn the Bluetooth Mobile Headset setting to a corresponding pair mode. The Bluetooth Mobile Headset set as headset profile for initial setting, where under the paired status, you would then press ‘Volume Up’ to access the ‘Hands-free profile’ mode. [Note 1] 3). Find the Bluetooth voice accessories from your Bluetooth mobile phone, please select the BT315H and key in a four-digit pair number‘1234’ to complete the pairing process. [Note 2] 4) Under the pairing mode, the blue and red LED indicators will flicker alternately, and as you have completed the pairing process, the red LED will stop flicker to indicate hat the pair has succeeded as the unit enters a standby mode. [Notes 3 and 4] Note 1: The hands-free profile supports the redial function, whereas the headset profile does not. Note 2: As the functions may vary from one brand to another, please refer to your Bluetooth mobil phone manual for additional description, bear in mind that the headset is to be kept within a 10-meter radius from your Bluetooth mobile phone during the pairing process. Note 3: please refer to the LED indicator status signal to determine the headset’s operating mode; if the signals should be jammed, please restart and redo the pairing process. Note 4: If the pairing process has not been completed within a three-minute period, the Bluetooth Mobile Headset will revert back to the previous operating mode before the pairing process. „ Multiple Bluetooth Mobile Headset pairings The Bluetooth Mobile Headsets supports a multiple Bluetooth device of up to three Bluetooth-enabled devices, and should you desire to pair it with other Bluetooth-enabled devices, please refer to the following steps： 1). Upon completing the essential Bluetooth pairing process as stated in the …

Text truncated - open the document above for the full version.

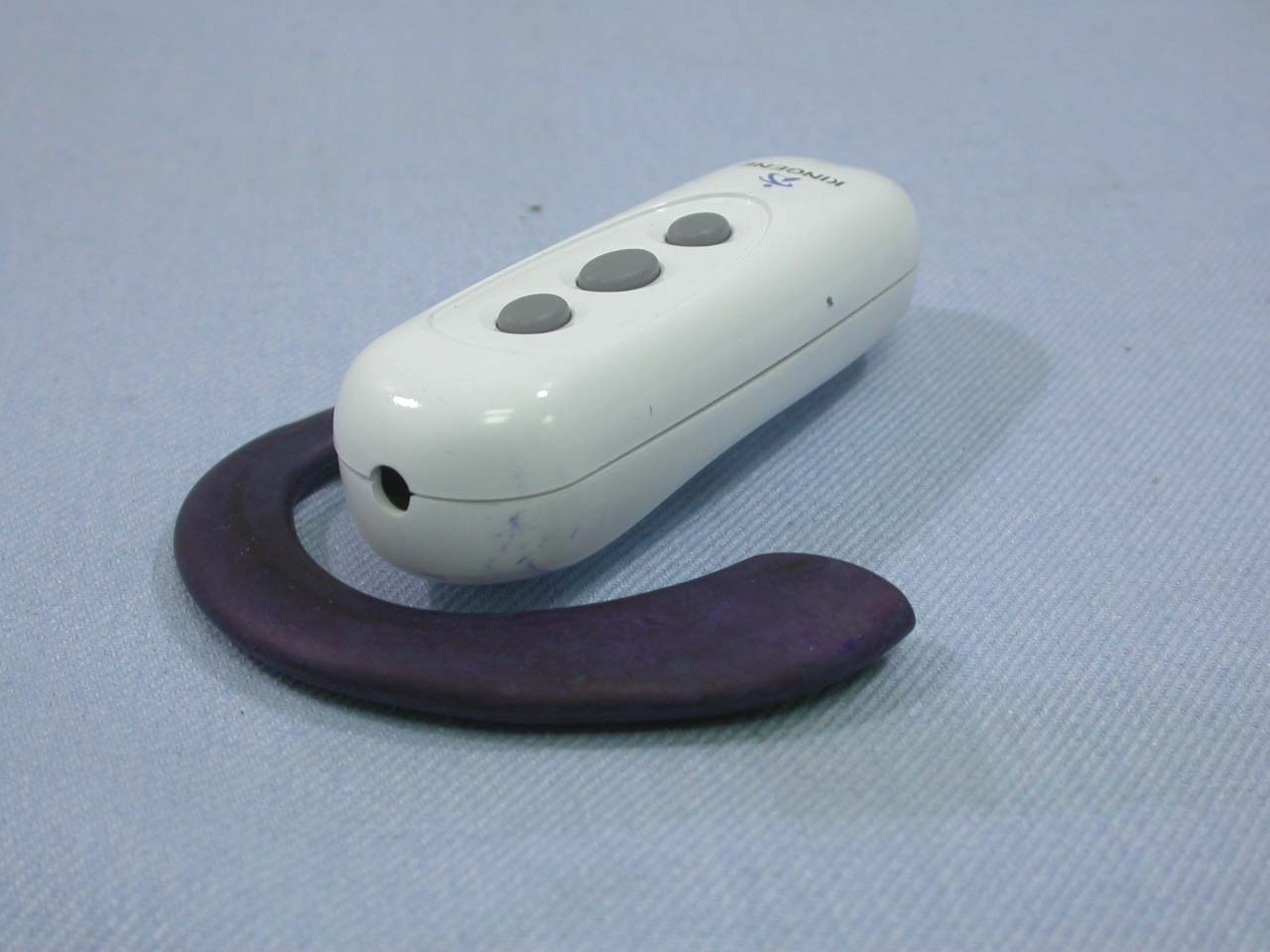

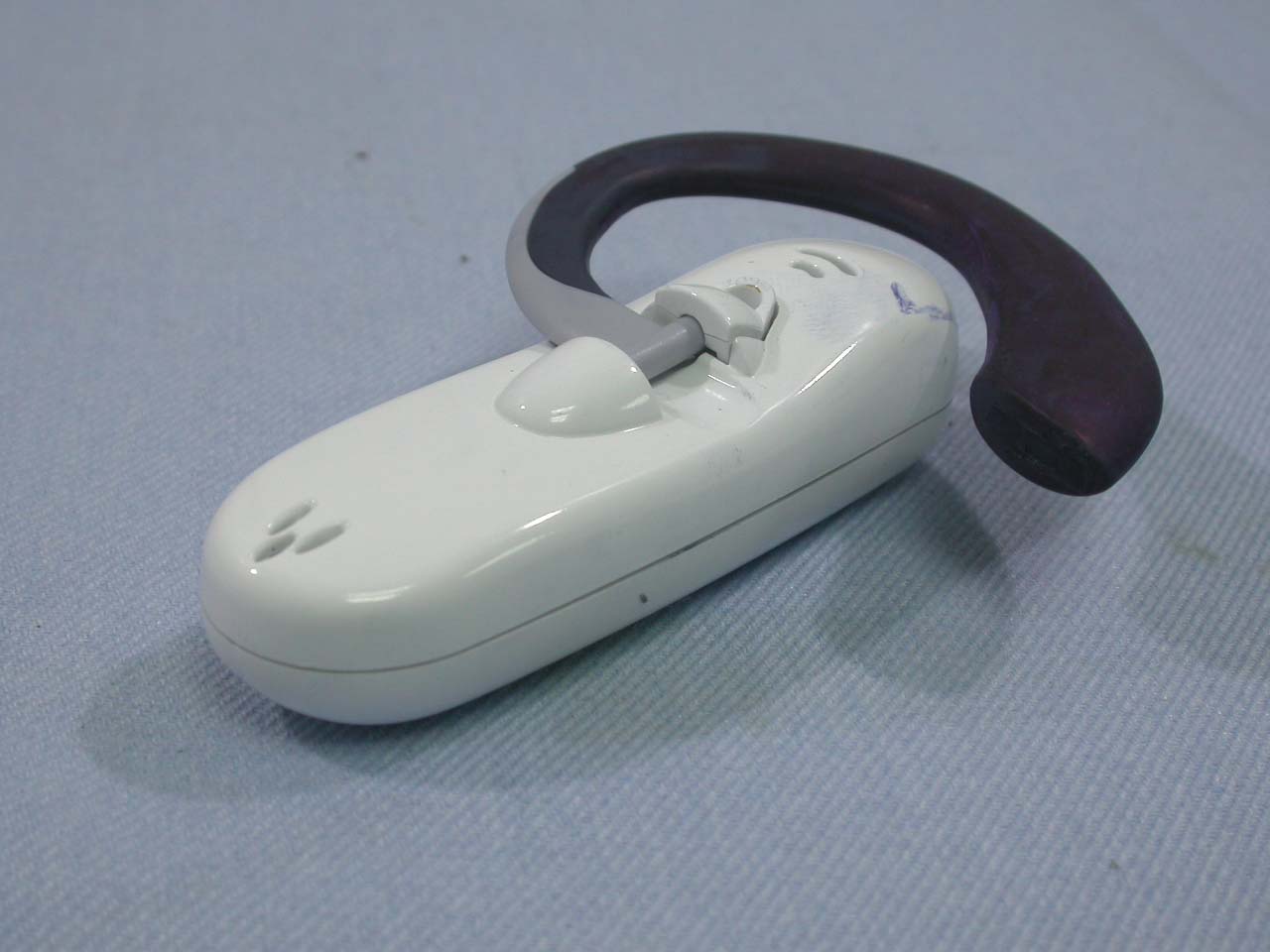

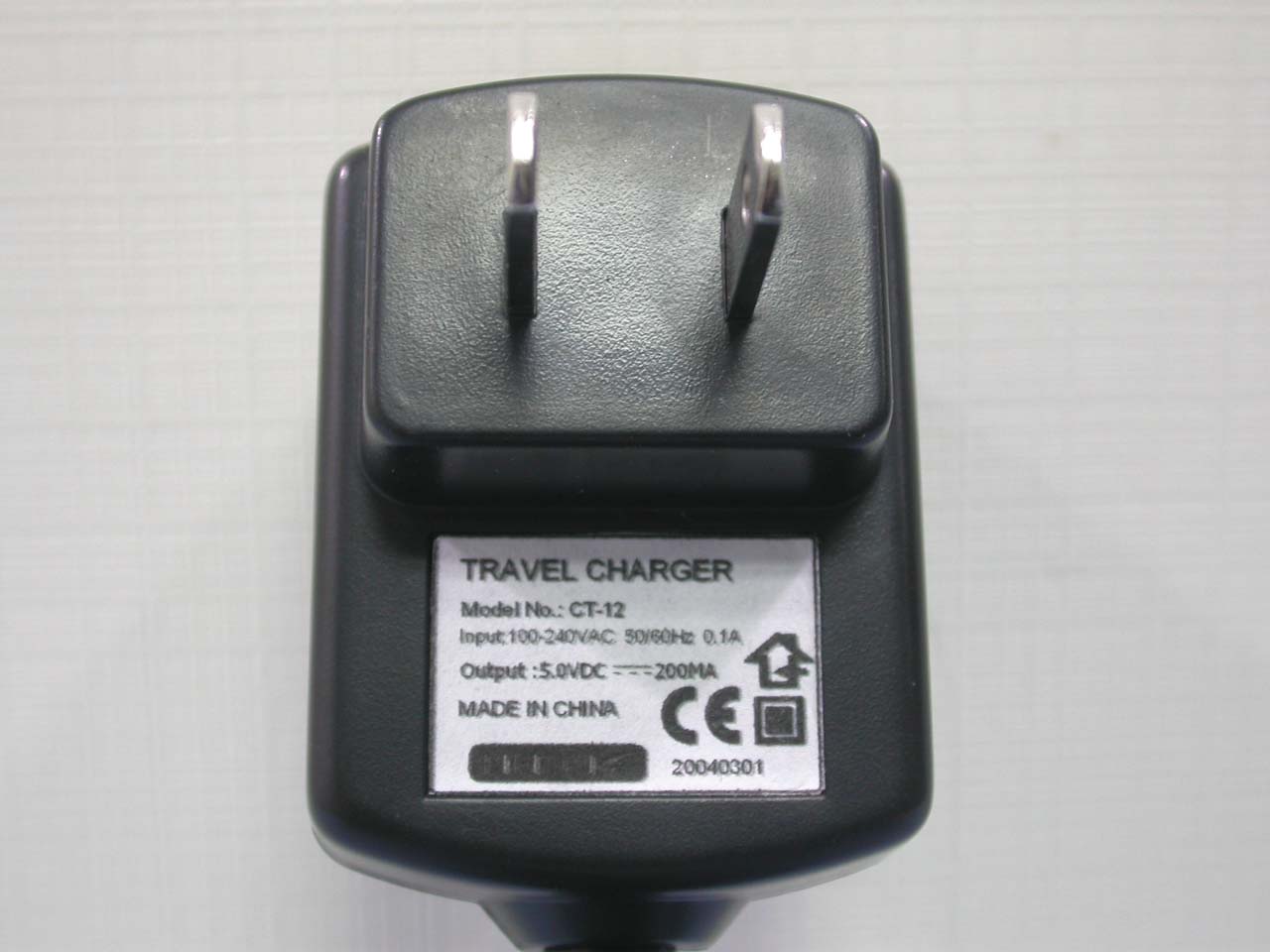

Compliance Certification Services Inc. Report No: B30910203 Date of Issue: March 15, 2004 Page 1 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B30910203 Date of Issue: March 15, 2004 Page 2

Bluetooth Mobile Headset Model no:BT315H Input Voltage:=3.7V, 20mA S/N:***** FCC ID:QYDBT315H01 0984 KINGENE Technology Corporation

Compliance Certification Services Inc. Report No: B30910203 Date of Issue: March 15, 2004 Page 3 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B30910203 Date of Issue: March 15, 2004 Page 4 Compliance Certification Services Inc. Report No: B30910203 Date of Issue: March 15, 2004 Page 5

• All specifications are subject to change without notice. (1/2) 001-03 / 20020520 / e851_cabpb0730a.fm RF Components CABPB0730A(7×7×3mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN SHAPES AND DIMENSIONS RECOMMENDED PC BOARD PATTERNS LAND SOLDER RESIST TEMPERATURE AND HUMIDITY RANGES ELECTRICAL CHARACTERISTICS • Evaluated with 30 × 30mm TDK STD evaluation base. TYPICAL ELECTRICAL CHARACTERISTICS RETURN LOSS AND GAIN • Evaluated with 30 × 30mm TDK STD evaluation base. 7 37 0.46C Weight: 0.8g Dimensions in mm 0.7 10 1.2 2.4 1.8 0.6 10 9-ø0.6 50Ω line 10.2 10.2 1.2×1.2 2.6 8-2.0×2.0 1.0×2.0 1.6 0.7 Dimensions in mm Operating temperature range–30 to +85°C Storage temperature range–40 to +85°C Humidity range 0 to 90(%)RH [Maximum wet-bulb temperature: 38°C] Center frequency2442MHz Band width85MHz Return loss –2.5dB max.[2400 to 2485MHz] Antenna gain –1dBi max.[2400 to 2485MHz] Input impedance50 Ω [2400 to 2485MHz] VSWR 7 max. –6 –4 –2 0 Return ( dB ) –15 –10 –5 0 Gain ( dBi ) Frequency ( GHz ) 2.32.352.42.452.52.552.6 Return Spec ( –2.5dB ) Gain • All specifications are subject to change without notice. (2/2) 001-03 / 20020520 / e851_cabpb0730a.fm RF Components CABPB0730A(7×7×3mm Type) Ceramic Patch Antennas For Bluetooth TM and 2.4GHz Wireless LAN RADIATION PATTERN •The radiation pattern is measured by mounting the antenna on 30 × 30mm TDK STD evaluation base. •Standard antenna: Standard dipole(Anritsu) Tx antenna: Horn(Condor Systems) Directivity angle Vertical polarizationHorizontal polarization 270 ̊ 0 ̊ 180 ̊ 90 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 270 ̊ 0 ̊ 180 ̊ 90 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 0 ̊ 90 ̊ 270 ̊ 180 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Vertical polarization 270 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ 90 ̊ –10 –20 0 ( dBi ) –30 –40 –50 0 ̊ 2.4GHz 2.44GHz 2.485GHz 180 ̊ Horizontal polarization 270 ̊90 ̊ –10 0 ( dBi ) –30 –40 –50 0 ̊ 315 ̊ 135 ̊ 45 ̊ 225 ̊ –20

Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 50 FCC 47 CFR PART 15 SUBPART C TEST REPORT For KINGENE Technology Corporation Bluetooth Mobile Headset Model: BT315H Trade Name: KINGENE Prepared for KINGENE Technology Corporation 7F, No.144, Sec.3, Minchuan E. Rd., Taipei, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 PEAK POWER......................................................................................................................... 11 7.2 PEAK POWER SPECTRAL DENSITY......................................................................................... 12 7.3 BAND EDGES MEASUREMENT...................................................................................... 15 7.4 FREQUENCY SEPARATION ............................................................................................ 20 7.5 NUMBER OF HOPPING FREQUENCY ............................................................................ 22 7.6 TIME OF OCCUPANCY (DWELL TIME) ......................................................................... 24 7.7 RADIO FREQUENCY EXPOSURE.............................................................................................. 32 7.8 RADIATED EMISSIONS........................................................................................................... 33 7.9 POWERLINE CONDUCTED EMISSIONS.................................................................................... 45 Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Page 4 2. EUT DESCRIPTION Product Bluetooth Mobile Headset Trade Name KINGENE Model Number BT315H Model Discrepancy N/A Power Supply AAA Size Output: DC +1.5V Frequency Range 2402 – 2480MHz Transmit Power 2.66 dBm Modulation Technique GFSK Number of Channels 79 Channels Antenna Designation Ceramic Patch Antenna (Max: -1 dBi) Note: This submittal(s) (test report) is intended for FCC ID: QYDBT315H01 filing to comply with Section 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4. Radiated testing was performed at an antenna to EUT distance 3 meters. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT (Bluetooth Mobile Headset) was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions T…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Page 49 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B30910203-RP FCC ID: QYDBT315H01 Date of Issue: March 15, 2004 Page 50 Conducted Emission Set Up Photos
