SIMRAD SA50 Search and Rescue Transponder(SART) MAXIMIZING YOUR PERFORMANCE AT SEA www.simrad.com 2. Activating the SART In the event of an emergency remove the SARTfrom its bracket and (1)flip the black plastic tab from left (LOCK) to right (UNLOCK). (2) To activate the SARTremove the pin by pulling it downward. Fig. 1.1 - The SIMRAD SA50 Search and Rescue Transponder (SART) Use back clip to attach to mounting bracket 1 2 The SIMRAD SA50Search & Rescue Transponder ( SART) is a slim and light- weight emergency transponder, which can be deployed within minutes. The SA50can be both manually or automatically activ- ated. 1. Installation Using the supplied bulkhead bracket, mount the SARTin a suitable and protected location, where it can be easily reached in the event of an emergency. The SARTwill simply clip onto the bracket provided. The SARTmay also be pre-packed in the life raft, in which case the manufacturer will provide mounting instructions for use when the life raft is inflated. IMPORTANT! The SA50must not be installed within the main beam of the ship’s radar. A compass-safe distance of at least 1m (3 ft) must be observed. Mounting bracket Fig. 2.1 - Activating the SART Part No. E04722 Issue 1.0 03-Nov-04 CR Fig. 3.1 - Testing the SART If the SARTis stored in an exposed position, then regular cleaning is recommended. DO NOTuse solvents on this product as this may damage the plastic components. 4. Testing the SART As a minimum the SARTshould be tested annually to ensure correct performance. •Remove the SARTfrom its mounting and rotate the security tab to the UNLOCK position. •Push the gray button down to the TEST position and hold it down until the test is completed. 3. Care and Maintenance The SARTwill need very little maintenance between battery replacements. The batteries require replacement after five years (always check the label on the battery pack), or after use. The replacement date is shown on a label on the outside of the unit. •Check that the indicator on the SARTis flashing. On the ship’s X-band radar observe that the SARTis displayed as blips, adjusting the radar’s gain if necessary. When testing is completed, return the gray button to the SAFE position and rotate the priming tab back to the LOCK position to secure the transponder. When testing DO NOTremove the pin. NOTE —If the SARTis inadvertendly activated, it can be locked again by pressing down the activation button (to the SAFE position) and reinserting the pin. For further information about the SIMRADproduct range and services, please visit our website at:www.simrad.com. Take the SARTand the mounting pole (if available) to the life raft. When the life raft is inflated, EITHER (1)unwind the lanyard (which is attached to the pin) and attach the SARTto the life raft, OR (2)open out the mounting pole (which will twist-lock into position) and mount the SART on the thinner end of the pole. Pass it through the aperture in the canopy and locate the bottom of the pole in the pocket provided. Secure the SARTwith the tapes provided on the life raft. Fig. 2.2 - Attaching the SARTto a life raft To test flip tab to UNLOCK position, then press button down and hold until test is com- pleted 1 2 Disclaimer The technical data, information and illustrations contained in this publication were to the best of our knowledge correct at the time of going to print. We reserve the right to change specifications, equipment, installation and maintenance instructions without notice as part of our policy of continuous development and improvement. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, electronic or otherwise without prior permission from Simrad Ltd. No liability can be accepted for any inaccuracies or omissions in the publication, although every care has been taken to make it as complete and accurate as possible.

Further information BATTERY REPLACEMENT Shelf life:5 years Operating time: 96 hours minimum (on Standby) 8 hours operating time (once triggered) The batteries will require replacing after five years, even if the unit has not been used. The expiry date is shown on a label on the base of theSART. If theSARThas been activated other than for testing, then the battery should also be replaced immediately. TheSART SA50 is shipped with non-hazardous batteries. TheSARTshould be tested annually as a minimum. Please refer to the Instruction Sheet for further information. TheSARTshould be taken to an authorized Simrad dealer (for details please consult the enclosed Warranty Card). WARNING: Do not attempt to open theSARTas this may degrade the waterproof rating of the device. ACCESSORIES & SPARES LTB4Replacement Lithium battery pack MPS50Extendable mounting pole (1 metre) BMT2Spare bulkhead mounting bracket CARRIAGE REQUIREMENTS The number ofSART’s required depends on the size and type of ship. IMO Carriage Requirements stipulate that all SOLAS vessels over 300 tons must carry a minimum of one SART, whilst passenger ships must carry a minimum of two. More recent regulations require RO–RO ferries to carry a minimum of one SART for every four life rafts. ENVIRONMENTAL INFORMATION Operating temperature range: -20ºC to +55ºC (-4ºF to 131ºF) Drop proof: 20 m (65.6 ft) onto water Water proof: up to 10 m (32.8 ft) submersion DIMENSIONS H: 235 mm (9.7") W: 78 mm (3.2") WEIGHT 0.35 kg (0.77 lbs) LIFE RAFT ACTIVATION (manufacturers only) TheSA50 SARTmay be automatically activated on inflation of the life raft. TheSART should be firmly attached to the top of the life raft and the activation pin to a lower part of the raft so that when the life raft inflates, the pin is pulled out. ENSURE THE PIN IS IN THE UNLOCKED POSITION BEFORE STOWING THE SART IN THE LIFERAFT. Please do not cover the radome as the energy radiated may be reduced Part No. E04796 Issue 1.0 07-Jan-05

Co. Registration No: 4482935 1 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com 28 th July 2004 To whom it may concern Please note that this information is confidential and should not be disclosed to a third party. Dear sir/madam Please accept this as official notification that SevenStar Electronics Ltd, whose registered address is shown above, has licensed certain of its Intellectual Property to Simrad Ltd of Star Lane, Margate. The IP in question pertains to a marine Search And Rescue Transponder (SART), SevenStar type number S.701, operating in the 9GHz radar band. Under the terms of the license agreement, Simrad are allowed to manufacture the identical circuit board and antenna assembly as that used in the S.701 SART already Type Approved (EU MED and FCC) by SevenStar Electronics Ltd. Simrad Ltd will then package the assembly in their own casing, using their own battery pack, switch and other mechanical arrangements, and will operate in the marketplace independently of SevenStar. To the best of my knowledge, Simrad have made no material changes whatsoever to the board and antenna assembly other than the method of PCB mounting. I have included internal photographs of SevenStar’s circuit board/antenna assembly for your examination and comparison. Yours faithfully C R Watts Managing Director SevenStar Electronics Ltd Co. Registration No: 4482935 2 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com Co. Registration No: 4482935 3 VAT Registration No: 824 5627 23 Unit 7, Richards Close Wootton Bassett Wiltshire SN4 7LE United Kingdom (+44) (0) 1793 852829 S S S e e e v v v e e e n n n S S S t t t a a a r r r E E E l l l e e e c c c t t t r r r o o o n n n i i i c c c s s s Email: [email protected] Web: www.sevenstarelectronics.com

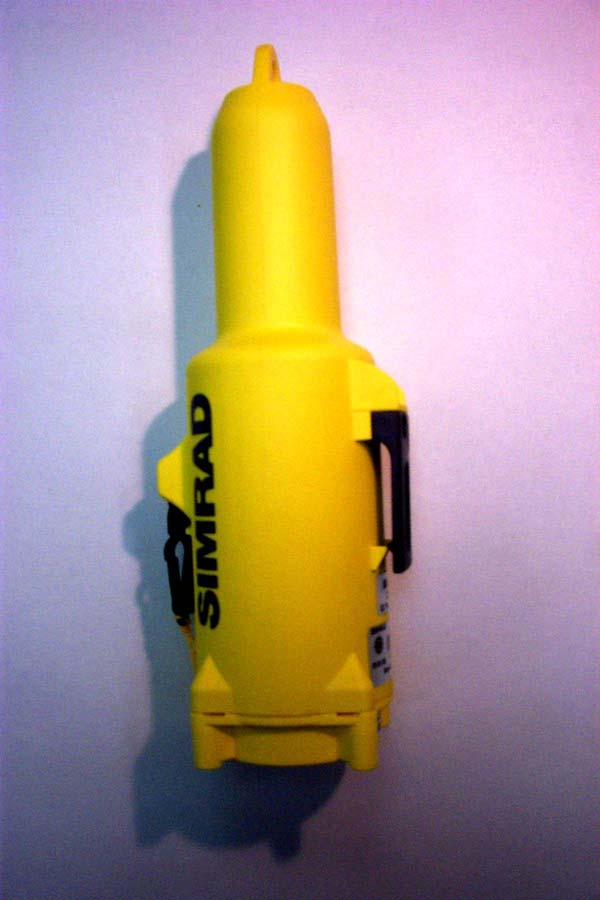

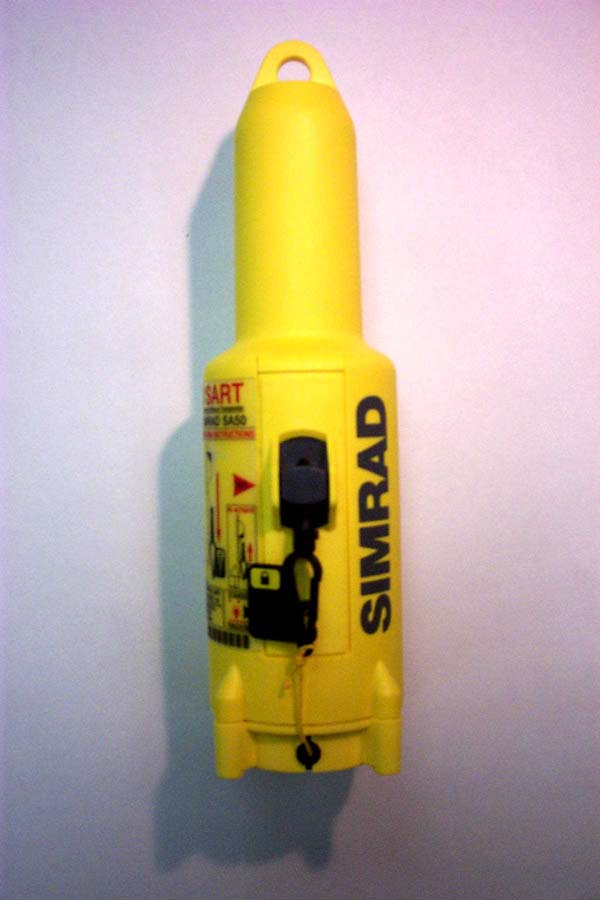

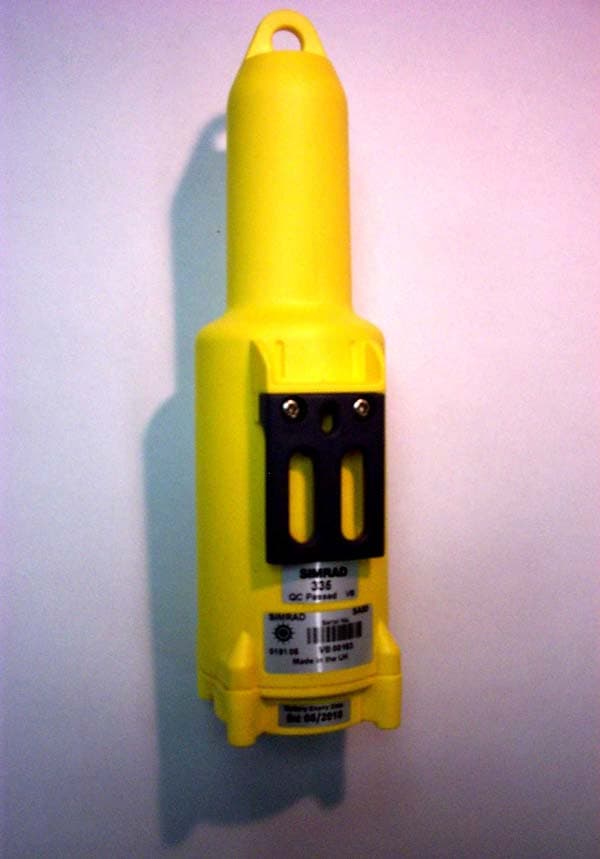

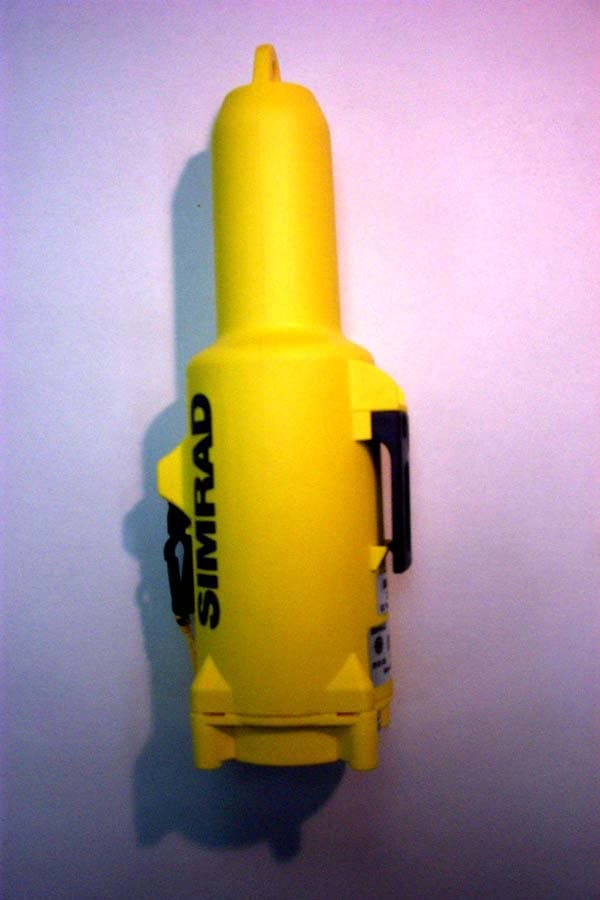

SA50 External Photographs Fig 1: Left hand side view Fig 2: Front view showing activation mechanism Fig 3: Left hand side view, showing brief operating instructions FCC ID Label Fig 4: Rear view, showing location of FCC ID Label Fig 5: SA50 Base view, showing lanyard storage and release mechanism

FCC Identifier label Fig 1: FCC Identifier label FCC ID Label Fig 2: Position of FCC Identifier label

SA50 Internal Photos Fig 1: SA50 PCB Assembly – Control Side Fig 2: SA50 PCB Assembly – RF side with screen fitted Fig 3: SA50 PCB assembly – RF side with screen removed

SA50 Battery Pack Photos Fig 1: SA50 Battery pack – front view Fig 2: SA50 Battery pack – Rear view

ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 1 Annex 1 Проверка РЛО на соответствие комплектности и требованиям к эксплуатационной документации (п.8 Резолюции IMO А.694 (17) Check of SART to compliance request complete and service documentation §8 Resolution IMO А.694 (17) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Предъявленная документация ООО Севен стар электроникс.Аварийный Спасательный Ответчик. Общее описание типа. Техническая спецификация (на англ.языке) Submitted documantationSevenstar electronics limited. Search and Rescue Transponder.General type discription. Technical specification. Комплект составных частей РЛО Set of SART 1.Радиоблок РЛО соединенный с отсеком питания и намотанным линем 1 Radioblock SART within power supply block and buoyant floatable lanyard coiled on body SART 2.Кассета для крепления РЛО на судне1 Mounting bracket 3.Телескопический шток для установки РЛО на высоту 1 метр 1 Pole 1 meter 4.Ремешок для крепления РЛО к конструкции надувного спасательного плотика 1 Webbing strap Представленная документация -"Общее описание типа .."содержит информацию об устройстве РЛО, технические характеристики, инструкцию по эксплуатации и порядок технического обслуживания. Ремонт РЛО не предусмотрен. Документация выполнена на английском языке. Объем информации достаточен для правильной эксплуатации и обслуживания РЛО. Требования к документации (п.8 Резолюции IMO А.694 (17) Должна быть предоставлена соотвествующая информация, с тем чтобы позволить осуществить надлежащую эксплуатацию, техническое обслуживание и ремонт. Требования к комплектности Комплектность РЛО должна соответствовать перечню, указанному в сопроводительной эксплуатационной документации Вывод Эксплуатационная документация соотвествует требованиям п.8 Резолюции IMO А.694 (17) Комплектность РЛО соотвествует требованиям эксплуатационной документации Conclusion Service documentation compliance request p.8 Resolution IMO А.694 (17) Complete SART compliance Service documentation ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 2Annex 2 Проверка маркировки РЛО на соответствие требованиям стандарта IEC 61097-1, п.9 Резолюции IMO А.694 (17) Labelling SART to compliance Standard IEC 61097-1, Resolution IMO A.497 (17) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Требование стандарта (Резолюции)стандарта IEC 61097-1 Резолюции ИМО A.497 (17) Исполнение требования в РЛО Request StandardIEC (Resolution IMO):IEC 61097-1IMO A.497 (17)Realization requests Маркировка В дополнение к положениям, изло- женным в Резолюции IMO A.694 (17), на внешней стороне оборудования должно быть ясно указано следующее Labelling In addition to the items specified in IMO Resolution A.694(17), the following shall be clearly indicated on the exterior of the equipment: : Краткая инструкция по работе (на английском) brief operating instructions (in English) 4.1- Yes Имеется Срок годности (на английском) для первичных используемых батарей (срок годности является датой замены). expiry date (in English) for the primary battery used ( battery replacement date). 4.2- Yes Имеется На каждом приборе оборудования должна находиться с внешней стороны следующая информация, ясно различимая при нормальном положении установленного оборудования: Each unit of the equipment should be marked externally with the following information which should be clearly visible in the normal installation position : -9 Сведения об изготовителе identification of the manufacturer -9.1 Yes Имеется Год выпуска Date of manufactured - Yes Имеется ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Требование стандарта (Резолюции)стандарта IEC 61097-1 Резолюции ИМО A.497 (17) Исполнение требования в РЛО Request StandardIEC (Resolution IMO):IEC 61097-1IMO A.497 (17)Realization requests Номер типа радиооборудования и его наименование, под которым радиооборудование прошло типовые испытания equipment type number or model identification under which it was type tested -9.2 Yes Имеется Серийный номер serial number of the unit -9.3 Yes Имеется Дата замены батареи date of battery replacement - Yes Имеется Вывод Марrировка РЛО соотвествует требованиям п.9 Резолюции IMO А.694 (17), стандарта IEC 61097-1 Conclusion Labelling SART compliance request § 9 Resolution IMO А.694 (17), Standard IEC 61097-1 ГП ИЦ "Омега"/PE TC "Omega"Отчет / Report No04/22стр. из 50 Приложение 3 Annex 3 Проверка РЛО на соответствие требованиям к исполнению и эксплуатационным характеристикам (по п.п.3.2.1, 3.2.2, 3.2.3, 3.2.4, 3.2.5, 3.2.10, 3.2.13, 3.2.14 Стандарта IEC 61097-1 и п.п. 2.1.1, 2.1.2, 2.1.3, 2.1.4, 2.1.5, 2.1.10, 2.1.13, 2.1.14, 2.1.15 Резолюции IMO A.802 (19) Test of SART to compliance Operational Perfomance requirements (§§ 3.2.1, 3.2.2, 3.2.3, 3.2.4, 3.2.5, 3.2.10, 3.2.13, 3.2.14 Standard IEC 61097-1, §§ 2.1.1, 2.1.2, 2.1.3, 2.1.4, 2.1.5, 2.1.10, 2.1.13, 2.1.14, 2.1.15 Resolution IMO A.802 (19)) Зав. No РЛОNo1, No2, No3Температура окружающего воздуха 20°C Serial Number No SARTAmbient temperature Зав. номер отсека питанияNo4, No5, No6Влажность окружающего воздуха61% Serial Number power supply unitAmbient humidity Требование стандарта (Резолюции)Стандарта IEC 61097-1 Резолюции ИМО А.802(19) Исполнение требования Request of Standard (Resolution)IEC 61097-1IMO A.802 (19)Realization of requests Иметь оранжевый/желтый цвет, легко различимый на всех поверхностях, где это поможет поиску. be of a highly visible yellow/orange color on all surfaces where this will assist detection. 3.2.132.1.13 Желтый Yellow Иметь гладкую внешнюю конструкцию во избежание повреждения спасательного плота. be of a smooth external construction …

Text truncated - open the document above for the full version.

Commercial in Confidence Copy No 1 MARINE APPROVAL and TESTING SERVICES Cody Technology Park Ively Road Farnborough Hampshire GU14 OLX Selected Test Results of SIMRAD SEARCH & RESCUE TRANSPONDER QinetiQ/S&E/SPS/EMC/R/2004/199-A Cover + iv + 7 Pages Draft A Commissioned by Simrad Ltd Star Lane Margate Kent CT9 4TP Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence i Authorisation Title Name Signature Date Report Originator R Sharp 6/12/04 Issued by Marine Approval and Testing Services Cody Technology Park Ively Road Farnborough GU14 OLX QinetiQ Copyright (2004) Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence ii Record of changes Issue Date Details of changes A Dec 2004 Draft issue Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence iii Distribution Copy No. Recipient Location 1 Customers Copy (electronic) Mr D Sheeky Simrad Master copy (Electronic) Server Farnborough Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence iv List of Contents Report Clause Title Page 1. Introduction 1 2. Equipment under Test 1 3. Build Standard of Test Sample 1 4. Tests and Assessment 1 5 Climatic Tests 2 6. Flotation Test 2 7. Range Performance 3 & 4 8. Sweep Characteristics 5 9. Radiated Power 5 10. Front End Protection 6 11. Report Conclusions 7 Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence Page 1 of 7 Pages REPORT ON THE SELECTED TESTING OF SIMRAD SEARCH & RESCUE TRANSPONDER 1. Introduction 1.1 The customer requested Marine Approval & Testing Services (MATS) part of the EMC Group QinetiQ Farnborough, conduct validation testing on a Search & Rescue Transponder. The selected tests on the Simrad SART were conducted in accordance with specification BS EN 61097 Operational & Performance Requirements for Search & Rescue Transponder. Testing was conducted at QinetiQ Farnborough and QinetiQ Fraser Range. Note that testing to BS EN 61097 is not accredited. 2. Equipment under Test 2.1 The following item was supplied:- Item No Item Type No Serial No 1 Search & Rescue Transponder SA50 T.A.Unit # 001 2.2 Duration of Testing 2.2.1 The SART was tested during October – November 2004 3. Build Standard of Test Sample 3.1 The item supplied for test is a production item. 4. Tests and Assessments 4.1 To confirm SART function during testing a portable microwave source was used. 4.2 The Search & Rescue Transponder was tested to the following selected clauses of specification BS EN 61097 . Clause Test Description 6.2.7 Immersion Test 6.2.8 Thermal Shock 6.2.9 Flotation 6.7 Range Performance 6.9.4 Sweep Characteristics ( PW & Sweeps) 6.9.5 Radiated Power 6.9.9 Front End Protection 5. Climatic Tests Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence Page 2 of 7 Pages 5.1 Immersion Test (6.2.7) & Thermal Shock (6.2.8) The two tests were combined 5.1.1 Thermal Shock (Hot) The pressure vessel used for this test was filled with water which was at a temperature of 21 o C. 5.1.2 The SART was placed in a climatic chamber and raised to a temperature of 66 0 C and maintained at that temperature for greater than 3hrs after which it was removed from the climatic chamber and placed in the pressure vessel which was raised to 1 bar and maintained at that pressure for 1 hour. 5.1.3 After this period the SART was removed inspected for leakage and malformation and a performance test conducted. 5.1.4 RESULT: - The SART functioned correctly and showed no sign of damage. 5.1.5 Thermal Shock (Cold) The pressure vessel used for this test was filled with water which was at a temperature of 21 o C. 5.1.6 The SART was placed in a climatic chamber and lowered to a temperature of minus 9 0 C and maintained at that temperature for greater than 3hrs after which it was removed from the climatic chamber and placed in the pressure vessel which was raised to 1 bar and maintained at that pressure for 1 hour. 5.1.7 After this period the SART was removed inspected for leakage and malformation and a performance test conducted. 5.1.8 RESULT: - The SART functioned correctly and showed no sign of damage. 5.1.9 The above tests confirm that the SART complies with clause 6.2.7 Immersion test. 6 Flotation Test (6.2.9) 6.1 The SART was placed in a vessel of water and observed for a period of 5 minutes. 6.2 After this period the SART was removed inspected for leakage and a performance test conducted. 6.3 RESULT: - The SART was capable of floating and functioned correctly. Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confidence Page 3 of 7 Pages 7. Range Performance (6.7) 7.1 For convenience the Range Performance details are presented in tabular form. Equipment under Test Simrad Ltd Build Standard Mr D Sheeky Power Supply Battery Powered Test Specifications BS EN61097-1 Clause 6.7 Range Performance Test dates 25 th November 2004 Time 15:00hrs Modes of operation Equipment in active mode Test conducted by R Sharp/ M Blackwell Test Manager R Sharp Location of testing Radar site at QinetiQ Fraser Range, SART deployed at Bracklesham Bay Radar Details Sperry Bridgemaster E 10kW X- Band Radar Separation 7nm Test item Details Manufacturer Type Serial No Simrad SA50 T.A.Unit # 001 Environmental conditions Sea state Visibility Tide 1-2 7nm Low Test Results Summary Test The SART response was tested as defined in the specification indicated, with an X-Band Marine Radar meeting IMO resolutionA477(XII) The test was conducted with the SART positioned at the waters edge with the lowest part of the antenna set at 1 metre above the surface of the sea, and in line of sight to the Radar antenna at Fraser Range over a sea path. The SART response was observed on the Radar and the resultant display was photographed. Result SART performance observed as satisfactory. Picture of SART response on next page. Commercial in Confidence QinetiQ/S&E/SPS/EMC/R/2004/199-A Commercial in Confi…
