QZE250DUAL MODE 2.4GHz/ 5GHz ACCESS POINT

Part Number 730-9502-0134, Revision A Trapeze Mobility Point ™ 400 Installation Guide ii © 2006 Trapeze Networks, Inc. All rights reserved. Trademarks Trapeze Networks, the Trapeze Networks logo, Smart Mobile, Mobility Exchange, MX, Mobility Point, MP, Mobility System Software, MSS, RingMaster, Mobility Domain, SentryScan, ActiveScan, Bonded Auth, FastRoaming, Granular Transmit Power Setting, GTPS, Layer 3 Path Preservation, Location Policy Rule, Mobility Profile, Passport Free Roaming, Time-of-Day Access, TAPA, Trapeze Access Point Access Protocol, Virtual Private Group, VPG, Virtual Service Set, Virtual Site Survey and WebAAA are trademarks of Trapeze Networks, Inc. Trapeze Networks SafetyNet is a service mark of Trapeze Networks, Inc. AirDefense. AirDefense Enterprise, and AirDefense Personal are registered trademarks of AirDefense, Inc. All other products and services are trademarks, registered trademarks, service marks or registered service marks of their respective owners. Disclaimer All statements, specifications, recommendations, and technical information are current or planned as of the date of the publication of this document. They are reliable as of the time of this writing and are presented without warranty of any kind, expressed or implied. In an effort to continuously improve the product and add features, Trapeze Networks reserves the right to change any specifications contained in this document without prior notice of any kind. Comments and Feedback Your feedback on Trapeze documentation is important to us. Send any comments and suggestions to [email protected]. For the most current version of this document, see www.trapezenetworks.com. Note. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Trapeze Networks, Inc. 5753 W. Las Positas Blvd. Pleasanton, CA 94588 Tel: +1 925-474-2200 Fax: +1 925-251-0642 Toll-Free: 877-FLY-TRPZ (877-359-8779) www.trapezenetworks.com iii Customer Service For general information about Trapeze Networks Mobility System™ products and services, visit www.trapezenetworks.com. For warranty, license, and support information, visit the following sites: ●Warranty and software licenses. Current Trapeze Networks warranty and software licenses are available at www.trapezenetworks.com/support/ warranty.asp. ●Support services. For information about Trapeze support services, visit www.trapezenetworks.com/support/. Or call 1-866-877-9822 (in the US or Canada) or +1 925-474-2400 and select option 5. Contacting the Technical Assistance Center Contact the Trapeze Networks Technical Assistance Center (TAC) by telephone, email, or fax. If you have a service contract or are a Trapeze Authorized Partner, log in to www.trapezenetworks.com/support/sup_programs.asp for more help. ●Within the US and Canada, call 1-866-TRPZTAC (1-866-877-9822). ●Within Europe, call +31 35 64 78 193. ●From locations outside the US and Canada, call +1 925-474-2400. ●In non-emergencies, send email to [email protected]. ●When your case is active, you can fax more information to +1 925-474-2423. Note. TRAPEZE NETWORKS SELLS AND SERVICES ITS PRODUCTS PRIMARILY THROUGH ITS AUTHORIZED RESELLERS AND DISTRIBUTORS. If you purchased your product from an authorized Trapeze reseller or distributor and do not have a service contract with Trapeze Networks, you must contact your local reseller or distributor for technical assistance. Trapeze Mobility Point Installation Guide iv TAC Response Time TAC responds to service requests as follows: Information to Have Available To expedite your service request, have the following information available when you call or write to TAC for technical assistance: ●Your company name and address ●Your name, telephone number, cell phone or pager number, and email address ●Name, model, and serial number of the product(s) requiring service ●Software version and release number ●Output of the show tech-support command ●Wireless client information ●License levels for RingMaster™ and Mobility Exchange™ (MX™) products ●Description of the problem and status of the troubleshooting effort Contact methodPriorityResponse time TelephoneEmergencyOne hour Non-emergency Next business day EmailNon-emergency Next business day Contents v Contents Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii 1 Introducing the Trapeze Networks Mobility System. . . . . . . . . . . . . . . . 1 Trapeze Networks Mobility System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety and Advisory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Text and Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 MP Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 External Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Cable Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 External Antenna Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 MP Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Connection Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3 Installing and Connecting an MP-422 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Unpacking an MP . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Confidential Letter Date: 2006/12/8 Federal Communications Commission Authorization and Evaluation Division FCC IDQZE250 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: Exhibit Type File Name Block Diagram QZE250 Blk Circuit Diagram QZE250 Schem Operational Description QZE250 OpDes-R The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely,

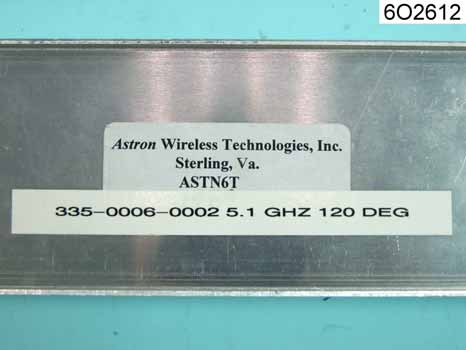

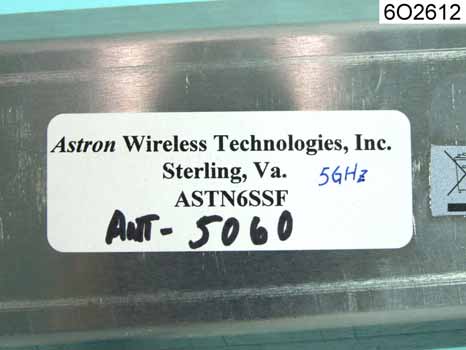

SPORTON International Inc. PAGE NUMBER : A1 OF A 15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A 15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 0 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A1 5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A 15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Background-white Graphic& text-black 70.28 R 59.00 1.78 25.43 Dennis 2006/10/30 8B35 0.254t FCC ID: QZE250 IC: 4558A-150 This device contains 인증번호 : 당해 무선설비는 운용 중 전파혼신 가능성이 있음 TPZ-MP400

SPORTON International Inc. PAGE NUMBER : A 1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A 5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 01, 2006 FAX : 886-2-2696-2255

Report No.: FR6O2612 FCC ID: QZE250 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR6O2612 FCC ID: QZE250 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) d GP××30 Power Density: Pd (W/m²) 377 2 E E Electric field (V/m) P Peak RF output power (W) G EUT Antenna numeric gain (numeric) d Separation distance between radiator and human body (m) The formula can be changed to Pd 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR6O2612 FCC ID: QZE250 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : External 60 Panel Antenna Max Conducted Power for IEEE 802.11a : 21.20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 14.5 28.1838 21.2000 131.8257 0.739521 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.407-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company Trapeze Networks Inc. Applicant Address 5753 W. Las Positas Blvd. Pleasanton, CA 94588, US FCC ID QZE250 Manufacturer’s company Alpha Networks Inc. Manufacturer Address No. 8, Li-Hsin VII Road,Science-Based Industrial Park, Hsin-Chu, Taiwan, R.O.C. Product Name Dual mode 2.4GHz / 5GHz Access Point Brand Name Trapeze Networks, Enterasys Model Name 400, RBT-161x-xx Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150~5250 MHz Received Date Oct. 27, 2006 Final Test Date Nov. 30, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11a (5150~5250 MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-2-17-d Page No. : i of ii FCC ID: QZE250 Issued Date : Dec. 01, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................16 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................24 4.4. Power Spectral Density Measurement ..............................................................................................................................................32 4.5. Peak Excursion Measurement ...........................................................................................................................................................40 4.6. Radiated Emissions Measurement ....................................................................................................................................................48 4.7. Band Edge Emissions Measurement .................................................................................................................................................84 4.8. Frequency Stability Measurement ....................................................................................................................................................97 4.9. Antenna Requirements ...................................................................................................................................................................101 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 102 6. TEST LOCATION............................................................................................................................................ 103 7. NVLAP CERTIFICATE OF ACCREDITATION ...........................................................…

Text truncated - open the document above for the full version.

Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 52 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 4.6.8. Results of Radiated Emissions (30MHz~1GHz) Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 1 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 53 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 54 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 55 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 56 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 57 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 58 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 4 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 59 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 60 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 4.6.9. Results for Radiated Emissions (1GHz~40GHz) Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 1 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 61 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 62 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 1 / 802.11a Ch 40 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 63 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 64 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 1 / 802.11a Channel 48 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 65 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. The limits above 5GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 66 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11a Ch 36 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 67 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 68 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11a Ch 40 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 69 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 70 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11a Channel 48 Horizontal Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 71 of 104 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. The limits above 5GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. Report No.: FR6O2612AA Report Format Version: RF-15.407-2006-6-16-e Page No. : 72 of 104 FCC ID: QZE250 I…

Text truncated - open the document above for the full version.

Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 125 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11g CH 6 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 126 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 127 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 2 / 802.11g CH 11 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 128 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 129 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11a CH 149 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 130 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 131 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11a CH 157 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 132 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 133 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11a CH 165 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 134 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 135 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11b CH 1 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 136 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 137 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11b CH 6 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 138 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 139 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11b CH 11 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 140 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 141 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11g CH 1 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 142 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 143 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11g CH 6 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 144 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 145 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 26 Humidity 55% Test Engineer Vic Hsiao Configurations Mode 3 / 802.11g CH 11 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 146 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 147 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 4 / 802.11a CH 149 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 148 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 149 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 4 / 802.11a CH 157 Horizontal Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 150 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Vertical Report No.: FR6O2612AB Report Format Version: RF-15.247-2006-6-16-d Page No. : 151 of 189 FCC ID: QZE250 Issued Date : Dec. 01, 2006 Temperature 20 Humidity 70% Test Engineer Vic Hsiao Configurations Mode 4 / 802.11a CH 165 Horizontal Report No.: FR6O2612AB Report Format Version: …

Text truncated - open the document above for the full version.

Report No.: CR6O2612 IC ID: 4558A-150 Page No. : 1 of 8 Appendix B. Test Photos Report No.: CR6…
