QZE301Dual mode 2.4GHz/5GHz Access Point

Part Number 730-9502-0062, Revision C Trapeze Mobility Point ™ MP-620 Installation Guide ii © 2006 Trapeze Networks, Inc. All rights reserved. Trademarks Trapeze Networks, the Trapeze Networks logo, the Trapeze Networks flyer icon, Mobility System, Mobility Exchange, MX, Mobility Point, MP, Mobility System Software, MSS, RingMaster, AAA Integration and RADIUS Scaling, ActiveScan, AIRS, Bonded Auth, FastRoaming, Granular Transmit Power Setting, GTPS, GuestPass, Layer 3 Path Preservation, Location Policy Rule, LPR, Mobility Domain, Mobility Profile, Passport-Free Roaming, SentryScan, Time-of-Day Access, TDA, TAPA, Trapeze Access Point Access Protocol, Virtual Private Group, VPG, Virtual Service Set, Virtual Site Survey and WebAAA are trademarks of Trapeze Networks, Inc. Trapeze Networks SafetyNet is a service mark of Trapeze Networks, Inc. All other products and services are trademarks, registered trademarks, service marks or registered service marks of their respective owners. Disclaimer All statements, specifications, recommendations, and technical information are current or planned as of the date of the publication of this document. They are reliable as of the time of this writing and are presented without warranty of any kind, expressed or implied. In an effort to continuously improve the product and add features, Trapeze Networks reserves the right to change any specifications contained in this document without prior notice of any kind. Comments and Feedback Your feedback on Trapeze documentation is important to us. Send any comments and suggestions to [email protected]. For the most current version of this document, see www.trapezenetworks.com. Note. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Trapeze Networks, Inc. 5753 W. Las Positas Blvd. Pleasanton, CA 94588 Tel: +1 925-474-2200 Fax: +1 925-251-0642 Toll-Free: 877-FLY-TRPZ (877-359-8779) www.trapezenetworks.com iii Customer Service For general information about Trapeze Networks Mobility System™ products and services, visit www.trapezenetworks.com. For warranty, license, and support information, visit the following sites: ●Warranty and software licenses. Current Trapeze Networks warranty and software licenses are available at www.trapezenetworks.com/services/ warranty.asp. ●Support services. For information about Trapeze support services, visit www.trapezenetworks.com/services/. Or call 1-866-877-9822 (in the US or Canada) or +1 925-474-2400 and select option 5. Contacting the Technical Assistance Center Contact the Trapeze Networks Technical Assistance Center (TAC) by telephone, email, or fax. If you have a service contract or are a Trapeze Authorized Partner, log in to www.trapezenetworks.com/services/sup_programs.asp for more help. ●Within the US and Canada, call 1-866-TRPZTAC (1-866-877-9822). ●Within Europe, call +31 35 64 78 193. ●From locations outside the US and Canada, call +1 925-474-2400. ●In non-emergencies, send email to [email protected]. ●When your case is active, you can fax more information to +1 925-474-2423. Note. TRAPEZE NETWORKS SELLS AND SERVICES ITS PRODUCTS PRIMARILY THROUGH ITS AUTHORIZED RESELLERS AND DISTRIBUTORS. If you purchased your product from an authorized Trapeze reseller or distributor and do not have a service contract with Trapeze Networks, you must contact your local reseller or distributor for technical assistance. Trapeze MP-620 Installation Guide iv TAC Response Time TAC responds to service requests as follows: Information to Have Available To expedite your service request, have the following information available when you call or write to TAC for technical assistance: ●Your company name and address ●Your name, telephone number, cell phone or pager number, and email address ●Name, model, and serial number of the product(s) requiring service ●Software version and release number ●Output of the show tech-support command ●Wireless client information ●License levels for RingMaster™ and Mobility Exchange™ (MX™) products ●Description of the problem and status of the troubleshooting effort Contact methodPriorityResponse time TelephoneEmergencyOne hour Non-emergency Next business day EmailNon-emergency Next business day Contents v Contents Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii 1 Introducing the Trapeze Networks Mobility System. . . . . . . . . . . . . . . . 1 Trapeze Networks Mobility System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety and Advisory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Text and Syntax Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 MP-620 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 External Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 External Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Power Injector Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Receive Signal Strength Indicator (RSSI) BNC Connector . . . . . . . . . . 12 Grounding Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Wall- and Pole-Mounting Bracket Kits . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Amanda Chu/ADT(朱芳誼/新竹認證申請課) 2006/05/04 下午 05:57 收件 人 "steve.cheng" <[email protected]> 副本 抄送 Eric Lin/ADT@ADT, May Chen/ADT@ADT, Ken Lu/ADT@ADT 主旨 Re : TCB Review Comments for (B06-0503b-IC MP-620-CA,950417H03- Trapeze 11abg Pro AP)連結 Dear Steve, Thank you for your comments on this application! The following items are our replies for your comments: item 1: We revised RF exposure for FCC&IC projects. item 4: Yes, the minimum cable loss was incorporated with maximum conducted power output. Plesae refer to note4 on page 8. item 5: We revised page 74, 78 of FCC report, and page 92, 96 of IC report. item 2,3: We revised user manual and test report. Thanks for your help! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/05/04 下午 12:49 收件人 [email protected] 副本抄 送 主旨 TCB Review Comments for (B06-0503b-IC MP-620-CA,950417H03- Trapeze 11abg Pro AP) TCB Review Comments for (B06-0503b-IC MP-620-CA, 950417H03- Trapeze 11abg Pro AP) -EMC- The IC application has same problem as comments issued on FCC application. And there may have more question when I received the regulatory manual. (note page number below is for FCC report.) Question #1: P6 or RFX report. The power used in 5.15-5.35G does not agree with power tested in the test report, please clarify. Question #2: Since tested compliance powers are vary among the available channels, antennas and are not a fix number. Please supply a table which clearly indicates the maximum allowed conducted power for each antenna and channel for installer to follow, Question #3: P36 of installation manual; the antenna info provided in the manual does not agree with the info provided in the test report. Please clarify. Question #4: P11 of 247 test report and P9 of 407 report; tabularized the maximum conducted output powers for each antenna and operation frequency band. However, these power is based on a specific cable loss depends on specific antenna and as indicated in the report that there are optional RF cables that with less cable loss. Please specify the minimum cable losse which needs to be incorporated with maximum conducted power output so that the installer will not miss configure the output power. Question #5: P78 of 247 test report; it seems PSD test is not conducted on the highest PSD point. Please confirm. Best regards, Steve Cheng Curtis-Straus LLC

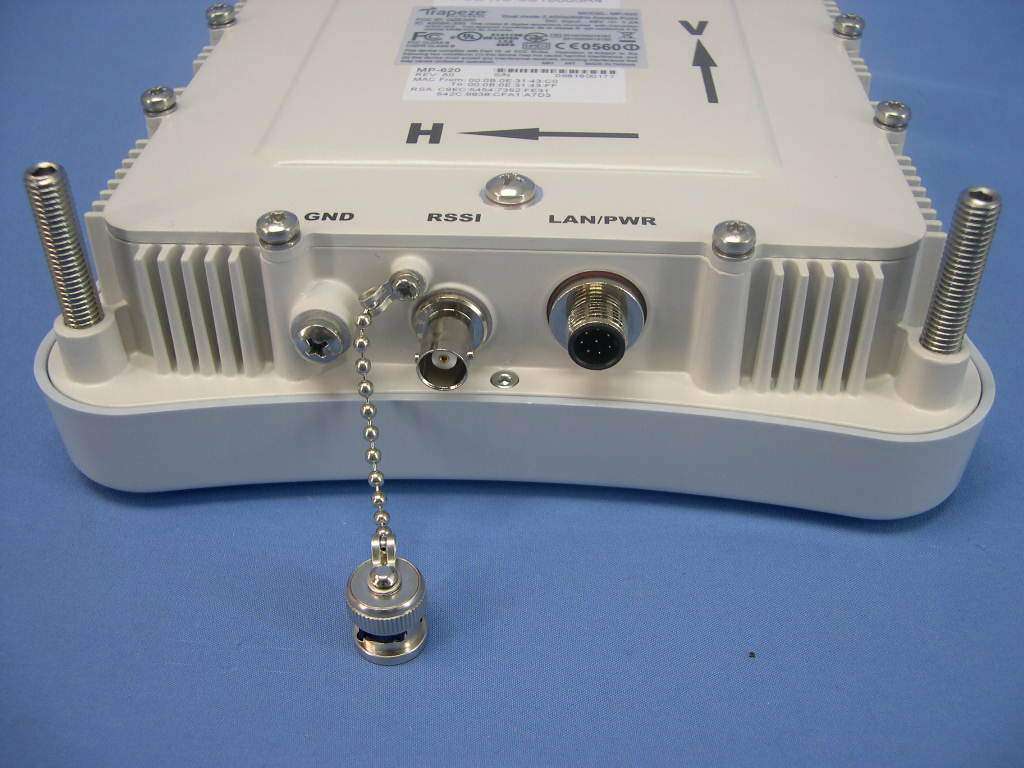

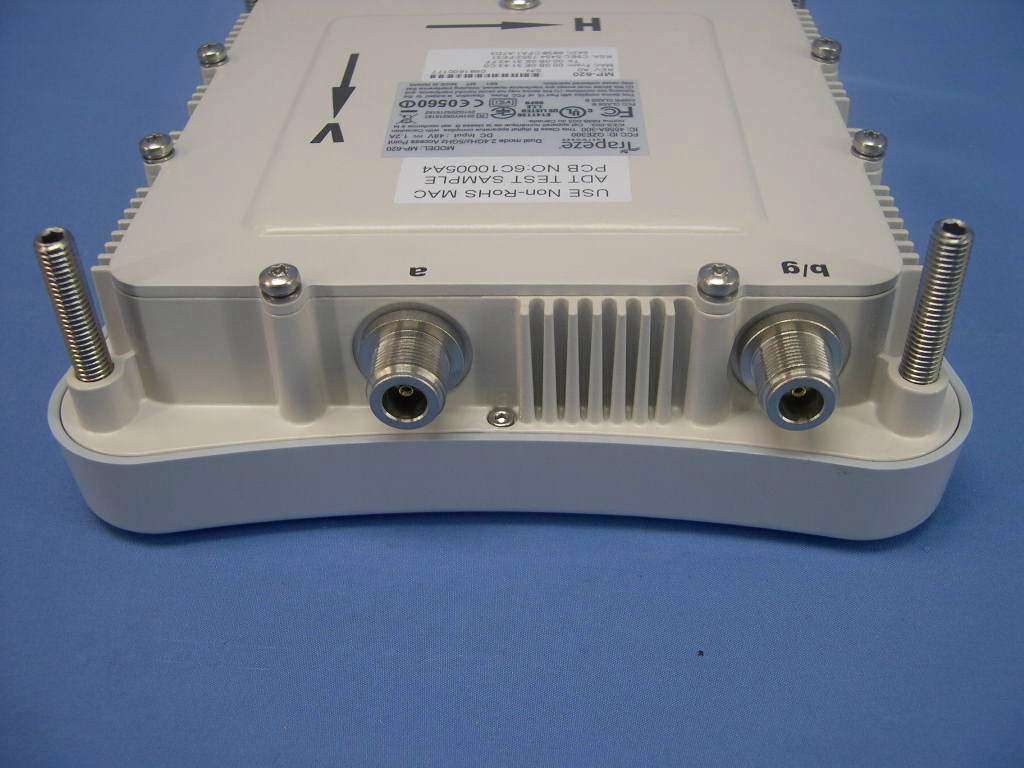

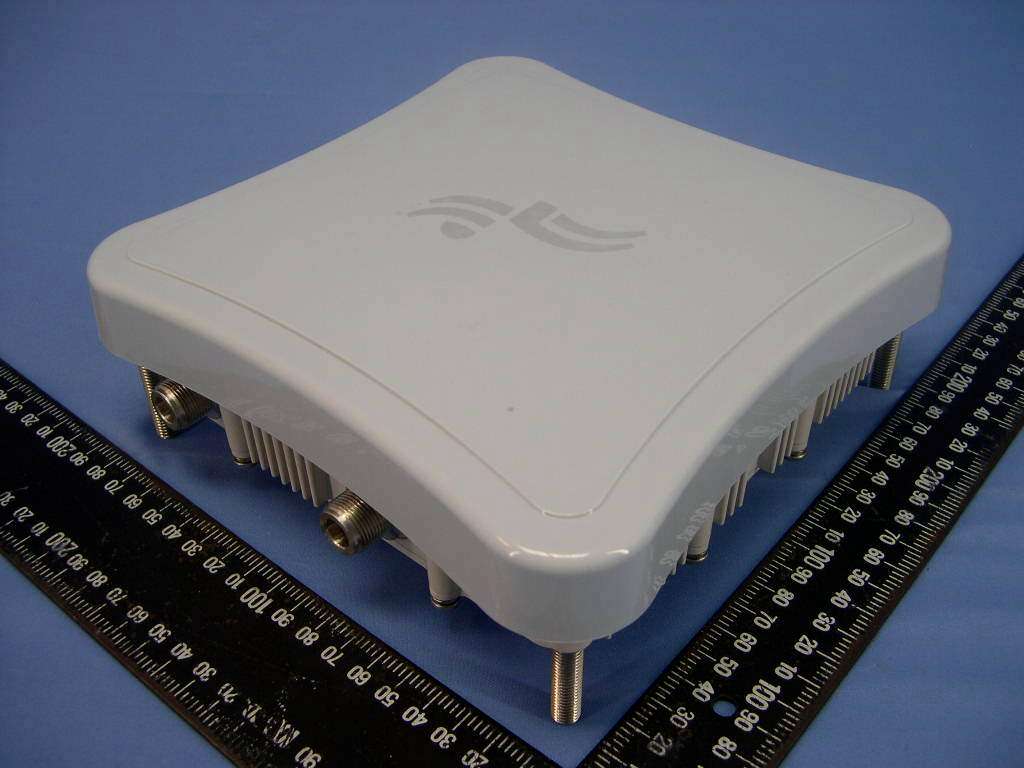

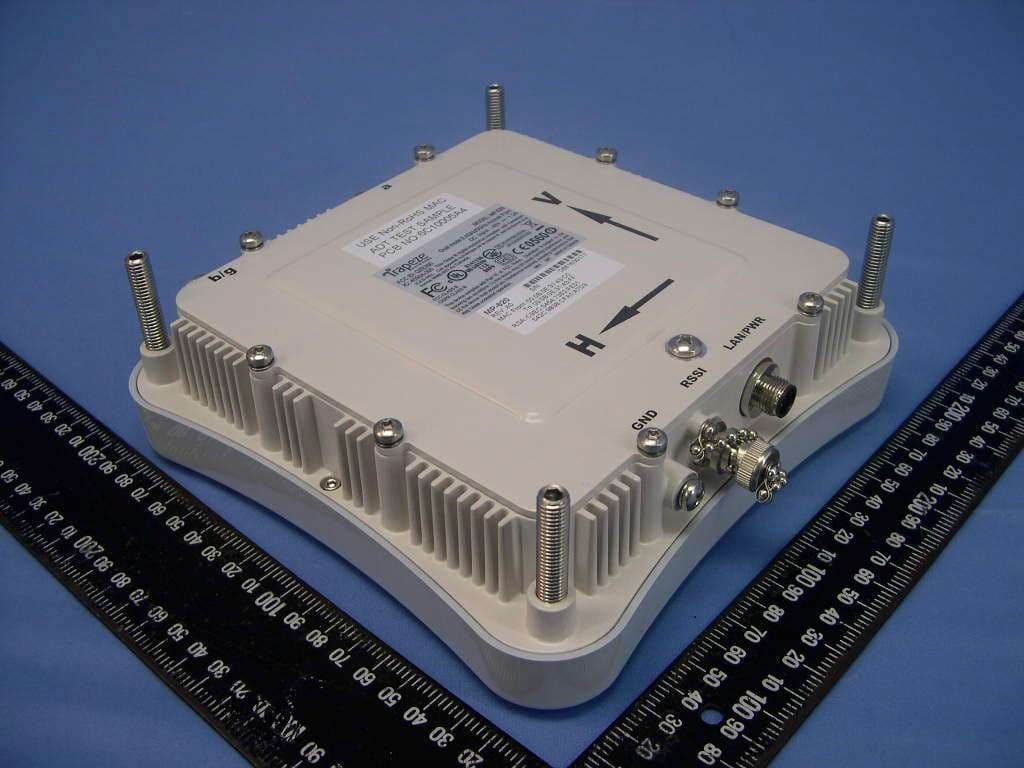

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: QZE301 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Antenna: ACC04-05427A Page 11 Page 12 Antenna: ACC04-053830 Page 13 Page 14 Antenna: ACC04-090380 Page 15 Page 16 Antenna: ACC04-200010 Page 17 Page 18 Antenna: ACC04-090250 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 950417H03 950417H03 Page 27 950417H03

FCC ID: QZE301 Report No. RF930507H07S Technical Description This device is a Dual mode 2.4GHz / 5GHz Access Point operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/ 36/48/54Mbps. The transmitter of the EUT is powered by POE (Power over Ethernet). The antenna are as following: For 2.4GHz No.Model No.Gain (dBi) min. Cable Loss (dB) Net Gain (dB) Antenna Type Antenna Connector 1ACC04-05427A8.01.076.932.4GHz DipoleN-type 2ACC04-05383010.01.078.932.4GHz 120° SectorN-type For 5GHz No.Model No.Gain (dBi) min. Cable Loss (dB) Net Gain (dB) Antenna Type Antenna Connector AACC04-0903808.01.796.215GHz DipoleN-type BACC04-20001013.51.7911.715GHz 120° SectorN-type CACC04-09025018.01.7916.215GHz Directional PanelN-type Note: 1. All of the above antennas are outdoor Antenna. 2. From above antennas, the different type of antennas was chosen for final test and its data were recorded in this report. 3. All of the antennas are different type or frequency band, was selected as all antenna for the test. 4. Antenna Model No. ACC04-090250 can be used in point-to-point applications. Under normal use condition, the user has to keep at least 40 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. FCC ID: QZE301 Report No. RF930507H07S FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA930507H07S1Issued: May 2, 2006 Reference No.: 950417H03 RF EXPOSURE REPORT REPORT NO.: SA930507H07S MODEL NO.: MP-620 FCC ID: QZE301 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Trapeze Networks, Inc. ADDRESS: 5753 W. Las Positas Blvd., Pleasanton, CA 94588 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA930507H07S2Issued: May 2, 2006 Reference No.: 950417H03 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA930507H07S3Issued: May 2, 2006 Reference No.: 950417H03 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification Product is professional installed in a place where at least 40cm far away from the body of the user. Warning statement to the user for keeping at least 40cm or more separation distance from the antenna has been included in users manual. So, this device is classified as Mobile Device. Report No.: SA930507H07S4Issued: May 2, 2006 Reference No.: 950417H03 6 Test Results 6.1 Antenna Gain For 2.4GHz Antenna 1: The maximum Gain of the antenna is 6.93dBi or 4.931738(numeric). Antenna 2: The maximum Gain of the antenna is 8.93dBi or 7.816278(numeric). For 5GHz Antenna A: The maximum Gain of the antenna is 6.21dBi or 4.1783(numeric). Antenna B: The maximum Gain of the antenna is 11.71dBi or 14.8252(numeric). Antenna C: The maximum Gain of the antenna is 16.21dBi or 41.783(numeric). For 2.4GHz No.Model No.Gain (dBi) min. Cable Loss (dB) Net Gain (dB) Antenna Type Antenna Connector 1ANT-1360-OUT8.01.076.932.4GHz DipoleN-type 2ANT-1120-OUT10.01.078.932.4GHz 120° SectorN-type For 5GHz No.Model No.Gain (dBi) min. Cable Loss (dB) Net Gain (dB) Antenna Type Antenna Connector AANT-5360-OUT8.01.796.215GHz DipoleN-type BANT-5120-OUT13.51.7911.715GHz 120° SectorN-type CANT-5PNL-OUT18.01.7916.215GHz Directional PanelN-type Note: 1. All of the above antennas are outdoor Antenna. 2. From above antennas, the different type of antennas was chosen for final test and its data were recorded in this report. 3. All of the antennas are different type or frequency band, was selected as all antenna for the test. 4. Antenna Model No. ANT-5PNL-OUT can be used in point-to-point applications. Report No.: SA930507H07S5Issued: May 2, 2006 Reference No.: 950417H03 6.2 Output Power Into Antenna & RF Exposure value: For 2.4GHz 802.11b: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.9090.0061.0 62437123.0270.0301.0 11246235.4810.0091.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.8930.0081.0 62437123.0270.0481.0 11246233.8840.0131.0 802.11g: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241238.0190.0091.0 62437177.8280.0441.0 11246253.7030.0131.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241215.4880.0061.0 62437120.2260.0471.0 11246230.2000.0121.0 Report No.: SA930507H07S6Issued: May 2, 2006 Reference No.: 950417H03 For 5GHz Operated in 5250MHz ~ 5350MHz band: (15.407) Antenna B Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1526065.3130.04821.0 2528065.0130.04791.0 4532043.7520.03231.0 Antenna C Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1526023.7680.04941.0 2528023.7680.04941.0 4532015.5600.03231.0 Report No.: SA930507H07S7Issued: May 2, 2006 Reference No.: 950417H03 Operated in 5725 ~ 5850MHz band: (15.247) Antenna A Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1574…

Text truncated - open the document above for the full version.

Report No.: RF930507H07S1Report Format Version 2.0.5 Reference No.: 950417H03 FCC TEST REPORT (15.407) REPORT NO.: RF930507H07S MODEL NO.: MP-620 RECEIVED: April 17, 2006 TESTED: April 21 to 27, 2006 ISSUED: May 2, 2006 APPLICANT: Trapeze Networks, Inc. ADDRESS: 5753 W. Las Positas Blvd., Pleasanton, CA 94588 ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF930507H07S2Report Format Version 2.0.5 Reference No.: 950417H03 Table of Contents 1.CERTIFICATION...........................................................................................5 2.SUMMARY OF TEST RESULTS...................................................................6 3.GENERAL INFORMATION............................................................................7 3.1GENERAL DESCRIPTION OF EUT..............................................................7 3.2DESCRIPTION OF TEST MODES..............................................................10 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................13 3.4DESCRIPTION OF SUPPORT UNITS........................................................14 3.5CONFIGURATION OF SYSTEM UNDER TEST.........................................15 4.TEST TYPES AND RESULTS.....................................................................17 4.1CONDUCTED EMISSION MEASUREMENT..............................................17 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................17 4.1.2TEST INSTRUMENTS................................................................................17 4.1.3TEST PROCEDURES.................................................................................18 4.1.4DEVIATION FROM TEST STANDARD.......................................................18 4.1.5TEST SETUP..............................................................................................19 4.1.6EUT OPERATING CONDITIONS................................................................19 4.1.7TEST RESULTS..........................................................................................20 4.2RADIATED EMISSION MEASUREMENT...................................................22 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................22 4.2.2LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS23 4.2.3TEST INSTRUMENTS................................................................................24 4.2.4TEST PROCEDURES.................................................................................25 4.2.5DEVIATION FROM TEST STANDARD.......................................................25 4.2.6TEST SETUP..............................................................................................26 4.2.7EUT OPERATING CONDITION..................................................................26 4.2.8TEST RESULTS (ANTENNA B)..................................................................27 4.2.9TEST RESULTS (ANTENNA C)..................................................................31 4.3PEAK TRANSMIT POWER MEASUREMENT............................................35 4.3.1LIMITS OF PEAK TRANSMIT POWER MEASUREMENT..........................35 4.3.2TEST INSTRUMENTS................................................................................35 4.3.3TEST PROCEDURE...................................................................................36 Report No.: RF930507H07S3Report Format Version 2.0.5 Reference No.: 950417H03 4.3.4DEVIATION FROM TEST STANDARD.......................................................36 4.3.5TEST SETUP..............................................................................................36 4.3.6EUT OPERATING CONDITIONS................................................................36 4.3.7TEST RESULTS (ANTENNA B)..................................................................37 4.3.8TEST RESULTS (ANTENNA C)..................................................................41 4.4PEAK POWER EXCURSION MEASUREMENT.........................................45 4.4.1LIMITS OF PEAK POWER EXCURSION MEASUREMENT.......................45 4.4.2TEST INSTRUMENTS................................................................................45 4.4.3TEST PROCEDURE...................................................................................46 4.4.4DEVIATION FROM TEST STANDARD.......................................................46 4.4.5TEST SETUP..............................................................................................46 4.4.6EUT OPERATING CONDITIONS................................................................46 4.4.7TEST RESULTS (ANTENNA B)..................................................................47 4.4.8TEST RESULTS (ANTENNA C)..................................................................49 4.5PEAK POWER SPECTRAL DENSITY MEASUREMENT...........................51 4.5.1LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT.........51 4.5.2TEST INSTRUMENTS................................................................................51 4.5.3TEST PROCEDURES.................................................................................52 4.5.4DEVIATION FROM TEST STANDARD.......................................................52 4.5.5TEST SETUP............................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF930507H07S-011Report Format Version 2.0.4 Reference No.: 950417H03 Supplemental “Dual Xmit” Test Report REPORT NO.: RF930507H07S-01 MODEL NO.: MP-620 RECEIVED: April 17, 2006 TESTED: April 21 to 27, 2006 ISSUED: May 2, 2006 APPLICANT: Trapeze Networks, Inc. ADDRESS: 5753 W. Las Positas Blvd., Pleasanton, CA 94588 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF930507H07S-012Report Format Version 2.0.4 Reference No.: 950417H03 Table of Contents 1.CERTIFICATION...............................................................................................................3 2.DUAL XMIT, RADIATED EMISSION MEASUREMENT......................................................4 2.1LIMITS OF RADIATED EMISSION MEASUREMENT........................................................4 2.2TEST INSTRUMENTS.......................................................................................................5 2.3TEST PROCEDURES.......................................................................................................6 2.4DEVIATION FROM TEST STANDARD..............................................................................6 2.5TEST SETUP....................................................................................................................7 2.6EUT OPERATING CONDITIONS.......................................................................................8 2.7TEST RESULTS................................................................................................................9 3.INFORMATION ON THE TESTING LABORATORIES......................................................11 Report No.: RF930507H07S-013Report Format Version 2.0.4 Reference No.: 950417H03 1. CERTIFICATION PRODUCT : Dual mode 2.4GHz / 5GHz Access Point BRAND NAME : Trapeze NETWROKS MODEL NO. : MP-620 TESTED: April 21 to 27, 2006 APPLICANT : Trapeze Networks, Inc. TEST ITEM: MASS-PRODUCTION STANDARDS : 47 CFR FCC Part 15, Subpart C ANSI C63.4-2003 PREPARED BY: , DATE:May 2, 2006 ( Carol Liao ) TECHNICAL ACCEPTANCE:, DATE:May 2, 2006 Responsible for RF ( Hank Chung ) APPROVED BY:, DATE:May 2, 2006 (May Chen, Deputy Manager ) Note: Per a request of the FCC, the access point radio was tested for radiated emissions in restricted bands while transmitting on both 2.4 GHz and 5 GHz at simultaneously. Report No.: RF930507H07S-014Report Format Version 2.0.4 Reference No.: 950417H03 2. DUAL XMIT, RADIATED EMISSION MEASUREMENT 2.1LIMITS OF RADIATED EMISSION MEASUREMENT Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBuV/m) = 20 log Emission level (uV/m). 3. As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. Report No.: RF930507H07S-015Report Format Version 2.0.4 Reference No.: 950417H03 2.2TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO.SERIAL NO. CALIBRATED UNTIL ADVANTEST Spectrum Analyzer R3271A85060311 July 07, 2006 HP Pre_Amplifier8449B3008A01922Oct. 02, 2006 ROHDE & SCHWARZ Test Receiver ESCS30100287Dec. 08, 2006 CHASE Broadband Antenna VULB9168138 Dec. 21, 2006 Schwarzbeck Horn_Antenna BBHA9120D124 Dec. 11, 2006 Schwarzbeck Horn_AntennaBBHA 9170BBHA9170153Jan. 05, 2007 SCHWARZBECK Biconical Antenna VHBA9123459 Jun. 26, 2006 SCHWARZBECK Periodic Antenna UPA61081148 Jun. 26, 2006 RF Switches (ARNITSU)CS-2011565157NA RF CABLE (Chaintek) 1GHz-20GHzSF10222054-2Nov. 16. 2006 RF Cable(RICHTEC) 9913-30M STCCAB-30M- 1GHz-021 Jul. 16, 2006 Software ADT_Radiated_V 5.14 NANA CHANCE MOST Antenna Tower AT-1000203NA CHANCE MOST Turn TableTT-1000203NA Note: 1. The calibration interval of the above test instruments is 12 months (36 months for Periodic Antenna)and the calibrations are traceable to NML/ROC and NIST/USA. 2. The horn antenna and HP preamplifier (model: 8449B) are used only for the measurement of emission frequency above 1GHz if tested. 3. The test was performed in ADT Open Site No. C. 4. The FCC Site Registration No. is 656396. 5. The VCCI Site Registration No. is R-1626. 6. The CANADA Site Registration No. is IC 4824-3. 7. The following table is for the measurement uncertainty, which is calculated as per the document CISPR 16-4. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. MeasurementValue Radiated emissions (30MHz-1GHz) 2.98 dB Radiated emissions (1GHz ~18GHz)2.21 dB Radiated emissions (18GHz ~20GHz)1.88 dB Report No.: RF930507H07S-016Report Format Version 2.0.4 Reference No.: 950417H03 2.3TEST PROCEDURES a. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 10 meter open area test site. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which …

Text truncated - open the document above for the full version.

Report No.: RF930507H07S146Report Format Version 2.0.4 Reference No.: 950417H03 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF930507H07S147Report Format Version 2.0.4 Reference No.: 950417H03 RADIATED EMISSION TEST Antenna: ANT-1120-OUT (2.4GHz) + ANT-5360-OUT (5GHz) Report No.: RF930507H07S148Report Format Version 2.0.4 Reference No.: 950417H03 RADIATED EMISSION TEST Antenna: ANT-1360-OUT (2.4GHz) + ANT-5120-OUT (5GHz) Report No.: RF930507H07S149Report Format Version 2.0.4 Reference No.: 950417H03 RADIATED EMISSION TEST Antenna: ANT-1120-OUT (2.4GHz) + ANT-5PNL-OUT (5GHz)
