QZE330AT-330 Asset Tag

Part Number: 730-9502-0308 Rev A © 2010 All rights reserved. AT-330 Asset Tag Introduction The Newbury AT-330 asset tag, is a battery powered, 802.11b/g, Wi-Fi compatible, sensor platform that is capable of being networked in a WLAN environment. The AT-330 can receive and send Wi-Fi compatible messages at user defined intervals. The Wi-Fi sensor platform serves as a means to become an active RFID tag where the RFID platform can send messages with unique ID’s and/or data encoded from several sensors which are part of the tag. The AT-330 seamlessly becomes part of the users wireless network infrastructure in that the tag becomes just another user on the WLAN network. The AT-330 and its inherent sensors can be configured to the application best suited by the user. Product Specification The following table summarizes the allowed performance characteristics of the Newbury AT-330 asset tag: Parameter Description Frequency Band 2.412 to 2.462 GHz Connectivity Protocol DSSS 802.11 b/g Modulation CCK, BPSK, QPSK, OFDM Transmit Power 18 dBm Input Power 3.6 V Lithium Battery Message Length Variable Transmission Interval Variable Duty Cycle 25% Maximum Hardware Description Integrated WiFi Module: • Low power 802.11 b/g system module with support for WEP/WPA/WPA2 encryption Integrated Sensors: • Onboard Temperature Sensor • Motion Detection • Magnetic Detachment Detection Input/Output: • 2 LEDs • 2 Push-button switches Power: • 1000mAh Thionyl Chloride Lithium Battery • 6 month to 2 year battery life (depending upon configuration) Operating Conditions AT-330 Operating conditions specifications: Temperature: • Operating temperatures: -20C to +70C • Storage temperatures: -40C to +70C Humidity: • Operating: 10% to 95% non-condensing Power: • Input voltage range: 2.7v to 3.7v • Maximum continuous current: 10mA • Rated 1 Sec Pulse: 20mA Additional Documentation For more details on how to use the AT-330 Asset Tag with Newbury Active Asset, refer to the Newbury Active Asset User’s Guide. Notice To User: Newbury AT-330 asset tag is to be configured by Professional Installers only who have received training on the proper configuration that can and will affect the tags operation and performance. Contacting Newbury Networks For most current issue of this document, complete regulatory guide and more information on Newbury's products and services, please contact your local Newbury certified channel partner or a Newbury Networks representative at 617-867-7007 or via email at [email protected]. Battery Installation The AT-330 battery included with the AT-330 asset tag must be installed prior to tag operation. Remove the rear battery door using the raised thumb grips on the battery door, and place the included battery (label facing up) inside the battery compartment. Close the battery door, by pressing down and forward with the thumb grips. See the illustration below: Product Safety CSA 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. IEC 60950-1: 2005 (2nd Edition) EN 60950-1: 2006 (2nd Edition)+ A11 (2009) Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Operating this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with IC RF exposure compliance requirements, please follow operation instruction as documented in this manual. 以下警語適用台灣地區 以下警語適用台灣地區以下警語適用台灣地區 以下警語適用台灣地區 ( For Taiwan) ( For Taiwan) ( For Taiwan) ( For Taiwan) 經型式認證合格之低功率射頻電機，非經許可，公司、商 號或使用者均不得擅自變更頻率、加大功…

Text truncated - open the document above for the full version.

TWORK5 :, BEL DEN I H:·· il) Federal Communications Commission Authorization and Evaluation Division Declaration Letter To whom it may concern: We, the undersigned, attest that this device does not support "Ad Hoc on non-US frequencies". FCC 10: QZE330 Model name: AT-330 Sincerely yours, amel Title: James Reevesl VP of Product Operations Trapeze Networks Tel: (925) 474-2200 Fax: (925) 251-0642 E-mail: [email protected] 2010/4/28 I

NETWORKS A BELDEN BRAND Federal Comrnwlications COmnllssion Authorization and Evaluation Division Confidentiality Request FCC ID: QZE330 Pursuant to Sections 0.457 and 0.459 of the COmnllssion's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The l-\pplicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanymg documentation will not be made before the date of the Grant for this application. Name! Title: James Reeves / Vice President of Product Operations Trapeze Networks, Inc. Tel: 925-474-2254 Fax: 925-251-0642 E-mail: [email protected] 2010/4/21

NETWORKS A BELDEN BRAND Power of Attorney To whom it may concern: We, the undersigned, hereby authonze BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approvals and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch ofTaiwan on our behalf shall have the same effects as acts of our own. FCC ID: QZE330 If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! r~--~------------------------------ ame! Title: James Reeves / Vice President of Product Operations , Trapeze Networks, Inc. Tel: 925-474-2254 Fax: 925-251-0642 E-mail: [email protected] 2010/4/21

------------------------------------------ TR1{PEZE NETWORKS Trapeze Networks 5753 W. Las Positas Blvd Pleasanton CA 94588 To Whom It May Concern: Trapeze Networks declares that the required battery shipped with the product listed below is not installed. These products reqUire the customer to install the battery to be operational. FCC 10: QZE330 Model: AT-330 Please contact us for any questions you may have. Note: The registered grantee contact James Reeves is not available. Subhajit Bagchi is signing for grantee contact. He can be reached at email: sUbhajit. [email protected]. Sincerely yours. Subhajit Bagchi VP of Engineering and Customer Services Tel: 925-474-2200 Date: July.13, 2010

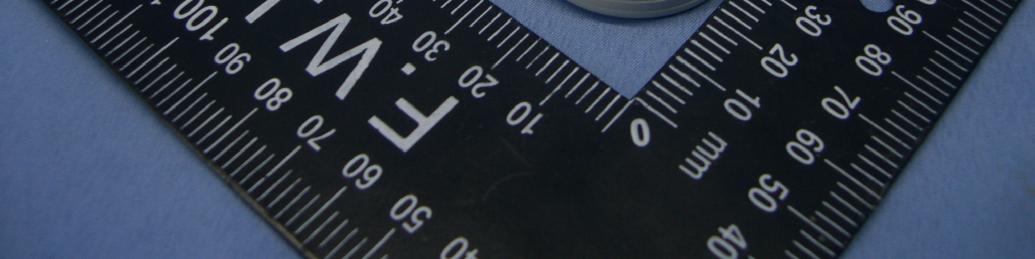

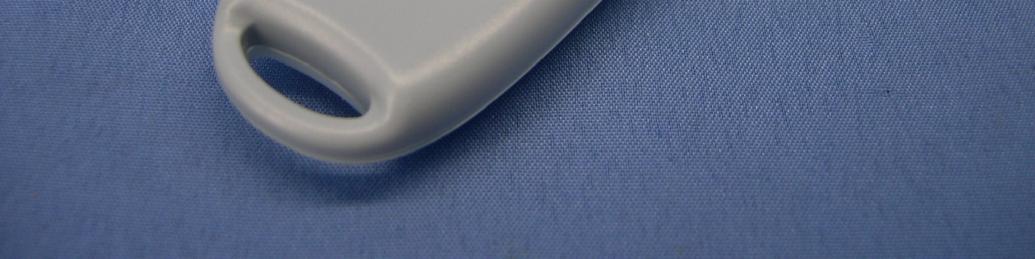

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: QZE330 IC: 4558A-330

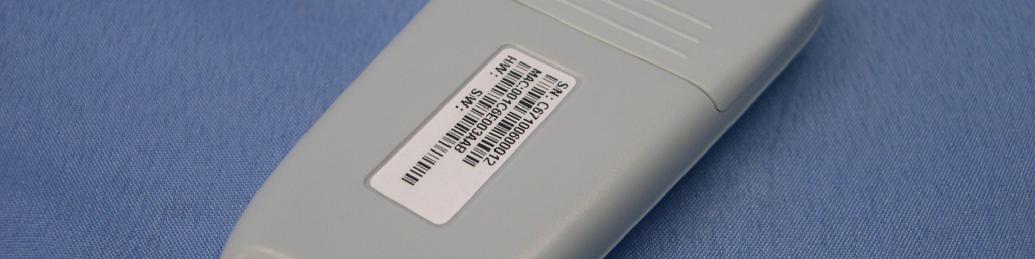

FCC ID： QZE330 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3 Page 4 Page 5

FCC ID: QZE330 Report No.: RF990312H02 Operational Description This device is a AT-330 Asset Tag, which operates in 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 2.7Vdc-3.7Vdc from the battery. The antenna is SMD antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990312H02 1 Report Format Version 3.0.1 SAR TEST REPORT REPORT NO.: SA990312H02 MODEL NO.: AT-330 RECEIVED: Mar. 12, 2010 TESTED: May 20, 2010 ISSUED: May 25, 2010 APPLICANT: Trapeze Networks, Inc. ADDRESS: 5753 W. Las Positas Blvd. Pleasanton CA 94588 USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 25 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA990312H02 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION .............................................................................................................. 3 2. GENERAL INFORMATION .............................................................................................. 4 2.1 GENERAL DESCRIPTION OF EUT................................................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................. 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ........................................................ 6 2.4 TEST EQUIPMENT .......................................................................................................... 9 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................... 10 3. DESCRIPTION OF SUPPORT UNITS........................................................................... 13 4. RECIPES FOR TISSUE SIMULATING LIQUIDS ........................................................... 14 5. SYSTEM VALIDATION................................................................................................... 17 5.1 TEST PROCEDURE ...................................................................................................... 17 5.2 VALIDATION RESULTS ................................................................................................. 18 5.3 SYSTEM VALIDATION UNCERTAINTIES ..................................................................... 19 6. TEST RESULTS ............................................................................................................. 20 6.1 TEST PROCEDURES .................................................................................................... 20 6.2 CONDUCTED POWER .................................................................................................. 22 6.3 DESCRIPTION OF TEST CONDITION.......................................................................... 22 6.4 MEASURED SAR RESULT............................................................................................ 22 6.5 SAR LIMITS ................................................................................................................... 23 6.6 ENHANCED ENERGY COUPLING AT INCREASED SEPARATION DISTANCES ....... 24 7. INFORMATION ON THE TESTING LABORATORIES ................................................... 25 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA990312H02 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: AT-330 Asset Tag MODEL: AT-330 BRAND: Newbury Networks APPLICANT: Trapeze Networks, Inc. TESTED: May 20, 2010 TEST SAMPLE: MASS-PRODUCTION STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: AT-330) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :May 25, 2010 Polly Chien / Specialist TECHNICAL ACCEPTANCE : , DATE :May 25, 2010 Responsible for RF Mason Chang / Engineer APPROVED BY : , DATE :May 25, 2010 Gary Chang / Assistant Manager Report No.: SA990312H02 4 Report Format Version 3.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT EUT AT-330 Asset Tag MODEL NO. AT-330 FCC ID QZE330 POWER SUPPLY DC 2.7-3.7V (battery) MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11 / 5.5 / 2 / 1Mbps 802.11g: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6Mbps OPERATING FREQUENCY 2412 ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUM SAR (1g) 0.311W/kg ANTENNA TYPE Please see note 2 DATA CABLE NA I/O PORTS NA ACCESSORY DEVICES NA NOTE: 1. The EUT must be supplied with a battery as following table: Brand Model No. Spec. XENO OTO9-1109 DC 3.6V 2. There is one antenna provided to this EUT, please refer to the following table: Antenna Type Connector Antenna Gain (dBi) SMD NA 2.1 3. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. Report No.: SA990312H02 5 Report Format Version 3.0.1 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 IEEE 1528-2003 All test items have been performed and recorded as per the above standards. Report No.: SA990312H02 6 Report Format Version 3.0.1 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY5 (software …
