R2GLZ380Bluetooth Headphone

User Maunal 1、Turn on or off To turn on, press and hold the power button for about 3 seconds. To turn off, press and hold the power button for about 4 seconds 2、Pair and connect the headset Press and hold power button for about 6 seconds until red, blue LED starts to blink quickly Activeate the bluetooth feature on your device, and set it to search for the headset Select”LZ380”. 3、Music Playing Press power button for music playing/pause 4、Voice phonecall Press power button to pick up the phonecall, press power button again to end the phonecall. Press power button twice to call the last number in your phonecall records. 5、Gesture control Sliding and holding your finger vertically on the headphone panel adjusts the volume up or down. Sliding your finger horizontally on the headset panel plays the next/previous music. 6、Low power warnning Once the battery power less than 3.3 ± 0.1V, you will hear “du du du”warning, and each 3 mins warning again without charging. 7、Charging 8、DC 5V, 230±20mA, 100±10mins full charge, during the charging, Red LED light always. FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may c ause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

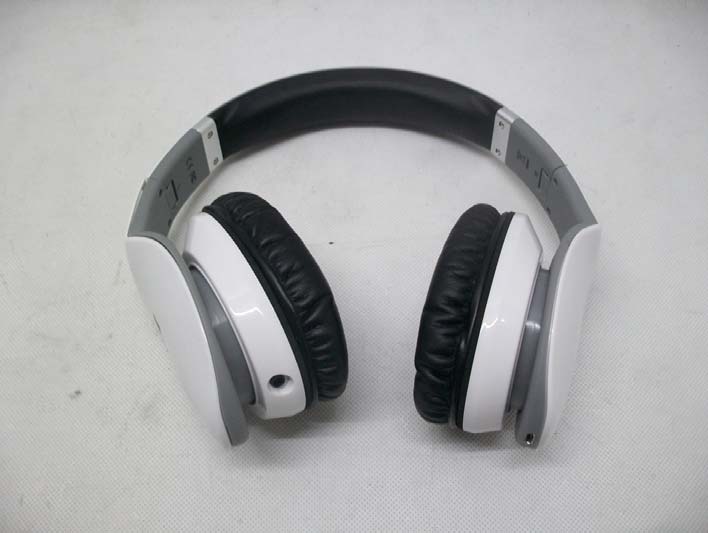

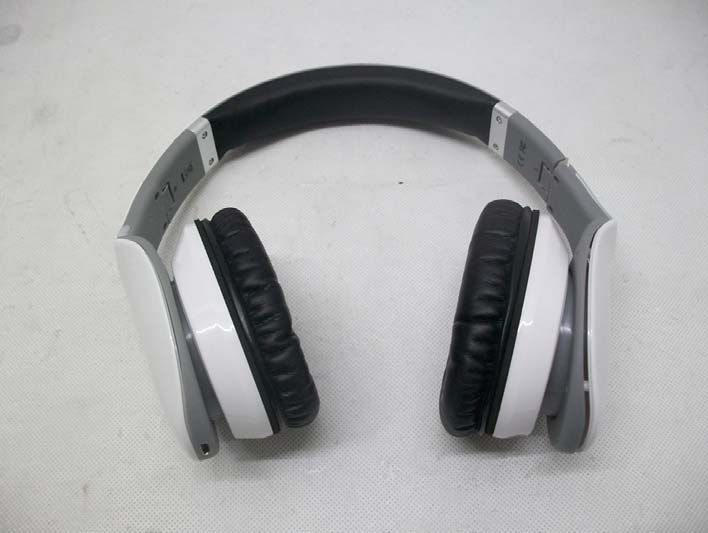

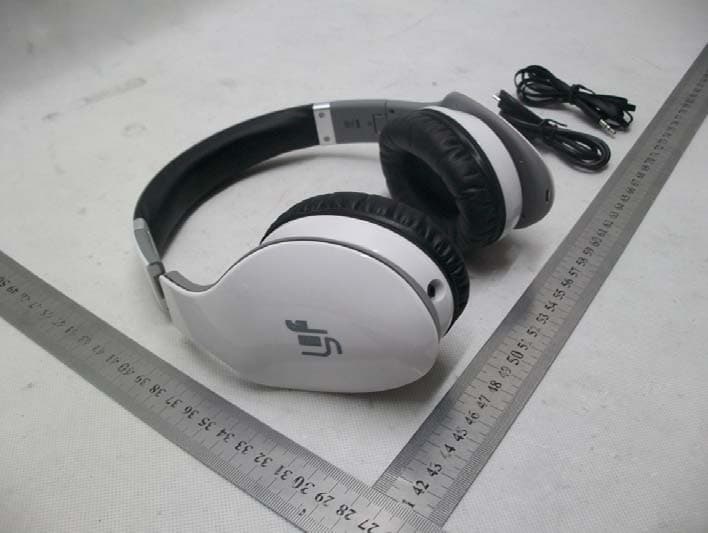

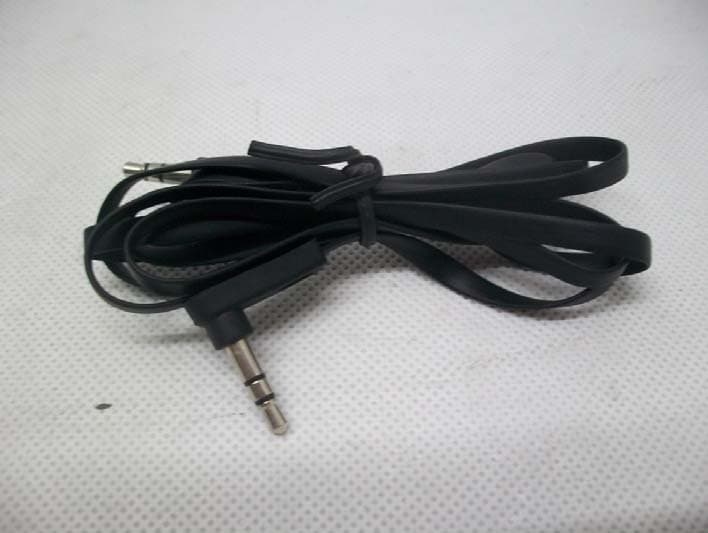

Page 1 of 5 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Page 2 of 5 UP VIEW OF SAMPLE DOWN VIEW OF SAMPLE Page 3 of 5 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Page 4 of 5 PHOTO OF CABLE PHOTO OF USB CABLE Page 5 of 5 PHOTO OF THE ENTIRE SAMPLE

FCC ID: R2GLZ380

INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4 INTERNAL PHOTO OF SAMPLE - 5 INTERNAL PHOTO OF SAMPLE - 6 INTERNAL PHOTO OF SAMPLE - 7 INTERNAL PHOTO OF SAMPLE - 8 INTERNAL PHOTO OF SAMPLE - 9 INTERNAL PHOTO OF SAMPLE - 10 INTERNAL PHOTO OF SAMPLE - 11 INTERNAL PHOTO OF SAMPLE - 12 INTERNAL PHOTO OF SAMPLE - 13

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant: Lezun Limited Address: 3F, Block 1C Huiye Technology Park, Guanguang Road, Guangming District, Shenzhen, China Product Name: High Definition Bluetooth Headphone Model Name: LZ380 Brand Name: N/A FCC ID: R2GLZ380 Report No.: MTE/DAL/D12111657 Date of Issue: Nov. 19, 2012 Issued by : Most Technology Service Co., Ltd. Address : No.5, Langshan 2nd Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 47 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: R2GLZ380 Report No.: MTE/DAL/D12111657 Page 2 of 47 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.......................................................................................... 4 2. GENERAL INFORMATION....................................................................................................... 5 2.1 Product Information ................................................................................................................ 5 2.2 Objective ................................................................................................................................ 6 2.3 Test Standards and Results .................................................................................................... 6 2.4 Environmental Conditions....................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY ......................................................................................... 6 3. TEST FACILITY........................................................................................................................ 7 3.1TEST FACILITY....................................................................................................................... 7 3.2 Test Conditions ....................................................................................................................... 7 3.3 Channel List ........................................................................................................................... 8 3.4 Description of Test Modes ...................................................................................................... 8 3.5 Table of Parameters of Text Software Setting......................................................................... 9 3.6 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................. 10 4. SETUP OF EQUIPMENT UNDER TEST.................................................................................11 4.1 SUPPORT EQUIPMENT .......................................................................................................11 4.2 TEST EQUIPMENT LIST...................................................................................................... 12 5. 47 CFR Part 15C 15.249 Requirements................................................................................. 13 5.1 Spurious Emission Test ........................................................................................................ 13 5.1.1 Requirement...................................................................................................................... 13 5.1.2 Test Description ................................................................................................................. 14 5.1.3 Test Description ................................................................................................................. 15 5.1.5 Test Result .....................................................................................................................16 5.2 Band Edge............................................................................................................................ 28 5.2.1 Requirement...................................................................................................................... 28 5.2.2 Test Description ................................................................................................................. 28 5.2.3Test Result.......................................................................................................................... 28 5.3 LINE CONDUCTED EMISSION TEST................................................................................. 36 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST........................................................... 36 5.3.2. BLOCK DIAGRAM OF TEST SETUP............................................................................... 36 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ...................... 37 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .................................... 37 5.3.5. Test result ......................................................................................................................... 37 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .............................................. 38 FCC ID: R2GLZ380 Report No.: MTE/DAL/D12111657 Page 3 of 47 5.4 20 dB Bandwidth .................................................................................................................. 40 5.4.1 Definition ........................................................................................................................... 40 5.4.2 Block Diagram Of Test Setup ............................................................................................ 40 5.4.3 Test Result............................................................................................…

Text truncated - open the document above for the full version.

CE TEST SETUP RE TEST SETUP SPURIOUS EMISSION TEST SETUP
