R2M-BHT001Bluetooth Active Noise Cancelling Headphones

AVLINK INDUSTRIAL CO., LTD

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: May 03, 2015
Application Purpose: Original Equipment
Date of Application: May 03, 2015
Equipment Note: Bluetooth Active Noise Cancelling Headphones
Frequency Range: 2402.00000000 - 2480.00000000
Company: AVLINK INDUSTRIAL CO., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

About BNC40 The user manual explains the features and functions of your BNC40 to help ensure an optimal user experience. Product Specifications: Bluetooth chipset: CSR8645 w/apt-X Noise cancellation rate: 85% Speakers: 40mm Neodymium Audio impedance: 32Ohm Charging time: about 3.0 hours Charging: Micro USB BT operating range: ≥10 m Connection: 3.5mm jack Battery time (Bluetooth only): 15 hours Battery time (Noise cancelling only): 30 hours Battery time (Bluetooth + noise cancelling): 12 hours Battery Type: Li- Polymer Package Contents: 1. Headphone 2. Detachable Aux Cable 3. 1/4 inch Stereo-plug Adapter 4. Dual-plug Adapter (For Airline) 5. USB Charging Cable 6. Small Mesh Bag 7. Hard Shell Case 8. User Manual 9. Gift box Headphone Overview: Left Side 2 1 – USB Socket (For Charging) 2– Volume – / Previous Song (Only for Bluetooth) 3– Multifunction Button (MFB) / Switch ON/OFF, Pairing , Make/Answer/End/Reject Call 4– Volume + / Next song (Only for Bluetooth) 5– Microphone 6– 3.5mm Audio Jack 7– Bluetooth LED Indicator Right Side 3 8– Volume + / – Knob (For Bluetooth, Noise Cancelling or Wired) 9– Noise cancelling ON/OFF Button 10– Noise Cancelling LED Indicator Adjusting the Headband: • In order to achieve maximum comfort and noise cancellation, the headband should be adjusted to properly fit your head with the ear cups sitting comfortably over your ears. Charging the Headphones: Prior to use, charge your BNC40 headphone unit by connecting the included charging cable into a USB power outlet (such as USB chargers or computer USB ports) and plug the other end into the headphone’s micro USB charging port. The LED indicator will li ght up red showing that the unit is being charged. When charging is complete, the red LED indicator will turn off. Active Noise Cancelling Mode: • Adjust the volume on the headphones. • To power ON the noise cancelling function, set the ON/OFF switch to ON. The Noise Cancelling LED indicator will light up in blue. Note: After you turn ON the power, you might hear a slight hissing noise. This is a normal function and will cease after a few seconds. • When the batteries are running low, the Noise Cancelling LED indicator will become dim. • Once the battery is fully drained, the active noise canc elling feature will turn off but the audio signal from the music player will continue to transmit. • In quiet environments where noise cancellation is not required, the BNC40 can also be used like conventional headphones, without the use of batteries. • When not in use, switch OFF the POWER to extend battery life. Bluetooth Function Main Functions Turning ON/OFF: 1. Power ON your headphones: Press and hold the Multifunction Button (MFB) for about 4 seconds until the Bluetooth LED indicator light starts flashing green/red rapidly with an ascending sound. 4 Call-related Functions: Music-related Functions: * May not be available for some devices. See your user manual for specific functionality/features available. 6 Voice Dialing from your Headphone: If your mobile phone is equipped with a voice dialing function, press and hold the MFB button and say the voice tag according to the phone’s command functions. You must record the voice tag (the person’s name) into your mobile phone prior to using the voice dialing function on the headphone. Please refer to your mobile phone’s user guide. Note: • You are able to use both Noise Ca ncelling & Bluetooth Function simultaneously. • You may notice 2 types of volume controls on the BNC40 headphones. The BNC40 headphone is a multifunction headphone unit. It can be used as a regular wired, active noise cancelling, or BT headphone. The right side volume wheel (Volume A) works for all functions - the left side volume buttons (Volume B) only work for BT headphone functionality. (See Headphone Overview) • AdjustingtheVolumeB Whenyouareonthephoneorlistentothemusic,pushthevolumebutton (8)orlongpressthebutton(2)(4)r epeatedlyuntilyoureachthedesired volume level. Troubleshooting: If you are unable to connect your headphone and your mobile phone, please try the following: • Ensure your headphone is turned OFF and properly charged. • Ensure the headphone is properly paired with your mobile phone. • Ensure the headphone is within a 10 meter range of your paired Bluetooth device and that there are no obstructions, such as walls or other electronic devices in between. • Ensure your mobile phone’s Bluetooth feature is activated. Please refer to your mobile phone user guide fo r specific instructions. 7 ： • If your mobile phone is experiencing technical difficulties, you may try resetting it by removing the battery for about 20 seconds and then putting it back securely. • To reset certain functions of the BNC40 headphones you can simply plug- in to recharge then disconnect. Safety instructions: • Always turn down the volume control before plugging the headphones into a sound source. • Do not use these headphones where vehicular traffic is present, or in any other activity where a failure to hear surrounding sounds could be dangerous. • Maint enance and service operations are only to be carried out by authorized dealers. Damage caused by manual modifications of the product is not subject to warranty. • If this product is used for other purposes than originally intended, the product may suffer damage and will void the warranty. • Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using these headphones, especially for extended periods. • Keep batteries out of reach of children. 8 Answer a callPress MFB once to answer End a call Press MFB once to end Ignore a call Hold MFB for 3 seconds Lastnumberre-dialingfrom headphone PressMFBtwiceinstandby status Swap calls Press MFB for 3 seconds Play/Pause MusicPress down the MFB Butto n once to start playing music and press it again to pause your music Play/Pause MusicPress down the Music/Volume Control button towards the Forward icon to play the next song. To play the pr…

Text truncated - open the document above for the full version.

Cover Letter(s)

AVLink Industrial Co., Ltd. 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Letter of Authorization Company: AVLink Industrial Co., Ltd. Address: 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Product Name: Bluetooth Active Noise Cancelling Headphone Model Number: BNC40, BNC50, BNC80, BNC90, BNC-XX FCC Identifier: R2M-BTH001 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Charles Lau Date: April 16, 2015 Title: Sales Manager Signature of applicant:

Cover Letter(s)

AVLink Industrial Co., Ltd. 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China 5/4/2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: < AVLink Industrial Co., Ltd.> FCC ID: R2M-BTH001 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 < AVLink Industrial Co., Ltd.> hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Block Diagram Operational Description Operational Description Operational Description Schematics Schematics Schematics Parts / BOM Parts / BOM Parts / BOM Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which < AVLink Industrial Co., Ltd.> considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, < AVLink Industrial Co., Ltd.> considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Name: Charles Lau Company: AVLink Industrial Co., Ltd. Title: Sales manager Date: April 16, 2015

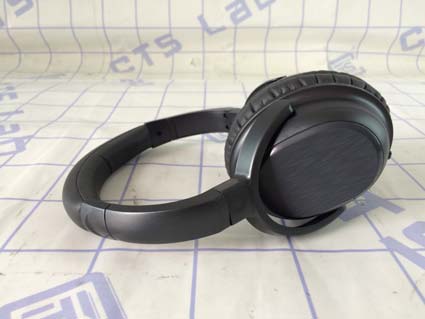

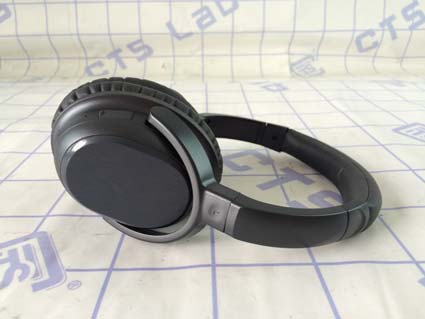

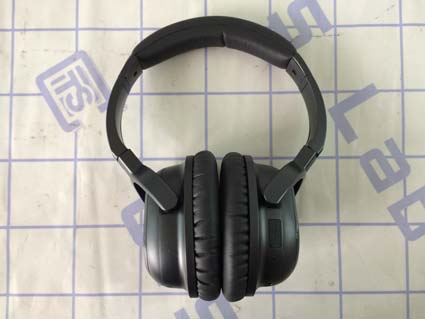

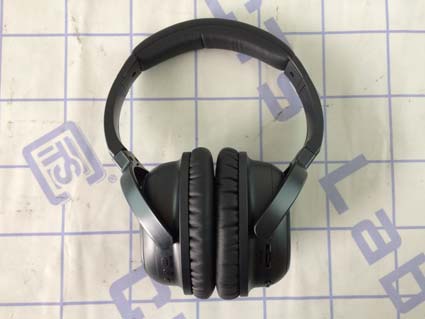

External Photos

ID Label/Location Info

Internal Photos

FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 1 of 5 1. Internal Photos of the EUT Internal view PCB 1 side 1 view FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 2 of 5 PCB 1 side 2 view PCB 2 side 1 view FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 3 of 5 PCB 2 side 2 view Module side 1 view FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 4 of 5 Module side 2 view Oscillator view FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 5 of 5 Battery view

Test Report

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID TEST REPORT TEST REPORT NUMBER : CGZ3150416-00396-EF CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 1 of 27 TEST REPORT For FCC ID 47 CFR PART 15 OCT, 2014 Report Reference No. .................... CGZ3150416-00396-EF Date of issue..................................... 20 April 2015 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................ AVLink Industrial Co., Ltd. Address............................................. 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Test specification ........................... Standard ........................................... 47 CFR PART 15 OCT, 2014 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF .......................................Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description.....................: Bluetooth Active Noise Cancelling Headphone Trade Mark....................................... AVLink Manufacturer.................................... AVLink Industrial Co., Ltd. Model/Type reference...................... BNC40 Ratings............................................. DC3.7V power supply by Battery Input : 5V Charging by USB Port Operating Frequency ........................ 2402.0MHz ~2480.0MHz Result ............................................... Positive Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 2 of 27 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3150416-00396-EF 20 April 2015 Date of issue Type / Model............................ BNC40 EUT.......................................... Bluetooth Active Noise Cancelling Headphone Applicant........................... AVLink Industrial Co., Ltd. Address.................................... 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Telephone................................ +86-755-29305259 Fax........................................... +86-755-29433498 Contact..................................... Charles Lau Manufacturer...................... AVLink Industrial Co., Ltd. Address.................................... 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Telephone................................ +86-755-29305259 Fax........................................... +86-755-29433498 Contact..................................... Charles Lau Factory............................... AVLink Industrial Co., Ltd. Address.................................... 7/F, A1 Bldg, Shuichanjingwan Industrial 1st Area, Nanchang, Gushu, Xixiang, Bao'an, Shenzhen, 518126, P.R.China Telephone................................ +86-755-29305259 Fax........................................... +86-755-29433498 Contact..................................... Charles Lau Test Result according to the standards on page 1:PASSED The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:R2M-BTH001 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3150416-00396-EF Page 3 of 27 TABLE OF CONTENTS Description Page 1.TEST STANDARDS........................................................................................................................................5 2.SUMMARY......................................................................................................................................................5 2.1 GENERAL REMARKS ...........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
