User Manual Coolpad 8860U/Coolpad 8861U 1. Your mobile ···························································· 1 1.1 Removing the back cover ··················································· 1 1.2 Charging the battery ·························································· 2 1.3 SIM card and microSD card ··············································· 3 1.4 Powering on/off and Airplane mode ·································· 3 1.5 Locking/unlocking the screen ··········································· 4 1.6 Home screen ····································································· 4 1.7 Using the touchscreen ······················································· 5 1.8 Notification and status icons ············································· 5 1.9 Notification panel ····························································· 6 1.10 Managing applications···················································· 7 1.11 Managing Home screen ··················································· 8 1.12 Managing folders ···························································· 8 2. Phone calls ······························································ 9 2.1 Making a call ···································································· 9 2.2 Answering or rejecting a call ·············································· 10 2.3 During a call······································································ 10 2.4 Conference calls ······························································· 11 2.5 Answering another incoming call ······································· 11 2.6 Supplementary services ···················································· 11 2.7 Voicemail ·········································································· 12 3. People ······································································ 13 3.1 Adding a contact ······························································· 13 3.2 Quick Contact ··································································· 13 3.3 Managing contacts ··························································· 14 3.4 Managing groups ······························································ 15 3.5 Importing contacts from SIM card or storage ······················ 16 4. Text input methods ················································· 16 4.1 Using the text input panel ·················································· 16 4.2 Switching input methods ··················································· 17 4.3 Editing text········································································ 17 4.4 Horizontal keyboard ·························································· 18 4.5 Input method settings ······················································· 18 5. Messaging ······························································· 19 5.1 Creating a message··························································· 19 5.2 Replying to a message······················································· 19 5.3 Searching messages ························································· 20 5.4 Deleting a message ··························································· 20 5.5 Customising message settings ·········································· 20 6. Email········································································ 20 6.1 Adding an email account ··················································· 20 6.2 Switching accounts ··························································· 21 6.3 Combined account view····················································· 21 6.4 Viewing emails ·································································· 21 6.5 Creating and sending emails ············································· 21 6.6 Replying to and forwarding emails ····································· 22 6.7 Saving email attachments ················································· 22 6.8 Deleting an email account ················································· 22 6.9 Customising email account settings ·································· 23 7. Data service ····························································· 23 7.1 Turning on the data service ················································ 23 7.2 Wi-Fi ················································································· 24 7.3 Sharing your phone's data connection ······························· 25 7.4 Bluetooth ·········································································· 27 8. Browser ··································································· 28 8.1 Browsing web pages ·························································· 28 8.2 Managing bookmarks ························································ 29 8.3 Setting a home page ························································· 29 8.4 Customising browser settings ············································ 30 9. Camera and video camera ······································ 30 9.1 Taking a photo ·································································· 30 9.2 Recording a video ····························································· 31 9.3 Panoramic mode ······························································· 32 10. Gallery ··································································· 32 10.1 Viewing pictures and videos············································· 33 10.2 Editing a picture ······························································ 33 11. Google Play Music ··············································· 34 11.1 Adding music to a playlist ················································ 34 11.2 Playing a playlist ····························································· 34 11.3 Playing a music file ························································· 35 12. Accounts and syncing ··········································· 36 12.1 Adding an account ···············…

Text truncated - open the document above for the full version.

Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Coolpad Information Harbor, 2nd Mengxi Road, Northern Part of Science&Technology Park, Nanshan district, Shenzhen, P.R.China Tel: 86-755-83301199 ; Fax: 86-755-83309004 Date: September 17, 2013 Statement We, Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD, states that our device, FCC ID: R38YL8860UO. The label will put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Gangsheng Yang

Rev. 1/1/03 Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Date: September 17, 2013 Federal Communications Commission Authorization and Evaluation Division Dear Sir or Madam, We, Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Coolpad Information Harbor, 2nd Mengxi Road, Northern Part of Science&Technology Park, Nanshan district, Shenzhen, P.R.China hereby to do the Justification on FCC application: Mobile Phone, Coolpad 8860U, FCC ID: R38YL8860UO as following: The Coolpad 8860U is a Mobile Phone and supports Tri-band GSM/GPRS/EDGE 900/1800/1900, dual-UMTS(Band 1/8) ,LTE Band 3/7/20. And this mobile phone implements such functions as RF signal receiving/transmitting, LTE/UMTS/GSM protocol processing, voice, video, MMS service, GPS, Bluetooth and WIFI etc. There are two different types of Coolpad 8860U, One is with NFC function, and its FCC ID is “R38YL8860U”, the other is in this application without NFC function, and its FCC ID is” R38YL8860UO”. All the circuit and PCB layout were identical, so it doesn’t affect all the other RF bands performance. So in this FCC application for Coolpad 8860U (FCC ID: R38YL8860UO): Test data for FCC Part 15B (JBP part) refer to report” FC340403-01”and we choose the worst case for radiation test, others data were refer to Sporton Report Number” FC340403” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this report according to Part 15B is valid and applicable and they are representative of the compliance of Coolpad 8860U(without NFC function). Test data for Bluetooth 3.0+EDR (DSS part) refer to report” FR340403-01A” and only the worst case of Spurious Emission was verified for the sample, others data were refer to Sporton Report Number” FR340403A” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test data for Bluetooth 4.0 (DTS part) refer to report” FR340403-01B” and only the worst case of Spurious Emission was verified for the sample, others data were refer to Sporton Report Number” FR340403B” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test data for WLAN (DTS part) refer to report” FR340403-01C” and only the worst case of Spurious Emission was verified for the sample, others data were refer to Sporton Report Number” FR340403C” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this data according to Part 15C remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test data for WLAN (NII part) refer to report” FR340403-01D” and only the worst case of Spurious Emission was verified for the differences for the sample, others data were refer to Sporton Report Number” FR340403D” and DFS part were refer to Sporton Report Number” FZ340403” in FCC Rev. 1/1/03 application for Coolpad 8860U (FCC ID: R38YL8860U), and these data according to Part 15E remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test data for FCC Part 24(PCE part) refer to report” FG340403-01” and only the conducted power and the worst case of Radiated Spurious Emission were verified for the sample, others data were refer to Sporton Report Number” FG340403” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this data according to FCC Part 24E remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test data for FCC Part 27(PCE part) refer to report” FW340403-01” and only the conducted power, EIRP of 20MHz and Radiated Spurious Emission were verified for the sample, others data were refer to Sporton Report Number” FW340403” in FCC application for Coolpad 8860U (FCC ID: R38YL8860U), and this data according to FCC Part 27M remains valid and applicable and they are representative of the compliance of this edition Coolpad 8860U (FCC ID: R38YL8860UO) (without NFC function). Test report for SAR was submitted as a new one (FA340403-01) and complianced with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Sincerely, ________________________ Contact Person: Gangsheng Yang Company: Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD TEL: 86-755-83301199 FAX: 86-755-83309004 E-mail: [email protected]

Rev. 1/1/03 Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Coolpad Information Harbor, 2nd Mengxi Road, Northern Part of Science&Technology Park, Nanshan district, Shenzhen, P.R.China Tel: 86-755-83301199 ; Fax: 86-755-83309004 Date: September 17, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R38YL8860UO Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Gangsheng Yang

Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Coolpad Information Harbor, 2nd Mengxi Road, Northern Part of Science&Technology Park, Nanshan district, Shenzhen, P.R.China Tel: 86-755-83301199 ; Fax: 86-755-83309004 Date: September 17, 2013 Power of Attorney To whom it may concern, Please be notified that I, Gangsheng Yang, have designated Michael Lin in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Michael Lin in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: R38YL8860UO If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Gangsheng Yang Company: Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD TEL: 86-755-83301199 FAX: 86-755-83309004 E-mail: [email protected]

1/1 Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD Date: September 17, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : R38YL8860UO To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Contact Person: Gangsheng Yang Company: Yulong Computer Telecommunication Scientific (Shenzhen) Co. LTD TEL: 86-755-83301199 FAX: 86-755-83309004 E-mail: [email protected]

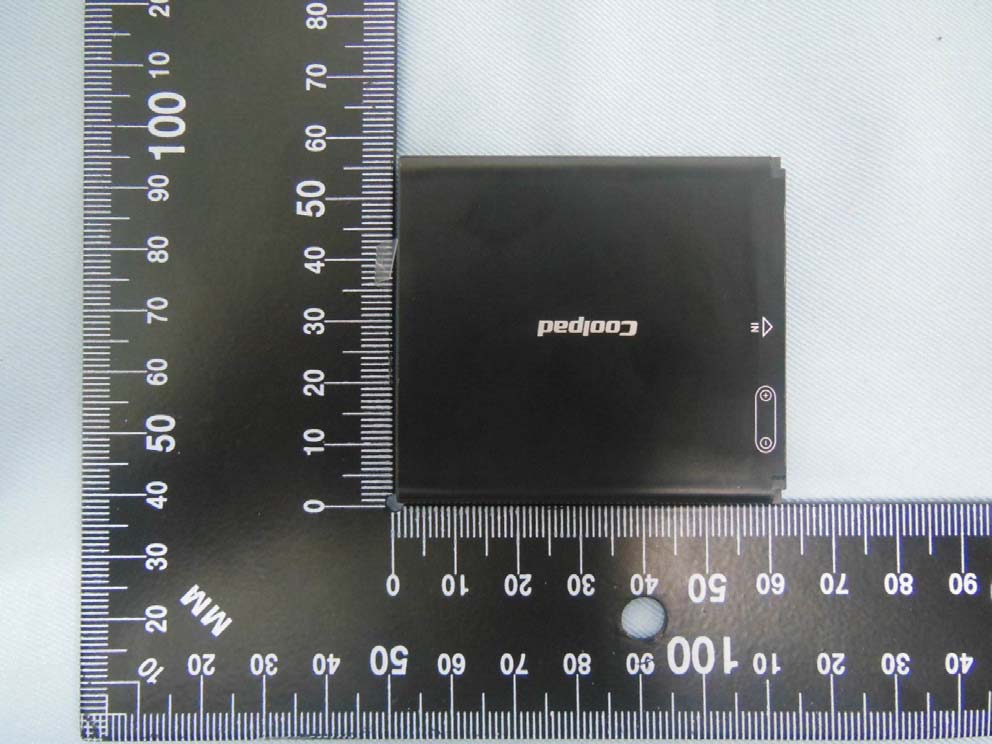

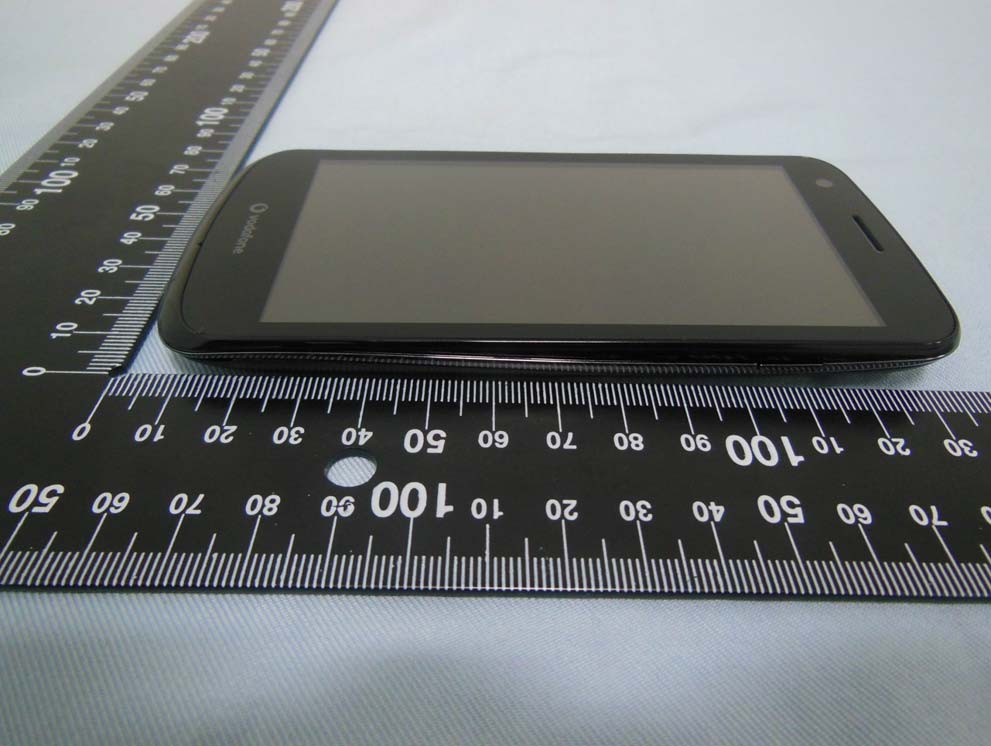

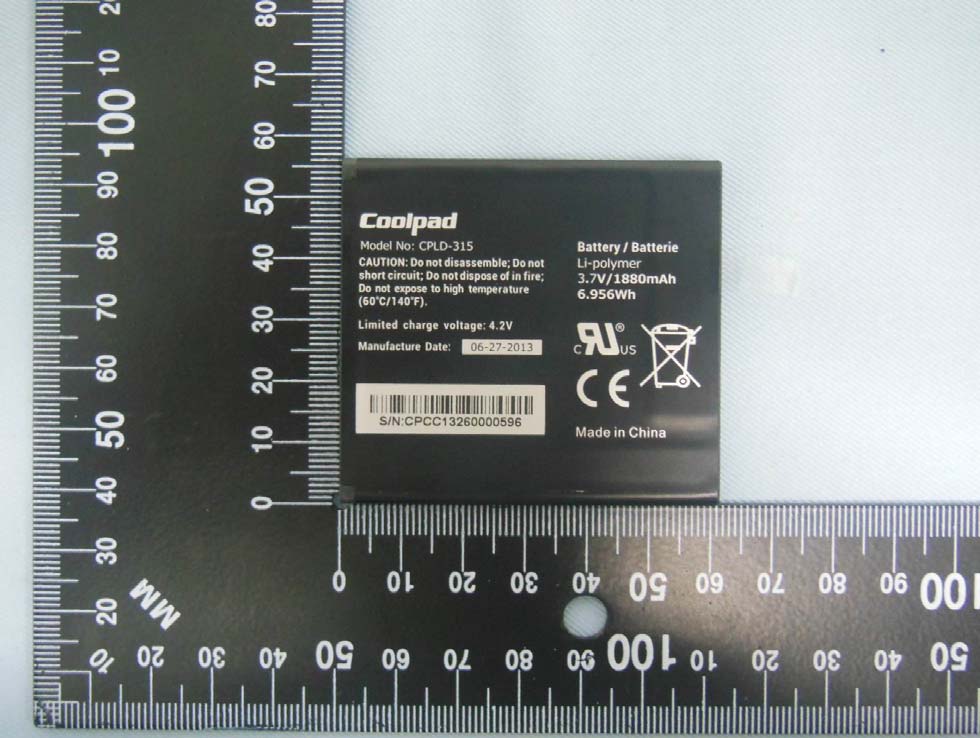

Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 1. External Photograph of EUT Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 List of Accessory: Specification of Accessory AC Adapter Manufacture name JiangSu Chenyang Electron Co., LTD Model Name CYSK05-050100A-CE Battery 1 Brand Name Coolpad Model Name CPLD-315 Battery 2 Brand Name Coolpad Model Name CPLD-315 USB Cable Signal Line Type 1.0 meter, shielded cable, without core Earphone Signal Line Type 1.2 meter, non-shielded cable Remark: 1. For accessories equipped with this EUT, please refer to the following photos. 2. For battery 1 and battery 2 are only different for suppliers. 2. Photograph of Accessory Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 AC Adapter Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Battery 1 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Battery 2 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01

Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 3. Internal Photograph of EUT GSM/WCDMA/LTE Antenna Bluetooth/WLAN Antenna GPS Antenna WCDMA/LTE Diversity Antenna Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 GSM/WCDMA/LTE Antenna <Tx / Rx> Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 Bluetooth & WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name: Coolpad 8860U Marketing Name: Vodafone Smart 4G SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 32 of 33 TEL : 86-755- 3320-2398 Report Issued Date : Sep. 17, 2013 FCC ID : R38YL8860UO Report Version : Rev. 01 WCDMA/LTE Diversity Antenna <Rx> Photographs of EUT Report No.: EP340403-01 Brand Name: Vodafone Smart 4G; Model Name:…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : B1 of B1 TEL : 86-755-8637-9589 Report Issued Date : Sep. 17, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : R38YL8860UO FCC SAR Test Report Report No. : FA340403-01 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.08.16 #22 GSM1900_DTM 5 (2 Tx slots)_Right Cheek_Ch661_Battery #1 DUT: 340403-01 Communication System: GPRS/EDGE10; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: HSL_1900_130816 Medium parameters used: f = 1880 MHz; σ = 1.402 mho/m; ε r = 41.184; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch661/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.455 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.334 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.515 mW/g SAR(1 g) = 0.340 mW/g; SAR(10 g) = 0.216 mW/g Maximum value of SAR (measured) = 0.425 W/kg 0 dB = 0.425 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.08.16 #23 GSM1900_DTM 5 (2 Tx slots)_Right Tilted_Ch661_Battery #1 DUT: 340403-01 Communication System: GPRS/EDGE10; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: HSL_1900_130816 Medium parameters used: f = 1880 MHz; σ = 1.402 mho/m; ε r = 41.184; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch661/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.174 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.036 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.212 mW/g SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.081 mW/g Maximum value of SAR (measured) = 0.165 W/kg 0 dB = 0.165 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.08.16 #24 GSM1900_DTM 5 (2 Tx slots)_Left Cheek_Ch661_Battery #1 DUT: 340403-01 Communication System: GPRS/EDGE10; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: HSL_1900_130816 Medium parameters used: f = 1880 MHz; σ = 1.402 mho/m; ε r = 41.184; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3819; ConvF(7.84, 7.84, 7.84); Calibrated: 26.11.2012; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1303; Calibrated: 22.11.2012 - Phantom: SAM2; Type: QD000P40CD; Serial: TP:1671 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch661/Area Scan (61x111x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.407 W/kg Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.986 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.460 mW/g SAR(1 g) = 0.305 mW/g; SAR(10 g) = 0.194 mW/g Maximum value of SAR (measured) = 0.385 W/kg 0 dB = 0.385 W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013.08.16 #25 GSM1900_DTM 5 (2 Tx slots)_Left Tilted_Ch661_Battery #1 DUT: 340403-01 Communication System: GPRS/EDGE10; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: HSL_1900_130816 Medium parameters used: f = 1880 MHz; σ = 1.402 mho/m; ε r = 41.184; ρ = 1000 kg/m 3 Ambient Temperature： 23.5 °C; Liquid Temperature：22.6 °C DASY…
