R3USCBT14Bluetooth headset

eposaudio.com/adapt560 eposaudio.com/adapt563 Headset ADAPT 560 | ADAPT 563 Audio connectionBluetooth, cable with remote for 3.5 mm jack socket Noise cancellationStandard ANC with 2 microphones Dimensions (W x H x D) 169 x 180 x 78 mm / 6.65 x 7.10 x 3.07 in Weight238 g / 8.39 oz Max. charging voltage via USB 5 V DC / max. current 300 mA Rechargeable battery (built-in)Lithium Polymer / 3.7 V DC / 600 mAh Charging timeapprox. 2 hours Operating time30 hours music playback via Bluetooth with ANC activated ConnectorUSB-C™ plug Temperature range 0 °C to +45 °C/+32 °F to +113 °F Relative humidity10 to 80%, non condensing Bluetooth® dongle BTD 800 USB Dimensions (W x H x D)22 x 16 x 6 mm / 0.87 x 0.63 x 0.24 in Weight2 g / 0.07 oz / 0.004 lbs Temperature rangeOperation: +10 °C to +40 °C / +50 °F to +104 °F Storage: -20 °C to +60 °C / -4 °F to +14 0 °F Relative humidityOperation: 20 to 85% Storage: 10 to 95% Bluetooth Headset: version 5.0 / class 2 Dongle: version 4.2 / class 1 Rangeup to 25 m (device dependent) Bluetooth frequency range 2402 – 2480 MHz Output power Headset: max. 9.6 dBm (EIRP) Dongle: max. 8 dBm (EIRP) Specifications | Technische Daten | Caractéristiques techniques | Specifiche | Especificaciones técnicas | Especificações | Technische specificaties | Προδιαγραφές | Specifikationer | Specifikationer | Tekniset tiedot | Specyfikacje | Технические характеристики | 技术参数 | 規格 | Özellikler | 仕様 | Spesifikasi | 기술 데이터 | Technické údaje | Műszaki leírás | Спецификации | Tehnilised andmed | Specifikācija | Specifikacijos | Specificații | Technické údaje | Specifikacije | Specifikacije Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser Communications A/S is under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. All other trademarks are the property of their respective owners. Bluetooth® headset ADAPT 560 | ADAPT 563 | Bluetooth® dongle BTD 800 USB Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark, www.eposaudio.com, Printed in China, 01/20, 770-00284/A 01 EN CANADA & USA Statements regarding FCC and Industry Canada This device complies with Part 15 of the FCC rules and Innovation, Science and Economic Development Canada’s licence-exempt RSSs. Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device of the FCC Rules, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications made to this equipment not expressly approved by the manufacturer may void FCC authorization to operate this equipment. RF Radiation Exposure Information Since the radiated output power of this device is far below the FCC radio frequency exposure limits, it is not subjected to routine RF exposure evaluation as per Section 2.1093 of the FCC rules. This device complies with the US and Industry Canada portable device RF exposure limits set forth for an uncontrolled environment and is safe for intended operation as described in the user manual. The device complies with Innovation, Science and Economic Development Canada’s RF radiation exposure limits set forth for an uncontrolled environment. Use of other accessories not verified by the manufacturer may not ensure compliance with Innovation, Science and Economic Development Canada’s RF exposure guidelines. These transmitters must not be co-located or operated in conjunction with any other antenna or transmitter. FR CANADA Déclaration requise par la FCC et l’Industrie Canada Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage, et 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Information sur l‘exposition aux radiofréquences Cet équipement est conforme aux limites d‘exposition aux rayonnements d’Innovation, Sciences et Développement économique Canada établies pour un environnement non contrôlé. L‘utilisation d‘autres accessoires non homologués par le fabricant remet en cause la conformité des normes imposées par la d’Innovation, Sciences et Développement économique Canada. Une réduction supplémentaire de l’exposition aux RF peut être obtenue si le produit peut être maintenu aussi loin que possible du corps de l’utilisateur ou si l’appareil est réglé sur une puissance de sortie inférieure, si cette fonction est disponible. Ce transmetteur ne doit pas etre place au meme endroit ou utilise simultanement avec un autre transmetteur ou antenne. Responsible party Demant Sound USA, Inc. Little Falls Drive, Wilmington 19800, New Castle, USA Tel: +1 800-332-7439 TW Taiwan 使用手冊警…

Text truncated - open the document above for the full version.

Herstellererklärungen Garantie Sennheiser Communications A/S übernimmt für dieses Produkt eine Garantie von 24 Monaten. Die aktuell geltenden Garantie bedingungen können Sie über das Internet www.eposaudio.com oder Ihren Sennheiser Communications-Partner beziehen. Hinweise zur Entsorgung Das Symbol der durchgestrichenen, rollbaren Mülltonne auf Produkt, Batterie/Akku und/oder Verpackung weist darauf hin, dass diese Produkte am Ende ihrer Lebensdauer nicht über den normalen Hausmüll entsorgt werden dürfen, sondern einer separaten Entsorgung zuzuführen sind. Beachten Sie für die Entsorgung der Verpackung die in Ihrem Land geltenden gesetzlichen Bestimmungen zur Abfalltrennung. Weitere Informationen zum Recycling dieser Produkte erhalten Sie bei Ihrer lokalen Verwaltung, den kommunalen Rückgabestellen oder bei Ihrem Sennheiser Communications- Partner. Das separate Sammeln von Elektro- und Elektronik- Altgeräten, Batterien/Akkus und Verpackungen dient dazu, die Wiederverwendung und/oder Verwertung zu fördern und negative Effekte, beispielsweise durch potenziell enthaltene Schadstoffe, zu vermeiden. Hiermit leisten Sie einen wichtigen Beitrag zum Umwelt- und Gesundheitsschutz. u EU-Konformitätserklärung Hiermit erklärt Sennheiser Communications A/S, dass das Funkgerät der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: www.eposaudio.com/download. FR Instructions de sécurité importantes Veuillez lire attentivement et entièrement le manuel d’utilisation, le guide de sécurité et le guide rapide (fourni) avant d’utiliser le produit. Toujours inclure ce guide de sécurité lors du passage du produit à des tiers. Ne pas utiliser un produit visiblement défectueux. N’utiliser le produit que dans des environnements où la transmission sans fil est autorisée. Ne pas utiliser le micro-casque à bord d’un avion, sauf en cas d’autorisation spécifique du personnel navigant. Veuillez observer les règles spécifiques à chaque pays avant d’utiliser le produit ! Prévention des risques pour la santé et accidents Ne pas écouter à un volume élevé pendant de longues périodes afin d‘éviter les dégâts auditifs. Le produit génère des champs magnétiques permanents qui peuvent interférer avec les stimulateurs cardiaques, les défibrillateurs implantables (DCI) et autres implants. Toujours maintenir une distance d’au moins 3,94 pouces/10 cm entre le composant du produit qui contient l’aimant et le stimulateur cardiaque, défibrillateur implantable ou autre implant. En cas d’écouteurs intra-auriculaires : Ne pas insérer les écouteurs intra-auriculaires trop profondément dans les oreilles et ne jamais les insérer sans adaptateurs auriculaires. Toujours extraire les écouteurs intra-auriculaires de vos oreilles doucement et soigneusement. Conserver le produit, les accessoires et les parties de l’emballage hors de portée des enfants et des animaux afin d’éviter les accidents et les risques d’étouffement. Se reporter au code de la route national concernant l’utilisation des appareils de communication au volant. Prévention des dégâts sur le produit et mauvais fonctionnement Toujours maintenir le produit au sec et ne pas exposer à des températures extrêmes (sèche-cheveux, chauffage, exposition prolongée au soleil, etc.) afin d‘éviter toute corrosion ou déformation. Utiliser uniquement les raccordements/accessoires fournis ou recommandés par Sennheiser Communications. Nettoyer uniquement le produit avec un chiffon doux et sec. Protéger le produit contre les produits chimiques contenus dans les cosmétiques, la laque pour cheveux, le parfum, la lotion après- rasage, la lotion solaire et les répulsifs anti-insectes puisqu’ils peuvent endommager le produit. Instructions de sécurité pour les batteries lithium rechargeables ! AVERTISSEMENT Dans des cas extrêmes, les batteries rechargeables peuvent fuir et causer les dangers suivants en cas de mauvaise utilisation : • explosion • dé part d’incendie • génération de chaleur • ém anation de gaz ou fumées Mettre les produits défectueux avec des batteries rechargeables intégrées au rebut dans des points de collecte spéciaux ou rendez-les à votre revendeur spécialisé. N’utiliser que des batteries rechargeables recommandées par Sennheiser Communications avec des chargeurs adaptés. Ne charger que des batteries rechargeables à température ambiante entre 10 °C / 50 °F et 40 °C / 104 °F. Ne pas chauffer au-delà de +70 °C/158 °F, par ex. ne pas exposer aux rayons du soleil ou mettre au feu. Utilisation conforme / responsabilité Ce produit est adapté aux bureaux professionnels, aux bureaux à domicile ainsi qu’aux bureaux mobiles. Il est considéré comme une utilisation incorrecte lorsque ce produit est utilisé pour toute application non mentionnée dans les guides des produits associés. Sennheiser Communications n‘accepte aucune responsabilité pour les dommages résultant d‘une utilisation abusive ou erronée de ce produit et de ses accessoires. En cas de micro-casque USB : Sennheiser Communications n‘est pas responsable des dégâts sur les appareils USB qui ne respectent pas les spécifications USB. Sennheiser Communications n’est pas responsable des dommages résultant de la perte de connexion suite à des batteries rechargeables totalement déchargées ou trop vieilles, ou au dépassement de la portée de transmission. Déclarations du fabricant Garantie Sennheiser Communications A/S offre une garantie de 24 mois sur ce produit. En ce qui concerne les conditions de garantie actuelles, veuillez visiter notre site Internet www.eposaudio.com ou contacter votre partenaire Sennheiser Communications. Remarques sur la mise au rebut Le symbole de la poubelle sur roues barrée d‘une croix sur le produit, la pile/batterie et/ou l‘emballage signifie que ces produits, arrivés en fin de vie, ne doivent pas être jetés dans les ordures ménagères, mais faire l‘objet d‘une collecte séparée. Pour les déchets d‘emballages, veuillez r…

Text truncated - open the document above for the full version.

Date: 2020/1/20 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: R3USCBT14 Product name: Bluetooth headset To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SCBT14 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sennheiser Communications A/S Address : Industriparken 27, Ballerup 2750 , Denmark Signature : _________________________________ Name and Job Title. : Mohammad Elhaj E-mail : [email protected] Tel. : +45 7242 1748

Date: January 20, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: R3USCBT14 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2020/3/31. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Signature : _________________________________ Name and Job Title. : Mohammad Elhaj E-mail : [email protected] Tel. : +45 7242 1748

Page 1/1 Sennheiser Communications A/S Industriparken 27, 2750 Ballerup, Denmark T +45 5618 0000 Authorization Letter Date: 2019-12-17 To whom it may concern: We hereby authorize our Regulatory Compliance Manager Mr. Mohammad Elhaj (MOAJ) to sign on behalf of our company, Sennheiser Communications A/S, in the following matters related to the Product Type Approval and Certification of our products to FCC and ISED: - Application forms and Report submittal - Related correspondence - Signing of all documents relating to the above matters and - Any other lawful activity necessary to obtain such certification This authorization is limited to the product type approval and certification matters for two years from the date of issue or until rescinded in writing. If you have any questions regarding the authorization, please don’t hesitate to contact the undersigned. Sincerely yours, Signature : Name : Johannes Sejr Kaulfuss Job Title : Senior Director, Quality & Support E-mail : [email protected] Telephone : +45 5618 0037

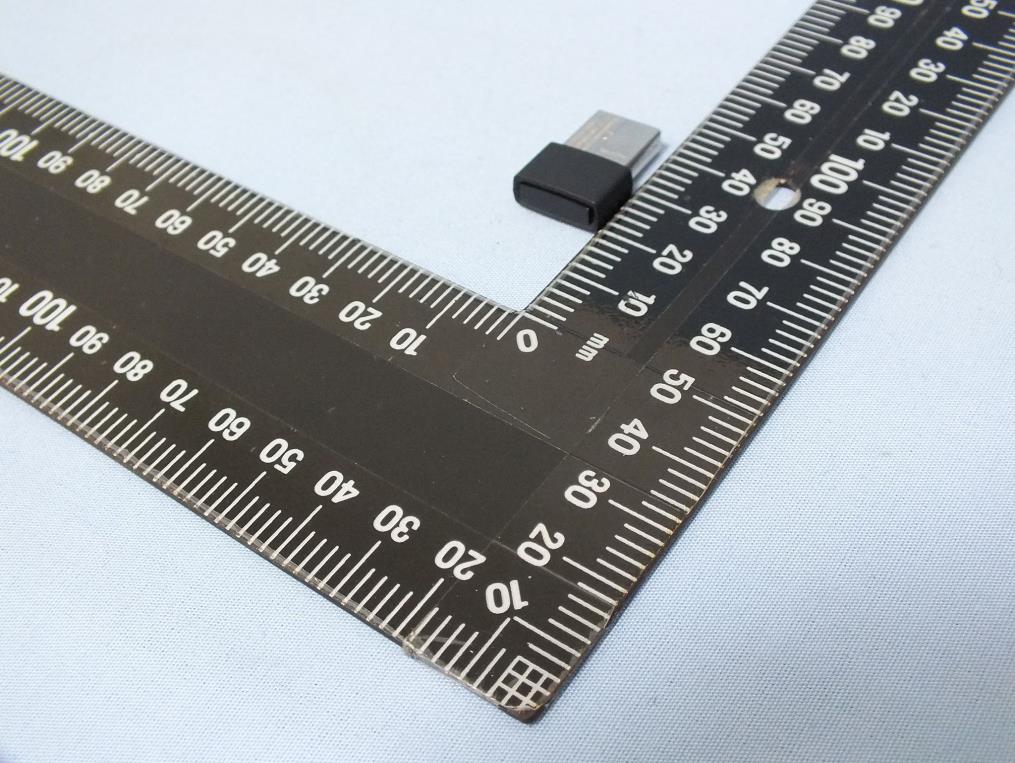

Project No.: 011503 Page No. : 1 of 13 Photographs of EUT Project No.: 011503 Page No. : 2 of 13 Project No.: 011503 Page No. : 3 of 13 Project No.: 011503 Page No. : 4 of 13 Project No.: 011503 Page No. : 5 of 13 Project No.: 011503 Page No. : 6 of 13

Label location FCC ID: R3USCBT14 IC: 2099D-SCBT14

Project No.: 011503 Page No. : 7 of 13 Project No.: 011503 Page No. : 8 of 13 Project No.: 011503 Page No. : 9 of 13 Project No.: 011503 Page No. : 10 of 13 Project No.: 011503 Page No. : 11 of 13 Project No.: 011503 Page No. : 12 of 13 Project No.: 011503 Page No. : 13 of 13

Report No.: FA011503 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : R3USCBT14 Equipment : Bluetooth headset (Refer to item 1.1.1 for more details) Model No. : SCBT14 Brand Name : EPOS|SENNHEISER Applicant : Sennheiser Communications A/S Address : Industriparken 27, DK-2750 Ballerup, Denmark Standard : 47 CFR FCC Part 2.1093 Received Date : Jan. 15, 2020 Tested Date : Jan. 16 ~ Jan. 17, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA011503 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 EXPOSURE EVALUATION OF PORTABLE DEVICES ....................................................................... 5 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 5 2.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 6 2.4 EVALUATION RESULTS ....................................................................................................................... 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA011503 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA011503 Rev. 01 Initial issue Feb. 19, 2020 Report No.: FA011503 Page : 4 of 7 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand name Model name Product name Product description Different EPOS|SENNHEISER SCBT14 ADAPT 560 Bluetooth headset 1. ADAPT 560 with USB Dongle 2. ADAPT 563 without USB Dongle (For marketing purpose) ADAPT 563 Report No.: FA011503 Page : 5 of 7 Report Version: Rev. 01 2 EXPOSURE EVALUATION OF PORTABLE DEVICES 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA011503 Page : 6 of 7 Report Version: Rev. 01 2.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 2.3 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. 2.4 EVALUATION RESULTS Maximum Conducted Output Power Result Condition RF Output Power (dBm) Modulation Mode Freq. (MHz) Average Power (dBm) Rated Power (dBm) Rated Power (mW) BT-BR(1Mbps) 2402 6.38 6.5 4.47 BT-BR(1Mbps) 2441 6.66 7 5.01 BT-BR(1Mbps) 2480 6.96 7 5.01 BT-EDR(2Mbps) 2402 5.34 5.5 3.55 BT-EDR(2Mbps) 2441 5.64 6 3.98 BT-EDR(2Mbps) 2480 5.95 6 3.98 BT-EDR(3Mbps) 2402 5.33 5.5 3.55 BT-EDR(3Mbps) 2441 5.64 6 3.98 BT-EDR(3Mbps) 2480 5.93 6 3.98 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =5.01 / 5 * √2.480 = 1.58 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required. Report No.: FA011503 Page : 7 of 7 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and acco…

Text truncated - open the document above for the full version.

Report No.: FR011503AD Page : 1 of 58 Report Version: Rev. 01 FCC Test Report FCC ID : R3USCBT14 Equipment : Bluetooth headset (Refer to item 1.1.1 for more details) Model No. : SCBT14 Brand Name : EPOS|SENNHEISER Applicant : Sennheiser Communications A/S Address : Industriparken 27, DK-2750 Ballerup, Denmark Standard : 47 CFR FCC Part 15.247 Received Date : Jan. 15, 2020 Tested Date : Jan. 16 ~ Jan. 17, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR011503AD Page : 2 of 58 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.7 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 15 3.3 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 32 3.4 Conducted Output Power ..................................................................................................................... 37 3.5 Number of Hopping Frequency ............................................................................................................ 40 3.6 20dB and Occupied Bandwidth ............................................................................................................ 43 3.7 Channel Separation .............................................................................................................................. 48 3.8 Number of Dwell Time .......................................................................................................................... 53 4 TEST LABORATORY INFORMATION ............................................................................................... 58 Report No.: FR011503AD Page : 3 of 58 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR011503AD Rev. 01 Initial issue Feb. 19, 2020 Report No.: FR011503AD Page : 4 of 58 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 4.478MHz 39.61(Margin -16.39dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50MHz 43.85 (Margin -10.15dB) - AV Pass 15.247(d) Band Edge Meet the requirement of limit Pass 15.247(b)(1) Conducted Output Power Power [dBm]: 9.61 Pass 15.247(a)(1)(iii) Number of Hopping Channels Meet the requirement of limit Pass 15.247(a)(1) Hopping Channel Separation Meet the requirement of limit Pass 15.247(a)(1)(iii) Dwell Time Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR011503AD Page : 5 of 58 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand name Model name Product name Product description Different EPOS|SENNHEISER SCBT14 ADAPT 560 Bluetooth headset 1. ADAPT 560 with USB Dongle 2. ADAPT 563 without USB Dongle (For marketing purpose) ADAPT 563 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 BR 2402-2480 0-78 [79] 1 Mbps 2400-2483.5 EDR 2402-2480 0-78 [79] 2 Mbps 2400-2483.5 EDR 2402-2480 0-78 [79] 3 Mbps Note 1: RF output power specifies that Maximum …

Text truncated - open the document above for the full version.

Report No.: FR011503 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR011503 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR011503 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR011503 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR011503 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test
