R3USCBT16Bluetooth dongle

DSEA A/S

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jun 16, 2020
Application Purpose: Original Equipment
Date of Application: Jun 15, 2020
Equipment Note: Bluetooth dongle
Frequency Range: 2402.00000000 - 2480.00000000
Company: DSEA A/S
Country: Denmark

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Bluetooth ® dongle BTD 800 USB-C Low latency dongle GSA 70 USB-C Model SCBT16 - In compliance with: USA FCC ID: R3USCBT16 Canada IC: 2099D-SCBT16 CAN ICES-3(B)/NMB-3(B) Europe Aw Australia/ New Zealand I Singapore Complies with IMDA Standards DA108496 Taiwan S Japan Q & Korea 인증 번호: Certification No R R-C-SC9-SCBT16 품명: Product name 무선데이터통신시스템용 무선기기 (Bluetooth dongle) 모델명: Model SCBT16 상 호 명: Applicant Sennheiser Communications A/S 제 조 자: Manufacturer Sennheiser Communications A/S 제 조 국: Country of Origin 중국 (China) 제조연월: Date See label China e CMIIT ID: xxxxxxx Vietnam Kể từ ngày 1 tháng 12 năm 2012, các sản phẩm được sản xuất bởi Sennheiser Communications tuân thủ Thông tư 30/2011/TT-BCT quy định về giới hạn cho phép đối với một số chất độc hại trong các sản phẩm điện và điện tử. Mexico NYCE La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. Thailand This radio communication device is exempted from license to have and use radio communication device or set up radio communication station according to the Notification of NBTC Re: Radio communication devices and radio communication station exempted from license of radio communication according to the Radio Communications Act B.E. 2498 (1955). NBTC Telecommunication | Supervision for public | Call center 1200 (free call) Brazil K Este produto está homologado pela ANATEL, de acordo com os procedimentos regulamentados pela Resolução 242/2000, e atende aos requisitos técnicos aplicados. Para maiores informações, consulte o site da ANATEL www.anatel.gov.br Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Specifications | Technische Daten | Caractéristiques techniques | Dati tecnici | Especificaciones técnicas | Dados técnicos | Technische specificaties | Τεχνικά χαρακτηριστικά | Tekniske data | Tekniska data | Tekniset tiedot | Dane techniczne | Технические характеристики | 技术参数 | 產品規格 | Teknik Bilgiler | 技術仕様 | Data Teknis | 기술 데이터 | Technické údaje | Műszaki leírás | Технически данни | Tehnilised andmed | Tehniskie dati | Techniniai duomenys | Date tehnice | Technické údaje | Tehnični podatki | Tehnički podaci Dimensions (W x H x D)27.5 x 23.5 x 7.5 mm / 1.05 x 0.93 x 0.30 in Weight2.8 g / 1.0 oz / 0.006 lbs Temperature range Operation: Storage: +10 °C to +40 °C / +50 °F to +104 °F -20 °C to +60 °C / -4 °F to +140 °F Relative humidity Operation: Storage: 20 to 85% 10 to 95% Bluetoothversion 4.2 / class 1 Rangeup to 25 m (device dependent) Frequency rangeBluetooth: 2402 – 2480 MHz Output powermax. 10 dBm (EIRP) Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark, www.eposaudio.com, Printed in China, 05/20, 770-00274/A01 EN CANADA Statements regarding FCC and Industry Canada This device complies with Part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s). Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. FCC User Information: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device of the FCC Rules, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications made to this equipment not expressly approved by the manufacturer may void FCC authorization to operate this equipment. RF Radiation Exposure Information Since the radiated output power of this device is far below the FCC radio frequency exposure limits, it is not subjected to routine RF exposure evaluation as per Section 2.1093 of the FCC rules. This device complies with the US and Industry Canada portable device RF exposure limits set forth for an uncontrolled environment and is safe for intended operation as described in the user manual. Responsible party Demant Sound USA, Inc. Little Falls Drive, Wilmington 19800, New Castle, USA Tel: +1 800-332-7439 FR CANADA Déclaration requise par la FCC et l’Industrie Canada Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) l’appareil ne doit pas produire de brouillage, et 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Information sur l‘exposition aux radiofréquencesn La puissance RF rayonnée de cet appareil étant de loin inférieure aux limites imposées par la IC, il n’est pas soumis à la réglementation sur l’exposition aux RF selon la section 2.5 de la réglementation CNR-102 de Industrie Canada. Cet équipement est conforme aux limites d‘exposition aux rayonnements IC établies pour un environnement non contrôlé.…

Text truncated - open the document above for the full version.

Users Manual

Cover Letter(s)

Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark eposaudio.com Page 1 of 1 Date: 2020-06-02 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: R3USCBT16 Product name: Bluetooth dongle To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SCBT16 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Signature : Name and Job Title. : Johannes Kaulfuss, Director, Quality & Support E-mail : [email protected] Tel. : +45 56180000

Cover Letter(s)

Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark eposaudio.com Page 1 of 1 Date: 2020-06-01 Subject: Request for confidentiality FCC ID: R3USCBT16 To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2020/7/3. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Signature : _________________________________ Name and Job Title. : Johannes Kaulfuss, Director, Quality & Support E-mail : [email protected] Tel. : +45 56180000

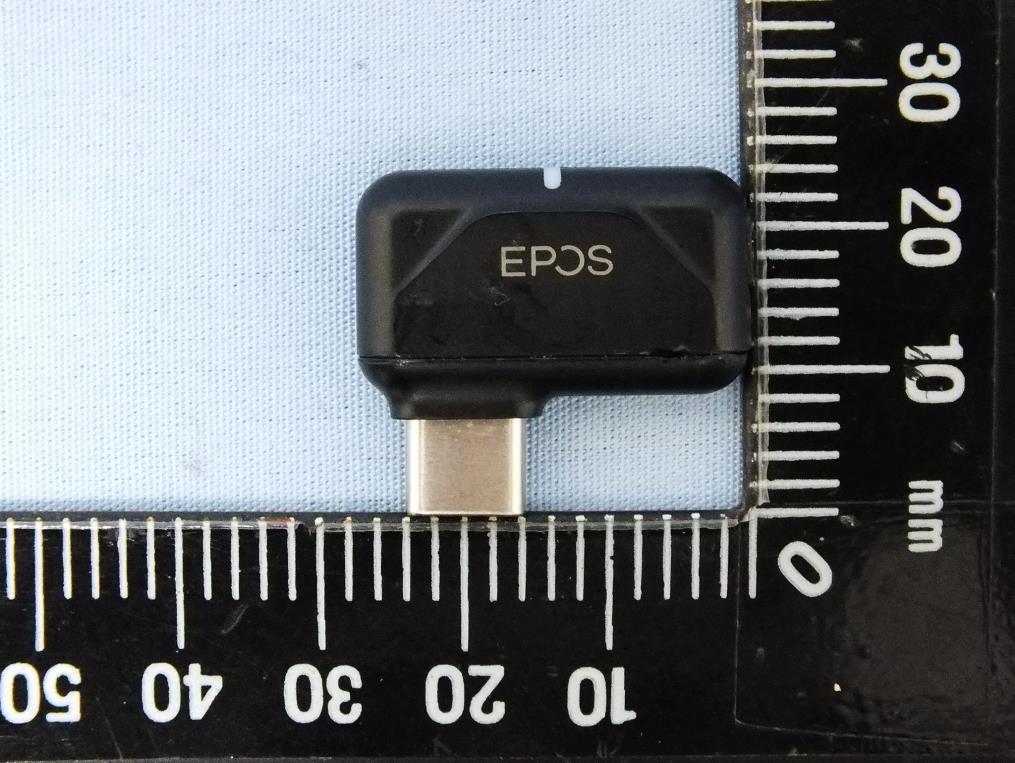

External Photos

Project No.: 4D1101-05 Page No. : 1 of 7 Photographs of EUT Project No.: 4D1101-05 Page No. : 2 of 7 Project No.: 4D1101-05 Page No. : 3 of 7 Project No.: 4D1101-05 Page No. : 4 of 7 Project No.: 4D1101-05 Page No. : 5 of 7

ID Label/Location Info

FCC ID: R3USCBT16 IC: 2099D-SCBT16

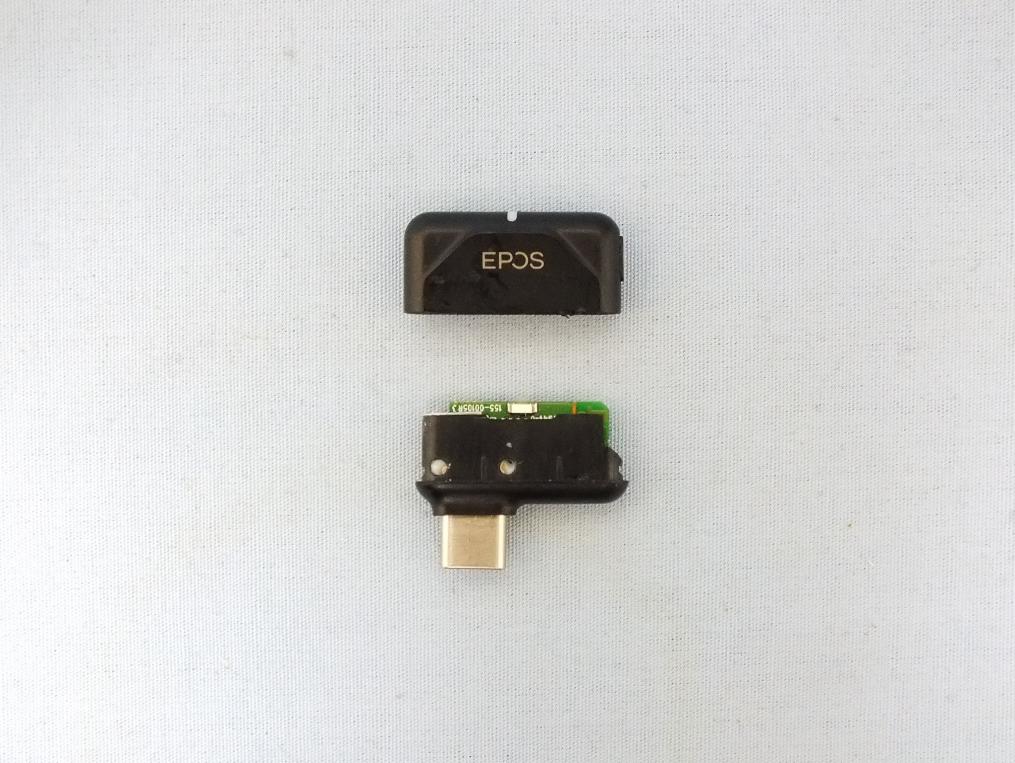

Internal Photos

Project No.: 4D1101-05 Page No. : 6 of 7 Project No.: 4D1101-05 Page No. : 7 of 7

RF Exposure Info

Report No.: FA4D1101-05 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : R3USCBT16 Equipment : Bluetooth Dongle Model No. : SCBT16 Brand Name : EPOS Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Standard : 47 CFR FCC Part 2.1093 Received Date : Apr. 28, 2020 Tested Date : May 11 ~ May 12, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA4D1101-05 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 EXPOSURE EVALUATION OF PORTABLE DEVICES ....................................................................... 4 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 4 1.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 5 1.4 EVALUATION RESULTS ....................................................................................................................... 6 2 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA4D1101-05 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA4D1101-05 Rev. 01 Initial issue Jun. 09, 2020 Report No.: FA4D1101-05 Page : 4 of 7 Report Version: Rev. 01 1 EXPOSURE EVALUATION OF PORTABLE DEVICES 1.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA4D1101-05 Page : 5 of 7 Report Version: Rev. 01 1.2 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.3 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA4D1101-05 Page : 6 of 7 Report Version: Rev. 01 1.4 EVALUATION RESULTS Maximum Conducted Output Power Result Condition RF Output Power (dBm) Modulation Mode Freq. (MHz) Average Power (dBm) Rated Power (dBm) Rated Power (mW) LE-1Mbps 2402 8.26 9 7.94 LE-1Mbps 2440 8.51 9 7.94 LE-1Mbps 2480 7.82 8 6.31 BT-BR(1Mbps) 2402 8.13 9 7.94 BT-BR(1Mbps) 2441 8.41 9 7.94 BT-BR(1Mbps) 2480 7.72 8 6.31 BT-EDR(2Mbps) 2402 5.26 6 3.98 BT-EDR(2Mbps) 2441 4.91 5 3.16 BT-EDR(2Mbps) 2480 3.85 4 2.51 BT-EDR(3Mbps) 2402 5.28 6 3.98 BT-EDR(3Mbps) 2441 4.88 5 3.16 BT-EDR(3Mbps) 2480 3.81 4 2.51 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =7.94 / 5 * √2.441 = 2.48 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required. Report No.: FA4D1101-05 Page : 7 of 7 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Test Report

Report No.: FR4D1101-05AD Page : 1 of 61 Report Version: Rev. 01 FCC Test Report FCC ID : R3USCBT16 Equipment : Bluetooth Dongle Model No. : SCBT16 Brand Name : EPOS Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 28, 2020 Tested Date : May 11 ~ May 12, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR4D1101-05AD Page : 2 of 61 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 The Equipment List ................................................................................................................................ 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Deviation from Test Standard and Measurement Procedure ............................................................... 10 1.7 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ....................................................................................................... 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 15 3.3 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 32 3.4 Conducted Output Power ..................................................................................................................... 37 3.5 Number of Hopping Frequency ............................................................................................................ 40 3.6 20dB and Occupied Bandwidth ............................................................................................................ 43 3.7 Channel Separation .............................................................................................................................. 48 3.8 Number of Dwell Time .......................................................................................................................... 53 4 TEST LABORATORY INFORMATION ............................................................................................... 61 Report No.: FR4D1101-05AD Page : 3 of 61 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR4D1101-05AD Rev. 01 Initial issue Jun. 09, 2020 Report No.: FR4D1101-05AD Page : 4 of 61 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.177MHz 50.65(Margin -14.00dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2506.00MHz 51.52 (Margin -2.48dB) - AV Pass 15.247(d) Band Edge Meet the requirement of limit Pass 15.247(b)(1) Conducted Output Power Power [dBm]: 8.68 Pass 15.247(a)(1)(iii) Number of Hopping Channels Meet the requirement of limit Pass 15.247(a)(1) Hopping Channel Separation Meet the requirement of limit Pass 15.247(a)(1)(iii) Dwell Time Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR4D1101-05AD Page : 5 of 61 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product name Product description Description EPOS SCBT16 BTD 800 USB-C Bluetooth dongle For marketing purpose EPOS SCBT16 GSA 70 USB-C Bluetooth dongle  All models are electrically identical, different model names are for marketing purpose.  The above product name s, product BTD 800 USB-C was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 B…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR4D1101-05 Page: : 1 of 5 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR4D1101-05 Page: : 2 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR4D1101-05 Page: : 3 of 5 Report Version: Rev. 01 Radiated Emission Below 1GHz Test Report No.: FR4D1101-05 Page: : 4 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test Report No.: FR4D1101-05 Page: : 5 of 5 Report Version: Rev. 01 Radiated Emission Above 1GHz Test

Contact Information

Applicant

Ole Fihl Mollerup(Director, Contract Manufacturing, Global Operation)

[email protected]004556180000Fax: 04556180099

Technical Contact

International Certification Corp.Gary Chang

[email protected]886-3-271-8628

No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., · Taiwan

Non-Technical Contact

International Certification Corp.Wendy Liao

[email protected]886-3-271-8629

Test Firm

International Certification Corp.Fu-Cheng Chuang

[email protected]886-3-271-8666Fax: 886-3-318-0155

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	7.00 mW

Confidentiality

Long Term

Grant Notes

Power Output is conducted. This is a portable device. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End users must be provided with specific operating instructions for satisfying RF exposure compliance.
