R3USCBT19Bluetooth speakerphone

DSEA A/S

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 13, 2020
Application Purpose: Original Equipment
Date of Application: Aug 12, 2020
Equipment Note: Bluetooth speakerphone
Frequency Range: 2402.00000000 - 2480.00000000
Company: DSEA A/S
Country: Denmark

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Speakerphone EXPAND 80Speakerphone EXPAND 80T Dimensions (L x W x H)315.6 x 118.6 x 46.1 mm / 12.4 x 4.7 x 1.8 in Weight980 g / 34.57 oz Speaker typeNeodymium magnet Speaker frequency response Communication (USB / Bluetooth) 150 – 7,500 Hz Media streaming (USB / Bluetooth) 50 – 20,000 Hz Microphone typeBeamforming Digital MEMS Enhanced Omni microphones (6 microphones) Microphone frequency response150 – 7,500 Hz (USB / Bluetooth) Connectors • Power supply socket • USB-C ® socket • 2x jack socket 3.5 mm for EXPAND 80 Mic • Kensington Lock support Max. magnetic flux density52.5 mT version 5.0 / class 1 Rangeup to 25 m (device dependent) Output powermax. 10 dBm Power supply unit PS - UNI 01 Nominal input voltage100 – 240 VAC Nominal input current max. 0.5 A Mains frequency 50 – 60 Hz Nominal output voltage5.9 VDC Nominal output current2.4 A Weightapprox. 113 g / 3.99 oz / 0.25 lbs Bluetooth dongle BTD 800 USB Dimensions (W x H x D)22 x 16 x 6 mm / 0.87 x 0.63 x 0.24 in Weight2 g / 0.07 oz / 0.004 lbs version 4.2 / class 1 Rangeup to 25 m (device dependent) Bluetooth frequency range2402 – 2480 MHz Output power max. 8 dBm (EIRP) General data Temperature rangeOperation: + 10 °C to +40 °C / +50 °F to +104 °F Storage: -20 °C to +60 °C / -4 °F to +140 °F Relative humidityOperation: 20 to 85% Storage: 10 to 95% Specifications | Technische Daten | Caractéristiques techniques | Specifiche | Especificaciones técnicas | Especificações | Technische specificaties | Προδιαγραφές | Specifikationer | Specifikationer | Tekniset tiedot | Specyfikacje | Технические характеристики | 技术参数 | 規格 | Özellikler | 仕様 | Spesifikasi | 기술 데이터 | Technické údaje | Műszaki leírás | Спецификации | Tehnilised andmed | Specifikācija | Specifikacijos | Specificații | Technické údaje | Specifikacije | Specifikacije Trademarks The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser Communications A/S is under license. The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. USB Type-C ® and USB-C ® are trademarks of USB Implementers Forum. Bluetooth ® speakerphone EXPAND 80 | EXPAND 80T | Bluetooth ® dongle BTD 800 USB Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark, www.eposaudio.com, Printed in China, 08/20, 770-00254/A01 EN CANADA & USA Statements regarding FCC and Industry Canada This device complies with Part 15 of the FCC rules and with Industry Canada license-exempt RSS standard(s). Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. RF Radiation Exposure Information Since the radiated output power of this device is far below the FCC radio frequency exposure limits, it is not subjected to routine RF exposure evaluation as per Section 2.1093 of the FCC rules. The device complies with FCC and Innovation, Science and Economic Development Canada’s RF radiation exposure limits set forth for controlled / uncontrolled environment. The product should be installed and operated with minimum distance of 20 cm between the radiator and your body. Use of other accessories not verified by the manufacturer may not ensure compliance with FCC and Innovation, Science and Economic Development Canada’s RF exposure guidelines. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. The transmitters must not be co-located or operated in conjunction with any other antenna or transmitter. FR CANADA Information sur l’exposition aux radiofréquences Cet équipement est conforme aux limites d‘exposition aux rayonnements d’Innovation, Sciences et Développement économique Canada établies pour un environnement contrôlé / non contrôlé. Cette station de base/dongle doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. L‘utilisation d‘autres accessoires non homologués par le fabricant remet en cause la conformité des normes imposées par la d’Innovation, Sciences et Développement économique Canada. Une réduction supplémentaire de l’exposition aux RF peut être obtenue si le produit peut être maintenu aussi loin que possible du corps de l’utilisateur ou si l’appareil est réglé sur une puissance de sortie inférieure, si cette fonction est disponible. Les transmetteurs ne doit pas etre place au meme endroit ou utilise simultanement avec un autre transmetteur ou antenne. Responsible party Demant Sound USA, Inc. Little Falls Drive, Wilmington 19800, New Castle, USA Tel: +1 800-332-7439 ZH CHINA RoHS SCBT19 有毒有害物质或元素部件名称 Parts 铅 Pb 汞 Hg 镉 Cd 六价铬 Cr +6 多溴联苯 PBB 多溴二苯醚 PBDE 金属部件 Metal parts xooooo 电路模块 Circuit Modules xooooo 电缆及电缆组件 Cables & Cable Assemblies xooooo 外部电力适配器 External power supply xooooo 本表格依据SJ/T 11364的规定编制。 o : 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 x : 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572规定的限量要求。 BTD 800 USB 有毒有害物质或元素部件名称 Parts 铅 Pb 汞 Hg 镉 Cd 六价铬 Cr +6 多溴联苯 PBB 多溴二苯醚 PBDE 电路模块 Circuit Modules xooooo 本表格依据SJ/T 11364的规定编制。 o : 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 x : 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572规定的限量要求。 TW Taiwan 汞 Mercury (Hg) 鎘 Cadmium (Cd) 六價鉻 Hexavalent chromium (Cr +6 ) 多溴聯苯 Polybrominated biphenyls (PBB) 多溴二苯醚 Polybrominated diphenyl ethers (PBDE) 限用物質及其化學符號 Restricted substances and its chemical symbols 鉛 Lead (Pb) 型號（型式）： Type designation (Type) SCBT19 轉接頭 Power plug 傳輸線 USB Cable 電源供應器 Power supply 備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準。 Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition. 備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: “○” indicates that the percentage content o…

Text truncated - open the document above for the full version.

Users Manual

Bestimmungsgemäßer Gebrauch/Haftung Dieses Produkt ist für den Einsatz im Büro, Home Offi ce oder Call Center vorgesehen. Als nicht bestimmungsgemäßer Gebrauch gilt, wenn Sie dieses Produkt anders benutzen, als in den zugehörigen Produktanleitungen beschrieben. Sennheiser Communications übernimmt keine Haftung bei Missbrauch oder nicht ordnungsgemäßem Gebrauch des Produkts sowie der Zusatzgeräte/Zubehörteile. Sennheiser Communications haftet nicht für Schäden an USB-Geräten, die nicht mit den USB-Spezifi kationen im Einklang sind. Sennheiser Communications haftet nicht für Schäden aus Verbindungsabbrüchen wegen leerer oder überalterter Akkus oder Überschreiten des Sendebereichs. Herstellererklärungen Garantie Sennheiser Communications A/S übernimmt für dieses Produkt eine Garantie von 24 Monaten. Die aktuell geltenden Garantie bedingungen können Sie über das Internet www.eposaudio.com oder Ihren Sennheiser Communications- Partner beziehen. Hinweise zur Entsorgung Das Symbol der durchgestrichenen, rollbaren Mülltonne auf Produkt, Batterie/Akku und/oder Verpackung weist darauf hin, dass diese Produkte am Ende ihrer Lebensdauer nicht über den normalen Hausmüll entsorgt werden dürfen, sondern einer separaten Entsorgung zuzuführen sind. Beachten Sie für die Entsorgung der Verpackung die in Ihrem Land geltenden gesetzlichen Bestimmungen zur Abfalltrennung. Weitere Informationen zum Recycling dieser Produkte erhalten Sie bei Ihrer lokalen Verwaltung, den kommunalen Rückgabestellen oder bei Ihrem Sennheiser Communications- Partner. Das separate Sammeln von Elektro- und Elektronik- Altgeräten, Batterien/Akkus und Verpackungen dient dazu, die Wiederverwendung und/oder Verwertung zu fördern und negative Eff ekte, beispielsweise durch potenziell enthaltene Schadstoff e, zu vermeiden. Hiermit leisten Sie einen wichtigen Beitrag zum Umwelt- und Gesundheitsschutz. u EU-Konformitätserklärung Hiermit erklärt Sennheiser Communications A/S, dass das Funkgerät der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: www.eposaudio.com/download. FR Instructions de sécurité importantes Veuillez lire attentivement et entièrement le manuel d’utilisation, le guide de sécurité et le guide rapide (fourni) avant d’utiliser le produit. Toujours inclure ce guide de sécurité lors du passage du produit à des tiers. Ne pas utiliser un produit visiblement défectueux. N’utiliser le produit que dans des environnements où la transmission sans fi l est autorisée. Veuillez observer les règles spécifi ques à chaque pays avant d’utiliser le produit ! Prévention des risques pour la santé et accidents Ne pas écouter à un volume élevé pendant de longues périodes afi n d‘éviter les dégâts auditifs. Le produit génère des champs magnétiques permanents qui peuvent interférer avec les stimulateurs cardiaques, les défi brillateurs implantables (DCI) et autres implants. Toujours maintenir une distance d’au moins 3,94 pouces/10 cm entre le composant du produit qui contient l’aimant et le stimulateur cardiaque, défi brillateur implantable ou autre implant. Conserver le produit, les accessoires et les parties de l’emballage hors de portée des enfants et des animaux afi n d’éviter les accidents et les risques d’étouff ement. Se reporter au code de la route national concernant l’utilisation des appareils de communication au volant. Prévention des dégâts sur le produit et mauvais fonctionnement Toujours maintenir le produit au sec et ne pas exposer à des températures extrêmes (sèche-cheveux, chauff age, exposition prolongée au soleil, etc.) afi n d‘éviter toute corrosion ou déformation. Utiliser uniquement les raccordements/accessoires fournis ou recommandés par Sennheiser Communications. Nettoyer uniquement le produit avec un chiff on doux et sec. Protéger le produit contre les produits chimiques contenus dans les cosmétiques, la laque pour cheveux, le parfum, la lotion après- rasage, la lotion solaire et les répulsifs anti-insectes puisqu’ils peuvent endommager le produit. Si l’alimentation est fournie Débrancher l‘unité d‘alimentation de la prise murale • afi n de déconnecter totalement le produit du système d‘alimentation • lors des orages avec foudre • lorsque le produit est inutilisé pendant de longues périodes. Toujours s‘assurer que l‘unité d‘alimentation est • en bon état de fonctionnement et facilement accessible, • branchée convenablement à la prise murale, • utilisée uniquement dans la fourchette de températures permises (cf. Caractéristiques), • non couverte ou exposée directement aux rayons du soleil pendant de longues périodes afi n d‘éviter l‘accumulation de chaleur. Utiliser uniquement les unités d‘alimentation fournies par Sennheiser Communications. Instructions de sécurité pour les batteries lithium rechargeables ! AVERTISSEMENT Dans des cas extrêmes, les batteries rechargeables peuvent fuir et causer les dangers suivants en cas de mauvaise utilisation : • explosion • départ d’incendie • génération de chaleur • émanation de gaz ou fumées Mettre les produits défectueux avec des batteries rechargeables intégrées au rebut dans des points de collecte spéciaux ou rendez-les à votre revendeur spécialisé. N’utiliser que des batteries rechargeables recommandées par Sennheiser Communications avec des chargeurs adaptés. Ne charger que des batteries rechargeables à température ambiante entre 10 °C / 50 °F et 40 °C / 104 °F. Ne pas chauffer au-delà de +70 °C/158 °F, par ex. ne pas exposer aux rayons du soleil ou mettre au feu. Utilisation conforme / responsabilité Ce produit est adapté aux bureaux professionnels, aux bureaux à domicile ainsi qu’aux bureaux mobiles. Il est considéré comme une utilisation incorrecte lorsque ce produit est utilisé pour toute application non mentionnée dans les guides des produits associés. Sennheiser Communications n‘accepte aucune responsabilité pour les dommages résultant d‘une utilisation abusive ou erronée…

Text truncated - open the document above for the full version.

Users Manual

Text truncated - open the document above for the full version.

Cover Letter(s)

Sennheiser Communications A/ S Industriparken 27, DK- 2 7 5 0 Ba lle ru p , De n m a rk eposa u d io.c o m Page 1 of 1 Date: 2020 - 07 - 06 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046 - 1609 Subject: Product Certification Representative Authorization Letter FCC ID: R3USCBT19 Product name: Bluetooth speakerphone To whom it may concern: We the undersigned, hereby autho rize following person to act as our agent in the preparation of an application for equipment authorization of model SCBT19 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., TaoYuan City 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that inclu de FCC benefits, pursuant to section 5301 of the Anti - Drug Abuse Act of 1998, 21 U.S.C. 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Signature : Name and Job Title. : Johannes Kaulfuss, Director, Quality & Support E-mail : [email protected] Tel. : +45 56180000

Cover Letter(s)

Sennheiser Communications A/S Industriparken 27, DK-2750 Ballerup, Denmark eposaudio.com Page 1 of 1 Date: 2020-08-13 Federal Communications Commission Authorization and Evaluation Division Subject: Permanent Confidentiality Request FCC ID: R3USCBT19 To whom it may concern: Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sennheiser Communications A/S Address : Industriparken 27, Ballerup 2750 , Denmark Signature : _________________________________ Name and Job Title. : Johannes Kaulfuss, Director, Quality & Support E-mail : [email protected] Tel. : +45 56180000

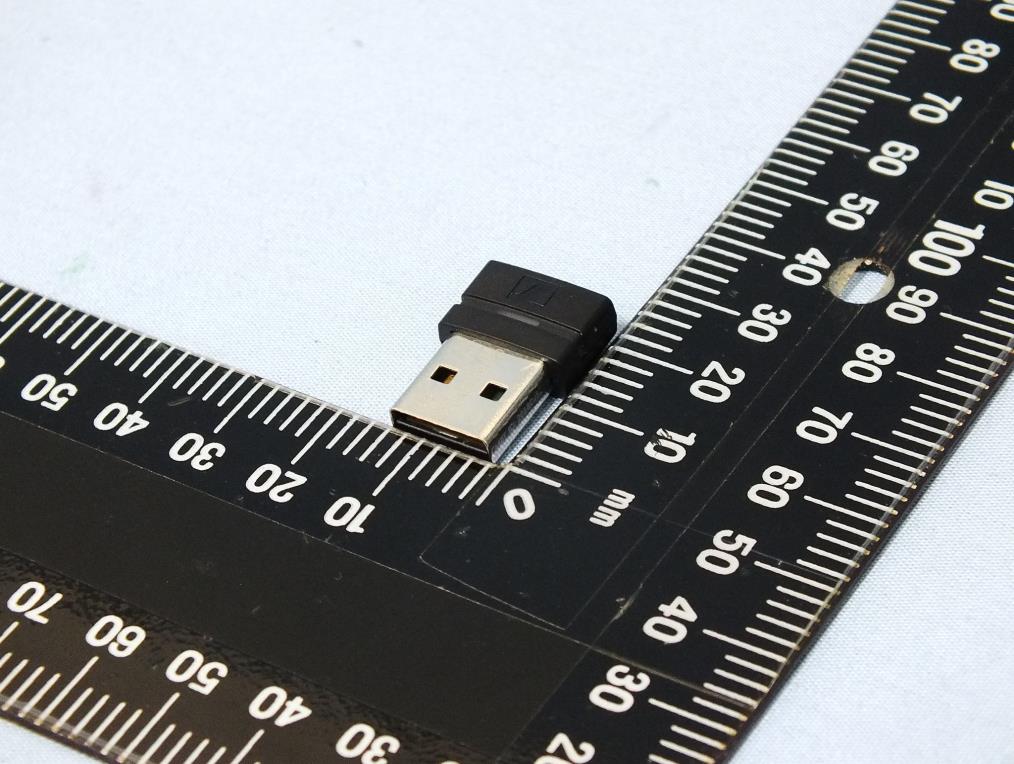

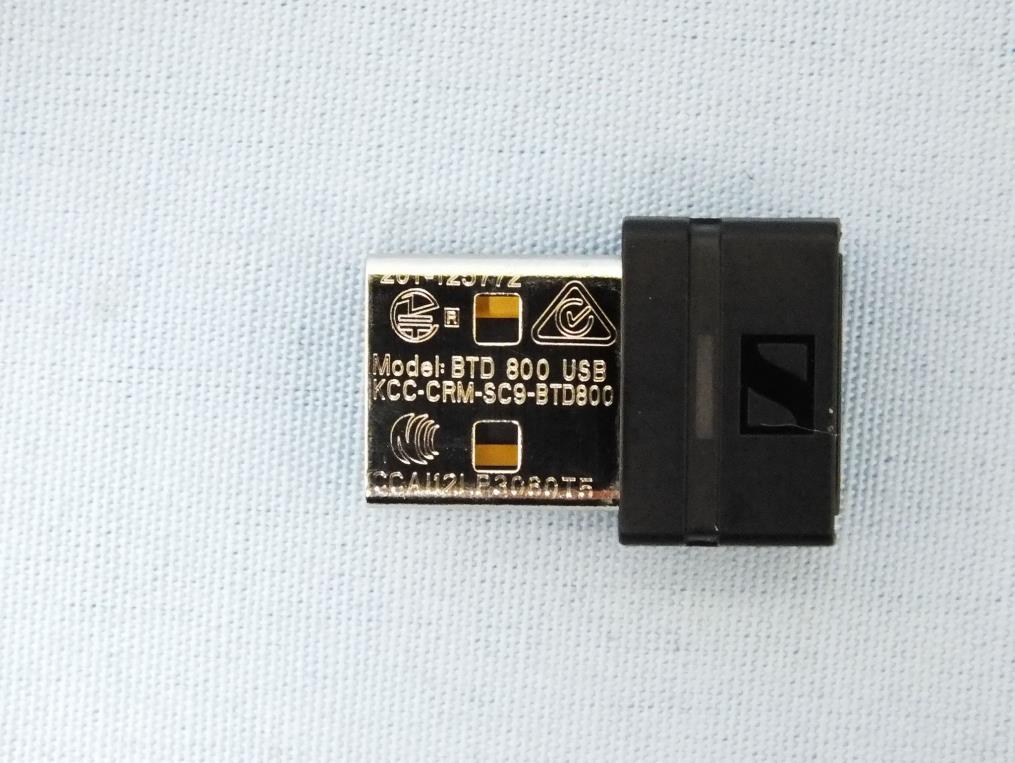

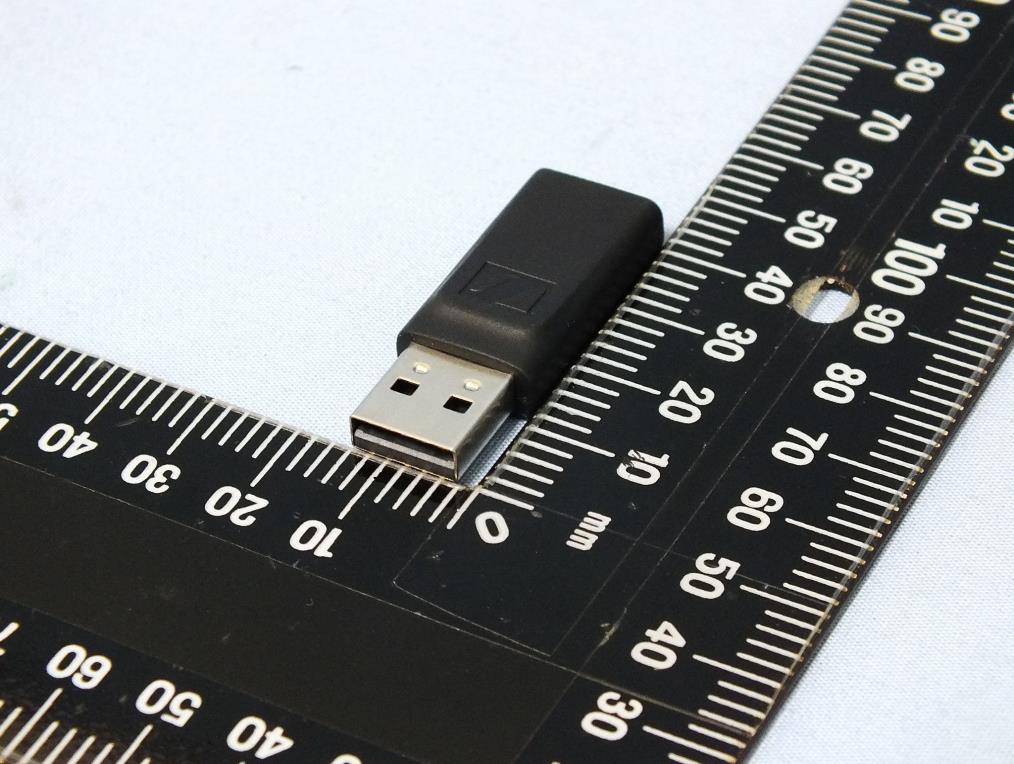

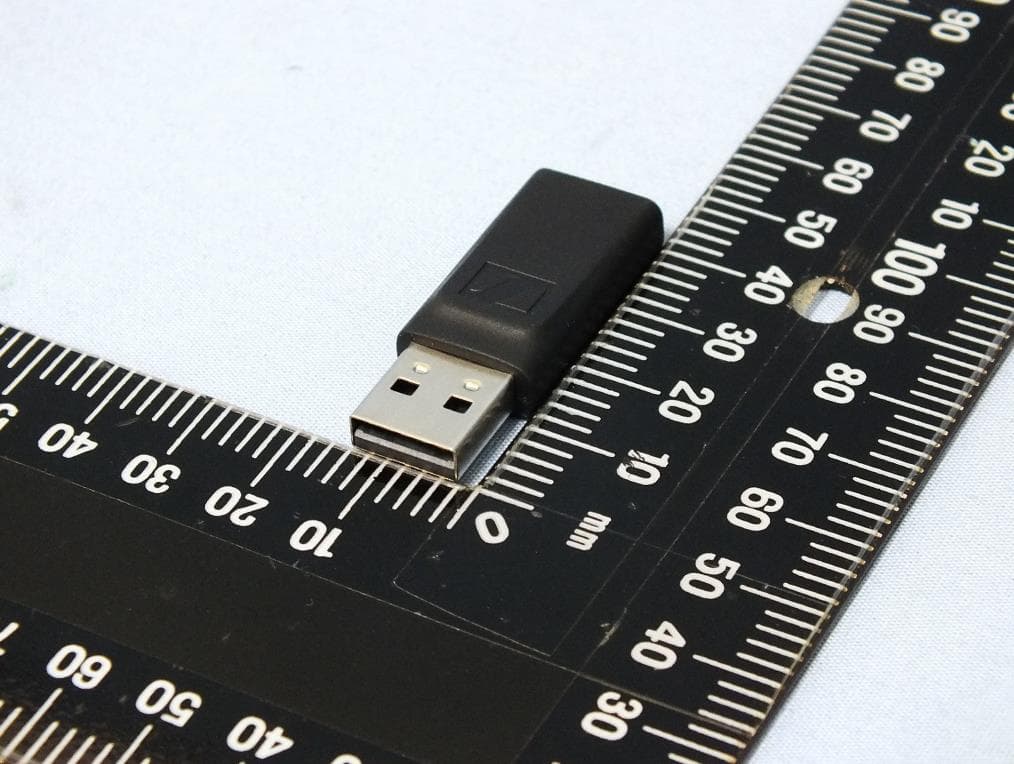

External Photos

Project No.: 9N1302 Page No. : 1 of 37 Photographs of EUT Product name: EXPAND 80 Project No.: 9N1302 Page No. : 2 of 37 Project No.: 9N1302 Page No. : 3 of 37 Project No.: 9N1302 Page No. : 4 of 37 Project No.: 9N1302 Page No. : 5 of 37 Project No.: 9N1302 Page No. : 6 of 37 Project No.: 9N1302 Page No. : 7 of 37 Project No.: 9N1302 Page No. : 8 of 37 Project No.: 9N1302 Page No. : 9 of 37 Project No.: 9N1302 Page No. : 10 of 37 Project No.: 9N1302 Page No. : 11 of 37 Product name: EXPAND 80T Project No.: 9N1302 Page No. : 12 of 37 Project No.: 9N1302 Page No. : 13 of 37 Project No.: 9N1302 Page No. : 14 of 37 Project No.: 9N1302 Page No. : 15 of 37 Project No.: 9N1302 Page No. : 16 of 37 Project No.: 9N1302 Page No. : 17 of 37 Project No.: 9N1302 Page No. : 18 of 37 Project No.: 9N1302 Page No. : 19 of 37 Project No.: 9N1302 Page No. : 20 of 37 Project No.: 9N1302 Page No. : 21 of 37

ID Label/Location Info

EXPAND 80 A00304 0xxxx xxxxx Device ID 扬声器 Model/ 产品型号: SCBT19 EXPAND 80T A00305 0xxxx xxxxx Device ID 扬声器 Model/ 产品型号: SCBT19 FCC ID: R3USCBT19 IC: 2099D- SCBT19 Sennheiser Communications A/S, Industriparken 27, DK-2750 Ballerup, Denmark xxxxx-xx-xxxxx xxxxxxxxxxxxxx CMIIT ID: CAN ICES-3(B)/NMB-3(B) xxxxxx RoHS (Pb) R-C-SC9-SCBT19 xxx-xxxxxx Input 2.4 A CNC ID: x-xxxxx Made in China 5V FCC ID: R3USCBT19 IC: 2099D-SCBT19

Internal Photos

Project No.: 9N1302 Page No. : 22 of 37 Product name: EXPAND 80 Project No.: 9N1302 Page No. : 23 of 37 Project No.: 9N1302 Page No. : 24 of 37 Project No.: 9N1302 Page No. : 25 of 37 Project No.: 9N1302 Page No. : 26 of 37 Project No.: 9N1302 Page No. : 27 of 37 Project No.: 9N1302 Page No. : 28 of 37 Project No.: 9N1302 Page No. : 29 of 37 Project No.: 9N1302 Page No. : 30 of 37 Product name: EXPAND 80T Project No.: 9N1302 Page No. : 31 of 37 Project No.: 9N1302 Page No. : 32 of 37 Project No.: 9N1302 Page No. : 33 of 37 Project No.: 9N1302 Page No. : 34 of 37 Project No.: 9N1302 Page No. : 35 of 37 Project No.: 9N1302 Page No. : 36 of 37 Project No.: 9N1302 Page No. : 37 of 37

RF Exposure Info

Report No.: FA9N1302 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : R3USCBT19 Equipment : Bluetooth speakerphone Model No. : SCBT19 Brand Name : EPOS Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Standard : 47 CFR FCC Part 2.1091 Received Date : Nov. 13, 2019 Tested Date : May 16 ~ Jun. 26, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA9N1302 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA9N1302 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA9N1302 Rev. 01 Initial issue Jul. 13, 2020 Report No.: FA9N1302 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2) Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA9N1302 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Ratio* Pass / Fail 2402-2480 (BT EDR) 7.69 8 3.7 20 0.003 1 0.003 Pass 2402-2480 (BT LE) 4.78 5 3.7 20 0.001 1 0.001 Pass *Ratio = Power density / Limit. Report No.: FA9N1302 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Test Report

Report No.: FR9N1302AE Page : 1 of 35 Report Version: Rev. 01 FCC Test Report FCC ID : R3USCBT19 Equipment : Bluetooth speakerphone Model No. : SCBT19 Brand Name : EPOS Applicant : Sennheiser Communications Address : Industriparken 27, Ballerup 2750 , Denmark Standard : 47 CFR FCC Part 15.247 Received Date : Nov. 13, 2019 Tested Date : Nov. 25, 2019 ~ May 16, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR9N1302AE Page : 2 of 35 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 8 1.3 Test Setup Chart .................................................................................................................................... 8 1.4 Test Equipment List and Calibration Data .............................................................................................. 9 1.5 Test Standards ..................................................................................................................................... 10 1.6 Reference Guidance ............................................................................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ole Fihl Mollerup(Director, Contract Manufacturing, Global Operation)

[email protected]004556180000Fax: 04556180099

Technical Contact

International Certification Corp.Gary Chang

[email protected]886-3-271-8628

No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Dist., · Taiwan

Non-Technical Contact

International Certification Corp.Wendy Liao

[email protected]886-3-271-8629

Test Firm

International Certification Corp.Fu-Cheng Chuang

[email protected]886-3-271-8666Fax: 886-3-318-0155

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.00 mW

Confidentiality

Long Term

Grant Notes

Power Output is conducted. This is a portable device. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End users must be provided with specific operating instructions for satisfying RF exposure compliance.
