R48RKBTR2XTabletop Stereo

User guide Brugervejledning Bedienungsanleitung Guía del usuario Guide de l’utilisateur Manuale dell’utente Gebruikershandleiding Brukerveiledning 사용자 가이드 EN DA DE ES FR IT NL NO KR Tabletop Stereo R2 mk3 User guide EN RA R2x User guide.indd 131/03/2015 13:59:44 EN-2 Thank you for choosing our R2 Tabletop Radio. Please take the time to read this user guide as it will help you get the best from your radio. With due care, we’re confident your R2 will give you many years of listening pleasure but, should you need help or advice, please do not hesitate to contact us. As a British, family-run company, we pride ourselves on our customer service and will always do our utmost to help. Once again, thank you for choosing Ruark Audio. Alan O’Rourke Founder and managing director RA R2x User guide.indd 231/03/2015 13:59:44 EN-3 EN DA DE FR IT ES NL NO • 2 x 3.5 in custom high fidelity drivers • Tuned bass reflex cabinet • 18w nominal power output • Enhanced 3D sound processing • DAB*, DAB+* and FM tuner with RDS • Internet radio • Spotify Connect • Removable DAB/FM aerial with F-Type connector • Security slot • 128 x 64 OLED display • Full function remote control • Wi-Fi 802.11b/g/n; 802.11a/b/g/n (US version) • Wi-Fi Protected Setup (WPS2) • Compatible with UPnP™ DLNA media servers • MP3, WMA, AAC, FLAC, WAV • A2DP, aptX Bluetooth Inputs and outputs • Line in audio input 1 - 3.5mm stereo jack • Line in audio input 2 - stereo RCA/phono • 3.5mm headphone output • USB 2.0 playback, 5.0V 1.0A (5W) output Power supply • Input power 100-240VAC, 50-60Hz 1.0A max Physical • Dimensions: 360x115x199 mm (14.2x4.5x7.8 in) • Weight: 3.4 kg (7.5 lbs) Contents Specifications 3 What’s in the box 4 Overview 5 Controls 6 Remote control 7 Getting started 8 Common functions 12 System settings 15 Alarms, snooze and sleep 17 FM radio 18 DAB radio* 19 Internet radio 21 Bluetooth 23 Music player (network & USB) 25 DLNA media streaming 27 Spotify Connect 28 Line in audio inputs 29 Troubleshooting 29 Safety and regulatory information 30 Guarantee information 32 General care 32 * excludes US version Specifications RA R2x User guide.indd 331/03/2015 13:59:45 EN-4 Ensure that all the parts listed below are in the box. If any part is missing, do not use the R2. If purchased in the UK, contact us directly. If purchased outside the UK, please contact your Ruark Audio dealer. 1. R2 stereo 2. 100-240V to 14V power supply 3. Mains plug adapter(s)* 4. Remote control 5. Telescopic aerial 6. Aerial spanner 7. User guide If possible, please retain carton and all packing materials. * the number and type of plug adapters supplied will vary according to region. What’s in the box 1 4 3 6 5 7 2 RA R2x User guide.indd 431/03/2015 13:59:45 EN-5 EN DA DE FR IT ES NL NO 8. Controls 9. Display 10. (STANDBY) – press to power on or off the radio. 11. Audio input (3.5mm jack) 12. Headphone (3.5mm jack) 13. Full range 3.5” speaker 14. Audio input (stereo RCA/phono) 15. Aerial connector 16. Security slot 17. DC power socket (14V 2.0A) 18. USB (5W output) Overview 91313 1415 8 101112 161718 RA R2x User guide.indd 531/03/2015 13:59:45 EN-6 19. – press to play/pause a track or mute radio 20. CONTROL KNOB / SELECT Rotate to adjust volume from a Now-playing screen Rotate to browse menus, tracks or station lists* Press to select 21. – press to skip to next station or track 22. – press to skip to previous station or track 23. PRESET – press to recall a saved station or press and hold for two seconds to save a radio station 24. SOURCE – press to change audio source 25. ALARM/SLEEP – press once to set alarm 1, press twice to set alarm 2 or press and hold for two seconds to set sleep timer 26. MENU – press to view the menu 27. BACK – press to return to the previous menu or list screen 28. Indicator light – indicates your R2 is on and flashes when Bluetooth is ready to pair or when pressing a key on the remote. Controls 19 21 22 23 24 20 26 27 25 28 * You can also press or to browse menus, tracks or station lists How long you press a key is important Press = tap or press and immediately release Press and hold = press and release after two seconds RA R2x User guide.indd 631/03/2015 13:59:45 EN-7 EN DA DE FR IT ES NL NO 29. (STANDBY) – press to power on or off the radio 30. – Press to play/pause a track or mute radio 31. – press to skip to previous station/track/menu option 32. – press to skip to next station/track/menu option 33. BACK – press to return to the previous menu or list screen 34. SOURCE – press to change audio source 35. MENU – press to view the menu 36. VOL – press + or - to change the volume 37. SELECT – press to select (same as pressing the control knob) 38. PRESET – press to recall a saved station or press and hold for two seconds to save a radio station. Remote control Changing battery 1. Hold the lock to the side with your finger and slide the battery compartment out. 2. With the remote face down, replace the battery with a new CR2025, ensuring the flat side marked with + faces up. 3. Push the battery compartment back into place. NOTE: before using your remote for the first time you must remove the orange plastic tab (39) to activate the battery. 29 36 32 37 38 39 30 31 33 34 35 RA R2x User guide.indd 731/03/2015 13:59:45 EN-8 Getting started 1 5 3 2 4 RA R2x User guide.indd 831/03/2015 13:59:45 EN-9 EN DA DE FR IT ES NL NO 1. Fit aerial Connect the aerial to the socket on the back of your R2 and tighten the nut with the spanner. If you do not tighten the nut, the aerial may come lose when moving the aerial. Place your R2 on a suitable shelf or table and fully extend the aerial to ensure you get the best possible radio reception. 2. Fit the plug to the AC power adapter Fit the correct plug for your region to the mains power supply. When you fit the plug adapter, it will “click” into place. 3. Connect the DC cable Connect the DC cable from the power supply to the DC power socket (14V 2.0A) on the back of your R2. 4. Connect to AC mains Plug the AC…

Text truncated - open the document above for the full version.

IT-9 EN DA DE ES FR IT NL NO 1. Montaggio dell'antenna Collegare l'antenna alla presa sul retro del dispositivo R2 e serrare il dado con la chiave. Se non si serra il dado l'antenna potrebbe allentarsi quando la si muove. Sistemare il dispositivo R2 su un ripiano o un tavolo idoneo e allungare al massimo l'antenna in modo da ottenere una ricezione radio ottimale. 2. Collegamento della spina all'adattatore di alimentazione CA Utilizzare la spina giusta per la rete elettrica del proprio paese. Il corretto inserimento dell'adattatore è indicato da uno "scatto" in posizione. 3. Collegamento del cavo CC Collegare il cavo CC alla rete elettrica e alla presa di alimentazione CC (14 V 2,0 A) sul retro del dispositivo R2. 4. Collegamento alla rete CA Collegare l'adattatore di alimentazione CA alla presa elettrica di rete. 5. Accensione Premere per accendere la radio. 6. Wizard di impostazione Alla prima accensione del dispositivo R2, il wizard di impostazione si avvia automaticamente. Seguire la guida a video per configurare l'orologio e collegarsi alla rete Wi-Fi a disposizione. Per configurare un'impostazione, ruotare la MANOPOLA DI CONTROLLO fino a evidenziare l'opzione scelta e premere la manopola per selezionarla. Per avviare il wizard di impostazione, ruotare la MANOPOLA DI CONTROLLO per evidenziare YES quindi premere la manopola per selezionare. Selezionando NO, sarà possibile eseguire il wizard alla successiva accensione del dispositivo R2 che si avvia senza configurazione di data/ora e impostazioni di rete. 7. Formato orario Selezionare la visualizzazione dell'orologio a 12 o 24 ore. RA R2x User guide.indd 931/03/2015 13:59:57 IT-10 8. Aggiornamento automatico dell'orologio Selezionare l'aggiornamento automatico dell'orologio da DAB, FM o rete oppure quello manuale. Con l'aggiornamento automatico, data e ora si aggiorneranno a ogni utilizzo di tale sorgente, quindi si consiglia di selezionare una sorgente utilizzata regolarmente. Selezionando No update, la data e l'ora vengono visualizzate come dd-mm-yyyy e hh:mm AM/PM mentre il giorno lampeggia. Ruotare la MANOPOLA DI CONTROLLO per modificare il giorno e premere la manopola per salvarlo. A questo punto il mese lampeggerà, quindi impostarlo e proseguire fino a definire la data e l'ora. 9. Fuso orario Selezionare il fuso orario della propria regione. 10. Ora legale Selezionare l'aggiornamento automatico dell'orologio all'ora legale/solare. 11. Mantenimento della connessione Selezionare la connessione costante del dispositivo R2 al proprio Wi-Fi, anche in standby. Si consiglia di impostare la keep connected in modo da garantire l'accesso continuo del dispositivo R2 con Spotify o streaming musicale DLNA, anche in standby. Questa configurazione è raccomandata in caso di impostazione dell'aggiornamento dell'orologio dalla Rete. 12. Selezione dell'area Wi-Fi Selezionare l'area idonea alla propria posizione. 13. Selezione della rete Wi-Fi Selezionare una rete dall'elenco di reti wireless disponibili. Connessione a una rete aperta (non protetta) Se la rete è aperta, il dispositivo R2 si connetterà automaticamente. Connessione a una rete criptata standard Se la rete standard è criptata (protetta), sarà necessario inserire la password. Ruotare la MANOPOLA DI CONTROLLO per evidenziare un carattere e premere la manopola per salvarlo. Dopo RA R2x User guide.indd 1031/03/2015 13:59:57 IT-11 EN DA DE ES FR IT NL NO avere inserito la password completa, evidenziare OK e premere la manopola. Selezionare BKSP per cancellare l'ultimo carattere e CANCEL per tornare al menu precedente. Connessione ad una rete WPS criptata Se la rete è dotata di WPS (Wi-Fi Protected Setup), prima del nome comparirà l'identificativo [WPS] . È possibile connettersi utilizzando una password oppure premendo il pulsante WPS sul router o inserendo il PIN WPS. Per maggiori informazioni consultare la guida utente del router. In caso di connessione non riuscita del dispositivo R2 alla rete, il sistema torna alla videata precedente dove sarà possibile inserire nuovamente le impostazioni di sicurezza. Per maggiori indicazioni su come collegarsi alla rete consultare le istruzioni per l'uso del router. 14. Completamento dell’impostazione Completata l'impostazione, premere la MANOPOLA DI CONTROLLO per salvare le impostazioni e uscire dal wizard. 15. Selezione di una sorgente Al termine dell'impostazione iniziale, il dispositivo R2 visualizzerà un menu contenente un elenco delle sorgenti disponibili. Utilizzare la MANOPOLA DI CONTROLLO per scegliere una sorgente, quindi premere SELECT. Le impostazioni correnti salvate sono segnalate con un asterisco () RA R2x User guide.indd 1131/03/2015 13:59:57 IT-12 Funzioni comuni Accensione e passaggio in stand-by Premere STANDBY per accendere la radio. Premere nuovamente per passare in stand-by. Videate di riproduzione in corso La videata apparirà simile all'esempio riportato di seguito, tranne quando si regola un'impostazione. 42 41 40 40. Orologio 41. Informazioni sulla stazione/sul brano 42. Numero di preimpostazione Icone a video: 43. Sveglia 1 e 2 44. Timer di spegnimento 45. Riproduzione casuale 46. Ripetizione Videate dei menu I menu consentono di impostare le varie opzioni come ad esempio la regolazione bass e treble. Per modificare un'impostazione premere MENU per visualizzare un elenco delle opzioni disponibili, ruotare la MANOPOLA DI CONTROLLO per evidenziare quella da modificare e premere la manopola per confermare la selezione. 48 47 47. Titolo del menu 48. Opzioni del menu Scorrimento di menu, brani e stazioni Per modificare le impostazioni – premere MENU Per scorrere le opzioni – ruotare la MANOPOLA DI CONTROLLO Per selezionare un'opzione – premere la MANOPOLA DI CONTROLLO Per uscire dal menu – premere MENU oppure attendere alcuni secondi Per tornare al menu/all'elenco precedente – premere BACK 43 44 45 46 RA R2x User guide.indd 1231/03/2015 13:59:57 IT-13 EN DA DE ES FR IT NL NO Regolazione del volume Ruotare la MANOPOLA DI CONTROLLO da…

Text truncated - open the document above for the full version.

Report No.: 14C0116R-RFUSP01V00 Page : 1 of 23

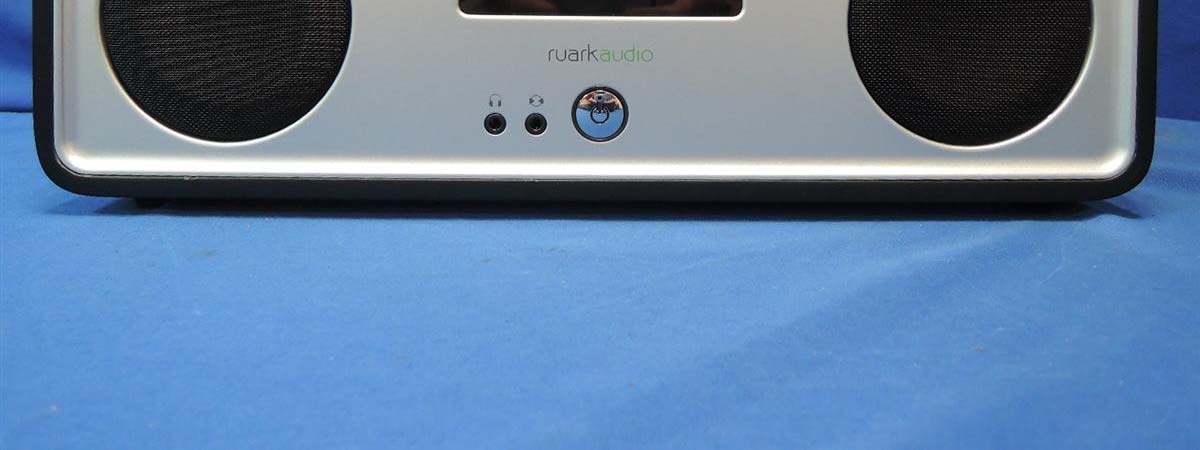

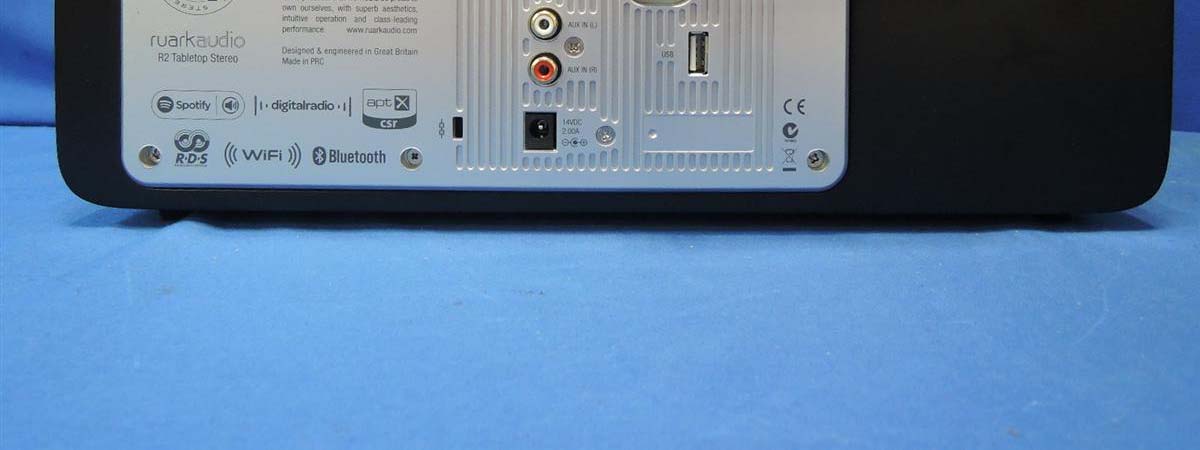

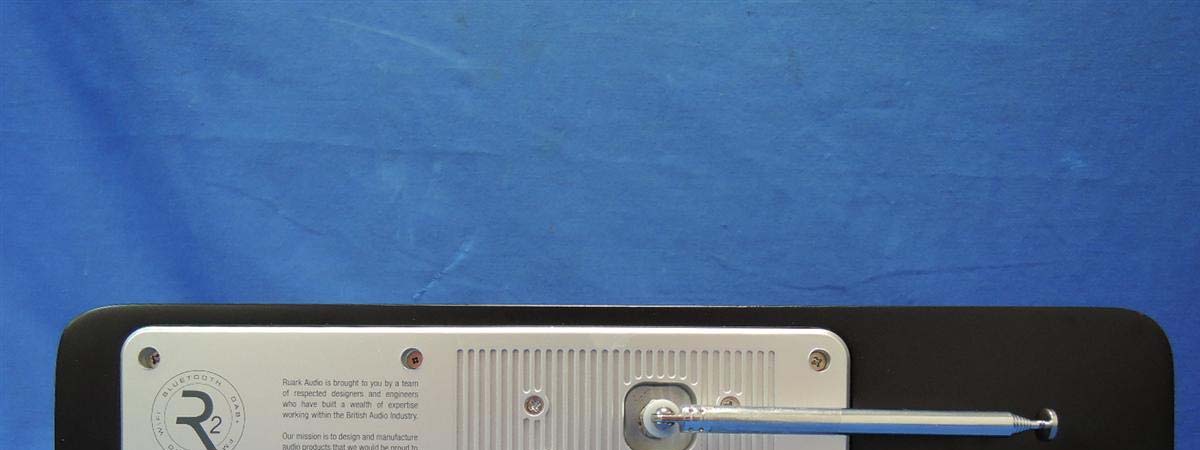

Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 2 of 23

(3) EUT Photo (4) EUT Photo

Meiloon Industrial Co., Ltd. FCC ID.: R48RKBTR2X No. 99, Xingfu Road, Taoyuan Dist., Taoyuan City 330, Taiwan Tel : +886-3-326-1611 FCC ID Label

Meiloon Industrial Co., Ltd. FCC ID.: R48RKBTR2X No. 99, Xingfu Road, Taoyuan Dist., Taoyuan City 330, Taiwan Tel : +886-3-326-1611 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 14C0116R-RFUSP01V00 Page : 3 of 23

(5) EUT Photo (6) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 4 of 23

(7) EUT Photo (8) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 5 of 23

(9) EUT Photo (10) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 6 of 23

(11) EUT Photo (12) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 7 of 23

(13) EUT Photo (14) EUT Photo Bluetooth antenna Report No.: 14C0116R-RFUSP01V00 Page : 8 of 23

(15) EUT Photo (16) EUT Photo(Bluetooth antenna) Report No.: 14C0116R-RFUSP01V00 Page : 9 of 23

(17) EUT Photo(Bluetooth antenna) (18) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 10 of 23

(19) EUT Photo (20) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 11 of 23

(21) EUT Photo (22) EUT Photo Bluetooth module Report No.: 14C0116R-RFUSP01V00 Page : 12 of 23

(23) EUT Photo (24) EUT Photo (Bluetooth module) Report No.: 14C0116R-RFUSP01V00 Page : 13 of 23

(25) EUT Photo(Bluetooth module) (26) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 14 of 23

(27) EUT Photo (28) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 15 of 23

(29) EUT Photo (30) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 16 of 23

(31) EUT Photo (32) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 17 of 23

(33) EUT Photo (34) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 18 of 23

(35) EUT Photo (36) EUT Photo(Wlan moudle & Wlan antenna) WLAN antenna WLAN Chip Report No.: 14C0116R-RFUSP01V00 Page : 19 of 23

(37) EUT Photo (38) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 20 of 23

(39) EUT Photo (40) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 21 of 23

(41) EUT Photo (42) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 22 of 23

(43) EUT Photo (44) EUT Photo Report No.: 14C0116R-RFUSP01V00 Page : 23 of 23

(45) EUT Photo (46) EUT Photo

Report No. 14C0116R-RFUSP01V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Tabletop Stereo Model No. R2 mk3 FCC ID R48RKBTR2X Applicant Meiloon Industrial Co., Ltd. Address No. 99, Xingfu Road, Taoyuan Dist., Taoyuan City 330, Taiwan Date of Receipt Dec. 01, 2015 Date of Declaration Aug. 17, 2015 Report No. 14C0116R-RFUSP01V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 14C0116R-RFUSP01V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 14C0116R-RFUSP01V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Tabletop Stereo Test Item : RF Exposure Evaluation Test Site : No.3 OATS RF Exposure_WiFi Operation Frequency Range 2412-2462MHz, 2422-2452MHz 5150-5250MHz, 5250-5350MHz 5470-5725MHz,5725-5825MHz Maximum Conducted output power 20dBm (100mW) Antenna gain 4dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 100 0.05 RF Exposure_Bluetooh Operation Frequency Range 2402-2480MHz Maximum Conducted output power 7.82dBm Antenna gain 1.45dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 6.0534 0.001682 Total Power Density Power Density (WiFi) (mW/cm 2 ) Power Density (Bluetooth) (mW/cm 2 ) Total Power Density (WiFi+Bluetooth) (mW/cm 2 ) Limit (mW/cm 2 ) 0.05 0.001682 0.051682 1 Note: The Formula of calculated the MPE is : CPD1/LPD1 + CPD2/LPD2+........etc.<1 CPD = Calculation power density LPD = Limit of power density

Report No.: 14C0116R-RFUSP01V00 Page: 1 of 61 FCC Test Report Product Name Tabletop Stereo Model No. R2 mk3 FCC ID. R48RKBTR2X Applicant Meiloon Industrial Co., Ltd. Address No. 99, Xingfu Road, Taoyuan Dist., Taoyuan City 330, Taiwan Date of Receipt Dec. 01, 2014 Issued Date Aug. 17, 2015 Report No. 14C0116R-RFUSP01V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 14C0116R-RFUSP01V00 Page: 2 of 61 Test Report Issued Date: Aug. 17, 2015 Report No.: 14C0116R-RFUSP01V00 Product Name Tabletop Stereo Applicant Meiloon Industrial Co., Ltd. Address No. 99, Xingfu Road, Taoyuan Dist., Taoyuan City 330, Taiwan Manufacturer RUARK ACOUSTICS/DISTRIBUTION LIMITED/RUARKAUDIO Model No. R2 mk3 FCC ID. R48RKBTR2X EUT Rated Voltage AC 100-240V, 50/60Hz EUT Test Voltage AC 120V/50Hz Trade Name RUARKAUDIO Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2014 ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Engineer / Nova Chu ) Approved By : ( Director / Vincent Lin ) Report No.: 14C0116R-RFUSP01V00 Page: 3 of 61 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 5 1.1. EUT Description ...................................................................................................................................... 5 1.2. Operational Description ........................................................................................................................... 7 1.3. Tested System Details .............................................................................................................................. 8 1.4. Configuration of Tested System .............................................................................................................. 8 1.5. EUT Exercise Software ........................................................................................................................... 8 1.6. Test Facility ............................................................................................................................................. 9 2. CONDUCTED EMISSION ................................................................................................................ 10 2.1. Test Equipment ...................................................................................................................................... 10 2.2. Test Setup .............................................................................................................................................. 10 2.3. Limits ..................................................................................................................................................... 11 2.4. Test Procedure ....................................................................................................................................... 11 2.5. Uncertainty ............................................................................................................................................ 11 2.6. Test Result of Conducted Emission ....................................................................................................... 12 3. PEAK POWER OUTPUT .................................................................................................................. 14 3.1. Test Equipment ...................................................................................................................................... 14 3.2. Test Setup .............................................................................................................................................. 14 3.3. Limit ..................................................................................................................................................... 14 3.4. Test Procedure ....................................................................................................................................... 14 3.5. Uncertainty ............................................................................................................................................ 14 3.6. Test Result of Peak Power Output ......................................................................................................... 15 4. RADIATED EMISSION ..................................................................................................................... 17 4.1. Test Equipment ...................................................................................................................................... 17 4.2. Test Setup .............................................................................................................................................. 17 4.3. Limits ..................................................................................................................................................... 18 4.4. Test Procedure ....................................................................................................................................... 19 4.5. Uncertainty ............................................................................................................................................ 19 4.6. Test Result of Radiated Emission .......................................................................................................... 20 5. RF ANTENNA CONDUCTED TEST ...............................................................................…

Text truncated - open the document above for the full version.

Report No.: 14C0116R-RFUSP01V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conduction Test Back View of Conduction Test Report No.: 14C0116R-RFUSP01V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 14C0116R-RFUSP01V00 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
