R48TVEEM25RXTVee Model 25

TVee ® Model 25 television entertainment enhancement system ’ 2 This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the foll owing two conditions: (1) this device may not cause interference, and (2) this device must ac cept any interference, including interference that may cause undesired operation of the device. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Introduction Thanks for choosing Boston Acoustics and selecting the TVee Model 25 as your home entertainment system. This manual includes important information on setting up and using your new system, as well as troubleshooting information in case you have any difficulties. Smart Features: • Easy one wire hookup & wireless subwoofer • Soundbar learns your existing remote control • Better movies, sports, and games • Better music with dedicated mode Additional Smart Features Include: • Boston-engineered with best-in-class performance • Simple and Functional design to fit with any TV • Digital input features Dolby Digital decoding for superior surround sound • Boston’s Digitally Optimized Virtual Surround processing for pinpoint, theater-like surround effects • Exclusive Boston DSP Control Switch to maximize performance based on soundbar placement • Rear-mounted mini-stereo AUX input to connect your portable media device Specifications System Power: 150 watts peak Soundbar Woofers: Dual 11/2” x 6” HHRT drivers Subwoofer: 6” FCCM woofer Wireless Technologies: 2.4 GHz frequency hopping (subwoofer) Dimensions: (H x W x D) Soundbar 4 7 /16 x 311/2 x 4 7 /16” (112 x 800 x 112mm) Subwoofer 91/2 x 101/2 x 10 15 /16” (241 x 266 x 277mm) Weight: Soundbar 5 lbs (2.3kg) Subwoofer 11.9 lbs (7.7kg) 3 Soundbar 5 1 2 6 7 8 11 12 13 14 15 16 17 Buttons located on front 3 4 9 10 WIRELESS ID 1 2 3 4 LOCATION TABLE WALL 18 19 20 1 IR Remote Receiver – Receives remote commands to control the system. 2 Music/Movie Mode Light – Lights in various colors to indicate which playing mode is operating. 3 Input Mode Light – Lights in various colors to indicate which input is playing. 4 Power/Remote Mode Light – Lights in various colors to indicate operating status. 5 Volume Up Button – Lets you manually adjust the volume of the TVee. 6 Volume Down Button – Lets you manually adjust the volume of the TVee. 7 Mute Button – Lets you temporarily mute TVee. 8 Music/Movie Button – Selects the style of sound you want to hear. Music mode is for music and Movie mode is for movies and television. 9 Input Button – Selects which input source is playing. 10 Power Button – Lets you manually activate TVee or put it in standby mode. 11 Wireless ID Switch – Selects the “channel” for the wireless subwoofer signal. Set 21 in the same position (see next page). 12 Location Switch – Use WALL for wall mounting or TABLE for placement on a shelf, cabinet, or table. 13 Trim Level – Adjusts the input sensitivity of TVee. 14 Aux In – Mini plug AUX INPUT for connecting to a audio source. 15 Analog Audio In – Receives analog audio inputs through the included Audio Connection Cable 20. 16 Power Input – Connect the power supply 18 here. 13 Power ON/OFF Switch – Turns the TVee soundbar on or off. Normally it is on all the time. 17 Optical Digital In – The preferred input for the TVee using the supplied Optical cable 19. 18 Power Supply – Provides power to the soundbar. Plug it into the wall and connect it to the power input 14. 19 Optical Digital Cable – Best choice for connecting digital audio sources to TVee. 20 Audio Connection Cable – Analog cable for connecting to an audio source. 4 Subwoofer TVee ® Model 25 21 WIRELESS ID 4 3 2 1 230V~ 50Hz 0.5A 22 VOLUME 23 24 25 230V~ 50Hz POWER 0.5A MIN MAX 21 Wireless ID Switch – Selects the “channel” for the wireless subwoofer signal. Set in the same position as 11 (see previous page). 22 Status Indicator – Lights green when the subwoofer is active and red when it is standby mode. 23 Volume – Adjusts the volume of the subwoofer for best balance with the soundbar. 24 Power On/Off Switch – Turns the TVee subwoofer on or off. Normally it is left on all the time. 25 Power Cord– Plug it into an AC outlet. Place Your System Decide on the location and position of the system before making any connections. Soundbar Location Place the soundbar on a table surface or shelf near the television, or wall-mount the soundbar above or below the television. Keyhole mounts on the rear of the soundbar permit wall mounting.* MUTE INPUT Wall-Mounting The TVee Model 25 soundbar can be wall-mounted using the integrated keyhole mounts. A mounting template can be found in the inner flap of the product carton. Using a level tool, position and tape the template to the wall in the desired location. The template is designed to allow enough room for the grille and keyhole mounts when the soundbar is mounted below a TV. Install hardware* using the template as a guide and then remove the mounting template from the wall. Connect your audio and power cables prior to mounting the soundbar on the wall. Place the grille on the soundbar after mounting. *Consult a person knowledgeable about your wall type to recommend suitable hardware for hanging the speaker. You can remove the rubber feet before hanging the speaker on the wall. Usually it is best to leave soundbar off the wall until connections are made. Set the rear panel LOCATION 12 switch to match how the soundbar is placed. Use WALL for wall mounting and TABLE for placement on a shelf, cabinet, or table. LOCATION TABLE WALL 5 Subwoofer Location Place the wireless subwoofer anywhere in the room. For the best sound, place the subwoofer near a wall or corner within 20 feet (6 meters) of the soundbar on the same side of the room as the soundbar. The wireless subwoofer range is 50 feet (15 meters). The subwoofer may be placed v…

Text truncated - open the document above for the full version.

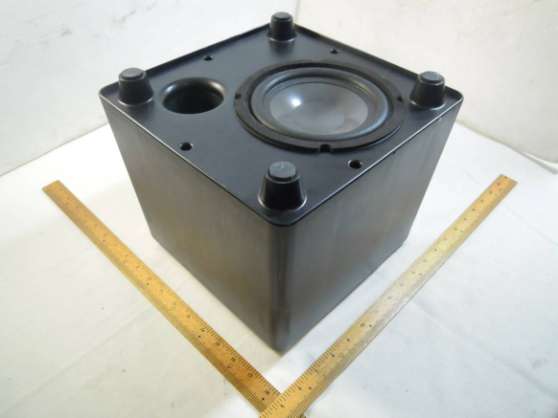

CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A10 Appendix A. Photographs of EUT

Label & Location Label Location

CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A4 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A5 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A6 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A7 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A8 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A9 of A10 CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued Date : Dec. 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A10 of A10

1.1. Test Result of RF Exposure Evaluation . Product: TVee Model 25 . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain Omi Dipole antenna, 1.53 dBi 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Test Date: Dec. 20, 2010 Temperature: 25°C Atmospheric pressure: 1020 hPa Humidity: 65% Modulation Standard Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) DSSS 01 2403 17.74 0.017 08 2438 17.52 0.016 16 2478 17.47 0.016 The MPE is calculated as 0.017mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2403-2478 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued date : Dec, 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 53 FCC TEST REPORT According to FCC Rules and Regulations Part 15 Subpart C, and Canada RSS-210 issue 8 Applicant : MEILOON INDUSTRIAL CO.,LTD. Address : No 77, Lane 1775, Chuen-Ryh RD, Taoyuan City,Taiwan Equipment : TVee Model 25 Model No. : TVEEM25B-01201 FCC ID : R48TVEEM25RX IC ID : 7190A-TVEEM25 Laboratory Accreditation  The test result refers exclusively to the test presented test model / sample.,  Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full.  The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued date : Dec, 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 53 Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 6 2.3 Test Mode and Test Software ..................................................................................................... 6 2.4 Description of Test System ......................................................................................................... 7 2.5 Connection Diagram of Test System .......................................................................................... 7 2.6 General Information of Test ........................................................................................................ 8 2.7 Measurement Uncertainty .......................................................................................................... 8 2.8 History of this test report ............................................................................................................ 9 3. Antenna Requirements ..................................................................................................................... 10 3.1 Standard Applicable ................................................................................................................. 10 3.2 Antenna Construction and Directional Gain ............................................................................. 10 4. Test of Conducted Emission ............................................................................................................ 11 4.1 Test Limit .................................................................................................................................. 11 4.2 Test Procedures ....................................................................................................................... 11 4.3 Typical Test Setup .................................................................................................................... 12 4.4 Measurement Equipment ......................................................................................................... 12 4.5 Test Result and Data ................................................................................................................ 13 4.6 Test Photographs ..................................................................................................................... 15 5. Test of Radiated Emission ............................................................................................................... 16 5.1 Test Limit .................................................................................................................................. 16 5.2 Test Procedures ....................................................................................................................... 16 5.3 Typical Test Setup .................................................................................................................... 17 5.4 Measurement Equipment ......................................................................................................... 17 5.5 Test Result and Data ................................................................................................................ 18 5.6 Test Photographs ..................................................................................................................... 38 6. 6dB Bandwidth Measurement Data ................................................................................................. 39 6.1 Test Limit .................................................................................................................................. 39 6.2 Test Procedures ....................................................................................................................... 39 6.3 Test Setup Layout .................................................................................................................... 39 6.4 Measurement Equipment ......................................................................................................... 39 6.5 Test Result and Data ................................................................................................................ 39 7. Maximum Peak Output Power ......................................................................................................... 43 7.1 Test…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued date : Dec, 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 15 of 53 4.6 Test Photographs Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1011164-A Cerpass Technology Corp. Issued date : Dec, 29, 2010 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 38 of 53 5.6 Test Photographs Front View Rear View

Test set up photo above 1GHz Subwoofer: Front View Rear View
