Wireless Proximity Switches Technical Description V6 Input Module WDI100 Input module WDI100 Technical Description V 6 2 WDI100Wireless Proximity Switches / Issue: 05.2004 FCC Compliance This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1)this device my not cause harmful interference, and 2)this device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications made to this equipment not expressly approved by ABB STOTZ-KONTAKT GmbH may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:




Reorient or relocate the receiving antenna.




Increase the separation between the equipment and receiver.




Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.




Consult the dealer or an experienced radio/TV technician for help. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WDI100 3 Input module WDI100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 WDI100:120 digital inputs for wireless position sensors 120 valid messages for wireless position sensors ContentsPage FCC Compliance..................................................................................................... 2 Purpose and short description............................................................................... 4 Indicators and operating elements on the front plate ............................................ 4 Technical data.......................................................................................................... 5 Ordering data................................................................................................ 5 Mechanical dimensions............................................................................... 6 Fig. 1: WDI100 2CDC351001F0003.EPS 4 WDI100 Input module WDI100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 ESC OK ANT1 ANT2 Purpose and short description One single input module is able to transmit the information of up to 120 wireless position sensors to the machine control. The input module receives the sensor signals via two antennas and then transmits them to the machine control via a field bus. Communication is performed within the 2.4 GHz band according to the ETS 300 328 standard. The reliability of data transmission is guaranteed by the use of frequency hopping with different frequency sequences. The input module expects to receive a functional state message of each assigned sensor every 500 ms. This way the input module monitors the correct operation of the sensors and is able to detect malfunctions immediately, if no functional state message is received any longer. Furthermore, the input module provides configuration and diagnosis functions for wireless position sensors. Indicators and operating elements on the front plate Fig. 2 shows the indicators and operating elements on the front plate. Fig. 2: WDI100, indicators and operating elements on the front plate 2 coaxial sockets: Connection of antenna cables 1 socket: Interface to ABB FieldBusPlug 1 set of terminal screws: 24 V DC supply Operating display: - LCD display, two lines of 16 characters each - 4 foil switches 2CDC352036F0003.EPS WDI100 5 Input module WDI100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 Technical data Number of inputs120 digital inputs for wireless position sensors 120 status messages for wireless position sensors Frequency band (communication)2.4 GHz ISM band acc. to ETSI standard ETS 300 328 Frequency / antenna alternationFrequency hopping with different frequency sequences Alternation between transmitting and receiving antenna Error rate (per input)10 -9 Latency (99.9 %) (per input)20 ms (max. 34 ms) until the signal is available on the fieldbus Range of transmission (of the antenna)5 m Max. number of input modules per manufacturing cell3 Operating display- LCD display, two lines of 16 characters each - 4 foil switches Electrical connections- 2 coaxial sockets:Connection of the WAT100 antennas - 1 socket:Interface to ABB FieldBusPlug - 1 set of terminal screws: 24 V DC supply Degree of protection acc. to IEC 60529IP 20 Supply voltage24 V DC (+20 %, -15 %) Power consumption15 W max. Operating temperature0 ... +50 ∞C Storage temperature-25 ... +70 ∞C Permissible humidity during operation+50 ... +95 %, non-condensing Permissible shock and vibration stress according to EN 61131-2Shock b < 15 g, T < 11 ms Frequency range 10 < f < 150 Hz, < 1g Mounting-DIN rail according to DIN EN 50022 - width: 35 mm - height: 15 mm - Mounting holes for screws of up to 4 mm diameter Weight410 g Ordering data TypeDesignationOrdering number WDI100-120FBPInput module for wireless position sensors with FBP connection1SAF900300R…

Text truncated - open the document above for the full version.

Wireless Proximity Switches Technical Description V6 Antenna WAT100 WAT100 3 Antenna WAT100 Technical Description Wireless Proximity Switches / Issue: 02.2004 V 6 WAT100:Antenna for input module ContentsPage Purpose and short description................................................................................ 4 Technical data.......................................................................................................... 4 Ordering data................................................................................................ 5 Installing Instructions.................................................................................... 6 Fig. 1: WAT100 2CDC351002F0003.EPS 4 WAT100 Antenna WAT100 Technical Description Wireless Proximity Switches / Issue: 02.2004 V 6 Technical data WAT100-R, WAT100-L Frequency range2.3 ... 2.5 GHz Polarization WAT100-Rcircular left polarized WAT100-Lcircular right polarized Gain8.5 dBi 3 dB beamwidth, horizontal70° 3 dB beamwidth, vertical65° Max. power75 W (CW) at 25 °C Impedance50 Ω Operating temperature-40 °C ... +80 °C Storage temperature-40 °C ... +80 °C Degree of protection according to IEC 60529IP54 Housing material Antenna backASA and aluminium, colour: RAL 7042 (dark-gray) Antenna bodyASA, colour: RAL 7035 (light-gray) Dimensions (width x height x depth)101 mm x 95 mm x 32 mm Weight100 g ConnectionSMA female WAC100-N03, WAC100-N05 Cable constructionMaterial Diameter Inner conductorCuAg1.00 mm DielectricSPEX3.00 mm 1. outer conductorCuAg network3.60 mm 2. outer conductorCuAg network4.15 mm cable sheathRADOX 125, colour: RAL 9005 (black)4.95 mm Impedance50 Ω +/-2 Ω Capacity95.0 pF/m Signal delay4.75 ns/m Min. shielding> 81 dB (up to 3 GHz) Isolation resistance> 10,000 MΩ/m Materialaluminium, steel Purpose and short description The WAT100 antenna transmits and receives the signals exchanged between the input module and the wireless proximity switches. For each input module, two antennas with different polarization (WAT100-R and WAT100-L) are connected. The connection is made by one antenna cable each (WAC100-N03 or WAC100-N05). For the wall and mast assembly of the antenna there is the antenna support (WAM100-N), which permits a swivelling of the antenna for accurate adjustment also after the assembly. WAT100 5 Antenna WAT100 Technical Description Wireless Proximity Switches / Issue: 02.2004 V 6 Ordering data TypeDesignationOrdering number WAT100-RAntenna for input module, right-handed circular polarization1SAF900600R0001 EAN number4013614365935 WAT100-LAntenna for input module, left-handed circular polarization1SAF900600R0002 EAN number4013614365966 Accessories WAC100-N03Antenna cable, 3 m, male SMA connection on both sides1SAF900600R1030 EAN number4013614365973 WAC100-N05Antenna cable, 5m, male SMA connection on both sides1SAF900600R1050 EAN number4013614365980 WAM100-NAntenna holder for wall and mast mounting1SFA900900R0001 EAN number4013614365997 Technical data WAC100-N03, WAC100-N05 (continuation) Operating temperature-40 °C ... +105 °C Storage temperature-40 °C ... +105 °C Min. bending radiusstatic: 20 mm; repeated bending: 40 mm Halogen-freeYes, according to IEC 60754 Flame protectionaccording to IEC 60332-2; UL 1581 - §1100 Length WAC100-N033 m WAC100-N055 m Weight WAC100-N03370 g WAC100-N05600 g ConnectionSMA male both sides WAM100-N Weight95 g Materialaluminium, steel 84002168a deMontageanweisungWAT 100 enInstalling Instructions frNotice de montage itIstuzioni di montaggio esInstrucciones de montaje svIstallation och skötsel ABB STOTZ-KONTAKT GmbH Postfach 10 16 80, D – 69006 Heidelberg Telefon (06221)701-1444 Telefax (06221)701-1382 Internet: http://www.abb.de/stotz-kontakt [email protected] deWARNUNG!frAVERTISSEMENT!esADVERTENCIA! Vorsicht bei Arbeiten in der Höhe!Faire attention lors de travail en hauteur!Tenga cuidado al trabajar a ciertas Leitern immer absichern!Toujours fixer les échelles!alturas! Schrauben immer fest anziehen!Serrer correctement les vis de fixation!Asegure siempre la escalera! Lüftungsschlitze nie verschliessen!Ne pas obturer les ouies de ventilation!Apriete bien todos los tornillos! Nunca cierre los huecos para drenaje! en WARNING!itAVVERTENZE!svVARNING! Be careful when working at height!Attenzione durante i lavori quandoVar aktsam vid arbete i hög höjd! Always secure ladders!sospesi da terra!Säkra alltid stegen! Always tighten screws!Scale sempre in posizione sicura!Dra åt åt alla skruvar! Never close the drainage holes!Viti sempre correttamente serrate!Täpp aldrig igen dräneringshålen! Mai chiudere le feritoie drenaggio aria! 2CDC142013M5501 WAM100-N WAM100-N 56 Nr. 2 ø 6 mm ø 0,24 inch 30 mm 1,2 inch ABB STOTZ-KONTAKT GmbH Eppelheimer Straße 82Postfach 101680 69123 Heidelberg69006 Heidelberg GermanyGermany Telephone+49 6221 701-0 Telefax+49 6221 701-240 [email protected] Internethttp://www.abb.de/stotz-kontakt Manual No.: 2CDC 142 007 D0203

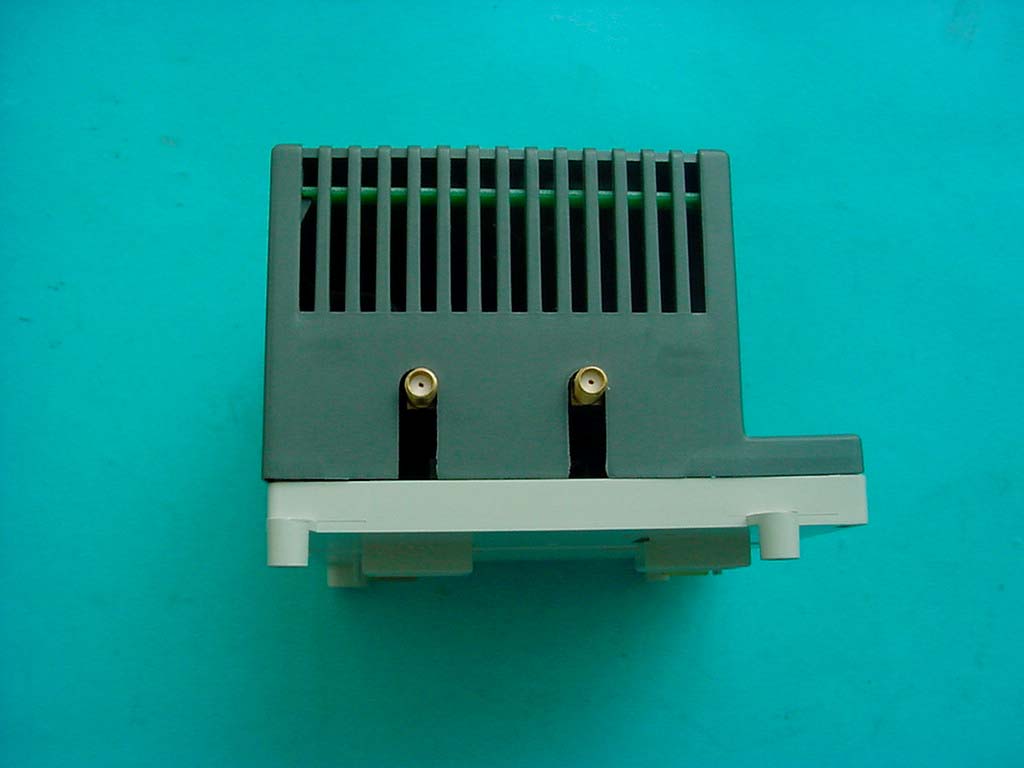

CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 62 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 63 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 64 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 69 (69) PHOTOGRAPH OF THE EQUIPMENT Antenna

CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 65 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 66 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 67 (69) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01Page 68 (69) PHOTOGRAPH OF THE EQUIPMENT

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 69 PagesPage 1 (69) Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2-3606-01-01/04 FCC Part 15.247 / CANADA RSS-210 WDI 100 FCC ID: R4T-WDI100 IC: 5082A-WDI100 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01 Page 2 (69) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01 Page 3 (69) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-06-07RSC8414H. Ames DateSectionNameSignature Technical Responsibility for Area of Testing: 2004-06-07RSC8411M.Berg DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01 Page 4 (69) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 081/94-D0 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : ABB Stotz-Kontakt GmbH Street : Eppelheimer Strasse 82 City : D-69123 Heidelberg Country : Germany Telephone : +49(0)6221 701 1287 Telefax : +49(0)6221 701 1344 Contact : Mr. Alexander Bock Telephone : +49(0) 6221 701 1287 E-mail: [email protected] 1.4 Application Details Date of receipt of application : 2004-05-04 Date of receipt of test item : 2004-05-04 Date of test : 2004-05-04 to 2004-05-06 CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01 Page 5 (69) 1.5 Test Item Type of equipment : FHSS Transceiver Type designation: WDI 100 Manufacturer: ABB Stotz-Kontakt GmbH Street: Eppelheimer Strasse 82 City: D-69123 Heidelberg Country: Germany Serial number: FCC – ID: R4T-WDI100 IC : 5082A-WDI100 Hardware: Software : Additional information : Frequency: 2400– 2483.5 MHz ISM-band Type of modulation: 1M00FXD / 77M0FXD (FHSS) (2402 – 2478) Number of channels : 77 Antenna: External patch antennas Power supply: 24V DC or via 110VAC external power supply Output power: EIRP: 3.05 mW (worst case); conducted : 1.57 mW Field strength: max. 98.1 dBμV/m in 3m Occupied bandwidth: 991.983 kHz Transmitter spurious : 335 μV/m in 3m ; conducted : -29.9 dBm Receiver spurious. 371.5 dBμV/m in 3m Temperature range: -20°C - +50°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2004-06-01 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 (August 2003) CANADA RSS-210 (Issue 5) CETECOM ICT Services GmbH Test Report No.: 2-3606-01-01/04Issue Date: 2004-06-01 Page 6 (69) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non-conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4- 1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurements are done in accor…
