R4T-WSIX100FHSS Transceiver

Wireless Proximity Switches Technical Description V6 Communication Module WSIX100 WSIX100 1SAF900100R3000 WSIX 100 Communication Module WSIX100 Technical Description V 6 2 WSIX100Wireless Proximity Switches / Issue: 05.2004 FCC Compliance This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1)this device my not cause harmful interference, and 2)this device must accept any interference received, including interference that may cause undesired operation. Warning:Changes or modifications made to this equipment not expressly approved by ABB STOTZ-KONTAKT GmbH may void the FCC authorization to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:




Reorient or relocate the receiving antenna.




Increase the separation between the equipment and receiver.




Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.




Consult the dealer or an experienced radio/TV technician for help. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. WSIX100 3 Communication Module WSIX100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 WSIX100:1 foil-switch for configuration and diagnosis 2 LEDs for operation and diagnosis ContentsPage FCC Compliance...................................................................................................... 2 Purpose and short description................................................................................ 4 Indicators and operating elements on the front plate............................................. 4 Side view of WSIX100............................................................................................. 5 Technical data.......................................................................................................... 6 Ordering data................................................................................................ 6 Mechanical dimensions............................................................................... 7 Fig. 1:WSIX100 WSIX100 1SAF900100R3000 WSIX 100 WSIX 100_3.EPS 4 WSIX100 Communication Module WSIX100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 WSIX 100 Purpose and short description The communication module is connected to the head of an inductive sensor in the same way as a conventional sensor plug. The communication module is identical for all types of sensor heads. The energy required for the sensor operation and the wireless communication with the input module is supplied to the communication module by an electromagnetic field. Indicators and operating elements on the front plate Fig. 2 shows the indicators and operating elements on the front plate. Fig. 2: WSIX100, indicators and operating elements on the front plate foil-switch for configuration and diagnosis Front label to write down the address of the wireless proximity switch specified by the customer Yellow LED, indicates detection of an object Green LED, provides diagnosis information if the foil-switch is pressed WSIX 100_1.EPS WSIX100 5 Communication Module WSIX100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 WSIX 100 1SAF900100R3000 Side view of WSIX100 Fig. 3 shows the side view of the WSIX100. Fig. 3: WSIX100, side view M12 plug with sleeve nut for screwing the WSIX100 onto a sensor head. Type plate incl. ordering number of the WSIX100 WSIX 100_2.EPS 6 WSIX100 Communication Module WSIX100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 Technical data Switching frequency2.5 Hz Latency (99.9 %)20 ms (max. 34 ms) until the signal is available on the fieldbus Switching state indicationLED, yellow Diagnosis indicationLED, green Operation1 foil-switch Operating temperature-25 ... +55 ∞C Storage temperature-40 ... +70 ∞C Permissible shock and vibration stressShock b ≤ 30g, T ≤ 11 ms Degree of protection acc. to IEC 60529IP 67 EMC compatibilityEN 60 947-5-2 ConnectionM12 appliance socket with sleeve nut for sensor heads for wireless proximity switches Material of housingBergamit A700 (PA6.6 not reinforced) Frequency of energy supply120 kHz Frequency band (communication)2.4 GHz ISM band according to ETSI standard ETS 300 328 Max. number of communication modules within one manufacturing cell (3x3x3 m 3 )360 Maximum speed10 m/s Error rate10 -9 Range of transmission for communication 5 m Frequency alternationFrequency hopping Address storageAddresses cannot be lost Weight125 g Ordering data TypeDesignationOrdering number WSIX100-B50NCommunication module for wireless proximity switches1SAF900100R3000 EAN number4013614365898 WSIX100 7 Communication Module WSIX100 Technical Description Wireless Proximity Switches / Issue: 05.2004 V 6 Fig. 4: WSIX100, mechanical dimensions All dimensions in mm. Mechanical dimensions 46 58 15,5 31 20 WSIX 100 31 53 WSIX 1…

Text truncated - open the document above for the full version.

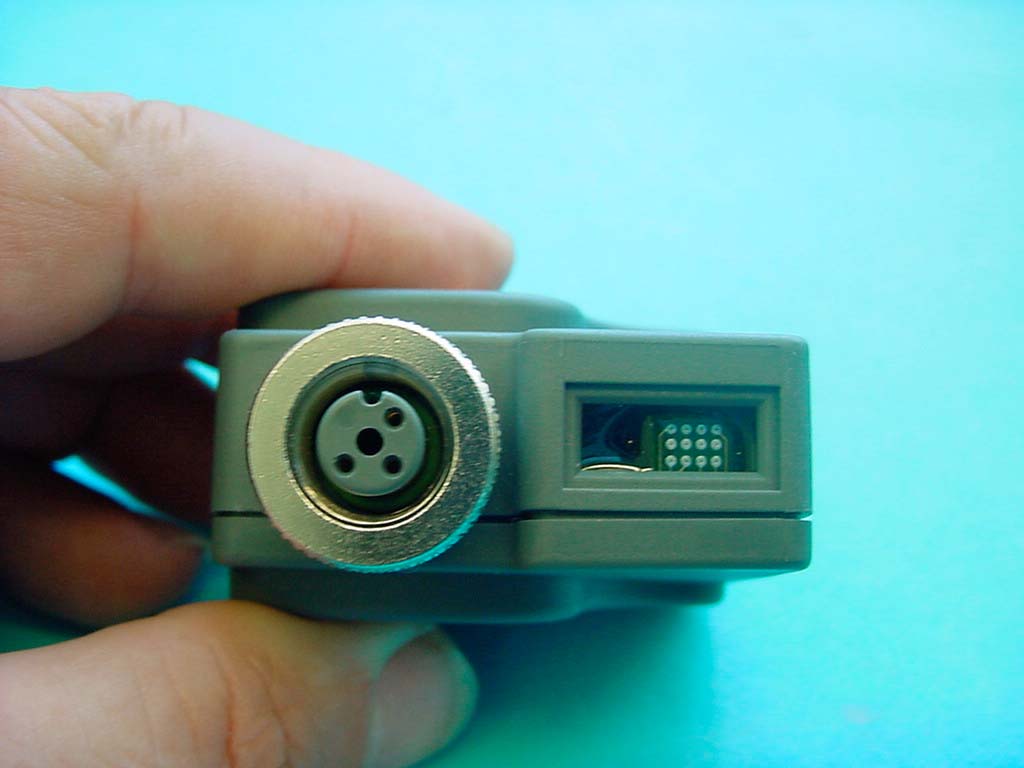

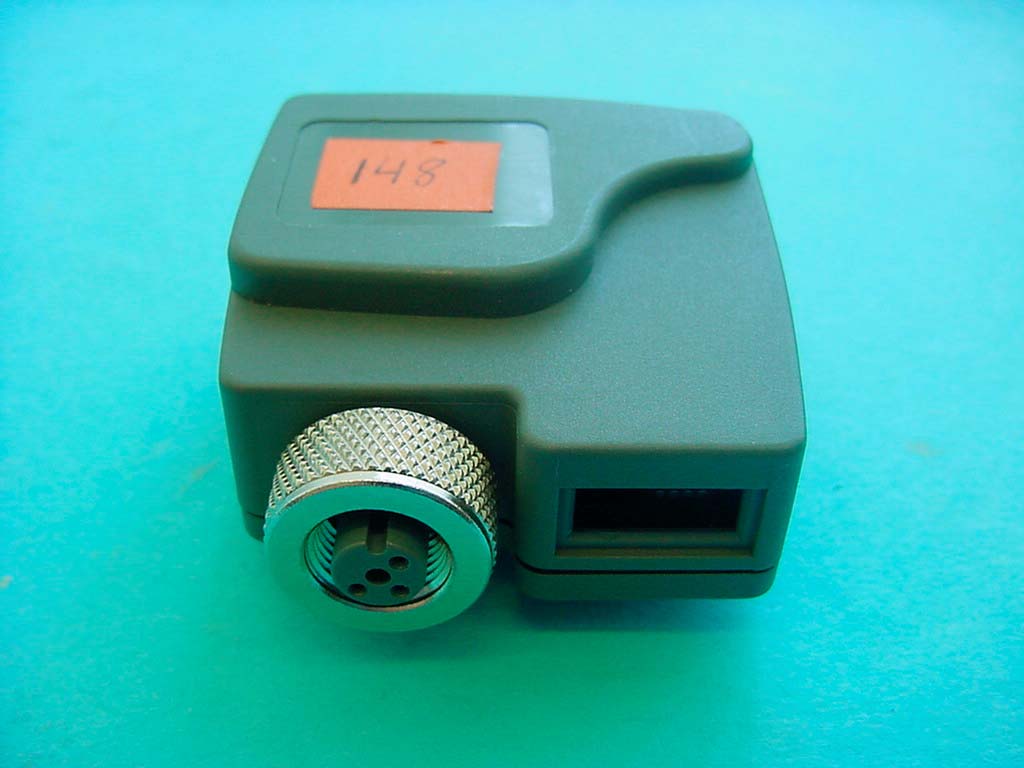

CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 54 (57) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 55 (57) PHOTOGRAPH OF THE EQUIPMENT CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 56 (57) PHOTOGRAPH OF THE EQUIPMENT

CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 57 (57) PHOTOGRAPH OF THE EQUIPMENT

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 57 PagesPage 1 (57) Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2-3606-01-02/04 FCC Part 15.247 / CANADA RSS-210 WSIX 100 FCC ID: R4T-WSIX100 IC: 5082A-WSIX100 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03 Page 2 (57) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03 Page 3 (57) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-06-07RSC8414H. Ames DateSectionNameSignature Technical Responsibility for Area of Testing: 2004-06-07RSC8411M.Berg DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03 Page 4 (57) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 081/94-D0 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : ABB Stotz-Kontakt GmbH Street : Eppelheimer Strasse 82 City : D-69123 Heidelberg Country : Germany Telephone : +49(0)6221 701 1287 Telefax : +49(0)6221 701 1344 Contact : Mr. Alexander Bock Telephone : +49(0) 6221 701 1287 E-mail: [email protected] 1.4 Application Details Date of receipt of application : 2004-05-04 Date of receipt of test item : 2004-05-04 Date of test : 2004-05-04 to 2004-05-06 CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03 Page 5 (57) 1.5 Test Item Type of equipment : FHSS Transceiver Type designation: WSIX 100 Manufacturer: ABB Stotz-Kontakt GmbH Street: Eppelheimer Strasse 82 City: D-69123 Heidelberg Country: Germany Serial number: FCC – ID: R4T-WSIX100 IC : 5082A-WSIX100 Hardware: Software : Additional information : Frequency: 2400– 2483.5 MHz ISM-band Type of modulation: 1M00FXD / 77M0FXD (FHSS) (2402 – 2478 MHz) Number of channels : 77 Antenna: Internal antenna Power supply: Powered by the energy of a external produced RF field at 120 kHz. For test purposes we used 3V DC via external power supply Output power: EIRP: 1.64 mW (worst case); conducted : 1.11 mW Field strength: max. 95.9 dBμV/m in 3m Occupied bandwidth: 667.335 kHz Transmitter spurious : 118.8 μV/m in 3m ; conducted : -.- dBm Receiver spurious. .- . - dBμV/m in 3m Temperature range: -20°C - +50°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2004-06-01 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 (August 2003) CANADA RSS-210 (Issue 5) CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03 Page 6 (57) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non-conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4- 1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 52 (57) Test setup Radiated Emissions CETECOM ICT Services GmbH Test Report No.: 2-3606-01-02/04Issue Date: 2004-06-03Page 53 (57) PHOTOGRAPH OF THE EQUIPMENT
