R5Y-EZWFDI01802.11b/g WLAN PCI Card

Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 1 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS Introduction The EAZIX EZWFDI01 is a wireless LAN adapter with PCI interface for Desktop computers. It conforms to the IEEE 802.11g protocol and is backward-compatible with any installed 802.11b WLAN access point. It operates at 2.4 GHz and provides data rates of up to 54 Mbps for today’s high-bandwidth applications. The EZWFDI01 Network Interface Card (NIC) is based on the Globespan Virata PRISM Lance chipset. Features: ∑ IEEE 802.11b/g compliant ∑ PCI host interface ∑ Frequency range: 2412 MHz to 2484 MHz ∑ 64-, 128-bit WEP encryptions ∑ Data rates: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps ∑ Modulation techniques: OFDM with BPSK, QPSK, 16QAM, 64QAM; DBPSK, DQPSK, CCK ∑ Driver support for Microsoft Windows 98SE/ME/NT4/2000/XP 1 Installation Procedure 1.1 Installing the card into the host computer 1.1.1 Turn the host computer off, insert the WLAN card into the PCI slot, turn on the computer and start the Windows operating system (Windows XP preferred). 1.2 Installing the software drivers 1.2.1 When Windows detects new hardware and asks for drivers, point to the directory where the Globespan Virata (GSV) driver is located (SingleSource_Windows_Driver_Package_2.1.15.0) and look for the appropriate driver. 1.2.2 Run setup.exe within the PRISM_Basic_Options_Package_1.0.9.83 folder to install the utility and settings window. 1.2.3 Restart Windows. 2 Using the Settings window 2.1 The device should appear in the Device Manager list (Figure 2.1) when the card is inserted Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 2 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS Figure 2.1 Device Manager 2.2 The GSV WLAN icon will appear in the system tray at the bottom right of the screen (Figure 2.2) Figure 2.2 GSV icon Notes: The device name in the Device Manager list may not exactly appear as in Figure 2.1. The number after PRISM 802.11a/g Adapter (3886) # depends on the association of the driver with the device. Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 3 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS The GSV icon may not immediately appear as in Figure 2.2. It may show up as colored red or with a red X over it, if the device and software are not yet properly configured. Reminders: The Network Connection icon will appear in the system tray at the bottom right of the screen if the “Show icon in notification area when connected” option is checked in the General tab of the Wireless Network Connection Properties window (Figure 2.3) (Start -> Control Panel -> Network Connections -> Wireless Network Connection -> Properties -> General tab) Figure 2.3 The complete tabs of the GSV WLAN settings window will be shown if the “Use Windows to configure my wireless network settings” option is unchecked in the Wireless Networks tab of the Wireless Network Connection Properties window (Figure 2.4) Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 4 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS (Network Connection icon -> Properties -> Wireless Networks tab) Figure 2.4 2.3 Double-click the GSV icon to open the WLAN settings window (Figure 2.5) Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 5 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS Figure 2.5 WLAN Settings window 2.4 Click on the Status tab to display the connection status: State, Current Tx Rate, Current Channel, Tx and Rx Throughput, Link Quality and Signal Strength (Figure 2.5) Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 6 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS 2.5 Click on the Configuration tab and place the required settings (Figure 2.6) 2.5.1 Type the Network Name 2.5.2 Select the Network Type: Access Point or Peer-to-Peer 2.5.3 Save the Profile for later use Figure 2.6 Configuration tab Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 Document #: R.EZWFDI01.HW13.01 Title: EZWFDI01 User Manual Page #: 7 of 18 COMPANY CONFIDENTIAL INFORMATION Copyright © 2004 Eazix, Inc. All rights reserved. Uncontrolled and unofficial unless directly viewed from Eazix eDMS 2.6 Click on the WEP tab and fill out with the necessary settings (Figure 2.7) 2.6.1 Select the required Encryption (WEP security) type: Disabled, 64 bit, 128 bit 2.6.2 Create encryption Keys, if needed 2.6.3 Select which WEP Key to use when trying to connect Figure 2.7 WEP tab Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest …

Text truncated - open the document above for the full version.

Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 To Whom It May Concern: Please be advised that EAZIX, Inc. authorizes PC Test Lab to act on our behalf, until otherwise notified, for applications submitted to the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Arnel G. Lampa Senior Division Manager Eazix, Inc. Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 October 14, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: EAZIX, Inc. FCC ID: R5Y-EZWFDI01 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, EAZIX, Inc. hereby requests confidentiality of the Block Diagrams, Circuit Diagrams, Circuit Description, Parts List, and Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product, which EAZIX, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, EAZIX, Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Arnel G. Lampa Senior Division Manager EAZIX, Inc. Eazix, Inc. Unit 301 Plaz@ B, 6530 Northgate Avenue, Filinvest Corporate City, Alabang, Muntinlupa City, Philippines 1700 October 14, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: EAZIX, Inc. FCC ID: R5Y-EZWFDI01 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, EAZIX, Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which EAZIX, Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, EAZIX, Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Arnel G. Lampa Senior Division Manager EAZIX, Inc.

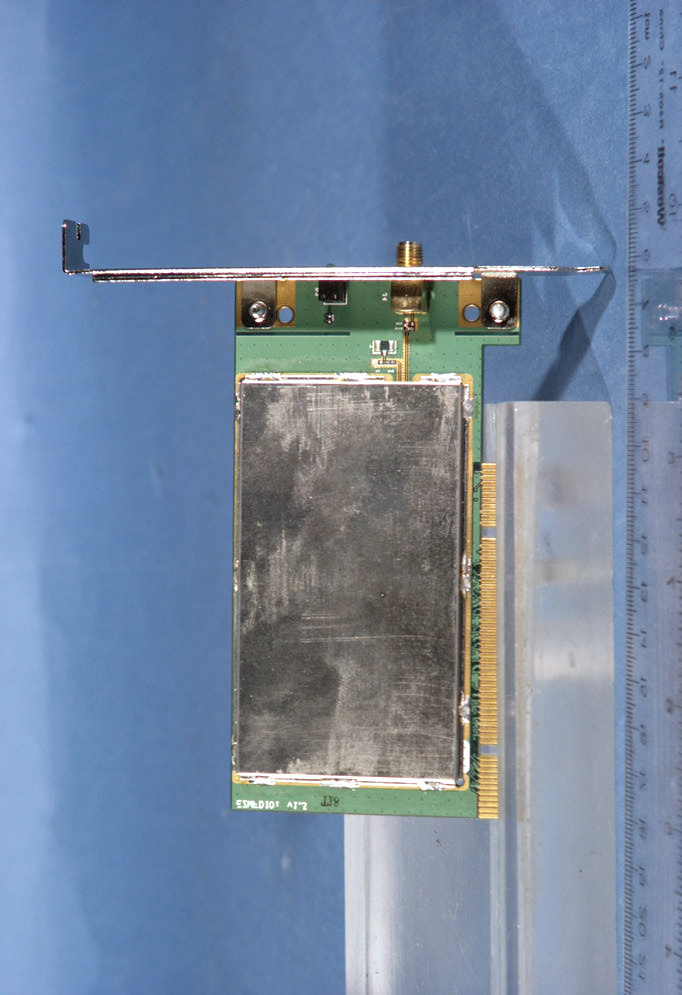

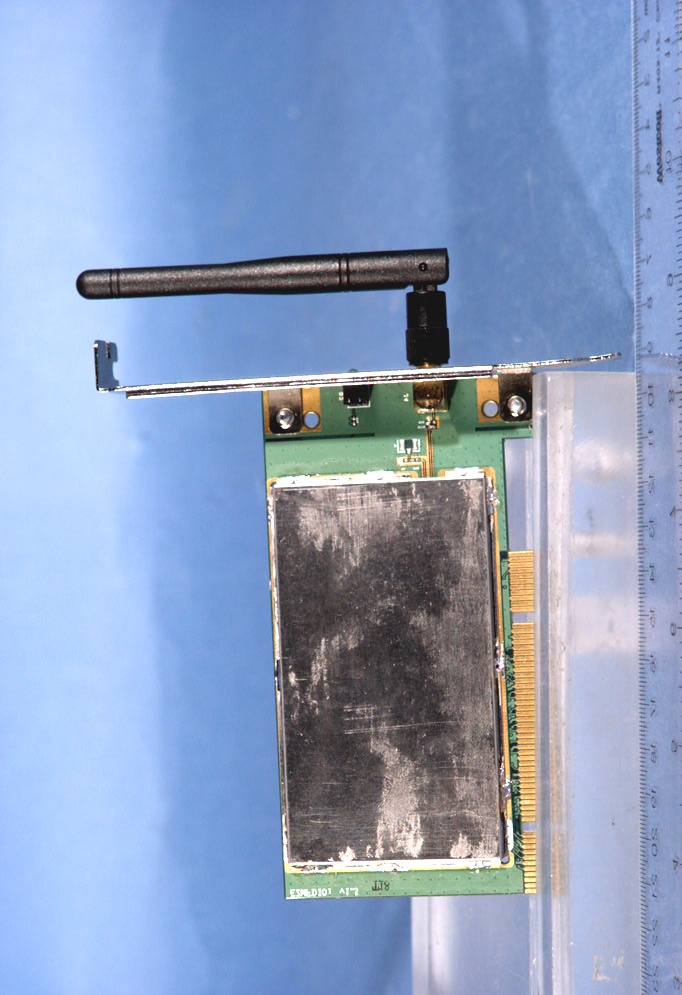

EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01

Spread Spectrum Transceiver (DSS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15.241005576.R5Y Test Dates: October 5, 2004 EUT Type: 802.11 b/g WLAN PCI Card FCC ID: R5Y-EZWFDI01 Page 41 of 48 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19; Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Spread Spectrum Transceiver (DSS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15.241005576.R5Y Test Dates: October 5, 2004 EUT Type: 802.11 b/g WLAN PCI Card FCC ID: R5Y-EZWFDI01 Page 42 of 48 © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label

EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01

PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 241005577.R5Y TEST DATES: October 5, 2004 EUT TYPE: WLAN PCI Card FCC ID: R5Y-EZWFDI01 PAGE 1 OF 2 © 2004 PCTEST Engineering Laboratory, Inc. RF Exposure Evaluation - Maximum Permissible Exposure (MPE) 1. Introduction This document attempts to prove the safety of radiation generated by RF devices to the human body. The limit for Maximum Permissible Exposure (MPE), specified in FCC 1.1210, is listed below. The power generated by this product is measured by a power meter. Through use of the Friis transmission formula and the maximum gain of the antenna, the distance from the product at which compliance with the MPE limit is achieved may be calculated. Alternatively, near field measurements may be performed to demonstrate compliance at a specific measurement distance. Near field probe: Wandel & Goltermann EMR-20. 2. RF Exposure Limit According to FCC 1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures 30-300 61.4 .163 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B) Limits For General Population / Uncontrolled Exposure 30-300 27.5 .073 .2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. Friis Formula Friis transmission formula: Pd = (P out *G) / (4pr 2 ) Where: Pd = power density in mW/cm 2 (MPE limit) P out = output power to antenna in mW G = gain of antenna in linear scale p = 3.1416 r = distance between observation point and center of the radiator in cm Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11.133) PCTEST MPE REPORT FCC CERTIFICATION REPORT REVIEWED BY: QUALITY MANAGER TEST REPORT S/N: 15. 241005577.R5Y TEST DATES: October 5, 2004 EUT TYPE: WLAN PCI Card FCC ID: R5Y-EZWFDI01 PAGE 2 OF 2 © 2004 PCTEST Engineering Laboratory, Inc. 4. EUT Operating Condition Software provided by the client enabled the EUT to transmit and receive data at lowest, middle, and highest channels individually. 5. Climate Condition The temperature and relative humidity: 22°C and 78% RH 6. Measurement Results Frequency (MHz) Level (dBm) Measurement Distance Front MPE reading mW/cm 2 Rear MPE reading mW/cm 2 Right MPE reading mW/cm 2 Left MPE reading mW/cm 2 Limit 2412 30.48 20cm 2437 30.85 20 cm .166 .140 .049 .177 1.0 2462 30.62 20 cm 1. Data taken with all transmitters operating simultaneously 7. Conclusion The device meets the mobile 20cm separation distance as specified in Section 2.1091 of the FCC Rules. An appropriate RF exposure compliance statement will be placed in the user’s manual. * All data was taken with WLAN Channel 6 with 1 Mbps transmitting at full power.

© 2004 PCTEST Engineering Laboratory, Inc. PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: EAZIX, INC. Date(s) of Tests: October 5, 2004 Unit 301 Plaz@ B, 6530 Northgate Avenue, Test Report S/N: 15.241005576.R5Y Filinvest Corporate City, Alabang, Test Site: PCTEST Lab, Columbia, MD Muntinlupa City, Philippines 1700 FCC ID: R5Y-EZWFDI01 APPLICANT: EAZIX, INC. SUMMARY: Model No.: EZWFDI01 Equipment EUT Type: 802.11b/g WLAN PCI Card Max. Output Power: 46 mW (16.64 dBm) Conducted (802.11b) 24 mW (13.83 dBm) Conducted (802.11g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 Test Device Serial No.: S/N: 1 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. Spread Spectrum Transceiver (DSS), 15.247 PCTEST LAB TEST REPORT 15.247 FCC Measurement Report Reviewed by: Quality Manager Filename: 15.241005576.R5Y Test Dates: October 5, 2004 EUT Type: 802.11 b/g WLAN PCI Card FCC ID: R5Y-EZWFDI01 Page i of i © 2004 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS ATTESTATION STATEMENTS.............................................................................................................................1 FCC 15.247 MEASUREMENT REPORT COVER PAGE......................................................................................................2 1.0 INTRODUCTION.......................................................................................................................................................3 1.1 EVALUATION PROCEDURE........................................................................................................................................................................................................3 1.2 SCOPE.................................................................................................................................................................................................................................................3 1.3 PCTEST TEST LOCATION.............................................................................................................................................................................................................3 2.0 PRODUCT INFORMATION......................................................................................................................................4 2.1 EQUIPMENT DESCRIPTION........................................................................................................................................................................................................4 2.2 ENCLOSURE.....................................................................................................................................................................................................................................4 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................................................................................................4 3.0 DESCRIPTION OF TEST.............................................................................................................................................5 3.1 CONDUCTED EMISSIONS..........................................................................................................................................................................................................5 3.2 RADIATED EMISSIONS.................................................................................................................................................................................................................6 4.0 ANTENNA REQUIREMENTS.....................................................................................................................................7 5.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................................................8 EXHIBIT A. SUMMARY OF TEST RESULTS........................................................................................................................9 EXHIBIT A. 6dB BANDWIDTH MEAUREMENT (802.11B & 802.11G)..............................................................................10-15 EXHIBIT A. OUTPUT POWER MEASUREMENT (802.11B & 802.11G).............................................................................16-21 EXHIBIT A. POWER SPECTRAL DENSITY (802.11B & 802.11G).......................................................................................22-27 EXHIBIT A. BANDEDGE (802.11B & 802.11G)..................................................................................................................28-29 EXHIBIT A. RADIATED FUNDAMENTAL & HARMONIC MEASUREMENTS...................................................................30-35 EXHIBIT A. RADIATED SPURIOUS MEASUREMENTS......................................................................................................36 EXHIBIT A. RADIATED RESTRICTED BAND MEASUREMENTS......................…

Text truncated - open the document above for the full version.

EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01 EAZIX FCC ID: R5Y-EZWFDI01 EUT Photographs © 2004 PCTEST Lab. 802.11 b/g WLAN PCI Card Model: EZFWDI01
