R7P26-1129-01InfiNet Concentrator

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 Installation Guide Title: SOP Concentrator Installation Doc. Number: XX-XXXX Revision: 01 Page 1 of 18 © Cellnet 2006, All rights reserved. Revision History ECO/ECN Rev Date Author Page Description XXXXX 01 G. Farmer ALL INITIAL RELEASE 02 H.Glass Title: SOP Concentrator Installation Doc. Number: XX-XXXX Revision: 01 Page 2 of 18 © Cellnet 2006, All rights reserved. Proprietary Rights Notice The information contained in this document is subject to change without notice. Cellnet reserves the right to change the product specifications at any time without incurring any obligations. Trademarks Used in This Manual UtiliNet® is a trademark of Cellnet Innovations, Inc. Cellnet® is a registered trademark of Cellnet Innovations, Inc. Title: SOP Concentrator Installation Doc. Number: XX-XXXX Revision: 01 Page 3 of 18 © Cellnet 2006, All rights reserved. FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. (a) Operation under the provisions of this section is limited to frequency hopping and direct sequence spread spectrum intentional radiators that comply with the following provisions: (1) Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo-randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. (i) For frequency hopping systems operating in the 902-928 MHz band: if the 20 dB bandwidth of the hopping channel is less than 250 kHz, the system shall use at least 50 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 20 second period; if the 20 dB bandwidth of the hopping channel is 250 kHz or greater, the system shall use at least 25 hopping frequencies and the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 10 second period. The maximum allowed 20 dB bandwidth of the hopping channel is 500 kHz. (ii) Frequency hopping systems operating in the 2400-2483.5 MHz and 5725-5850 MHz bands shall use at least 75 hopping frequencies. The maximum 20 dB bandwidth of the hopping channel is 1 MHz. The average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. (iii) Frequency hopping systems in the 2400-2483.5 MHz band may utilize hopping channels whose 20 dB bandwidth is greater than 1 MHz provided the systems use at least 15 non-overlapping channels. The total span of hopping channels shall be at least 75 MHz. The average time of occupancy on any one channel shall not be greater than 0.4 seconds within the time period required to hop through all channels. (2) For direct sequence systems, the minimum 6 dB bandwidth shall be at least 500 kHz. (b) The maximum peak output power of the intentional radiator shall not exceed the following: (1) For frequency hopping systems in the 2400-2483.5 MHz band employing at least 75 hopping channels, all frequency hopping systems in the 5725-5850 MHz band, and all direct sequence systems: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band: 0.125 watts. (2) For frequency hopping systems operating in the 902-928 MHz band: 1 watt for systems employing at least 50 hopping channels; and, 0.25 watts for systems employing less than 50 hopping channels, but at least 25 hopping channels, as permitted under paragraph (a)(1)(i) of this section. (3) Except as shown in paragraphs (b)(3) (i), (ii) and (iii) of this section, if transmitting antennas of directional gain greater than 6 dBi are used the peak output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1) or (b)(2) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Title: SOP Concentrator Installation Doc. Number: XX-XXXX Revision: 01 Page 4 of 18 © Cellnet 2006, All rights reserved. (i) Systems operating in the 2400-2483.5 MHz band that are used exclusively for fixed, point-to-point operations may employ transmitting antennas with directional gain greater than 6 dBi provided the maximum peak output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6 dBi. (ii) Systems operating in the 5725-5850 MHz band that are used exclusively for fixed, point-to-point operations may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter peak output power. (iii) Fixed, point-to-point operation, as used in paragraphs (b)(3)(i) and (b)(3)(ii) of this section, excludes the use of point-to-multipoint systems, omnidirectional applications, and multiple co-located intentional radiators transmitting the same information. The operator of the spread spectrum intentional radiator or, if the equipment is professionally installed, the installer is responsible for ensuring that the system is used exclusively for fixed…

Text truncated - open the document above for the full version.

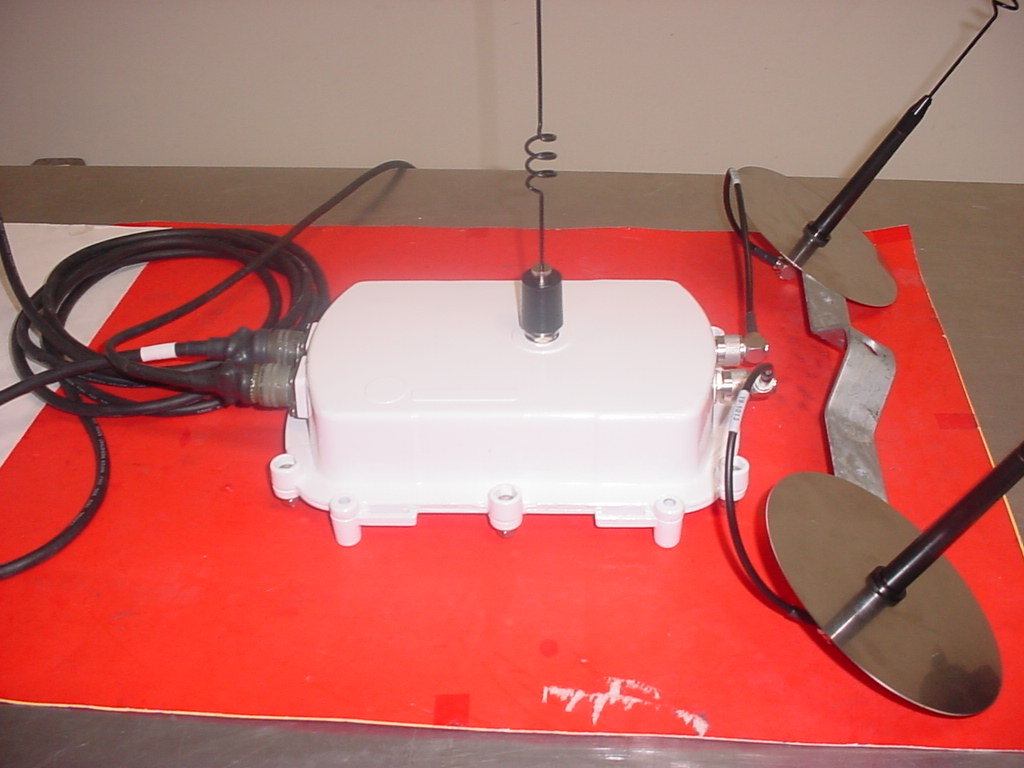

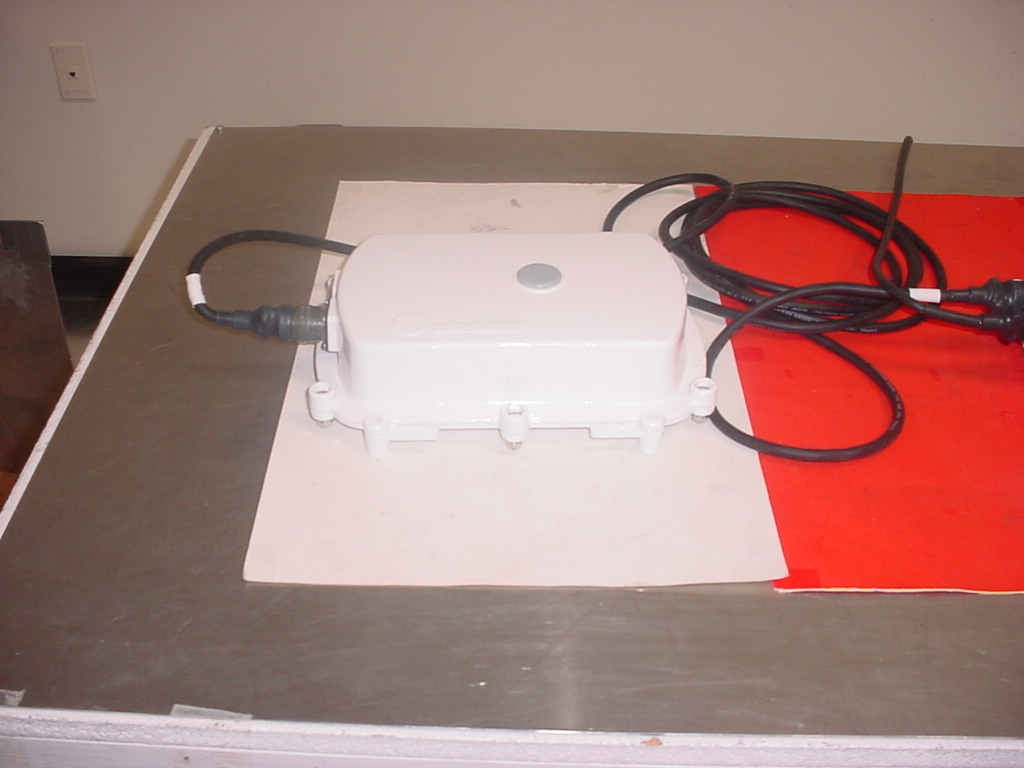

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 External Photographs Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – System View Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – InfiNet Concentrator Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – InfiNet Concentrator Battery Pack

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 Label Information Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Label Location

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 Internal Photographs Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Integrated Wangate Radio Board – Front Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – Integrated Wangate Radio Board – Back Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – BLT Radio Board – Front Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – BLT Radio Board – Back

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 RF Exposure Information Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 ACS Report(s): 05-0384-15C-DSS & 05-0384-15C-DTS Page 2 General Information: Applicant: Cellnet ACS Project: 05-0384 FCC ID: R7P26-1129-01 Device Category: Fixed Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Whip Antenna Gain: 5 dBi MaximumTransmitter Conducted Power: 26.47dBm Maximum System EIRP: 31.47dBm Operating Configuration: Fixed mounted Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 917.5826.470.61443.6153.162 200.279 Power Densit y (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Note: This composite device contains two (2) transmitting devices which do not operate simultaneously. The maximum permissible exposure is calculated based on the transmitting device with the highest output power. Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm is maintained from the general population.” Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number: 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 Test Begin Date: October 19, 2005 Test End Date: October 24, 2005 Report Issue Date: April 26, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 19 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Intended Use 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 5 2.3.1 Semi-Anechoic Chamber Test Site 5 2.3.2 Open Area Tests Site (OATS) 6 2.4 Conducted Emissions Test Site Description 7 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment 8 6.0 EUT Setup Block Diagram 9 7.0 Summary of Tests 10 7.1 Section 15.203 - Antenna Requirement 10 7.2 Section 15.207 - Power Line Conducted Emissions 10 7.2.1 Test Methodology 10 7.2.2 Test Results 10 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 13 7.3.1 Test Methodology 13 7.3.2 Test Results 13 7.4 Section 15.247(a)(2) – 6 dB Bandwidth 14 7.4.1 Test Methodology 14 7.4.1 Test Results 14 7.5 Section 15.247(b) – Peak Output Power 15 7.5.1 Test Methodology 15 7.5.2 Test Results 15 7.6 Section 15.247(c) – Band-Edge Compliance and Spurious Emissions 16 7.6.1 Section 15.247 (c) – Band-Edge Compliance 16 7.6.1.1 Test Methodology 16 7.6.1.2 Test Results 16 7.6.2 Section 15.247(c) – Conducted Spurious Emissions 17 7.6.2.1 Test Methodology 17 7.6.2.2 Test Results 17 7.6.3 Section 15.247(c) – Radiated Spurious Emissions 18 7.6.3.1 Test Methodology 18 7.6.3.2 Duty Cycle Correction 18 7.6.3.3 Test Results 18 7.6.3.4 Sample Calculation 18 7.7 Section 15.247(d) – Power Spectral Density 19 7.7.1 Test Methodology 19 7.7.2 Test Results 19 9.0 CONCLUSION 19 Model: 26-1129 FCC ID: R7P26-1129-01 ACS Report: 05-0384-15C-DTS Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The InfiNet Concentrator is a device that is part of a Mesh network. Its function is to receive data from Utility meters and relay that information to the mesh network. The InfiNet Concentrator also acts as a repeater within this mesh network. It relays data it receives from its WAN radio to other InfiNet Concentrators. The InfiNet Concentrator consists of several devices. One is the LAN radio, or BLT, that receives data from utility meters. The next device, the Integrated Wangate Radio (IWR), is the WAN radio that communicates over the WAN or mesh network. It also contains a power supply and a microprocessor board which processes data and controls the unit. The overall system is considered a composite device by definition of the FCC. It contains the Integrated Wangate Radio (IWR) radio which uses Frequency Hopping Spread Spectrum modulation techniques operating in the 902-928MHz ISM frequency band. The second radio, the BLT, uses Direct Sequence Spread Spectrum modulation techniques and also operates in the 902-928MHz ISM frequency band. The radios will never operate simultaneously. This test report is specific to the BLT radio portion only. A separate test report 05-0384-15C-DSS will be issued for the Integrated Wangate Radio (IWR) radio section contained within this device. 1.2.2 Intended Use The InfiNet Concentrator is a device that is part of a Mesh network. Its function is to receive data from Utility meters and relay that information to the mesh network. The InfiNet Concentrator also acts as a repeater within this mesh network. Model: 26-1129 FCC ID: R7P26-1129-01 ACS Report: 05-0384-15C-DTS Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612 Model: 26-1129 FCC ID: R7P26-1129-01 ACS Report: 05-0384-15C-DTS Advanced Compliance Solutions Page 5 2.3 Radiated Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shielded enclosure. The chamber is lined with Toyo Ferrite Grid Absorber, model number FFG-1000. The ferrite tile grid is 101 x 101 x 19mm thick and weighs approximately 550 grams. These tiles are mounted on steel…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Composite Device Test Report FCC ID: R7P26-1129-01 FCC Rule Part: 15.247 ACS Report Number(s): 05-0384-15C-DSS 05-0384-15C-DTS Manufacturer: Cellnet Technology, Inc. Trade Name: InfiNet Concentrator Model: 26-1129 Test Setup Photographs Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Test Setup – Radiated Emissions - Intentional Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Test Setup – Radiated Emissions - Intentional Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Test Setup – Radiated Emissions - Unintentional Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Test Setup – Radiated Emissions - Unintentional Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Test Setup – Conducted Emissions Model: 26-1129 Advanced Compliance Solutions FCC ID: R7P26-1129-01 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Test Setup – Conducted Emissions
