R7PNG0R1S6Comms Host Module

Landis+Gyr Comms Host Board Data Sheet Publication: 98-2464 Rev AA LANDIS+GYR CONFIDENTIAL INFORMATION Limitation on Warranties and Liability Information in this document is subject to change without notice. This manual or any part of it thereof may not be reproduced in any form unless permitted by contract or by written permission of Landis+Gyr. In no event will Landis+Gyr be liable for any incidental, indirect, special, or consequential damages (including lost profits) arising out of or relating to this publication or the information contained in it, even if Landis+Gyr has been advised, knew, or should have known of the possibility of such damages. © 2015 Landis+Gyr, Inc. All Rights Reserved Covered by both issued and pending patents. For further patent information see: https://www.landisgyr.com/about/patent-notices/ Landis+Gyr Comms Host Board Datasheet Publication: 98- 2464 Rev AA Revision History Modification Date Revision Description Author © 2015 Landis+Gyr • All rights reserved. Contact Us: Landis+Gyr technical support: 1- 888-390-5733 [email protected] To provide feedback about this documentation, contact the Technical Documentation team at: [email protected]. Comms Host Board Data Sheet Comms Host Board Overview The Comms Host board incorporates a power supply, ZigBee circuitry, stamped metal PIFA, and mPCIe connector to allow for integration of EIC (optional) + communication module assembly. This hardware architecture with mPCIe interface offers flexibility while accommodating various communication devices using a single interface. Figure 1 - 1. Gridstream RF E650 S4 x Meter with Comms Host board and Series 6 radio card This Comms Host board is not available as a standalone product. The endpoint assembly contains: • Comms Host board • Series 6 mPCIe radio card • External Flex dipole antenna ( Series 6 radio antenna) • Edge Intelligence Card (EIC) (Optional) Table 1. Comms Host Specification Category Specification Value or Range Compatible Meters Landis+Gyr E650 S4x Supported Meter Forms Form Class Voltage Units 1S CL200 120-480 Vac 2S CL200 240-480 Vac 2SE CL320 240-480 Vac 3S CL20 120-480 Vac 4S CL20 120-480 Vac 45S CL20 120-480 Vac 36(6)S CL20 120-480 Vac 9(8)S CL20 120-480 Vac 10A/8A CL20 120-480 Vac 12S/25S CL200 120-480 Vac 12SE CL320 120-480 Vac 14/15/16K CL480 120-480 Vac 14/15/16S CL200 120-480 Vac 14/15/16SE CL320 120-480 Vac Electrical Voltage 4Vdc ±5% @ 2A max Power 8W ZigBee Radio General RF Frequency Range 2.405 GHz -2.475 GHz RF Baud Rate 250 kbps Output Power 19 dBm (Typical) Receive Sensitivity -104 dBm (Typical) Antenna type Stamped metal PIFA Max Antenna Gain 0 dBi Standards Compliance FCC Title 47 CFR Part 15 Radiated and Conducted Emissions (incl. intentional radiators) IEC 61000 4-2,3,4,5, 6, 8, 9, 11 Electromagnetic Compatibility ANSI C12.20 National Standard for Electricity Meters - 0.2 and 0.5 Accuracy Classes ANSI C12.1 Code for Electricity Metering ANSI C37.90.1 (1989) Standard Surge Withstand Capability (SWC) Tests Mechanical Size 4.696 x 2.600 x 0.792 inches, typical Environmental Storage Temperature -40 to +85 Degrees Celsius Operating Temperature -40 to +85 Degrees Celsius Relative Humidity 0 to 95% Relative Humidity non-condensing Comms Host Board Outline The PCB outline is shown below ZigBee Stamped Metal Antenna Outline FCC, Industry Canada Compliance FCC Class B This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Consult Landis+Gyr or an experienced radio technician for help. U WARNING: Changes or modifications to this device not expressly approved by Landis+Gyr could void the user’s authority to operate the equipment. RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 22 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ` Cet équipement est conforme aux limites FCC/IC d'exposition aux radiations définies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé à une distance minimale de 22cm entre le radiateur et votre corps. Cet émetteur ne doit pas être coimplantés ou exploités en conjonction avec une autre antenne ou émetteur. Requirement for Modular Certification Comms Host board is approved for use with the stamped metal PIFA, peak gain 0 dBi. Antenna types that are different or a having higher gain than the maximum indicated for that type, are prohibited for use with this device. Comms Host is not available as a standalone product, it is only approved for use in Landis+Gyr products and not intended for sale to 3 rd party integrators. Additional Testing, Part 15 Subpart B Disclaimer The end product with Comms Host board may also need to pass the FCC Part 1…

Text truncated - open the document above for the full version.

30000 Mill Creek Avenue, Suite 100 | Alpharetta, GA 30022 Tel: +1 678 258 1637 | Fax: +1 678 258 1681 January 28, 2020 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Rd. Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Marlene Sealey at TÜV SÜD America to act as our agent in the preparation of an application for equipment authorization of FCC ID: R7PNG0R1S6 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC IDENTIFIER listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Name: James L. Stortz Title: Director of Hardware Engineering

30000 Mill Creek Avenue, Suite 100 | Alpharetta, GA 30022 Tel: +1 678 258 1637 | Fax: +1 678 258 1681 CONFIDENTIALITY REQUEST Federal Communications Commission Date: January 28, 2020 Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Landis+Gyr Technology, Inc. respectfully requests confidentiality of certain materials provided with the submission of the “Comms Host” under FCC ID: R7PNG0R1S6 in accordance with FCC Regulations 0.459. The confidentiality request applies to the System Block Diagram, Schematics, Parts List, and Theory of Operation contained in this filing. The “Comms Host” has been developed at considerable effort and expense by Landis+Gyr Technology, Inc. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter.

30000 Mill Creek Avenue, Suite 100 | Alpharetta, GA 30022 Tel: +1 678 258 1637 | Fax: +1 678 258 1681 To: File From: James L. Stortz Subject: Comms Host, FCC ID: R7PNG0R1S6 Limited Modular Approval Request January 28, 2020 Scope 47CFR 15.212 communicates requirements for products requesting modular approval. In particular, eight requirements are enumerated along with a request that each of the eight be explained for any product requesting such approval. It is the purpose of this document to respond to those eight requirements in regard to the Landis+Gyr product: Comms Host. Modular Approval Requirements 1.1 RF Shielding The Comms Host module is self-shielding and is not dependent on any component or characteristic of the device into which it is embedded. Shielding is accomplished through a combination of metallic self-shielding components, copper planes, guards, and vias in the PCB. The result is a design that has been proven to be neither sensitive to outside influence nor capable of introducing interference into outside components. 1.2 Buffered Modulation / Data Inputs The Comms Host module does not have external modulation or data inputs. Rather, the RF sections are driven by an on-board microprocessor which directly controls the RF data lines and operates so as to not allow excessive modulation. 1.3 Power Supply Regulation The Comms Host module uses a linear, low-dropout regulator to provide all the electronics with a supply that is fixed, even when the input voltage is varied. 1.4 Antenna Requirement The Comms Host module utilizes a 0dBi Inverted-F antenna. 1.5 Stand-Alone Testing All testing on the Comms Host module was conducted standalone. No shields or enclosures were used, other than those fully integrated into the modules themselves. No ferrites were used on data or power lines during testing. These devices are DC powered and exceed applicable conducted emission requirements. 1.6 Labeling As indicated, each Comms Host module will have its own FCC ID label. In addition, devices into which they are placed will have labels indicating that this module is contained within. Exact text will be as specified in 47CFR 15.212. 1.7 Specific Rules and Operating Requirements The Comms Host module complies with all pertinent rules for its section. 1.8 RF Exposure Requirements The Comms Host module complies with all exposure requirements. As a component used in the Utility industry, this product is not intended for use near human operators. Sincerely, James L. Stortz Title: Director of Hardware Engineering

FCC ID: R7PNG0R1S6 / IC: 5294A-NG0R1S6 is a modular device in which internal and external photos are the same. There are no associated external photos considering the modular classification.

Figure 1: Label Details

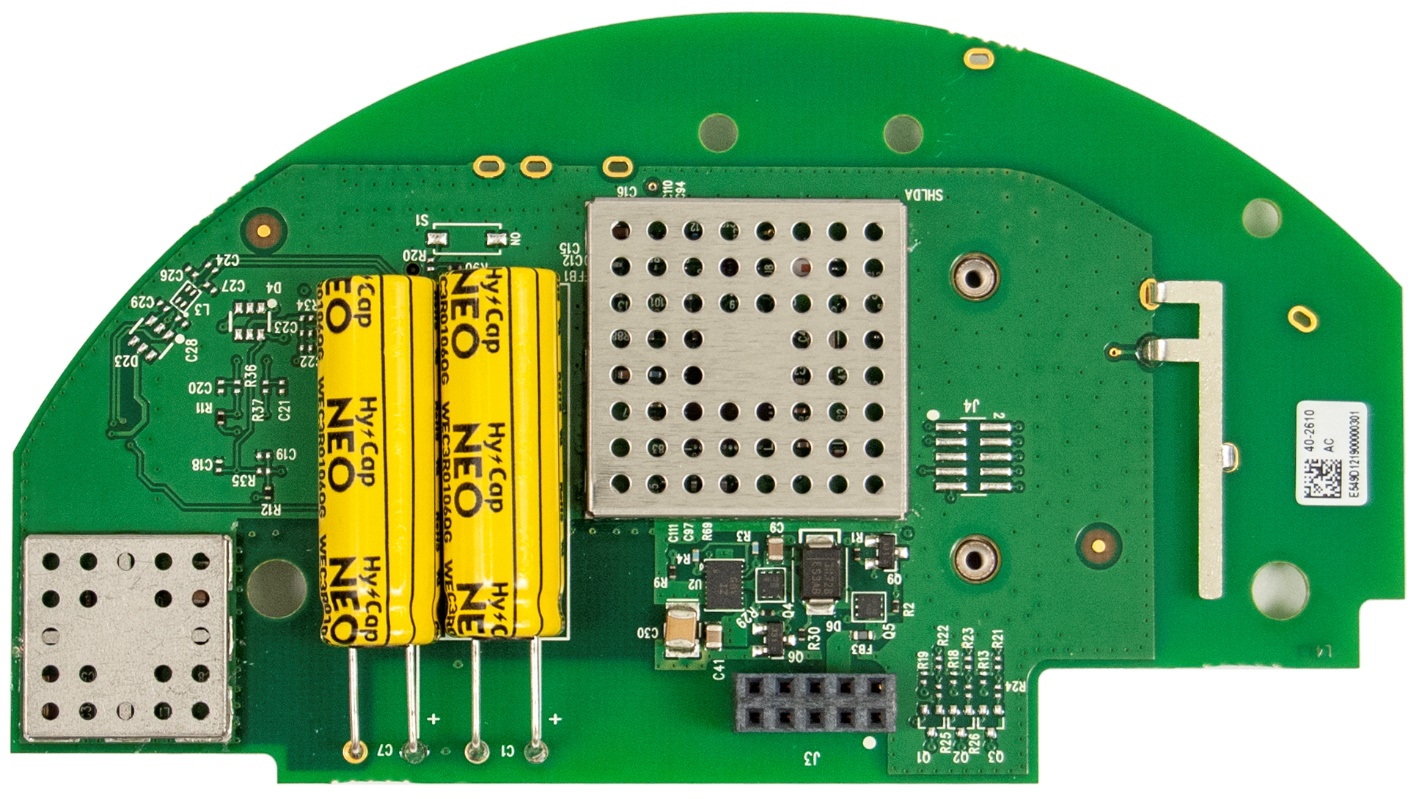

Figure 1: Top View with Shields Figure 2: Top View without Shields Figure 3: Bottom View

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: R7PNG0R1S6 FCC Rule Part: 47 CFR Part 2.1093 Project Number: 72144077 Manufacturer: Landis+Gyr Technology, Inc. Model: 24-2476 RF Exposure Model(s): 24-2476FCC ID: R7PNG0R1S6 Report: AT72144077-2C1Page 2 General Information: Applicant: Landis+Gyr Technology, Inc. Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: 3-D Stamped Metal Inverted F (Non-Detachable) Antenna Gain: 0dBi Maximum Transmitter Conducted Power: 19.8 dBm, 95.5 mW Maximum System EIRP: 19.8 dBm, 95.5 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Table 1: MPE Calculation Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Distance (cm) Power Density (mW/cm^2) 902 19.8 1.00 95.5 0 1.00 20 0.019

5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 Certification Test Report FCC ID: R7PNG0R1S6 IC: 5294A-NG0R1S6 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Report Number: AT72144077-1C2 Manufacturer: Landis+Gyr Technology, Inc. Model: 24-2476 Test Begin Date: December 10, 2018 Test End Date: January 14, 2019 Report Issue Date: January 27, 2020 FOR THE SCOPE OF ACCREDITATION UNDER Certificate Number: 2955.09 This report must not be used by the client to claim product certification, approval, or endorsement by A2LA, NIST, or any agency of the Federal Government. Prepared By:Reviewed by: Jeremy PickensRyan McGann Senior Wireless EngineerTeam Leader TÜV SÜD America Inc.TÜV SÜD America Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of TÜV SÜD America Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 23 pages 5945 Cabot Pkwy, Suite 100, Alpharetta, GA 30005 TABLE OF CONTENTS 1GENERAL ............................................................................................................................................ 3 1.1PURPOSE .......................................................................................................................................... 3 1.2APPLICANT INFORMATION ............................................................................................................... 3 1.3PRODUCT DESCRIPTION ................................................................................................................... 3 1.4TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2TEST FACILITIES .............................................................................................................................. 4 2.1LOCATION ....................................................................................................................................... 4 2.2LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1Semi-Anechoic Chamber Test Site – Chamber A .................................................................... 5 2.3.2Semi-Anechoic Chamber Test Site – Chamber B .................................................................... 6 2.4CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 2.4.1Conducted Emissions Test Site ............................................................................................... 7 3APPLICABLE STANDARD REFERENCES .................................................................................... 8 4LIST OF TEST EQUIPMENT ............................................................................................................ 8 5SUPPORT EQUIPMENT .................................................................................................................... 9 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7SUMMARY OF TESTS ......................................................................................................................10 7.1ANTENNA REQUIREMENT –FCC15.203 ........................................................................................10 7.2POWER LINE CONDUCTED EMISSIONS –FCC15.207,ISEDCANADA:RSS-GEN 8.8.....................10 7.2.1Measurement Procedure ........................................................................................................10 7.2.2Measurement Results .............................................................................................................10 7.36DB/99%BANDWIDTH –FCC15.247(A)(2),ISEDCANADA:RSS-2475.2(A) ............................12 7.3.1Measurement Procedure ........................................................................................................12 7.3.2Measurement Results .............................................................................................................12 7.4FUNDAMENTAL EMISSION OUTPUT POWER –FCC15.247(B)(3),ISEDCANADA:RSS-2475.4(D) 15 7.4.1Measurement Procedure ........................................................................................................15 7.4.2Measurement Results .............................................................................................................15 7.5EMISSION LEVELS ..........................................................................................................................16 7.5.1Emissions into Non-restricted Frequency Bands – FCC 15.247(d); ISED Canada: RSS-247 5.5 16 7.5.1.1Measurement Procedure ................................................................................................................... 16 7.5.1.2Measurement Results ....................................................................................................................... 16 7.5.2Emissions into Restricted Frequency Bands – FCC: 15.205, 15.209; ISED Canada: RSS- Gen 8.9 / 8.10 ........................................................................................................................................19 7.5.2.1Measurement Procedure ................................................................................................................... 19 7.5.2.2Measurement Results ....................................................................................................................... 19 7.5.2.3Sample Calculation: ......................................................................................................................... 20 7.6MAXIMUM POWER SPECTRAL DENSITY IN THE FUNDAMENTAL EMISSION –FCC15.247(E)ISED CANADA:RSS-2475.2(B) ................................…

Text truncated - open the document above for the full version.

5945 Cabot Parkway Suite 100 Alpharetta, GA 30005 USA Certification Exhibit FCC ID: R7PNG0R1S6 IC: 5294A-NG0R1S6 FCC Rule Part: 15.247 ISED Canada Radio Standards Specification: RSS-247 Project Number: 72144077 Manufacturer: Landis+Gyr Technology, Inc. Model: 24-2476 Test Setup Photos Model(s): 24-2476FCC ID: R7PNG0R1S6IC: 5294A-NG0R1S6 Project: 72144077Page 2 Figure 1: Equipment Under Test – Radiated Emissions – Antenna Port Conducted Measurements Model(s): 24-2476FCC ID: R7PNG0R1S6IC: 5294A-NG0R1S6 Project: 72144077Page 3 Figure 2: Equipment Under Test – Radiated Emissions <30MHz Figure 3: Equipment Under Test – Radiated Emissions <30MHz Model(s): 24-2476FCC ID: R7PNG0R1S6IC: 5294A-NG0R1S6 Project: 72144077Page 4 Figure 4: Equipment Under Test – Radiated Emissions <1GHz Figure 5: Equipment Under Test – Radiated Emissions <1GHz Model(s): 24-2476FCC ID: R7PNG0R1S6IC: 5294A-NG0R1S6 Project: 72144077Page 5 Figure 6: Equipment Under Test – Radiated Emissions >1GHz Figure 7: Equipment Under Test – Radiated Emissions >1GHz Model(s): 24-2476FCC ID: R7PNG0R1S6IC: 5294A-NG0R1S6 Project: 72144077Page 6 Figure 8: Equipment Under Test – AC Conducted Emissions Figure 9: Equipment Under Test – AC Conducted Emissions
