R7PTOP04TAKE OUT POINT (TOP)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) Installation Guide Title: SOP Takeout Point Installation Doc. Number: XX-XXXX Revision: 01 Page 1 of 9 PROPRIETARY INFORMATION NOTICE: THIS DOCUMENT CONTAINS TRADE SECRETS AND CONFIDENTIAL INFORMATION OF CELLNET AND SHALL NOT BE DUPLICATED IN WHOLE OR IN PART OR USED OR DISCLOSED FOR ANY PURPOSE OTHER THAN THAT APPROVED BY CELLNET. © Cellnet 2005. All rights reserved. Revision History ECO/ECN Rev Date Author Page Description XXXXX 01 G. Farmer ALL INITIAL RELEASE CELLNET 313-B N. Highway 11 • West Union, SC 29696 DOCUMENT NUMBER: 83-1023 Page 1 of 9 CELLNET 313-B N. Highway 11 • West Union, SC 29696 DOCUMENT NUMBER: 83-1023 Page 2 of 9 Contents CONTENTS ...........................................................................................................................................................2 FIGURES................................................................................................................................................................2 ACRONYMS ..........................................................................................................................................................2 RELATED DOCUMENTS ...................................................................................................................................3 1. CELLNET NETWORK ..............................................................................................................................3 2. TOP ENCLOSURE/MOUNTING .............................................................................................................3 3. TOP PROGRAMMING..............................................................................................................................3 4. REQUIRED TOOLS & MATERIALS......................................................................................................3 4.1. Contractor-provided tools ..............................................................................................................................4 4.2. Contractor-provided material.........................................................................................................................4 5. CUSTOMER NOTIFICATION/AUTHORIZATION .............................................................................5 5.1. Appointment for building access ...................................................................................................................5 5.2. Utility or municipal authorization for pole attachment..................................................................................5 6. SITE LOCATION AND VERIFICATION ...............................................................................................5 6.1. Site verification..............................................................................................................................................5 6.2. Bucket trucks .................................................................................................................................................5 7. INSTALLATION.........................................................................................................................................6 7.1. General...........................................................................................................................................................6 7.2. Power Requirements ......................................................................................................................................6 7.3. Power connections .........................................................................................................................................6 7.4. TOP mechanical mounting ............................................................................................................................6 7.5. Power cable preparation ................................................................................................................................8 7.6. Ethernet Connections.....................................................................................................................................8 Figures Acronyms MCC MicroCell Controller LAN RADIO Local Radio Network WAN Wide Area Network 860 CPU Central Processing Unit ESD Electrostatic Discharge CELLNET 313-B N. Highway 11 • West Union, SC 29696 DOCUMENT NUMBER: 83-1023 Page 3 of 9 Related Documents Document Title Part Number Revision Date Take Out Point programming guide 1. Cellnet Network The CellNet Automated Meter Reading network is used to transfer information from a number of endpoints usually distributed over a large geographical area. The most common endpoints are from electrical, gas and water meters. Additional potential endpoints include parking meters, vending machines and copiers. The network includes a Radio Frequency (RF) Wide Area Network (WAN) and an RF Local Area Network (LAN). The WAN consists of either CellMasters (CM), or Take Out Points (TOP) communicating with MicroCell Controllers (MCC) Or Infinet Concentrators (IC). The LAN is the RF link between the MCC or IC and meters or other end points with CellNet meter modules installed. The endpoint data is transmitted via a radio frequency (RF) link to the MCC/TOP where it is stored and processed. The MCC or IC then transmits this information to the Network Operations Center via a RF link to the CellMaster or TOP base station. This SOP deals with the installation of TOP’s. 2. TOP enclosure/mounting The TOP is a NEMA-4 enclosure with a power supply, lead-acid battery, system CPU board and four radios. It weighs approximately 42 pounds and typically mounts on…

Text truncated - open the document above for the full version.

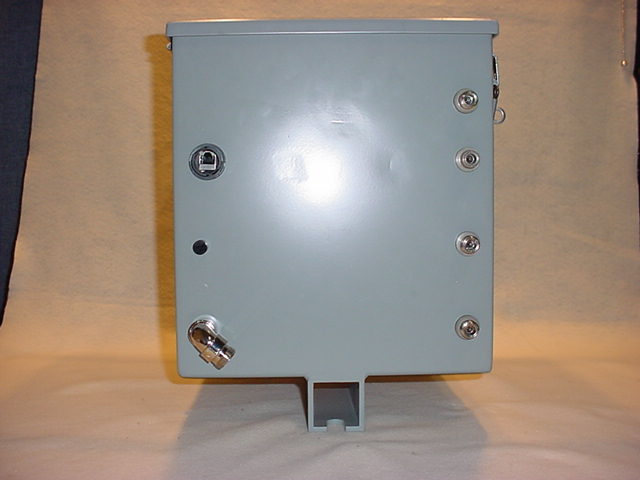

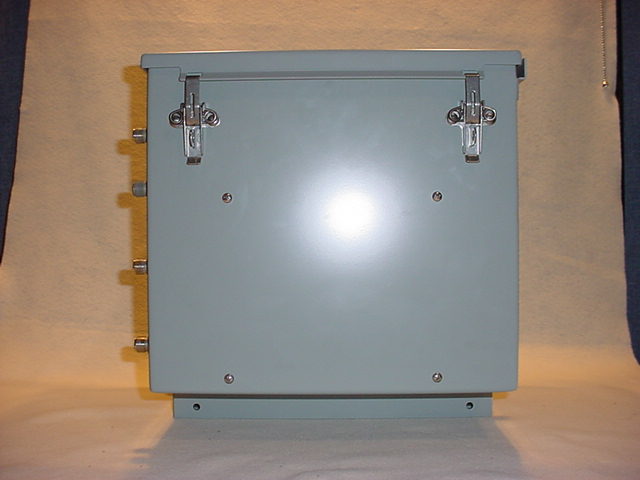

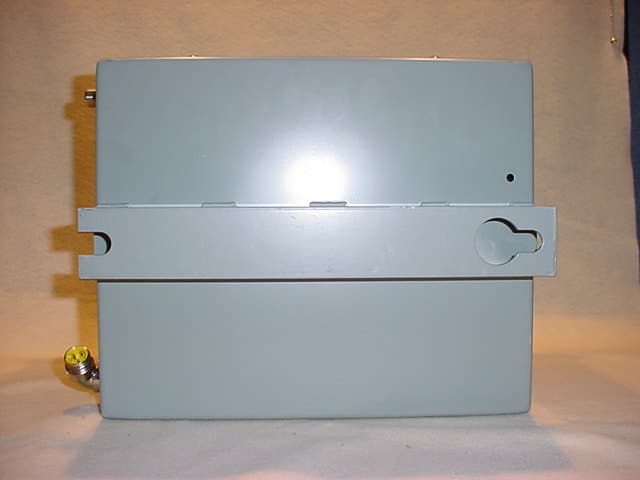

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) External Photographs Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – Enclosure Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Enclosure Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – Enclosure

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) Modification Photographs Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Shielded internal Ethernet cable with two Fair-Rite brand ferrites, 0444164181, with two turns each. Each of the ferrites were situated close to the cable ends. Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Shielded external Ethernet cable with two Steward brand ferrites, 28A5776-0A2, with three turns each. Both ferrites were situated close to the EUT Ethernet connector. Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal power leads, Red and Black, with one Fair-Rite brand ferrite, 0443164151, with three turns. Ferrite situated halfway between the supply board and the processor board against the inside wall.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) Label Information Place FCC label about here on bottom of Utilinet TOP box

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) Internal Photographs Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Enclosure Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – Enclosure Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – Radio Module Top Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – Radio Module Front Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Internal – Radio Module Rear Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Internal – Radio Module PCB Front Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: Internal – Radio Module PCB Rear

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) RF Exposure Information Model: Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 ACS Report: 05-0327-15C Page 2 General Information: Applicant: Cellnet ACS Project: 05-0327 FCC ID: R7PTOP04 Device Category: Fixed Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Whip Antenna Gain: 5dBi Transmitter Conducted Power: 29.75dBm Maximum System EIRP: 34.75dBm Operating Configuration: Fixed mounted Exposure Conditions: Greater than 20 centimeters Antenna Separation (Co-location): Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* Transmit Freq. (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Distance (cm) Power Density (mW/cm^2) 903 29.75 0.60 944.06 5.00 3.162 20 0.594 Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm is maintained from the general population.” Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter Test Report FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point P/N: 26-1128 Test Begin Date: September 7, 2005 Test End Date: September 7, 2005 Report Issue Date: October 5, 2005 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 23 pages Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Modifications for Compliance 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 5 2.3.1 Semi-Anechoic Chamber Test Site 5 2.3.2 Open Area Tests Site (OATS) 6 2.4 Conducted Emissions Test Site Description 7 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment 8 6.0 EUT Setup and Block Diagram 9 7.0 Summary of Tests 10 7.1 Section 15.203 - Antenna Requirement 10 7.2 Section 15.207 - Power Line Conducted Emissions 10 7.2.1 Test Methodology 10 7.2.2 Test Results 10 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 13 7.3.1 Test Methodology 13 7.3.2 Test Results 13 7.4 Section 15.247 – Peak Output Power 14 7.4.1 Test Methodology 14 7.4.2 Test Results 14 7.5 Section 15.247 – Channel Usage 15 7.5.1 Section 15.247 - Carrier Frequency Separation 15 7.5.2 Section 15.247 – Number of Hopping Channels 15 7.5.3 Section 15.247 – Channel Dwell Time 15 7.5.4 Section 15.247 – 20dB Bandwidth 16 7.5.4.1 Test Methodology 16 7.5.4.2 Test Results 16 7.6 Section 15.247 – Band-edge Compliance and Spurious Emissions 17 7.6.1 Band-edge Compliance of RF Conducted Emissions 17 7.6.1.1 Test Methodology 17 7.6.1.1 Test Results 17 7.6.2 RF Conducted Spurious Emissions 19 7.6.2.1 Test Methodology 19 7.6.2.1 Test Results 19 7.6.3 Radiated Spurious Emissions (Restricted Bands) 22 7.6.3.1 Test Methodology 22 7.6.3.2 Test Results 22 7.6.3.3 Sample Calculations 23 8.0 CONCLUSION 23 Model: Take Out Point FCC ID: R7PTOP04 ACS Report: 05-0327-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The Take Out Point (TOP) is a data radio used in the Utility industry for controls and automatic meter reading. It is sold to utility companies for the purpose of automating the control of remote devices (relays, capacitor banks, etc.) and for collecting data from remote devices such as meters. The TOP can be mounted on a variety of structures typically within a secure area such as a utility substation. All components are housed in a single enclosure suitable for outdoor environments and easy, straightforward installation. 1.2.2 Modifications for Compliance The following modifications were made to the device to achieve compliance for Radiated and AC Powerline Conducted Emissions testing. The following modifications will be implemented in the final manufacturing of the device. 1) Shielded internal Ethernet cable with two Fair-Rite brand ferrites, 0444164181, with two turns each. Each of the ferrites were situated close to the cable ends. 2) Shielded external Ethernet cable with two Steward brand ferrites, 28A5776-0A2, with three turns each. Both ferrites were situated close to the EUT Ethernet connector. 3) Internal power leads, Red and Black, with one Fair-Rite brand ferrite, 0443164151, with three turns. Ferrite situated halfway between the supply board and the processor board against the inside wall. 4) Re-routed Ethernet cable See Modification Photographs which is included in this filing. Model: Take Out Point FCC ID: R7PTOP04 ACS Report: 05-0327-15C Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612 Model: Take Out Point FCC ID: R7PTOP04 ACS Report: 05-0327-15C Advanced Compliance Solutions Page 5 2.3 Radiated Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shielded enclosure. The chamber is lined with Toyo Ferrite Grid Absorber, model number FFG-1000. The ferrite tile grid is 101 x 101 x 19mm thick and weighs approximately 550 grams. These tiles are mounted on steel panels and installed directly on the inner walls of the chamber. The turntable is 150cm in diameter and is located 160cm from the back wall of the chamber. The chamber is grounded via 1 - …

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Frequency Hopping Spread Spectrum Transmitter FCC ID: R7PTOP04 FCC Rule Part: 15.247 ACS Report Number: 05-0327-15C Manufacturer: Cellnet Technology, Inc. Model: Take Out Point (TOP) Test Setup Photographs Model:Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Radiated Emissions Model:Take Out Point (TOP) Advanced Compliance Solutions FCC ID: R7PTOP04 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Conducted Emissions
