R7PUWE-PITCellnet Water Endpoint - Pit

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit Installation Guide Cellnet Water Endpoint 6010/6020 Pit Installation Guide áá Proprietary Rights Notice This manual is an unpublished work and contains the trade secrets and confidential information of Cellnet, which are not to be divulged to third parties and may not be reproduced or transmitted in whole or part, in any form or by any means, electronic or mechanical for any purpose, without the express written permission of Cellnet. All rights to designs or inventions disclosed herein, including the right to manufacture, are reserved to Cellnet. The information contained in this document is subject to change without notice. Cellnet reserves the right to change the product specifications at any time without incurring any obligations. Trademarks Used in This Manual 6010 and 6020 are trademarks of Cellnet Innovations, Inc. Cellnet® is a registered trademark of Cellnet Innovations, Inc. 3M Badger Sensus Neptune ProRead Scotchlok Microtex Other brands or product names are the trademarks or registered trademarks of their respective holders. Cellnet Water Endpoint 6010/6020 Pit Installation Guide t^JMMVRJd_JMNKMS `ÉääåÉí PMMMM=jáää=`êÉÉâ=^îÉåìÉ pìáíÉ=NMM ^äéÜ~êÉíí~I=d^=PMMOO qÉäW=ESTUF=ORUJNRMM c~ñW=ESTUF=ORUJNRRM `çéóêáÖÜí«=OMMS `ÉääåÉí ^ää=êáÖÜíë=êÉëÉêîÉÇK tOMNM=máí=jfr=fåëí~ää~íáçåááá TABLE OF CONTENTS CHAPTER 1INTRODUCTION qllip=^ka=bnrfmjbkq=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJO bèìáéãÉåí==K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJO qççäë=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJQ p^cbqv=^ka=bksfolkjbkq= =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJS mêÉäáãáå~êó=`ÜÉÅâë= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJS páíÉ=oÉèìáêÉãÉåíë= =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJS c``=C=fkarpqov=`^k^a^=fkcloj^qflk=ql=qeb=rpbo= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJT c``=`ä~ëë=_=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJT oc=bñéçëìêÉ= =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJT fåÇìëíêó=`~å~Ç~= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJT c``=faW=oTmrtbJmfq==K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJU f`W=ROVQ^Jrtbmfq= =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==NJU CHAPTER 2INSTALLING THE CELLNET WATER ENDPOINT fåëí~ääáåÖ=íÜÉ=SMNM=båÇéçáåí= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJO fabkqfcvfkd=qeb=obdfpqbo=clo=fkpq^ii^qflk==K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJO `çååÉÅíáåÖ=~=kÉéíìåÉ=çê=pÉåëìë=båÅçÇÉê=oÉÖáëíÉê=ïáíÜ=pÅêÉï=qÉêãáå~äë==K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJQ `çååÉÅíáåÖ=~=_~ÇÖÉêI=kÉéíìåÉ=çê=pÉåëìë=båÅçÇÉê=oÉÖáëíÉê=ïáíÜ=mçííÉÇ=iÉ~Çë= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJS `çååÉÅíáåÖ=~=_~ÇÖÉê=oqo=oÉÖáëíÉê=ïáíÜ=mçííÉÇ=iÉ~Çë=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJNN mêçÖê~ããáåÖ=SMNM=ÉåÇéçáåí=Ñçê=çéÉê~íáçå=ïáíÜ=~=_~ÇÖÉê=oqo=oÉÖáëíÉê=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJNR fkpq^iifkd=`biikbq=t^qbo=bkamlfkq=SMOM=mfq=lk=^=?`biikbq=SMOM=ob^av?=obdfpqbo= K=K=K=K==OJNS molJob^a=bk`labo=obdfpqbo==K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJNT oÉéêçÖê~ããáåÖ=~=mêçoÉ~Ç=ÉåÅçÇÉê=Ñêçã=OJïáêÉ=íç=PJïáêÉ= K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJNT CHAPTER 3TESTING THE ENDPOINT CHAPTER 4ENDPOINT REPLACEMENT CHAPTER 5TROUBLESHOOTING GLOSSARY INDEX áîtOMNM=máí=jfr=fåëí~ää~íáçå `ÉääåÉí=t~íÉê=båÇéçáåí=fåëí~ää~íáçå=dìáÇÉî FigureFigure TitlesPage LIST OF FIGURES OKNSMOM=båÇéçáåí=ïáíÜ=~=ï~íÉê=ëìÄãÉêëáÄäÉI=êÉìë~ÄäÉI=ÑÉã~äÉ=QJéáå=ÅçååÉÅíçê=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJN OKOSMNM=máí=båÇéçáåí=ÉñéäçÇÉÇ=îáÉï =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJN OKP^åíÉåå~=ÜçäÉ=áå=éáí=äáÇ=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJO OKQqÜêÉ~ÇáåÖ=íÜÉ=~åíÉåå~=åìíK=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJO OKRSQJNVNV=táêÉ=ëíêáééÉê K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJQ OKSSQJNVOO=táêÉ=ëíêáééÉê K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJQ OKTqÜêÉ~ÇáåÖ=íÜÉ=Å~ÄäÉ=~êçìåÇ=íÜÉ=ëíê~áå=êÉäáÉÑ=éçëíë=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJR OKU^ééäóáåÖ=ãçáëíìêÉ=ÅçãéçìåÇ=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJR OKVtáêÉ=ÅìííÉê=C=ëíêáééÉê =K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K=K==OJS OKNM S…

Text truncated - open the document above for the full version.

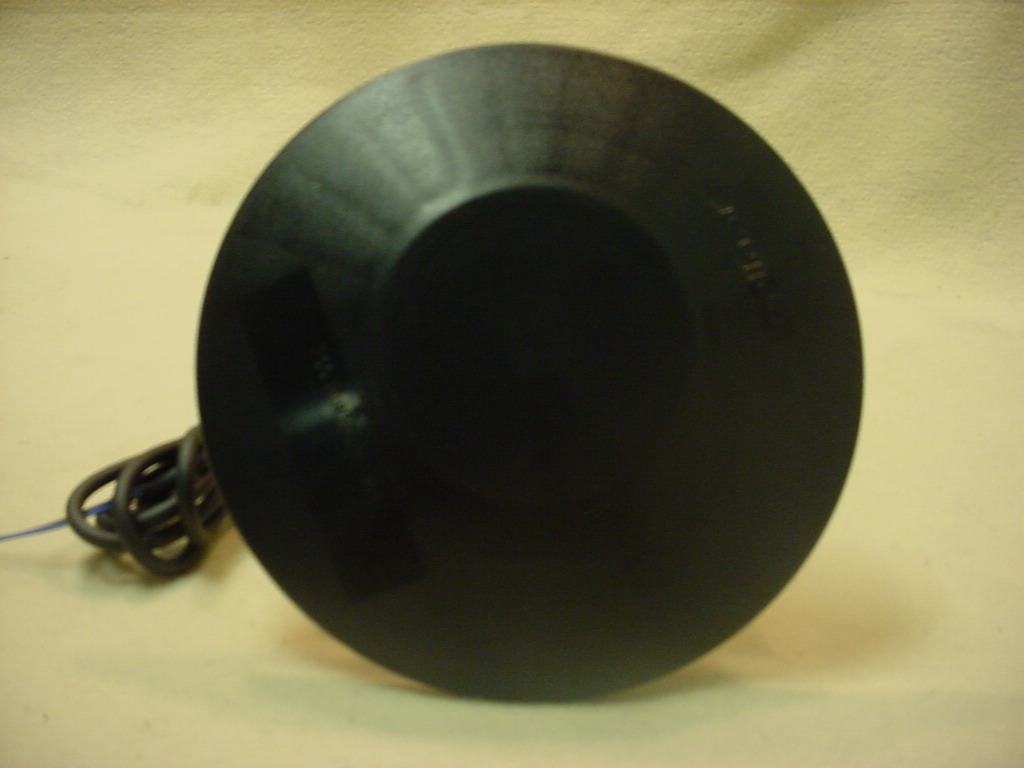

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit External Photographs Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – Top View Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Side View Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – Bottom View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit Label Information Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT ACS Report: 05-0412-15C Page 2 Sample Label: The ID numbers will be molded on to the device. Initial units will be shipped with the IC ID affixed to the device until additional molds can be produced to show both identifiers. Due to the mounting configuration and intended use the label text is present in the installation guide. Label Location: Figure 1: Label Location FCC ID: R7PUWE-PIT IC: 5294A-UWEPIT

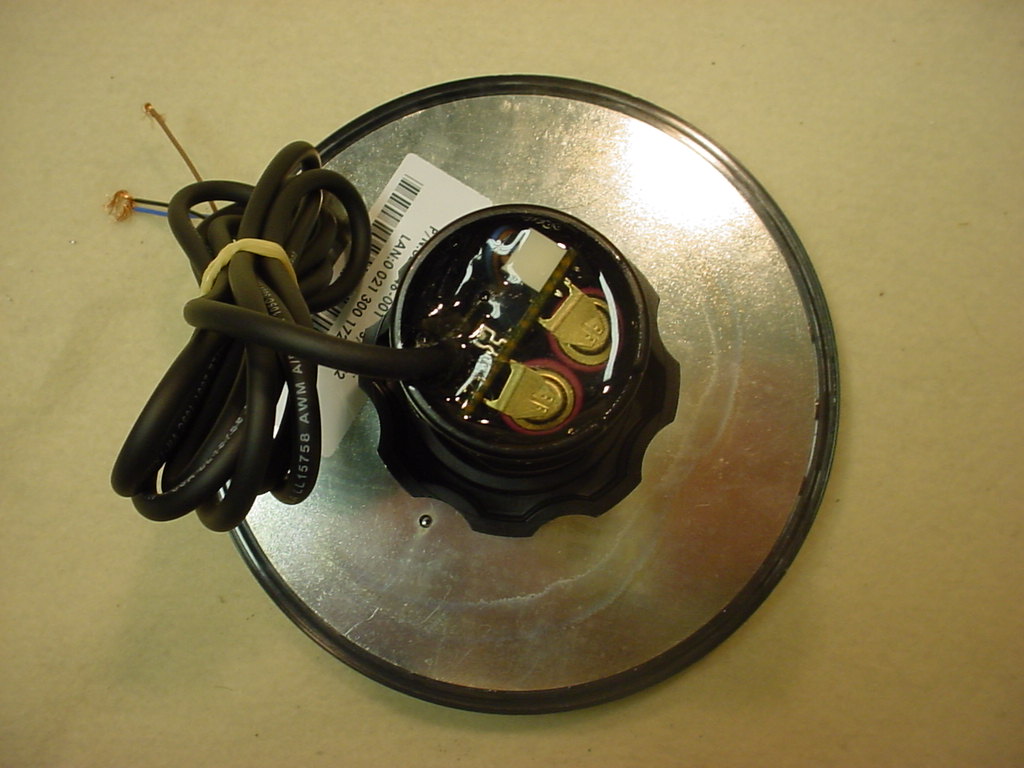

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit Internal Photographs Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Front View Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – Side View Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – Bottom View Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – Bottom View (Batteries Removed)

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit RF Exposure Information Model: Cellnet Water Endpoint – Pit Advanced Compliance Solutions FCC ID: R7PUWE-PIT ACS Report: 05-0412-15C Page 2 General Information: Applicant: Cellnet ACS Project: 05-0412 FCC ID: R7PUWE-PIT Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: External Patch Antenna Gain: 2.5 dBi Transmitter Conducted Power: 24.16dBm Maximum System EIRP: 26.66dBm Operating Configuration: Fixed mounted Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 917.5824.160.61260.622.51.778 200.092 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm is maintained from the general population.” Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Subpart C Transmitter Certification Direct Sequence Spread Spectrum Transmitter Test Report FCC ID: R7PUWE-PIT FCC Rule Part: 15.247 ACS Report Number: 05-0412 - 15C Manufacturer: Cellnet Technology, Inc. Model: Cellnet Water Endpoint – Pit Test Begin Date: November 8, 2005 Test End Date: December 22, 2005 Report Issue Date: February 14, 2006 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612 Prepared by: Reviewed by: J. Kirby Munroe Manager Wireless Certifications ACS, Inc. R. Sam Wismer Engineering Manager ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 18 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Table of Contents 1.0 General 3 1.1 Purpose 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Manufacturer 3 2.0 Test Facilities 4 2.1 Location 4 2.2 Laboratory Accreditations/Recognitions/Certifications 4 2.3 Radiated Emissions Test Site Description 5 2.3.1 Semi-Anechoic Chamber Test Site 5 2.3.2 Open Area Tests Site (OATS) 6 2.4 Conducted Emissions Test Site Description 7 3.0 Applicable Standards and References 7 4.0 List of Test Equipment 8 5.0 Support Equipment 8 6.0 EUT Setup Block Diagram 9 7.0 Summary of Tests 10 7.1 Section 15.203 - Antenna Requirement 10 7.2 Section 15.207 - Power Line Conducted Emissions 10 7.3 Section 15.109 - Radiated Emissions (Unintentional Radiation) 10 7.3.1 Test Methodology 10 7.3.2 Test Results 10 7.4 Section 15.247(a)(2) – 6 dB Bandwidth 11 7.4.1 Test Methodology 11 7.4.1 Test Results 11 7.5 Section 15.247(b) – Peak Output Power 12 7.5.1 Test Methodology 12 7.5.2 Test Results 12 7.6 Section 15.247(c) – Band-Edge Compliance and Spurious Emissions 13 7.6.1 Section 15.247 (c) – Band-Edge Compliance 13 7.6.1.1 Test Methodology 13 7.6.1.2 Test Results 13 7.6.2 Section 15.247(c) – Conducted Spurious Emissions 14 7.6.2.1 Test Methodology 14 7.6.2.2 Test Results 14 7.6.3 Section 15.247(c) – Radiated Spurious Emissions 16 7.6.3.1 Test Methodology 16 7.6.3.2 Duty Cycle Correction 16 7.6.3.3 Test Results 16 7.6.3.4 Sample Calculation 17 7.7 Section 15.247(d) – Power Spectral Density 18 7.7.1 Test Methodology 18 7.7.2 Test Results 18 8.0 CONCLUSION 18 Model: Cellnet Water Endpoint – Pit FCC ID: R7PUWE-PIT ACS Report: 05-0412-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The Cellnet Water Endpoint (CWE) is a battery-powered radio transmitter operating in the 902-928 MHz unlicensed ISM band. It is designed to be connected to a variety of residential water meters and will periodically transmit water consumption information. This information is gathered by a Cellnet proprietary cellular network infrastructure. 1.2.2 Manufacturer Cellnet Technology, Inc. 30000 Mill Creek Avenue Suite 100 Alpharetta, GA 30022 USA Model: Cellnet Water Endpoint – Pit FCC ID: R7PUWE-PIT ACS Report: 05-0412-15C Advanced Compliance Solutions Page 4 2.0 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions 5015 B.U. Bowman Drive Buford, GA 30518 Phone: (770) 831-8048 Fax: (770) 831-8598 2.2 Laboratory Accreditations/Recognitions/Certifications The Semi-Anechoic Chamber Test Site, Open Area Test Site (OATS) and Conducted Emissions Site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. In addition, ACS is compliant to ISO 17025 as certified by the National Institute of Standards and Technology under their National Voluntary Laboratory Accreditation Program. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 NVLAP Lab Code: 200612 Model: Cellnet Water Endpoint – Pit FCC ID: R7PUWE-PIT ACS Report: 05-0412-15C Advanced Compliance Solutions Page 5 2.3 Radiated Emissions Test Site Description 2.3.1 Semi-Anechoic Chamber Test Site The Semi-Anechoic Chamber Test Site consists of a 20’ x 30’ x 18’ shielded enclosure. The chamber is lined with Toyo Ferrite Grid Absorber, model number FFG-1000. The ferrite tile grid is 101 x 101 x 19mm thick and weighs approximately 550 grams. These tiles are mounted on steel panels and installed directly on the inner walls of the chamber. The turntable is 150cm in diameter and is located 160cm from the back wall of the chamber. The chamber is grounded via 1 - 8’ copper ground rod, installed at the center of the back wall, it is bound to the ground plane using 3/4" stainless steel braided cable. The turntable is all steel, flush mounted table installed in an all steel frame. The table is remotely operated from inside the control room located 25’ from the range. The turntable is electrically bonded to the surrounding ground plane via steel fingers installed on the edge of the turn table. The steel fingers make constant contact with the ground plane during operation. Behind the turntable is a 3’ x 6’ x 4’ deep shielded pit used for support equipment if necessary. The pit is equipped with 1 - 4” PVC chases from the turntable to the pit that allow for cabling to the EUT if necessary. The underside of the turntable can be accessed from the pit so cables can be supplied to the EUT from the pit. A diagram of the Semi-Anechoic Chamber Test Site is shown in Figure 2.3-1 below: Figure 2.3-1: Semi-…
