R7PWGRS3RF-UTILITY METER USAGE READER

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Installation and Operators Guide UtiliNet® Technical Reference Guide Revision 2.1 ii Proprietary Rights Notice This manual is an unpublished work and contains the trade secrets and confidential infor- mation of Cellnet which are not to be divulged to third parties and may not be reproduced or transmitted in whole or part, in any form or by any means, electronic or mechanical for any purpose, without the express written permission of Cellnet. All rights to designs or inventions disclosed herein, including the right to manufacture, are reserved to Cellnet The information contained in this document is subject to change without notice. Cellnet reserves the right to change the product specifications at any time without incur- ring any obligations. Trademarks Used in This Manual UtiliNet is a registered trademark of Cellnet. Windows is a trademark of Microsoft Corporation. MapInfo is a registered trademark of MapInfo Corporation UtiliNet Technical Reference Guide UTLG-0002-GB-08.04 Cellnet 30000 Mill Creek Ave., Suite 100 Alpharetta, GA 30022 Tel: (678) 258-1500 Fax: (678) 258-1550 Copyright© 2004 Cellnet All rights reserved. iii Compliance With FCC Regulations NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi- dential installation. This equipment generates, uses and can radiate radio fre- quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. RF Exposure In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of 20cm is maintained between it and the user or general population. Industry Canada All Equipment: This Class B digital apparatus meets all requirements of the Canadian Interfer- ence Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'inter- férence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. Changes or modifications to this device not expressly approved by Cellnet could void the user s authority to operate the equipment. Notes: iv UtiliNet Technical Reference Guidev Proprietary Rights Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Trademarks Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Compliance With FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii RF Exposure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii All Equipment: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Chapter 1Introduction System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 UtiliNet Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Network of Intelligent Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Mesh Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Radios With Programmable Intelligence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Packets Hop From Radio To Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Polling and Report By Exception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 About This Manual . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

August 9 th , 2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Fax 301-344-2050 REFERENCE FCC ID: R7PWGRS3 Organization: Cellnet Technology, Inc. Request under 47 C.F.R 0.459 that materials submitted to the commission be withheld from public inspection. Cellnet Technology, Inc. hereby requests that the material attached hereto be withheld from public inspection in accordance with 47 C.F.R. 0.459. Specifically, Cellnet Technology, Inc. requests that the following materials be withheld from public inspection under 47 C.F.R. 0.459 because the schematics and designs of the board, hybrid circuit to modulate the RF, and the TCXO are custom components. These are considered confidential trade secrets and technical data which customarily would be guarded from competitors: (1) 25-1006 Rev AC Schematic (2) TAU Block Diagram (3) TAU Schematic (4) TAU Spec (5) Utilinet Series 3 Rev AC BOM Therefore, in accordance with 47 C.F.R. 0.459, Cellnet Technology, Inc. requests that the above listed materials, copies of which are here, to be withheld from public inspection. Brian K. Seal UtiliNet Engineering Manager Cellnet Technology, Inc..

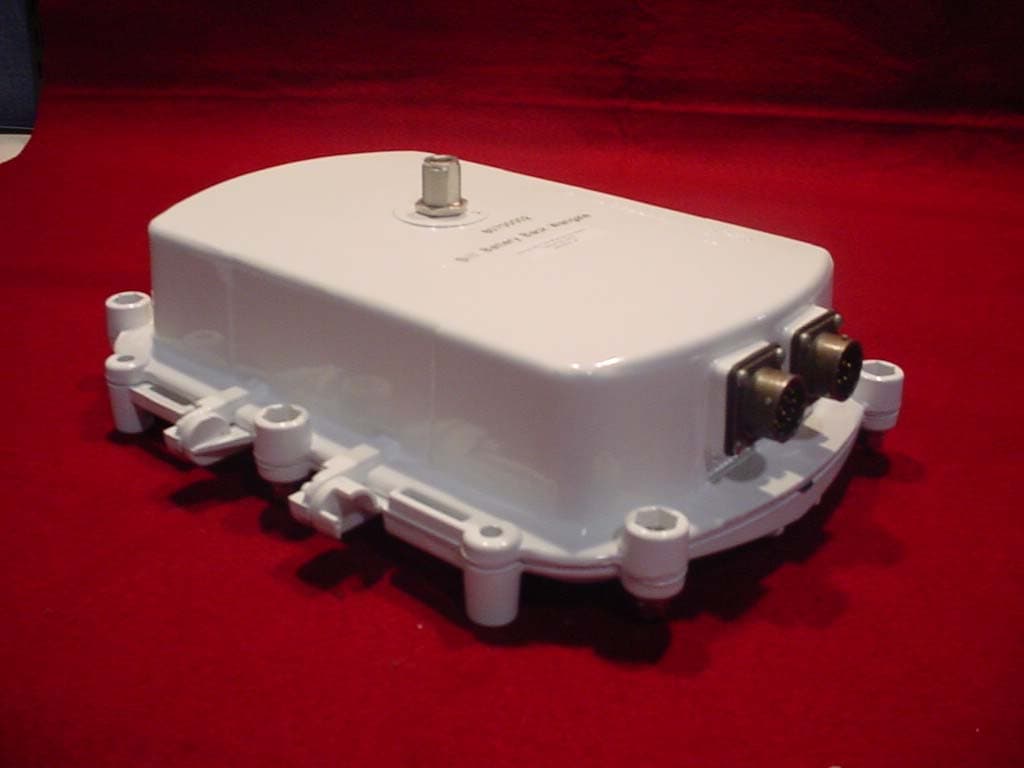

Model: WANGATE Advanced Compliance Solutions FCC ID: R7PIWRS3 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio External Photographs Model: WANGATE Advanced Compliance Solutions FCC ID: R7PIWRS3 Figure 1: Exterior View Model: WANGATE Advanced Compliance Solutions FCC ID: R7PIWRS3 Figure 2: Exterior View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Label Information

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Internal Photographs Model: WANTGATE Advanced Compliance Solutions FCC ID: R7PIWRS3 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: PCB Front Figure 2: PCB Rear Model: WANTGATE Advanced Compliance Solutions FCC ID: R7PIWRS3 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: RF Circuitry - Front Figure 4: RF Circuitry - Rear

04-0203 Corrected Bandedge Plots LVLOFF Ref.Lvl 30.00 dBm Marker 29.34 dBm 902.100 MHz Res.Bw 100 kHz[imp] TG.Lvl off CF.Stp 125.000 kHz NOT CALIBRATED Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 901.375 MHz Span 1.25 MHz Center 902 MHz Sweep 20 ms Stop 902.625 MHz D1 D2 NX Date 04.Jan.'87 Tim LVLOFF Ref.Lvl 30.00 dBm Marker 29.88 dBm 927.900 MHz Res.Bw 100 kHz[imp] TG.Lvl off CF.Stp 125.000 kHz NOT CALIBRATED Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 927.375 MHz Span 1.25 MHz Center 928 MHz Sweep 20 ms Stop 928.625 MHz D1D2 NX Date 04.Jan.'87 Time 1

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Conducted Spurious Emissions LVLOFF Ref.Lvl 30.00 dBm Marker -28.98 dBm 902.9 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 87.290 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 30 MHz Span 872.9 MHz Center 466.4 MHz Sweep 280 ms Stop 902.9 MHz D1 Date 12.Jan.'87 Time 18:08:47 LVLOFF Ref.Lvl 30.00 dBm Marker 29.78 dBm 903.1 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 909.690 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 0.903 GHz Span 9.096 GHz Center 5.451 GHz Sweep 2.8 s Stop 10 GHz D1 Date 12.Jan.'87 Time 18:11:12 LVLOFF Ref.Lvl 30.00 dBm Marker -28.71 dBm 914.9 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 88.490 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 30 MHz Span 884.9 MHz Center 472.4 MHz Sweep 280 ms Stop 914.9 MHz D1 Date 12.Jan.'87 Time 18:18:13 LVLOFF Ref.Lvl 30.00 dBm Marker 29.93 dBm 915.1 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 908.490 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 0.915 GHz Span 9.084 GHz Center 5.457 GHz Sweep 2.8 s Stop 10 GHz D1 Date 12.Jan.'87 Time 18:19:23 LVLOFF Ref.Lvl 30.00 dBm Marker -30.89 dBm 926.9 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 89.690 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 30 MHz Span 896.9 MHz Center 478.4 MHz Sweep 280 ms Stop 926.9 MHz D1 Date 12.Jan.'87 Time 18:22:35 LVLOFF Ref.Lvl 30.00 dBm Marker 29.75 dBm 927.1 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 907.290 MHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 0.927 GHz Span 9.072 GHz Center 5.463 GHz Sweep 2.8 s Stop 10 GHz D1 Date 12.Jan.'87 Time 18:23:29 LVLOFF Ref.Lvl 30.00 dBm Marker 29.47 dBm 902.200 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 200.000 kHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 901 MHz Span 2 MHz Center 902 MHz Sweep 20 ms Stop 903 MHz D1 F1 LVLOFF Ref.Lvl 30.00 dBm Marker 29.40 dBm 927.802 MHz Res.Bw 100.0 kHz[3dB] TG.Lvl off CF.Stp 200.000 kHz Vid.Bw 1 MHz RF.Att 50 dB Unit [dBm] 30.0 20.0 10.0 0 -10.0 -20.0 -30.0 -40.0 -50.0 -60.0 -70.0 Start 927 MHz Span 2 MHz Center 928 MHz Sweep 20 ms Stop 929 MHz D1 F1

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Radiated Spurious Emissions Low Channel Ref.Lvl 97.90 dB uV Marker 45.62 dB uV 2.708972 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 903.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 2.7065 GHz Span 5 MHz Center 2.709 GHz Sweep 20 ms Stop 2.7115 GHz Ref.Lvl 97.90 dB uV Marker 45.90 dB uV 2.708933 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 903.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 2.7065 GHz Span 5 MHz Center 2.709 GHz Sweep 20 ms Stop 2.7115 GHz Ref.Lvl 97.90 dB uV Marker 46.15 dB uV 3.611794 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 903.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 3.6095 GHz Span 5 MHz Center 3.612 GHz Sweep 20 ms Stop 3.6145 GHz Middle Channel Ref.Lvl 97.90 dB uV Marker 44.76 dB uV 2.744888 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 915.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 2.7425 GHz Span 5 MHz Center 2.745 GHz Sweep 20 ms Stop 2.7475 GHz Ref.Lvl 97.90 dB uV Marker 43.94 dB uV 2.743844 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 915.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 2.7425 GHz Span 5 MHz Center 2.745 GHz Sweep 20 ms Stop 2.7475 GHz High Channel Ref.Lvl 97.90 dB uV Marker 46.69 dB uV 3.707922 GHz Res.Bw 1 MHz[imp] TG.Lvl off CF.Stp 927.000 MHz Vid.Bw 1 MHz RF.Att 10 dB Unit [dB uV] 90.0 80.0 70.0 60.0 50.0 40.0 30.0 20.0 10.0 0 Start 3.7055 GHz Span 5 MHz Center 3.708 GHz Sweep 20 ms Stop 3.7105 GHz

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15.247 Certification Test Report FCC ID: R7PWGRS3 FCC Rule Part: 15.247 ACS Report Number: 04-0203-15C Manufacturer: Cellnet Technology, Inc. Equipment Type: Utility Data Usage Transceiver Model: WANGATE with Utilinet DC Radio Test Setup Photographs Model: WANGATE Advanced Compliance Solutions FCC ID: R7PWGRS3 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Radiated Emissions – WANGATE with UTILINET DC RADIO Rear View Figure 2: Radiated Emissions – WANGATE with UTILINET DC RADIO Front View
