Bluetooth Headphones BT-H105 INSTRUCTIONS MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 1 Getting started  Remove the Bluetooth headphones & accessories from the box.  Remove all packaging from the Bluetooth headphones.  Place the packaging inside the box to either store or dispose of safely. In the Box  Bluetooth Headphones  USB Charging Cord  3.5mm AUX Cord  Instructions Manual Features  Easy to switch between calls and music, you will not miss the incoming call whilst listening to music  Answer & end a call at click of a button.  Redial last number  Volume control knob  Media Control (pause/play, previous track/next track)  Every time the Bluetooth headphones is turned on, 2 it connects to last connected device automatically Safety Instructions Read this manual carefully before putting the appliance into operation and keep this manual for future reference.  Do not use the unit with wet hands.  To minimize the risk of fire or electrical shock, avoid operating in wet conditions such as rain or humidity. Do not operate around water (e.g. bathroom, swimming pool, etc.)  Do not insert any metal object into the device.  To avoid a static charge, do not use the device in an extremely dry climate.  Do not attempt to repair the device yourself.  Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 3 Description of Parts 1 Retractable headband 2 Vol- 3 Vol+ 4 Power On/Off 5 Rotary Vol knob 6 PREV 7 NEXT 8 Play/Pause/Phone button 9 3.5mm AUX input jack 10 Micro USB charging port 11 Built-in Microphone 12 LED indicator 4 Charging Instructions This Bluetooth headphones have a built in rechargeable battery. Before using it for the first time we recommend you charge the battery fully. Only use the supplied USB cable to charge the Bluetooth headphones. 1. Connect the USB cable to the USB port on the unit. 2. Connect the other end of the USB cable to a USB port on a PC or an AC/DC adapter. The LED indicator turns red to indicate that the battery is being charged. When the battery is fully charged, the red LED indicator will turn off. Pairing the Bluetooth headphones with Bluetooth devices (phone or music device) 1. Turn on the headphones. 2. Turn on your Bluetooth enabled device and activate the Bluetooth function. 3. Search for the Bluetooth device, “BT-H105” will show up. 4. Pair your Bluetooth enabled device with BT-H105. If a password is needed, type in “0000”. After the 5 BT-H105 is paired with your device, connect it to your device. Tips: Once the headphones is paired and connected to your Bluetooth device, it automatically connects the next time as long as the Bluetooth on your device is turned on. Control a phone call via headphones Answer a call: Short press the Phone button. End a call: Short press the Phone button. Redial the last number: Press the phone button twice quickly. 6 Using AUX input The AUX input function allows you to use your headphones without using the battery and the Bluetooth connection. Note: Please switch off the headphones when using AUX input. Care and Maintenance Read the following recommendations before using the Bluetooth headphones. Following these you will be able to enjoy the product for many years.  Do not expose the Bluetooth headphones to liquid, moisture or humidity to avoid the product’s internal circuit being affected.  Don’t use abrasive cleaning solvents to clean the Bluetooth headphones.  Do not expose the Bluetooth headphones to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.  Don’t dispose of the Bluetooth headphones in a fire as it will result in an explosion. 7  Don’t expose the Bluetooth headphones to contact with sharp objects as this will cause scratches and damage.  Don’t let the Bluetooth headphones fall on the floor. The internal circuit might get damaged.  Don’t attempt to disassemble the Bluetooth headphones as it may get damaged if you are not professional. In case the Bluetooth headphones doesn’t function properly, send it to the store you bought it. The staff will help you to the problem. 8 Specifications Bluetooth profiles HSP, HFP, A2DP and AVRCP Bluetooth operating distance 10 meters (equal to 33 feet) Frequency range 2.4-2.48GHz Frequency response 100Hz-20kHz Distortion ≤1% Microphone sensitivity -40db Working time Up to 6 hours playing and 8 hours talk time Charging input power DC 5V Charging time Approx 3 hours Unit size 165*80*175mm Unit weight Approx. 200g Note: Battery life & charging time may vary, based on usage & types of devices used. 9 FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 10 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modi…

Text truncated - open the document above for the full version.

SHENZHEN XINHUAMEI ELECTRONICS LIMITED COMPANY Bldg. 5, TaiFeng Industrial Park, JianAn Road, Fu Yong, BaoAn District, Shenzhen, China Tel: +86 755 29064846 Fax: +86 755 33675299 Letter of Authorization Company: SHENZHEN XINHUAMEI ELECTRONICS LIMITED COMPANY Address: Bldg. 5, TaiFeng Industrial Park, JianAn Road, Fu Yong, BaoAn District, Shenzhen, China Product Name: Bluetooth Headphones Model Number: BT-H105 FCC Identifier: R8HBTH105 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Linda Date: 2015-12-1 Title: Merchandiser Signature of applicant:

SHENZHEN XINHUAMEI ELECTRONICS LIMITED COMPANY Bldg. 5, TaiFeng Industrial Park, JianAn Road, Fu Yong, BaoAn District, Shenzhen, China Tel: +86 755 29064846 Fax: +86 755 33675299 12/1/2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: SHENZHEN XINHUAMEI ELECTRONICS LIMITED COMPANY FCC ID: R8HBTH105 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Shenzhen XinHuaMei Electronics Limited Company hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Block Diagram Block Diagram Block Diagram Operational Description Operational Description Operational Description Schematics Schematics Schematics Parts / BOM Parts / BOM Parts / BOM Note: Any exhibit NOT granted Confidential status is viewable on the FCC website as soon as the Grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Shenzhen XinHuaMei Electronics Limited Company considers proprietary, confidential, and a custom design not otherwise available to the general public. State why the information is a “trade secret;” Since the design is a basis from which future products will evolve, Shenzhen XinHuaMei Electronics Limited Company considers that this information would be of significant benefit to its competitors and that disclosure would give competitors an unfair advantage in the marketplace. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. Sincerely, Signature: Linda Name: Linda Zou Company: SHENZHEN XINHUAMEI ELECTRONICS LIMITED COMPANY Title: Merchandiser Date: 2015-12-1

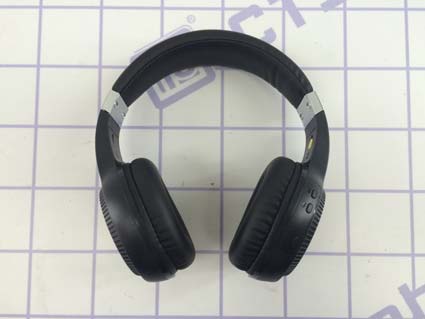

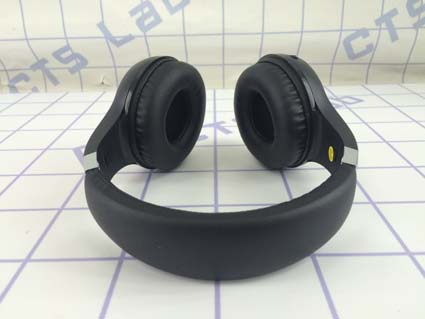

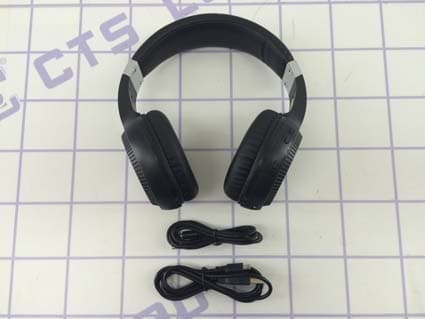

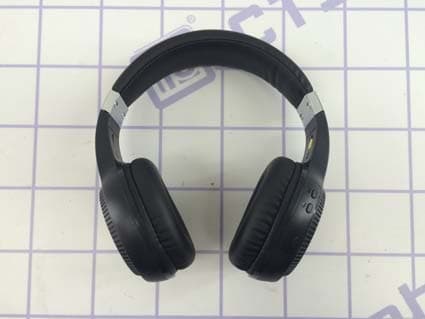

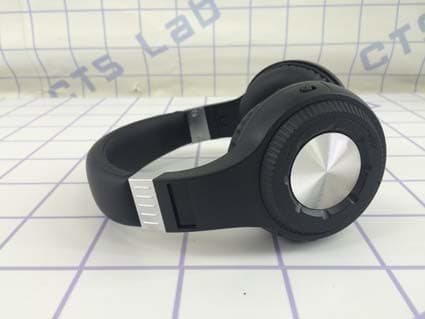

FCC ID:R8HBTH105 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3151204-01323-EF Page 1 of 3 1.External Photos of the EUT External view-1 External view-2 External view-3 FCC ID:R8HBTH105 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3151204-01323-EF Page 2 of 3 External view-4 External view-5 External view-6 FCC ID:R8HBTH105 Copyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. A101，No.65，Zhuji Highway,Tianhe District，Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3151204-01323-EF Page 3 of 3 External view-7
