R8OBT5L1-AElectronic Ballast

Electronic Ballast for T5 Fluorescent Lamp Description TDC T5 electronic ballasts series are designed to drive T5 fluorescent lamps. This is a top quality product to allow luminary manufacturers and users to produce elegant products with especially high efficiency and good light control features. It will increase the luminous flux and longer lamp life. This series electronic ballast is extremely beneficial both economically and professionally. Installation and Notice ◎ Connect the lamps to the ballast according to the label. The ballast is supported to use to the lamps specified on the product label ◎ Connections of power wires must be fully insulated. ◎ The installation of the electronic ballast must be carried out by a qualified electrician. ◎ Isolate the main supply before installation of this product. ◎ The electronic ballast can only be used to supply the T5 fluorescent lamps. Replace lamps in time if the lamps have been too aging to operate. Turn off power supply before replacing lamps. ◎ This electronic ballast can’t be used with a dimmer or in a dimming circuit. ◎ The power of lamp should be the same with the indicated value of this product. ◎ This electronic ballast may cause interference with radios, cordless telephone, or devices that use a wireless remote control, such as televisions. If interference occurs, move the product from the device, change its position. This product complies with part18 FCC rules. Warning This product complies with Part 18 of the FCC Rules but may cause interference to radios, television, wireless telephones, and remote controls. If interference occurs, move product away from the device or plug either into a different outlet, or move the lamp out of the sight with the remote control receiver. This product could produce interference when used near 0.7V, radio, wireless remote control or maritime safety communication equipment, or other critical navigation of communication equipment operating between 0.45---30 MHZ. If interference would occur, move the lamp away from the appliance a distance of three feet or more, Or plug the lamp or the appliance into a different outlet.

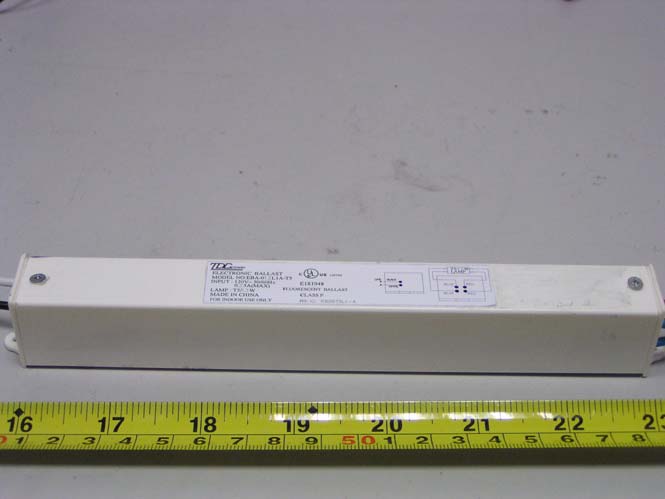

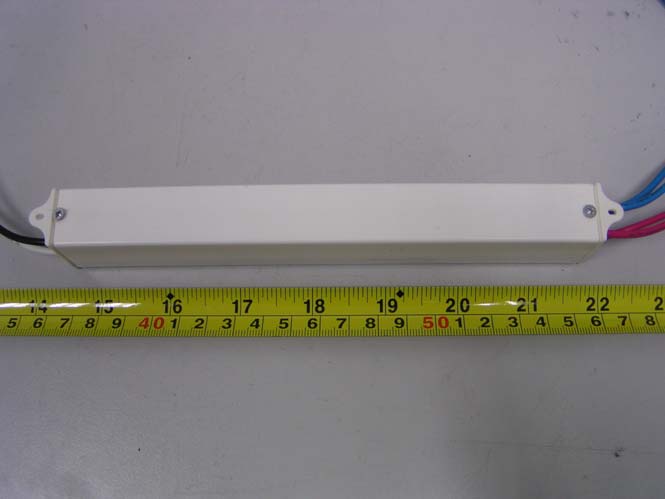

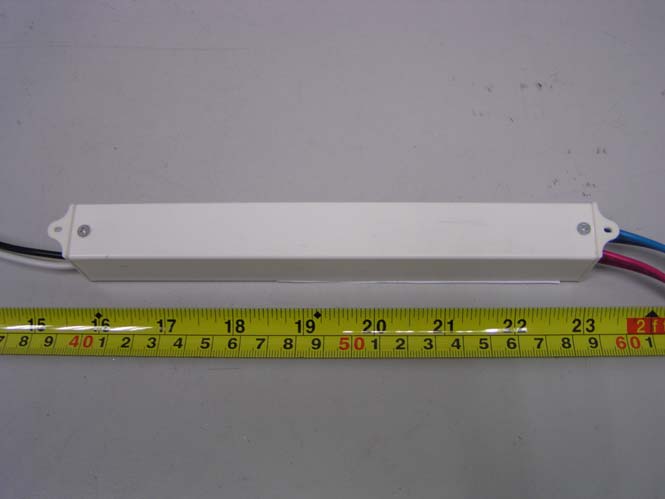

External Photos EBA-013L1A-T5: EUT Front View EBA-013L1A-T5: EUT Rear View EBA-008L1A-T5: EUT Front View EBA-008L1A-T5: EUT Rear View

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow.

ID Label Label FCC ID: R8OBT5L1-A

Internal Photos EBA-013L1A-T5: Component View EBA-013L1A-T5: Circuit View EBA-008L1A-T5: Component View EBA-008L1A-T5: Circuit View

Model no. : EBA-008L1A-T5 Item Materia Part Description Unit pcs Location 1 PCB 166*18*1.6mm FR-1 1/0Z PC 1 2 X'fmr RTS0135 T10*6*5 PC 1 T1 3 CHOKE RLC0015 PC 1 L1 4 CHOKE RTS0019 EE16 2.6mH 0.25 Φ *260TS PC 1 L2 5 MOSFET IRF830 TO-220(Q1,Q2) PC 2 Q1,Q2 6 DZ 1N4745A PC 2 ZD1,ZD2 7 DR 1N4007 PC 7 D1-D7 8 Diode DB3 PC 1 DB3 9 CX2 0.1uF/250V AC PC 1 C1 10 CE 22uF±20% 250V 105°C Φ13*20mm 5mm PC 1 C3 11 CMPEI 223J/ 100VDC PC 1 C4 12 CMEF 0.22uF±5% 250VDC 15*7.5*10mm 14mm PC 1 C7 13 CMPPS 6.8nF±5% 1200VDC 18*5*11mm 15.5mm PC 1 C8 14 CC 102K 1000V 4mm PC 2 C5,C6 15 FUSE 1A/250VAC Φ3.6X10mm PC 1 F1 16 RCF 250Ω ±5% 1/4W PC 2 R2,R3 17 RCF 330KΩ ±5% 1/4W PC 2 R1,R4 18 CASE CAE008 ABS PCS 2 19 CASE CAE009 ABS PCS 1 20 Screw M2.6*6 PCS 4 21 WIRE 1015# 18AWG 150mm*5*5 RED PC 2 22 WIRE 1015# 18AWG 150mm*5*5 BLUE PC 2 23 WIRE 1015# 18AWG 150mm*5*5 WHITE PC 1 24 WIRE 1015# 18AWG 150mm*5*5 BLACK PC 1 25 LABEL T5B-0001 PC 1 BOM Model no. : EBA-013L1A-T5 Item Materia Part Description Unit pcs Location 1 PCB 166*18*1.6mm FR-1 1/0Z PC 1 2 X'fmr RTS0135 T10*6*5 PC 1 T1 3 CHOKE RLC0015 PC 1 L1 4 CHOKE RTS0017 EE16 1.9mH 0.25 Φ *220TS PC 1 L2 5 MOSFET IRF830 TO-220(Q1,Q2) PC 2 Q1,Q2 6 DZ 1N4745A PC 2 ZD1,ZD2 7 DR 1N4007 PC 7 D1-D7 8 Diode DB3 PC 1 DB3 9 CX2 0.1uF/250V AC PC 1 C1 10 CE 22uF±20% 250V 105°C Φ13*20mm 5mm PC 1 C3 11 CMPEI 223J/ 100VDC PC 1 C4 12 CMEF 0.22uF±5% 250VDC 15*7.5*10mm 14mm PC 1 C7 13 CMPPS 6.8nF±5% 1200VDC 18*5*11mm 15.5mm PC 1 C8 14 CC 102K 1000V 4mm PC 2 C5,C6 15 FUSE 1A/250VAC Φ3.6X10mm PC 1 F1 16 RCF 250Ω ±5% 1/4W PC 2 R2,R3 17 RCF 330KΩ ±5% 1/4W PC 2 R1,R4 18 CASE CAE008 ABS PCS 2 19 CASE CAE009 ABS PCS 1 20 Screw M2.6*6 PCS 4 21 WIRE 1015# 18AWG 150mm*5*5 RED PC 2 22 WIRE 1015# 18AWG 150mm*5*5 BLUE PC 2 23 WIRE 1015# 18AWG 150mm*5*5 WHITE PC 1 24 WIRE 1015# 18AWG 150mm*5*5 BLACK PC 1 25 LABEL T5B-0003 PC 1 BOM

Note: The test report is specially limited to the above company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 MEASUREMENT AND TEST REPORT For TDC Power Products Co., Ltd Room C13, 5F, #210, Sect.3, Ta-Tung Rd. Shi-Chih City, Taipei Hsien, Taiwan DongHang 3rd Industrial District, Dong Hang, Dong Guan City, GuangDong, China FCC ID: R8OBT5L1-A June 17, 2004 This Report Concerns: Original Report Equipment Type: Electronic Ballast Test Engineer: Lisa Zhu Report Number RSZ04060206 Test Date: May 14, 2004 Reviewed By: Chris Zheng Prepared By: Bay Area Compliance Lab Corp. ShenZhen Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: 86-755- 83296449 Fax: 86-755- 83273756 TDC Power Products Co., Ltd FCC ID: R8OBT5L1-A Report # RSZ04060206 Page 2 of 9 FCC Part 18 ID Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL CABLE........................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SYSTEM..............................................................................................................................4 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................4 CONDUCTED EMISSION...........................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 EUT SETUP..................................................................................................................................................................5 SPECTRUM ANALYZER SETUP......................................................................................................................................6 T EST E QUIPMENT L IST AND D ETAILS ...........................................................................................................................6 T EST P ROCEDURE ........................................................................................................................................................6 T EST D ATA ..................................................................................................................................................................7 P LOT ( S ) OF T EST D ATA ................................................................................................................................................7 TDC Power Products Co., Ltd FCC ID: R8OBT5L1-A Report # RSZ04060206 Page 3 of 9 FCC Part 18 ID Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The TDC Power Products Co., Ltd.’s model EBA-013L1A-T5,EBA-008L1A-T5 or the “EUT” as referred to in this report is a Electronic Ballast which measures approximately 8.7cm L x 2.4cm W x 2.0cm H, rated input voltage: AC 120 V/60Hz. * The test data gathered are from production sample, serial number: 040551, provided by the manufacturer. Objective The following test report is prepared on behalf of TDC Power Products Co., Ltd in accordance with Part 2, Subpart J, and Part 18, Subparts A, B, and C of the Federal Communication Commissions rules and regulations. The objective is to determine compliance with FCC rules. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 Meters. Test Facility Test site at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on December 25, 1997. The…

Text truncated - open the document above for the full version.

Test Setup Photos EBA-013L1A-T5: Conducted Emission– Front View EBA-013L1A-T5: Conducted Emission– Side View EBA-008L1A-T5: Conducted Emission– Front View EBA-008L1A-T5:: Conducted Emission– Side View
