Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Operator Manual This page is intentionally blank. WWW.GASMONITORS.COM LOCAXION A NChOR OpeRATOR MANuAL | 1 Operator Manual Table of Contents Introduction ��������������������������������������������������������������������������������������������������������������������3 About LocaXion Anchor �����������������������������������������������������������������������������������������������3 About the CONNEXT Wireless Gas Detection System �����������������������������������������������3 Important Safety Information: Read First ��������������������������������������������������������������������3 LocaXion Anchor at a Glance ���������������������������������������������������������������������������������������4 Physical Description ����������������������������������������������������������������������������������������������������4 Security ������������������������������������������������������������������������������������������������������������������������4 Install the LocaXion Anchor ������������������������������������������������������������������������������������������5 Network Planning and Preparation ������������������������������������������������������������������������������5 Identify LocaXion Anchor Site Locations ���������������������������������������������������������������������5 Inspect LocaXion Anchor and Associated Hardware ��������������������������������������������������5 Connect the Antenna ���������������������������������������������������������������������������������������������������5 Ground the LocaXion Anchor ��������������������������������������������������������������������������������������6 Mount the LocaXion Anchor ����������������������������������������������������������������������������������������6 Connect Power ������������������������������������������������������������������������������������������������������������7 DC Power Wiring ���������������������������������������������������������������������������������������������������������7 Power On and Startup �������������������������������������������������������������������������������������������������7 Connect to Network and Configure ������������������������������������������������������������������������������8 Establish Connection Between LocaXion Anchor and Web Server ����������������������������8 Configure the LocaXion Anchor �����������������������������������������������������������������������������������8 Maintenance and Troubleshooting �������������������������������������������������������������������������������9 Recommended Maintenance ���������������������������������������������������������������������������������������9 Troubleshooting LocaXion Anchor ������������������������������������������������������������������������������9 Limited Warranty and Limitation Liability ������������������������������������������������������������������10 Notices and Trademarks ����������������������������������������������������������������������������������������������10 Honeywell Confidential and Proprietary ��������������������������������������������������������������������10 Notices and Trademarks ��������������������������������������������������������������������������������������������10 Symbols, Warnings and Cautions ������������������������������������������������������������������������������10 Specifications ���������������������������������������������������������������������������������������������������������������11 Regulatory Compliance �����������������������������������������������������������������������������������������������12 Federal Communications Commission Compliance Statements ������������������������������12 Industry Canada Compliance Statements �����������������������������������������������������������������12 ATEX and IECEx Compliance Statements ����������������������������������������������������������������12 Agency Approval Marks �����������������������������������������������������������������������������������������������13 Declarations of Conformity �����������������������������������������������������������������������������������������14 Contact Honeywell �������������������������������������������������������������������������������������������������������15 Corporate Headquarters ��������������������������������������������������������������������������������������������15 United States �������������������������������������������������������������������������������������������������������������15 Europe �����������������������������������������������������������������������������������������������������������������������15 Web ����������������������������������������������������������������������������������������������������������������������������15 Email ��������������������������������������������������������������������������������������������������������������������������15 Appendix �����������������������������������������������������������������������������������������������������������������������16 Mounting Template ����������������������������������������������������������������������������������������������������16 This page is intentionally blank. WWW.GASMONITORS.COM LOCAXION A NChOR OpeRATOR MANuAL | 3 Operator Manual Introduction This document describes the procedures to configure, install, and operate LocaXion Anchor� LocaXion Anchor is a component in the CONNEXT Wireless Gas Detection System� About LocaXion Anchor LocaXion Anchor is a beacon device that responds to probe requests and transmits SSID data� It is certified for indoor and outdoor use in Class 1, Division 2/Zone 2 (Groups A, B, C, D) environments� LocaXion Anchor is powered by +24 volts DC� The enclosure and auxiliary components are designed to meet IP64 and NEMA Type 4X ratings for protection against dust and water ingress� The antenna port includes an integrated, permanently attached lightning arrestor� Intended Use LocaXion Anchor is a component in the CONNEXT Wireless Ga…
Text truncated - open the document above for the full version.

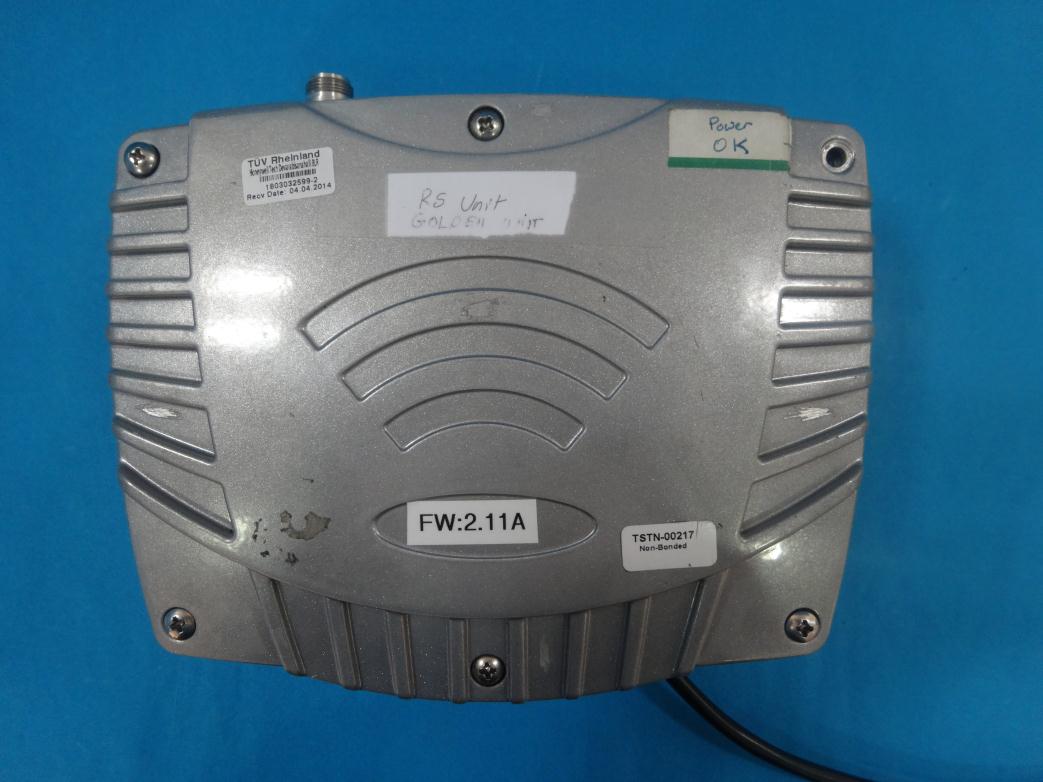

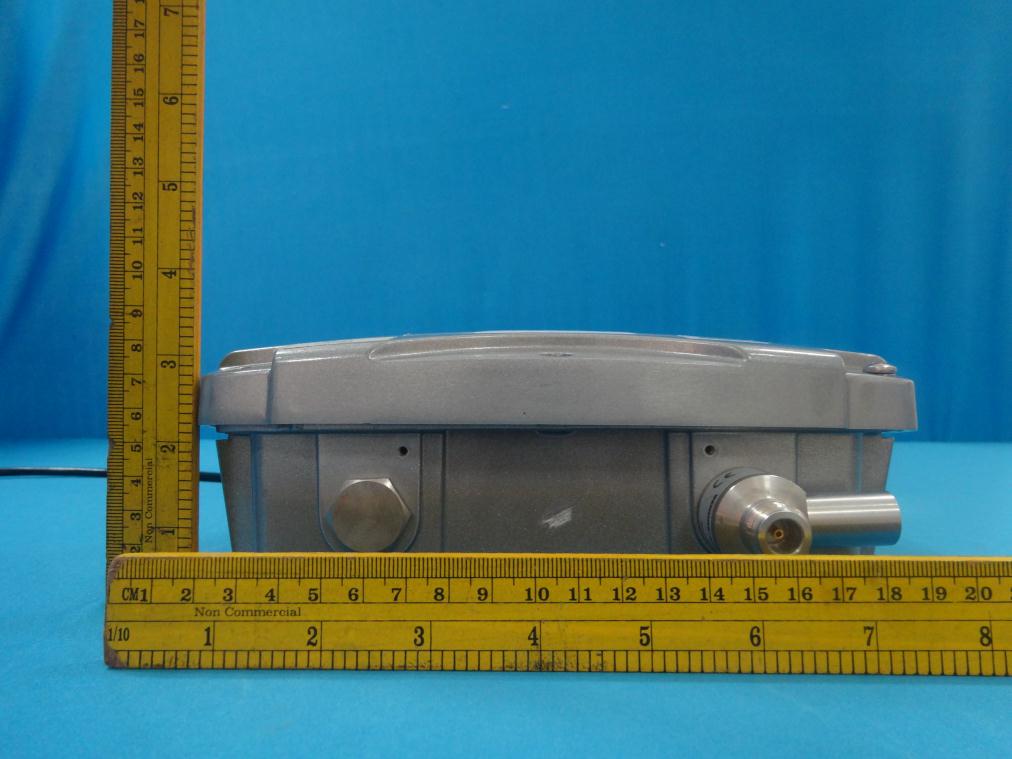

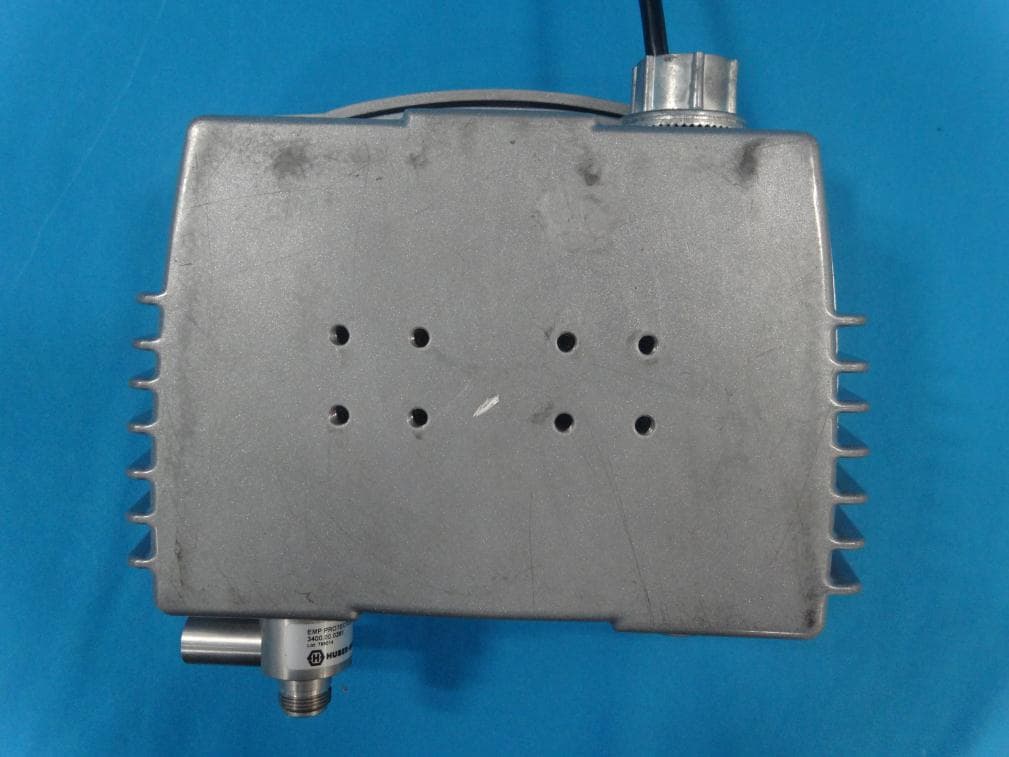

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 1 von 5 Page 1 of 5 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 2 von 5 Page 2 of 5 EUT Overall View EUT Side View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 3 von 5 Page 3 of 5 EUT Side View EUT Side View EUT Side View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 4 von 5 Page 4 of 5 EUT Side View External Antenna www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 5 von 5 Page 5 of 5 EUT Dimensional View EUT Dimensional View
www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 1 von 1 Page 1 of 1 Label Diagram Label Location
www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 1 von 4 Page 1 of 4 EUT- Enclosure Opened Internal PCB www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 2 von 4 Page 2 of 4 Bottom Enclosure- Inner View Top Enclosure – Inner View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 3 von 4 Page 3 of 4 Internal PCB - Top View Internal PCB - Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 4 von 4 Page 4 of 4 Antenna Antenna Connector
www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 1 von 2 Page 1 of 2 RF Exposure Report RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over- prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 F= Frequency in MHz www.tuv.com Appendix 10 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 2 von 2 Page 2 of 2 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Test Results Gain (G) = 5dBi 802.11 Protocol Data Rate (Mbps) Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm²) Limit (mW/cm²) b 11 2462 30.19 0.030046 1.000 g 6 2462 22.18 0.022074 1.000
Produkte Products TÜV Rheinland LGA Products GmbH Tillystraße 2 D - 90431 Nürnberg Tel.: +49 911 655 5225 Fax: +49 911 655 5226 Mail: [email protected] Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 19660089 001 Seite 1 von 62 Test Report No.: Page 1 of 62 Auftraggeber: Client: BW Technologies 2840, 2 Ave SE CALGARY, Alberta, T2A 7X9 Gegenstand der Prüfung: Test item: LocaXion Anchor Bezeichnung: Identification: LADC101 Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1803032599 Eingangsdatum: Date of receipt: 01.04.2014 Prüfort: Testing location: Refer Page 4 of 62 for test facilities Prüfgrundlage: Test specification: FCC Part 15: Subpart C ANSI C63.4-2003 Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test items passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. 82/A, 3rd Main, West Wing, Electronic City Phase 1 Hosur Road, Bangalore – 560 100. India FCC Registration No.: 176555 geprüft / tested by: kontrolliert / reviewed by: 09.04.2014 Vinay N Test Engineer 10.04.2014 Raghavendra Kulkarni Senior Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : R9O-LADC101 Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.: 19660089 001 Date: 09.04.2014 Page 2 of 62 Test Result Summary Clause Test Item Result FCC 15.247(b) (3) Maximum Peak Conducted Output Power Pass FCC 15.247(a) (2) 6dB Bandwidth Pass FCC 15.247(e) Maximum Power Spectral Density Pass FCC 15.247(d) Band-edge compliance Pass FCC 15.209 / FCC 15.205 Spurious Radiated Emissions and Restricted Bands of Operation Pass www.tuv.com Test Report No.: 19660089 001 Date: 09.04.2014 Page 3 of 62 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use .......................................................................................................... 5 Ratings and System Details ........................................................................................................................ 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 7 Principle of Configuration Selection ......................................................................................................... 7 Test Operation and Test Software ............................................................................................................. 7 Test Modes – Data Rates and Modulations .............................................................................................. 7 Test Methodology ....................................................................................................... 8 Radiated Emission Test .............................................................................................................................. 8 Test Results ................................................................................................................. 9 Maximum Peak Conducted Output Power Section 15.247(b) (3) .............................. 9 Maximum Power Spectral Density Section 15.247(e) .................................. 18 6 dB Bandwidth Section 15.247(a) (2) ............................ 27 Band-edge Compliance Section 15.247(d) ................................. 44 Spurious Radiated Emissions and........................................................................................................... 56 Restricted Bands of Operation Section 15.209 and 15.205 .................. 56 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: FCC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Calculation www.tuv.com Test Report No.: 19660089 001 Date: 09.04.2014 Page 4 of 62 List of Test and Measurement Instruments TUV Rheinland (India) Pvt. Ltd. , Bangalore Equipment Manufacturer Model S/N Calibration Due Date EMI Test Receiver Rohde &Schwarz ESU 40 100288 04.10.2014 Double-Ridged Waveguide Horn Antenna ETS Lindgren 3116C 125945 01.09.2014 Honeywell Technology Solutions Lab. Equipment Manufacturer Model S/N Calibration Due Date EMI Test Receiver R&S ESIB7 100287 31-Jul-14 Spectrum Analyzer Agilent N9000A MY51260171 24-Jan-15 Spectrum Analyzer Agilent N9010A MY51250100 24-Jan-15 Power Supply Gwinstek GPS4303 E4845901 28-Mar-15 RF Cable Huber-Suhner Sucoflex 100 SNMY134681 - Thermal Chamber Testequity 105 050110 15-Nov-15 High Pass Filter Wainwright WHKX1.5/15G- 12ST 1 09-May-14 Preamplifier R&S SCU-18 10178 13-Jun-14 Biconical Antenna ETS Lindgren 3104C 00069263 15-Nov-14 Double Ridge Guide Horn Antenna ETS Lindgren 3117 00064055 14-Nov-14 RF cable (9KHz to 1GHz) COLEMAN RG214 RE-1 A 9-May-14 RF cable (9KHz to 1GHz) COLEMAN RG214…
Text truncated - open the document above for the full version.
www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 1 von 3 Page 1 of 3 Test Setup Test Setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 2 von 3 Page 2 of 3 Test setup Test Setup www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 19660089 001 Seite 3 von 3 Page 3 of 3 Test setup
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 30.19 mW |

Single Wireless Gas Detector
Equipment Class
DTS - Digital Transmission System
Personnel Alert Base
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Personnel Alert Badge
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
