R9O-PASE-10Personnel Alert Badge

Personnel Alert Wireless Alarm Notification System (Base Station) User Manual D (English) iERP: 11 © 2005 BW Technologies. All rights reserved. Printed in Canada. All product names are trademarks of their respective companies. Limited Warranty & Limitation of Liability BW Technologies LP (BW) warrants this product to be free from defects in material and workmanship under normal use and service for a period of two years, beginning on the date of shipment to the buyer. This warranty extends only to the sale of new and unused products to the original buyer. BW’s warranty obligation is limited, at BW’s option, to refund of the purchase price, repair, or replacement of a defective product that is returned to a BW authorized service center within the warranty period. In no event shall BW’s liability hereunder exceed the purchase price actually paid by the buyer for the Product. This warranty does not include: a) fuses, disposable batteries or the routine replacement of parts due to the normal wear and tear of the product arising from use; b) any product which in BW’s opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of operation, handling or use; c) any damage or defects attributable to repair of the product by any person other than an authorized dealer, or the installation of unapproved parts on the product; or The obligations set forth in this warranty are conditional on: a) proper storage, installation, calibration, use, maintenance and compliance with the product manual instructions and any other applicable recommendations of BW; b) the buyer promptly notifying BW of any defect and, if required, promptly making the product available for correction. No goods shall be returned to BW until receipt by the buyer of shipping instructions from BW; and c) the right of BW to require that the buyer provide proof of purchase such as the original invoice, bill of sale or packing slip to establish that the product is within the warranty period. THE BUYER AGREES THAT THIS WARRANTY IS THE BUYER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BW SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR BASED ON CONTRACT, TORT OR RELIANCE OR ANY OTHER THEORY. Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this warranty is held invalid or unenforceable by a court of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision. BW Technologies LP BW Technologies Inc. (America) BW Europe Ltd. 2840 – 2nd Ave. SE 3279 West Pioneer Parkway 101 Heyford Park, Calgary, AB Arlington, TX Upper Heyford, Oxfordshire Canada T2A 7X9 USA 76013 United Kingdom OX25 5HA Table of Contents Title Page Introduction............................................................................................................................................1 Contacting BW Technologies................................................................................................................2 Safety Information - Read First.............................................................................................................2 Getting Started......................................................................................................................................5 The Personnel Alert Base Station.........................................................................................................6 Control Bay............................................................................................................................7 Liquid Crystal Display (LCD).................................................................................................8 Badges...................................................................................................................................9 Installation...........................................................................................................................................10 The Base Station.................................................................................................................10 Main Board...........................................................................................................................10 Radio Board.........................................................................................................................11 Mounting Guidelines............................................................................................................12 Preparation for Mounting the Base......................................................................................13 Conduit Installation..............................................................................................................14 Cable Installation.................................................................................................................14 MODBUS Wiring and Configuration...................................................................................................18 MODBUS Wiring..................................................................................................................18 Baud Rate and Parity Configuration...................................................................................................19 Setting the Dip Switch Addresses.......................................................................................................20 Alarm Relay Contact Wiring and Configuration............................................................…

Text truncated - open the document above for the full version.

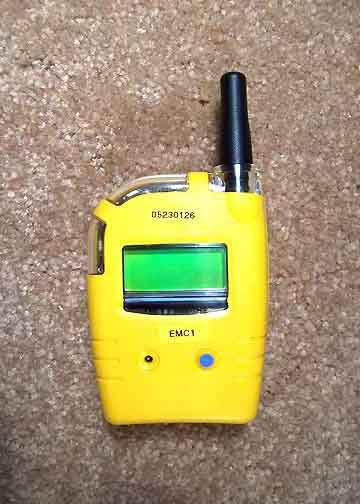

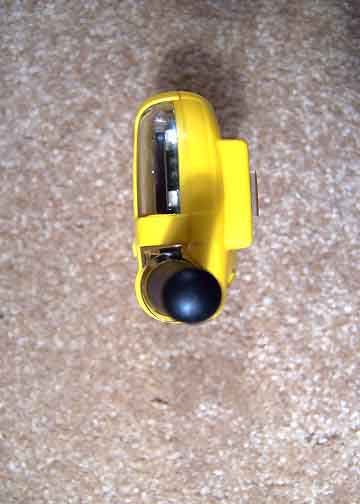

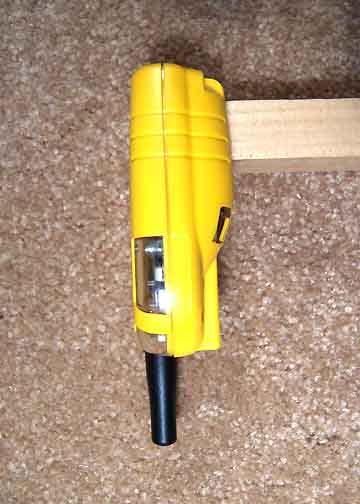

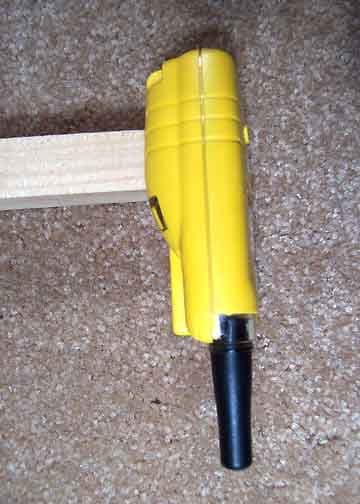

Front Back Top Bottom Left Right

7 1 27 May-04 xxxxxxx xxxxx Approval Submission / Preliminary Design 2 14 JUL-04 116282 xxxxx Change "04" to "03" in Demko-ATEX number 1 7-July-05 110308 Preliminary design 2 26-Aug-05 110308 Remove "A" and second "-" from Ind. Can. text string 26-Aug-05 TR 26-Aug-05 JT 6 Label locations on back of GA Clip Extr eme Certification label Order number label Ser ial number label 543 29.81 26.78 21.53 Label Artwork @ 100% Label Artwork @ 200% 2 as printed at 100% with barcodes serial and order numbers Notes: 1. Blank: 3M 7872, 2.0 mil Thermal Transfer Polyester Colour: Black thermal print on matte platinum background. Adhesive: 3M 350, 1.8 mil acrylic Ribbon: Sony TR5070 ERP# 118839 2. Barcodes to be printed Code 128. 3. All dimensions in mm. AB104 - 001000 Product Family Revision # Year of Manufacture Ser ial # Date Code & Serial # Legend 5164-PASE10 IC BW ID Radio PCB Artwork drawing number Industry Canada ID Legend R90-PASE-10 FCC BW ID Radio PCB Artwork drawing number Federal Communications Commision ID Legend PA-BADGE-900 Base Unit Personnel Alert 900 MHz ISM Band Personnel Alert Base Model XXXXX 1 BW Technologies Ltd. Calgary, Alberta File: PASA-032_PABadge Certification Label.ai Drawn by: TR Scale: As noted Sheet: 1 of 1 Layer Personnel Alert Badge Certification Label Dwg #:PASA-032 Date: Date: Approved: Part #ECR# Description Rev

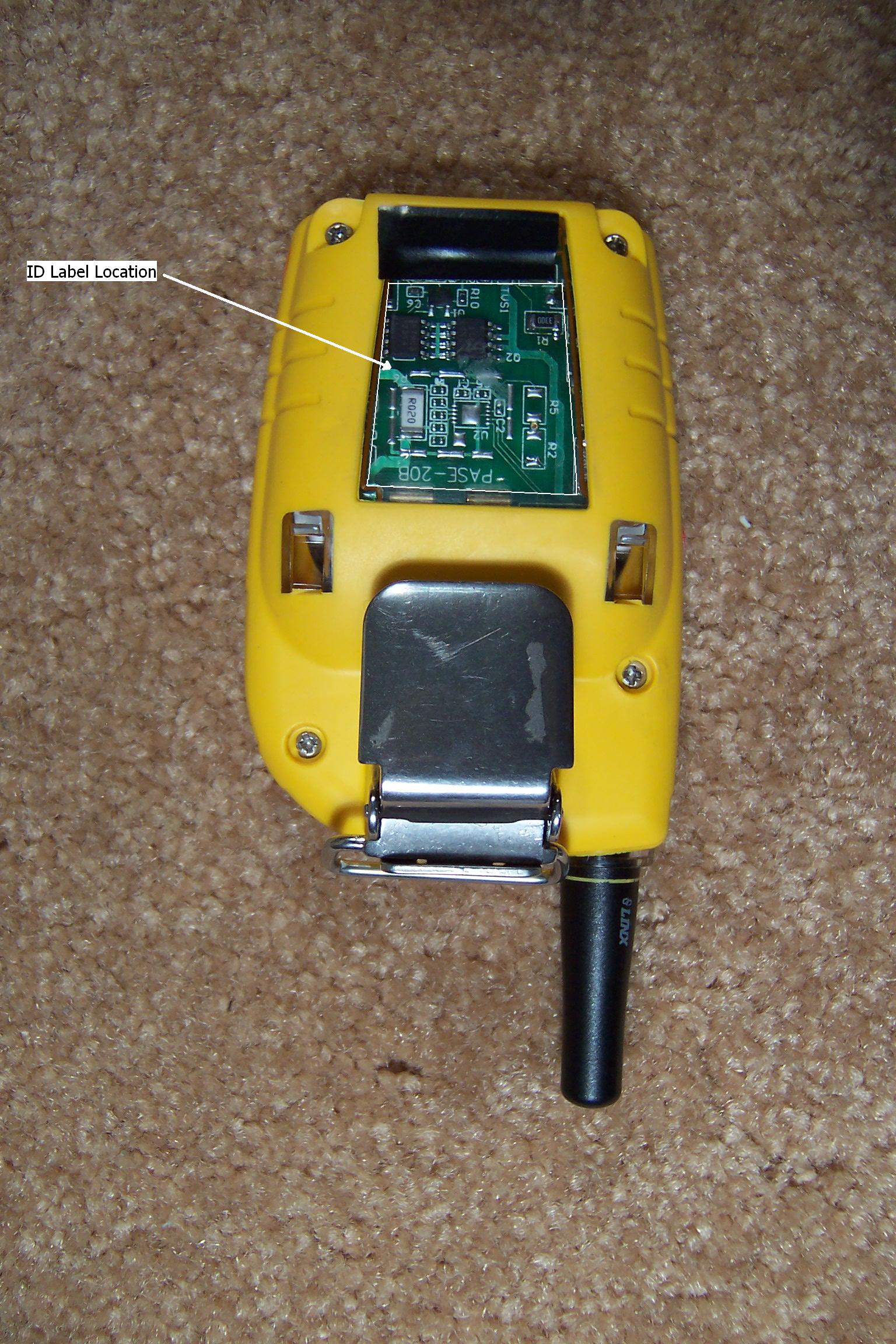

Inside Back Cover PCB PASE-10B Front PCB PASE-10B Back PCB PASE-20B Front PCB PASE-20B Back Profile Showing Battery

Personnel Alert Product Description Summary The BW Personnel Alert (BWPA) is a low power wireless alarm notification system that transmits an alarm condition from one or more fixed base stations to personal, wearable “badges” within a hazardous area. The BWPA system utilizes the North American Industrial Scientific and Medical radio frequency band (ISM band: 902-928MHz). The system has a typical 100m-range and is rated for operation in temperatures from -20 C to +50° C. Alarm conditions raised by a separate gas detection or PLC control system are sent to the BWPA base station via a Modbus (digital) interface or simple relay contact inputs. The BWPA system can be deployed with one or more base stations to provide a larger contiguous or “zoned” RF coverage area, and a system can track up to 256 portable badges. Each base station in a system maintains a table listing the unique ID numbers of badges currently registered with it, and during alarm conditions will keep track of alarm acknowledgements (or NACKs) from each actively registered badge. The Base station has a backlit LCD display that displays the number of actively registered or “local” badges (badges within the base’s communication range), up to 256, and the number of local badges in acknowledge mode, (up to 256) during an alarm condition. Technical Detail The Personnel Alert system uses the Xemics single chip transceiver operating in the North American 902-928MHz license-free ISM (Industrial, Scientific and Medical) frequency band, and is Frequency Hopping Spread Spectrum. (FHSS). The transceiver transmits and receives data using half-duplex, NRZ frequency shift keying (FSK) data coding. The communication protocol is proprietary. Channel spacing (frequency separation) is set at 500 kHz, and uses 50 channels in the frequency band. The data channels have a bandwidth of 200 KHz. The Base consists of two separate printed circuit boards: • Radio • Interface The Interface PCB contains the LCD display and provides the I/O interface to the external controller or relays; the Radio PCB is the radio transceiver board. Two Microchip PIC18LF452 micro controllers are used on the Interface PCB in order to communicate between the MOSBUS and the Radio PCB. One micro controller is used on the Radio PCB to program the registers on and to control the data flow to and from the Xemics transceiver. The Badge hardware has two PCB’s, the RF deck and data processing circuitry are on the main PCB and the battery is on the second and is connected to the main PCB via a 4 pin header. The Xemics radio operates in either of four states: 1. Receive 2. Transmitter 3. Standby 4. Sleep In transmit mode, non-return to zero (NRZ) data is presented to the radio at the chosen baud rate of 19200 baud. The uP uses a CCP module and timer to generate the correct baud rate. In receive mode the radio produces a logic-high at the “pattern output” pin if the configured reference pattern for the pattern recognition function is received. Alternating 0’s and 1’s precede the predetermined pattern. When the uP sees “pattern output” line go high, it samples the radio- received data with the radio’s data clock output. The pattern and data clock are considered interrupt events at the uP. RF Signal The RF signal is 2 level NRZ FSK, Time Division Duplex (TDD) access, worst case duty cycle is 12%, binary information is being sent as 2 words at 19200 baud.

5473-A Clouds Rest * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC – COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA *HOLLISTER, CA* MARIPOSA, CA *HILLSBORO, OR*TILLAMOOK, OR*REDMOND, WA Date of Report: August 4, 2005 RF Exposure Statement Calculations prepared for: Calculations prepared by: Randal Clark CKC Laboratories, Inc. 5473A Clouds Rest Road Mariposa, CA 95338 FCC ID Number:: Model Number: PA-BADGE-900 Fundamental Operating Frequency: 902-928 MHz Measured Output Power: 3.4 mW EIRP Measurement Uncertainty: Maximum Antenna Gain: 2.1 dBi Power Output and Operating Frequency Information used for these calculations were from: CKC Laboratories, Test Report # Device and Antenna Operating Configuration: Peak values were measured using a spectrum analyzer with RBW=VBW=1MHz. Average measurements of power would be considerably less that those reported here. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65. Other Considerations: The purpose of this document is to demonstrate compliance with RF Exposure by exemption due to low power output. 5473-A Clouds Rest * Mariposa, CA 95338 * PH (209) 966-5240 * Fax (209) 742-6133 WORLDWIDE EMC – COMMERCIAL * INDUSTRIAL * MEDICAL * MILITARY * AVIONICS BREA, CA * FREMONT, CA *HOLLISTER, CA* MARIPOSA, CA *HILLSBORO, OR*TILLAMOOK, OR*REDMOND, WA Power Output Examination: Exposure Conditions Occupational / Controlled Exposure X General Population / Uncontrolled Exposure Separation Distance X Less than 2.5 cm Greater than 2.5cm Frequency Range X 900 MHz 2.4 GHz 5.8 GHz The lower threshold for RF Exposure requirements is (60/f GHz )mW mW F T GHz low 7.64 928.0 6060 === The peak output power of this equipment is 3.4mW which is below the lower threshold for RF safety compliance. Statement of Compliance: This device demonstrates compliance under the operating conditions specified in this document. Under normal operating conditions, the power output of this device does not exceed the lower threshold for RF Safety compliance. This equipment is thereby exempted from RF safety testing according to KDB publication 628591.

Page 1 of 47 Report No: FC05-054 BW TECHNOLOGIES TEST REPORT FOR THE PERSONNEL ALERT BADGE, PA-BADGE-900 FCC PART 15 SUBPART C SECTION 15.247, SUBPART B SECTION 15.109, CLASS A AND RSS-210 COMPLIANCE DATE OF ISSUE: AUGUST 23, 2005 PREPARED FOR: BW Technologies 2840 - 2nd Avenue S.E. Calgary, Alberta T2A-7X9 Canada PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: W.O. No.: 35361 83628 Date of test: August 1-22, 2005 Report No.: FC05-054 This report contains a total of 47 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 47 Report No: FC05-054 TABLE OF CONTENTS Administrative Information .............................................................................................3 FCC to Canada Standard Correlation Matrix...................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 FCC 15.31(e) Voltage Variation......................................................................................5 FCC 15.31(m) Number Of Channels ...............................................................................5 FCC 15.33(a) Frequency Ranges Tested .........................................................................5 FCC 15.35 Analyzer Bandwidth Settings ........................................................................5 FCC 15.203 Antenna Requirements ................................................................................5 FCC 15.205 Restricted Bands..........................................................................................5 Eut Operating Frequency .................................................................................................5 Equipment Under Test .....................................................................................................6 Peripheral Devices ...........................................................................................................6 Report of Measurements ..................................................................................................7 Table 1: FCC 15.109 Six Highest Radiated Emission Levels .............................7 FCC 15.247(a)(1) Channel Separation ................................................................8 FCC 15.247(a)(1)(i) Average Time of Occupancy..............................................9 FCC 15.247(a)(1) Number Of Hopping Channels...............................................11 FCC 15.247(a)(1) Occupied Bandwidth ..............................................................12 Table 2: FCC 15.247(b)(2) RF Power Output Levels..........................................13 Table 3: FCC 15.247(d) Six Highest OATS Spurious Emission Levels - 1-1000 MHz 14 Table 4: FCC 15.247(d) Six Highest OATS Spurious Emission Levels - 1-10 GHz.....15 FCC 15.247(d) Bandedge - Low Channel ...........................................................16 Temperature And Humidity During Testing....................................................................18 EUT Setup........................................................................................................................18 Correction Factors............................................................................................................18 Table A: Sample Calculations .............................................................................18 Test Instrumentation and Analyzer Settings ....................................................................19 Spectrum Analyzer Detector Functions ...............................................................19 Peak..........................................................................................................19 Quasi-Peak ...............................................................................................19 Average ....................................................................................................19 EUT Testing.....................................................................................................................20 Radiated Emissions ..............................................................................................20 Appendix A: Information About The Equipment Under Test .........................................21 I/O Ports ...............................................................................................................22 Crystal Oscillators................................................................................................22 Printed Circuit Boards .........................................................................................22 Photograph Showing Radiated Emissions ...........................................................25 Appendix B: Test Equipment List ...................................................................................26 Appendix C: Measurement Data Sheets ..........................................................................27 Page 3 of 47 Report No: FC05-054 ADMINISTRATIVE INFORMATION DATE OF TEST: August 1-22, 2005 DATE OF RECEIPT: August 1, 2005 MANUFACTURER: BW Technologies 2840 - 2nd Avenue S.E. Calgary, Alberta T2A-7X9 Canada REPRESENTATIVE: Jim Turner TEST LOCATION: CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 TEST METHOD: ANSI C63.4 (2003), DA 02-2138 August 30, 2002, DA 00-705 March 30, 2000, KDB Publication No. 558074 and RSS-212 PURPOSE OF TEST: To demonstrate the compliance of the Personnel Alert Badge, PA-…

Text truncated - open the document above for the full version.

PHOTOGRAPH SHOWING RADIATED EMISSIONS
