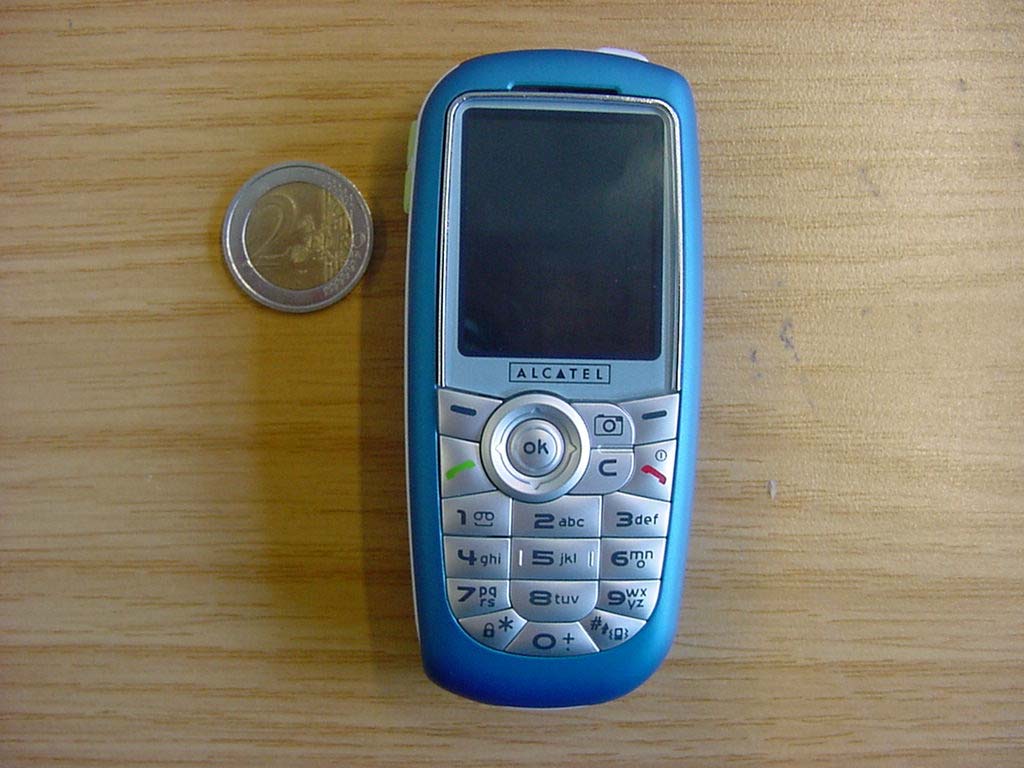

CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 68 (76) ANNEX CExternal Photos CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 69 (76)

CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 70 (76) ANNEX DInternal Photos CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 71 (76) CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 72 (76) CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 73 (76) CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 74 (76) CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 75 (76) CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 76 (76)

TTI-P-G 158 DASY Test-Report, Alcatel_6620_422e Page 1 of 31 Report Dosimetric Assessment of the Portable Device Alcatel One Touch 565 (FCC ID: RAD005) According to the FCC Requirements June 14, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Alcatel Business Systems 32, avenue KlÈber F-92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Alcatel_6620_422e Page 2 of 31 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The One Touch 565 is a mobile phone (Portable Device) from Alcatel operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 2 TX slots (Class 10). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Alcatel One Touch 565 mobile phone (FCC ID: RAD005) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combinations with 2.0 cm distance: GPRS mode (2 TX slots, Class 10) GSM mode (1 TX slot) with headset prepared by: ........................................... reviewed by: .............................................. Alexander Rahn Dr. Ing. Achim Bahr test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Alcatel_6620_422e Page 3 of 31 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 18 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 18 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 18 7.3 TISSUE RECIPES......................................................................................................................................... 18 7.4 MATERIAL PARAMETERS............................................................................................................................. 19 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 19 7.6 ENVIRONMENT........................................................................................................................................... 23 7.7 TEST EQUIPMENT....................................................................................................................................... 23 7.8 CERTIFICATES OF CONFORMITY..................................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 1 of 12 Appendix for the Report Dosimetric Assessment of the Alcatel One Touch 565 (FCC ID: RAD005) According to the FCC Requirements SAR Distribution Plots June 14, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Alcatel Business Systems 32, avenue KlÈber F-92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 2 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD..........................................................................................3 2 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET.......................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY..........................................................................................8 4 SAR Z-AXIS SCANS (VALIDATION) ........................................................................................................... 9 5 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................11 DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 3 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head Test Laboratory: IMST GmbH; File Name: 562plm_1.da4 DUT: Alcatel ; Type: OT 565; Serial: 332905301234562 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.88 V/m; Power Drift = -0.173 dB Maximum value of SAR (measured) = 0.199 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.88 V/m; Power Drift = -0.173 dB Maximum value of SAR (measured) = 0.197 mW/g Peak SAR (extrapolated) = 0.222 W/kg SAR(1 g) = 0.176 mW/g; SAR(10 g) = 0.106 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (09.06.2004; Ambient Temperature: 22.2∞ C; Liquid Temperature : 20.4∞ C). DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 4 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 562plm_2.da4 DUT: Alcatel ; Type: OT 565; Serial: 332905301234562 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.73 V/m; Power Drift = 0.086 dB Maximum value of SAR (measured) = 0.149 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.73 V/m; Power Drift = 0.086 dB Maximum value of SAR (measured) = 0.173 mW/g Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.154 mW/g; SAR(10 g) = 0.0916 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (09.06.2004; Ambient Temperature: 22.1∞ C; Liquid Temperature : 20.4∞ C). DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 5 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 562prm_1.da4 DUT: Alcatel ; Type: OT 565; Serial: 332905301234562 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.54 V/m; Power Drift = 0.0393 dB Maximum value of SAR (measured) = 0.150 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.54 V/m; Power Drift = 0.0393 dB Maximum value of SAR (measured) = 0.165 mW/g Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.150 mW/g; SAR(10 g) = 0.090 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (09.06.2004; Ambient Temperature: 22.2∞ C; Liquid Temperature : 20.3∞ C). DASY Test-Report, Alcatel_ 6620_422e_SAR Distribution Plots Page 6 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 562prm_2.da4 DUT: Alcatel ; Type: OT 565; Serial: 332905301234562 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: - 9075 Test report No.: 2-3650-01-01/04 This test report consists of 76 pagesPage 1 (76) Recognized by the Federal Communications Commission Anechoic Chamber Registration No.: 90462 (FCC) Anechoic Chamber Registration No.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI Compliance test house ETSI Test Report No.: 2-3650-01-04/04 Applicant:Alcatel Type:One touch 565 One touch 557 Test Standards: FCC Part 24 RSS133 FCC ID:RAD005 CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 2 (76) Table of Contents 1 GENERAL INFORMATION.........................................................................................................................3 1.1NOTES..................................................................................................................................................3 1.2TESTING LABORATORY...........................................................................................................................3 1.3DETAILS OF APPLICANT..........................................................................................................................4 1.4APPLICATION DETAILS............................................................................................................................4 1.5TEST ITEM.............................................................................................................................................5 1.6TEST STANDARDS..................................................................................................................................6 2STATEMENT OF COMPLIANCE................................................................................................................7 2.1SUMMARY OF MEASUREMENT RESULTS..................................................................................................7 2.1.1PCS1900....................................................................................................................................7 3MEASUREMENTS AND RESULTS............................................................................................................8 3.1PART PCS 1900.................................................................................................................................8 3.1.1RF Power Output........................................................................................................................8 3.1.2Frequency Stability.................................................................................................................. 12 3.1.3Radiated Emissions................................................................................................................. 15 3.1.4Receiver Radiated Emissions................................................................................................. 21 3.1.5Conducted Spurious Emissions.............................................................................................. 24 3.1.6Block Edge Compliance.......................................................................................................... 28 3.1.7Occupied Bandwidth................................................................................................................ 31 4TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS................................................................ 38 ANNEX A: PART 15 B TESTS ANNEX B: TEST SETUP PHOTOS ANNEX C: EXTERNAL PHOTOS ANNEX D: INTERNAL PHOTOS CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 3 (76) 1 GENERAL INFORMATION 1.1Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 9100 Telefax:+ 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Laboratory Manager : 2004-06-25RSC 8431Gillmann D. DateSectionNameSignature Technical responsibility for area of testing: 2004-06-25RSC 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 4 (76) 1.3Details of Applicant Name:Alcatel Business Systems Mobile Phones Business Unit Address:32 avenue Klèber City:92707 Colmbes Country:France Phone:+ 33-155-6-3220 Fax:+ 33-155-66-6402 Contact:Jean Fleuriot Phone:+ 33-155-6-3220 Fax:+ 33-155-66-6402 e-mail:[email protected] 1.4Application Details Date of test:2004-06-22 to 2004-06-25 CETECOM ICT Services GmbH Test report No.: 2-3650-01-01/04 Date: 2004-06-25Page 5 (76) 1.5Test Item Type of equipment:Triple Band Mobile (900/1800/1900 MHz) Type name:One Touch 565 One Touch 557 Manufacturer:Alcatel Business Systems Mobile Phones Business Unit Address:32 avenue Klèber City:92707 Colmbes Country:France Frequency:1850.2 – 1909.8 MHz Type of modulation:300KGXW Number of channels:300 (PCS1900) Antenna:Integral antenna Power supply (normal):3,7 V DC Li-Polymer Battery Output power GSM 1900:conducted : 29.2 dBm Peak, EIRP: 27.5 dBm (Burst) Transmitter Spurious (worst case) 0,5 μW Receiver Spuri…
