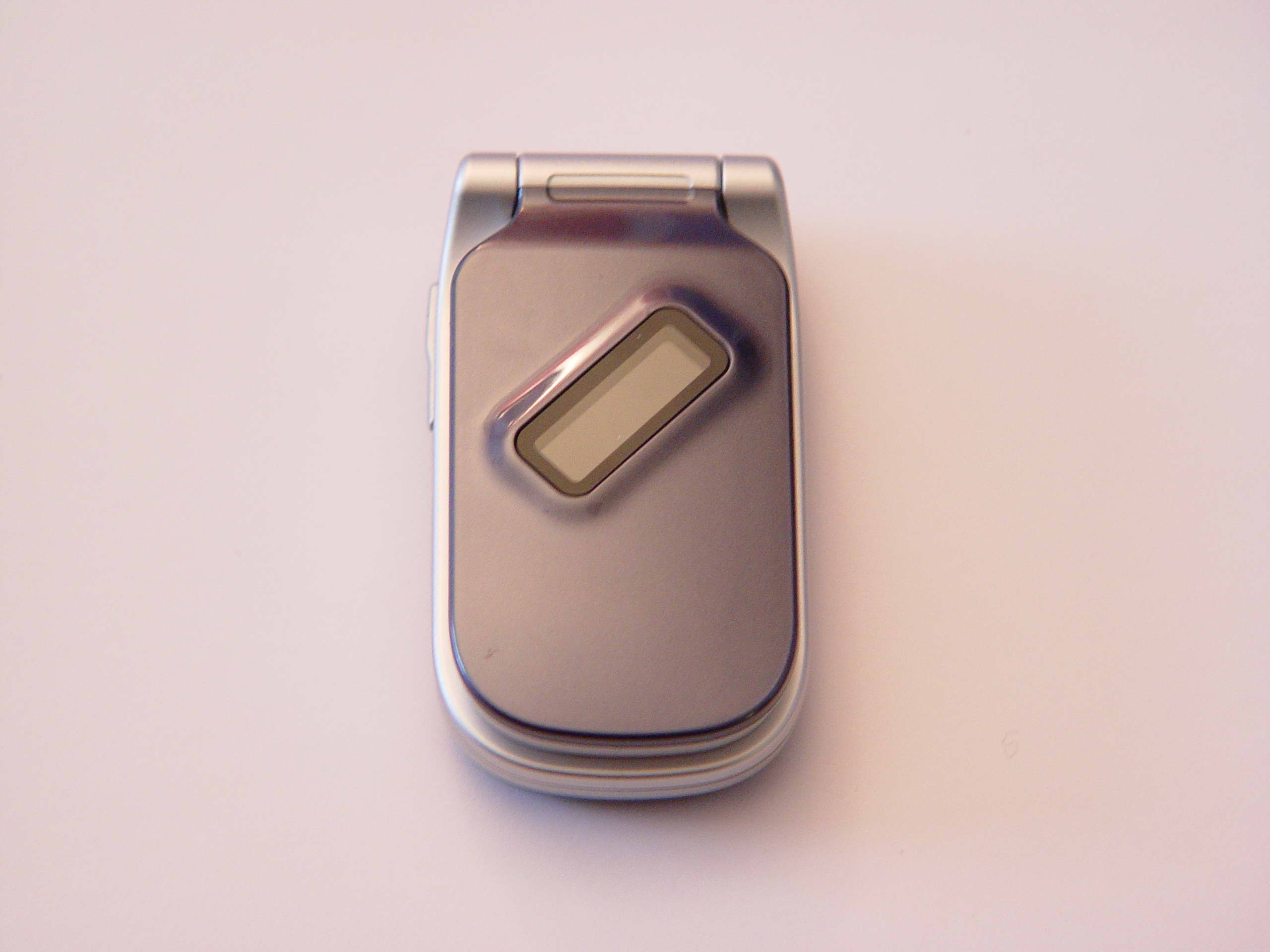

RAD012GSM 900/1800/1900 Mobile Phone

CTH3_UM_FCC_15-03-05 15/03/05 9:17 Page 1 Introduction ..........................................................TCL & Alcatel Mobile Phones would like to thank you for purchasing this mobile.Your camera: photo and videoYou can take photos in a burst shoot and play a video clip with sound. Save it in your multimedia album anduse it to personalise the idle screen. You can also assign a video to a contact so that when your contact callsyou, the video is played. Capture and share your favourite moments with the camera. You can zoom andrecord sound while taking your photos, or add funny frames and stamps. It is easy and a lot of fun!Say it with colours using MMSYour phone includes the Multimedia Message Service enabling you to send video clips, colour pictures andsounds in your text messages. You can create expressive messages to match your mood thanks to theembedded and downloaded multimedia content.A style of your very own Personalise your handset, giving it a personal touch. Either choose the colour and texture of your interfacefrom the embedded skins, or choose a video clip, a wallpaper or melody from the rich multimedia content.Your game companionGet ready for a new intense gaming experience with a large choice of downloadable games and applications. 1 Table of contents ..................................................Introduction ................................................................................................................... .1 Safety and Use ................................................................................................................5General Information ......................................................................................................81. Your mobile ..............................................................................................................9 1.1 Keys ........................................................................................................................ ..........................................10 1.2 External display icons ...................................................................................................... ............................11 1.3 Main screen icons........................................................................................................... ...............................12 2. Getting started ......................................................................................................13 2.1 Set-up ..................................................................................................................... .........................................13 2.2 Switching on your telephone................................................................................................ ......................15 2.3 Switching off your telephone............................................................................................... .......................15 3. Calls ........................................................................................................................ 16 3.1 Making a call.............................................................................................................. ......................................16 3.2 Calling your voicemail ..................................................................................................... .............................17 3.3 Receiving a call ........................................................................................................... ...................................17 3.4 During the call............................................................................................................ ....................................18 3.5 Conference calls ........................................................................................................... .................................20 3.6 Double line (ALS) .......................................................................................................... ...............................20 4. Call Log ..................................................................................................................21 4.1 Call memory ................................................................................................................ ..................................21 4.2 My Numbers ................................................................................................................. .................................22 4.3 My e-mail ................................................................................................................... .....................................22 4.4 Billing .................................................................................................................... ............................................22 4.5 Call settings ............................................................................................................... .....................................24 5. Menu........................................................................................................................2 7 6. Directory ................................................................................................................29 6.1 Consulting your directory ................................................................................................... .......................29 6.2 Creating a contact.......................................................................................................... ...............................30 6.3 Available options ........................................................................................................... ................................31 6.4 Creating a new directory .................................................................................................... ........................32 6.5 Voice tag...............................…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, 7layers_6620_465_FCC_1900_CalData_OT-C651_2 Appendix for the Report Dosimetric Assessment of the Alcatel OT-C651 (FCC ID: RAD012) According to the FCC Requirements Calibration Data February 16, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 1 of 13 Appendix for the Report Dosimetric Assessment of the Alcatel OT-C651 (FCC ID: RAD012) According to the FCC Requirements SAR Distribution Plots Macrh 08, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue Kléber F 97202 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 2 of 13 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD....................................................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WORN (GAP = 15 MM)............................................ 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WORN, PTT (GAP = 25 MM)................................ 11 4 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 12 5 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 13 SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 3 of 13 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo 1 SAR Distribution Plots, PCS 1900 head Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 726bplm_1.da4 DUT: Alcatel ; Type: OT-C651; Serial: 355432000132726 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.4; mho/m, ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek Left/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.169 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.23 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.238 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.115 mW/g Maximum value of SAR (measured) = 0.187 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (03.04.2005; Ambient Temperature: 21.0° C; Liquid Temperature: 20.1° C). SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 4 of 13 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 139bplm_2.da4 DUT: Alcatel ; Type: OT-C651; Serial: 355432000132726 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.4; mho/m, ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Tilted Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.030 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.45 V/m; Power Drift = 0.118 dB Peak SAR (extrapolated) = 0.039 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.020 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (03.04.2005; Ambient Temperature: 21.0° C; Liquid Temperature : 20.2° C). SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 5 of 13 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 139bprm_1.da4 DUT: Alcatel ; Type: OT-C651; Serial: 355432000132726 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.4; mho/m, ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek Right/Area Scan (6x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.300 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.79 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 0.480 W/kg SAR(1 g) = 0.323 mW/g; SAR(10 g) = 0.194 mW/g Maximum value of SAR (measured) = 0.353 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (03.04.2005; Ambient Temperature: 21.0° C; Liquid Temperature : 20.2° C). SAR Report, Alcatel_6620_481_FCC_1900_SAR Plots_OT-C651 Page 6 of 13 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 726bprm_2.da4 DUT: Alcatel ; Type: OT-C651; Serial: 355432000132726 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.4; mho/m, ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Tilted …

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Alcatel_6620_481_FCC_1900_OT-C651_4 Page 1 of 34 Report Dosimetric Assessment of the Portable Device Alcatel OT-C651 (FCC ID: RAD012) According to the FCC Requirements March 14, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue KlÈber F 92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.1.doc/07.01.2005/CH SAR Report, Alcatel_6620_481_FCC_1900_OT-C651_4 Page 2 of 34 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Executive Summary The OT-C651 is a mobile phone (Portable Device) from Alcatel operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 10 capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with open flip. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Alcatel OT-C651 mobile phone (FCC ID: RAD012) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: • Body worn with the following accessories and 15 mm distance: GSM with headset GPRS (Class 10) • Push-to-Talk mode (GSM) with 25 mm distance prepared by: ........................................... reviewed by: ..................................... AndrÈ van den Bosch Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Alcatel_6620_481_FCC_1900_OT-C651_4 Page 3 of 34 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 17 8 APPENDIX....................................................................................................................................................... 19 8.1 ADMINISTRATIVE DATA............................................................................................................................ 19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 19 8.3 TISSUE RECIPES...................................................................................................................................... 20 8.4 MATERIAL PARAMETERS......................................................................................................................... 20 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 21 8.6 ENVIRONMENT.....................…

Text truncated - open the document above for the full version.

Annex I: Emission and Occupied bandwidth Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Date: 200 5-02-11 Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 2 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 EXT Center 1.8502 GHzSpan 1 MHz100 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 1 1 2 Delta 2 [T1] -24.74 dB 156.31262525 kHz 1 [T1] 23.44 dBm 1.85019699 GHz 2 [T1] -24.74 dB 156.31262525 kHz 1 [T1] -24.36 dB -144.28857715 kHz Date: 24.JAN.2005 11:34:10 Test: Emissions bandwidth (26 dB bandwidth), Channel 512 (1850.2 MHz) f = 300.601 kHz Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 3 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 EXT Center 1.8502 GHzSpan 1 MHz100 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 1 T1 T2 Marker 1 [T1] 23.44 dBm 1.85019699 GHz 1 [T1] 23.44 dBm 1.85019699 GHz OPB 238.47695391 kHz T1 [T1] 8.35 dBm 1.85008076 GHz T2 [T1] 6.54 dBm 1.85031924 GHz Date: 24.JAN.2005 11:33:29 Test: Occupied bandwidth, Channel 512 (1850.2 MHz) f = 238.477 kHz Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 4 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 Center 1.88 GHzSpan 1 MHz100 kHz/ EXT -60 -50 -40 -30 -20 -10 0 10 20 30 1 1 2 Delta 2 [T1] -25.33 dB 170.34068136 kHz 1 [T1] 21.98 dBm 1.87998497 GHz 2 [T1] -25.33 dB 170.34068136 kHz 1 [T1] -24.65 dB -140.28056112 kHz Date: 24.JAN.2005 11:36:18 Test: Emissions bandwidth (26 dB bandwidth), Channel 661 (1880 MHz) f = 310.621 kHz Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 5 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 Center 1.88 GHzSpan 1 MHz100 kHz/ EXT -60 -50 -40 -30 -20 -10 0 10 20 30 1 T1 T2 Marker 1 [T1] 21.51 dBm 1.88000701 GHz 1 [T1] 21.51 dBm 1.88000701 GHz OPB 240.48096192 kHz T1 [T1] 7.53 dBm 1.87988076 GHz T2 [T1] 5.67 dBm 1.88012124 GHz Date: 24.JAN.2005 11:35:35 Test: Occupied bandwidth, Channel 661 (1880 MHz) f = 240.481 kHz Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 6 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 EXT Center 1.9098 GHzSpan 1 MHz100 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 1 1 2 Delta 2 [T1] -23.31 dB 154.30861723 kHz 1 [T1] 21.06 dBm 1.90980100 GHz 2 [T1] -23.31 dB 154.30861723 kHz 1 [T1] -25.47 dB -156.31262525 kHz Date: 24.JAN.2005 11:38:47 Test: Emissions bandwidth (26 dB bandwidth), Channel 810 (1909.8 MHz) f = 310.621 kHz Annex I: Emissions and Occupied bandwidth - Measurement plots Test report reference: 4_ALCA_0604_GSM_FCCc Page 7 of 7 A UnitdBm 27 dB Offset 27 dB Offset Ref Lvl 37 dBm Ref Lvl 37 dBm RF Att 40 dB 1MAX1MA RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 EXT Center 1.9098 GHzSpan 1 MHz100 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 1 T1 T2 Marker 1 [T1] 21.06 dBm 1.90980100 GHz 1 [T1] 21.06 dBm 1.90980100 GHz OPB 240.48096192 kHz T1 [T1] 7.71 dBm 1.90968076 GHz T2 [T1] 5.97 dBm 1.90992124 GHz Date: 24.JAN.2005 11:38:02 Test: Occupied bandwidth, Channel 810 (1909.8 MHz) f = 240.481 kHz Annex III: band edge compliance Measurement plots Test report reference: 4_Alca_0604_FCCc Date: 2005-03-30 Annex III: band edge compliance - Measurement plots Test report reference: 4_Alca_0604_FCCc Page 2 of 3 A 1MAX1MA UnitdBm 46 dB Offset 46 dB Offset EXT 100 kHz/Start1.849 GHzStop1.85 GHz Ref Lvl 30 dBm Ref Lvl 30 dBm RBW 3 kHz VBW 3 kHz SWT 280 ms RF Att 10 dB 1MA IN1 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1] -16.42 dBm 1.84999800 GHz D1 -13 dBm Date: 30.MAR.2005 14:44:15 Test: band edge compliance , Channel 512 (1850.2 MHz) Annex III: band edge compliance - Measurement plots Test report reference: 4_Alca_0604_FCCc Page 3 of 3 A 1MAX1MA UnitdBm 46 dB Offset 46 dB Offset Ref Lvl 30 dBm Ref Lvl 30 dBm RF Att 10 dB Start1.91 GHzStop1.911 GHz100 kHz/ EXT RBW 3 kHz VBW 3 kHz SWT 280 ms 1MA IN1 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 1 Marker 1 [T1] -18.43 dBm 1.91000401 GHz D1 -13 dBm Date: 30.MAR.2005 14:42:31 Test: band edge compliance, Channel 810 (1909.8 MHz)

FCC Measurement/Technical Report on 4_ALCA_0604_GSM_FCCc 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. GSM Mobile Phone OT-C651 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzender - Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg René Schildknecht Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 2. Testobject Data 2.1 General EUT Description 2.2 EUT Main Components 2.3 Ancillary Equipment 2.4 EUT Setups 2.5 Operating Modes 3. Test Results 3.1 RF Power Output 3.3 Spurious Emissions at Antenna Terminals 3.2 Frequency Stability 3.4 Field Strength of Spurious Radiation 4. Testequipment 5. Foto Report 6. Setup Drawings 7. Annex 3 3 4 5 5 5 5 5 6 6 7 7 7 7 8 12 15 8 19 25 28 31 34 Measurement plots 3.5 Emission and Occupied Bandwidth 22 3.6 Modulation Charcteristics Page 2 of 34 Testreport Reference: 4_ALCA_0604_GSM_FCCc 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a broadband PCS device Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious emission § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 24 Subpart E - Broadband PCS § 24.232 Power and antenna height limits § 24.235 Frequency stability § 24.238 Emission limits Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Page 3 of 34 Testreport Reference: 4_ALCA_0604_GSM_FCCc 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . - Deutscher Akkreditierungs Rat 2005-01-18 Robert Machulec 2005-02-11 2005-01-18 to 2005-02-08 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data TCL&Alcatel Mobile Phones SAS Thierry Bouthinon 165, boulevard de Valmy 92707 Colombes Cedex France please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 34 Testreport Reference: 4_ALCA_0604_GSM_FCCc 2. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Nominal Voltage: Equipment under Test: OT-C651 FCC ID: RAD012 GSM 900/1800/1900 GSM Mobile Phone DC 3,8 V Ports 2.1 General EUT Description General product description: GSM mobile phone which is able to operate in the bands 900, 1800 and 1900. The EUT provides the following ports: Maximum Voltage: Minimum Voltage: 4,2 V 3,4 V DC input temp. antenna connector enclosure The main components of EUT are listed and described in Chapter 2.2 Page 6 of 34 Testreport Reference: 4_ALCA_0604_GSM_FCCc Short Description Equipment under Test Type Designation 2.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW Status Serial No.Date of Receipt Proto5 (3100)ZX132test sample 12005-01-18 OT-C651GSM Mobile PhoneEUT A EUT A is equipped with a temporary antenna connector. Proto5 (3101)ZX132test sample 32005-02-03 OT-C651GSM Mobile PhoneEUT C EUT B is equipped with an integral antenna. NOTE: The short description is used to simplify the identification of the EUT in this test report 2.3 Ancillary Equipment Short Description Equipment under Test Type DesignationHW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But never the less Ancillary Equipment can influence the test results. Setup No.Combination of EUTsDescription 2.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. setup 1EUT Amobile phone for conducted tests setup 3EUT Cmobile phone for radiated tests Op. Mode Description of Operating Modes Remarks 2.5 Operating Modes This chapter describes the operating modes of the EUT's used for testing. op-mode 1Call established on Traffic Channel (TCH) 512, Carrier Frequency 1850,2 MHz 512 is the lowest channel op-mode 2Call established on Traffic Channel (TCH) 661, Carrier Frequency 1880 MHz 661 is a mid channel of the full PCS band (blocks A to F) op-mode 3Call established on Traffic Channel (TCH) 810, Carrier Frequency 1909,8 MHz 810 is the highest channel Page 7 of 34Testreport Reference: 4_ALCA_0604_GSM_FCCc 3. Test Results RF Power Output StandardFCC Part 24, Subpart E The test was performed according to:FCC §2.1046 1) The…

Text truncated - open the document above for the full version.

Picture5Setup for radiated tests: Page 30 of 34Testreport Reference: 4_ALCA_0604_GSM_FCCc
