RAD014GSM 850/1900 Mobile Phone

E5V2_UM_FCC-GB_22-09-05 22/09/05 9:19 Page 1 Ta b le of contents .................................................. Introduction ................................................................................................................... ...................1 Safety and Use ................................................................................................................. .................5 General Information ............................................................................................................ ............9 1. Your cellphone ............................................................................................................... .........10 1.1 Keys ........................................................................................................................ ....................................................................12 1.2 Main screen icons ........................................................................................................... .......................................................13 1.3 External screen icons ....................................................................................................... .....................................................14 2. Getting started .............................................................................................................. ........15 2.1 Set-up ..................................................................................................................... ...................................................................15 2.2 Switching on your telephone ................................................................................................ ..............................................18 2.3 Start-up wizard............................................................................................................ ............................................................19 2.4 Switching off your telephone ................................................................................................ ..............................................19 3. Calls ........................................................................................................................ ................20 3.1 Making a call .............................................................................................................. ..............................................................20 3.2 Calling your voicemail..................................................................................................... .......................................................21 3.3 Receiving a call ........................................................................................................... .............................................................21 3.4 During the call ............................................................................................................ ............................................................22 3.5 Conference calls........................................................................................................... ...........................................................24 3.6 Double line (ALS) .......................................................................................................... .........................................................24 4. Call log ..................................................................................................................... ...............25 4.1 Call memory ................................................................................................................ ............................................................25 4.2 My numbers ................................................................................................................. ...........................................................25 4.3 My e-mail address ........................................................................................................... .......................................................26 4.4 Billing.................................................................................................................... ......................................................................26 4.5 Call settings ............................................................................................................... ...............................................................27 5. Menu ......................................................................................................................... ...............30 6. Directory .................................................................................................................... ............32 6.1 Consulting your directory ................................................................................................... .................................................32 6.2 Creating a file............................................................................................................. ..............................................................34 6.3 Available options ........................................................................................................... ..........................................................35 6.4 Creating a new directory.................................................................................................... ..................................................36 6.5 Voice recognition ........................................................................................................... .........................................................36 6.6 Assigning a ringtone to a directory......................................................................................... ...........................................37 6.7 Assigning an image…

Text truncated - open the document above for the full version.

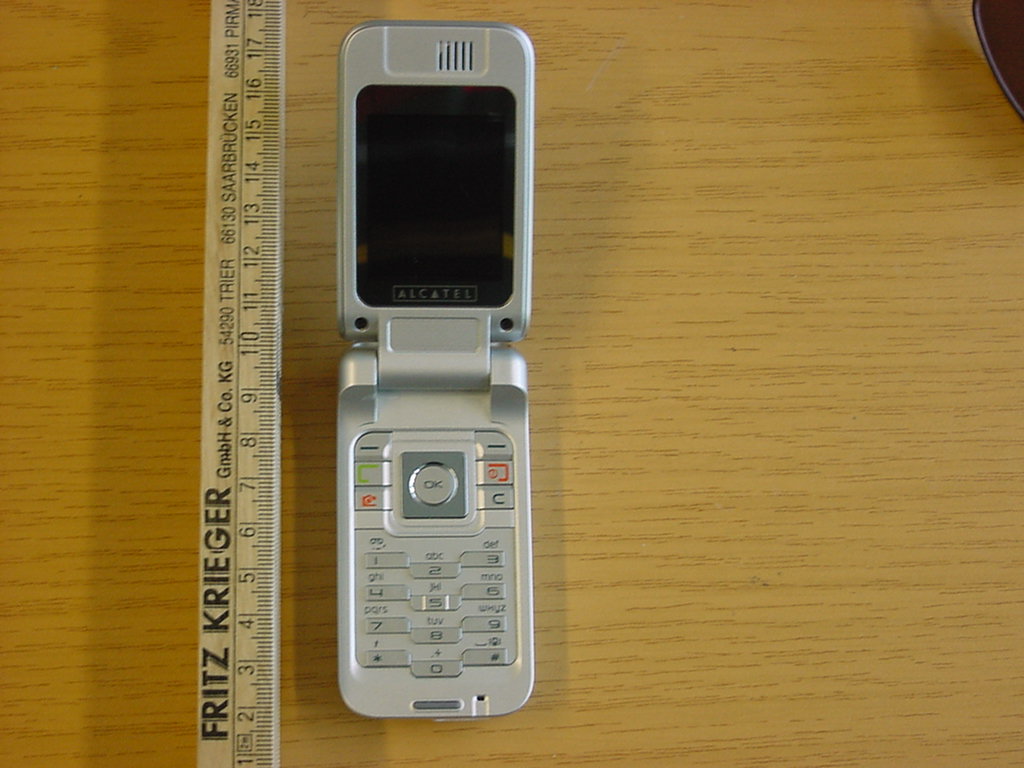

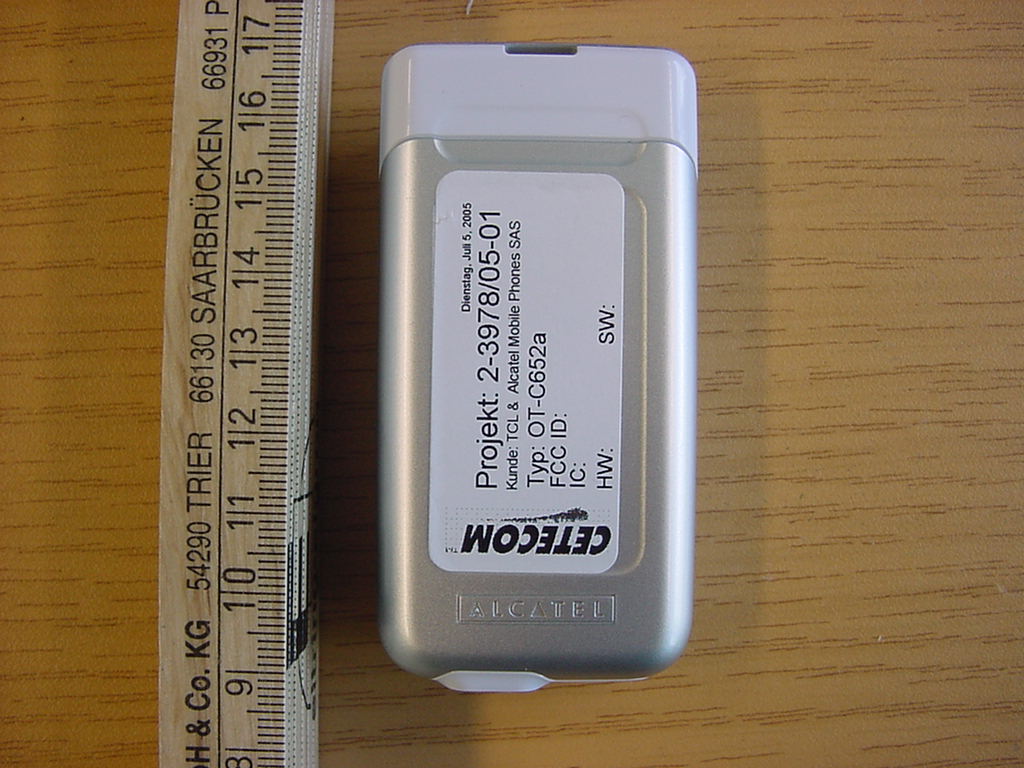

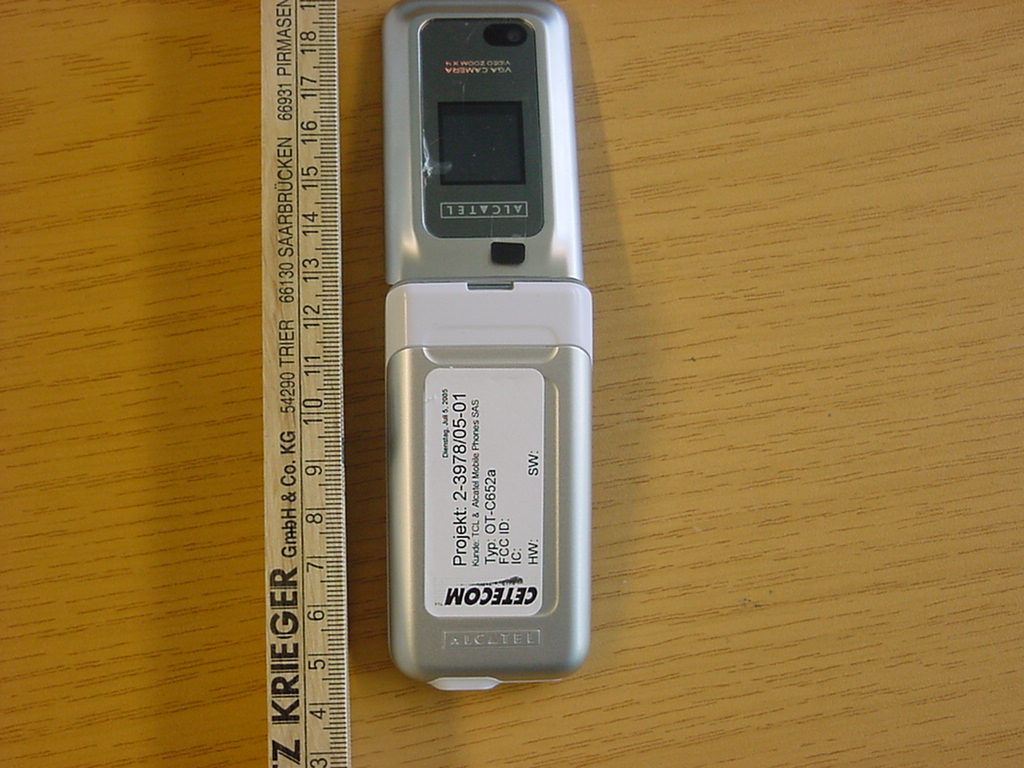

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 20 of 33 6 Annex C: External Photographs of the Equipment Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 21 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 22 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 23 of 33 Photo No.: 04

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 25 of 33 7 Annex D: Internal Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 26 of 33 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 27 of 33 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 28 of 33 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 29 of 33 Photo No.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 30 of 33 Photo No.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 31 of 33 Photo No.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 32 of 33 Photo No.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 33 of 33 Photo No.: 09

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 1 of 22 Appendix for the Report Dosimetric Assessment of the Alcatel OT-C652a (FCC ID: RAD014) According to the FCC Requirements SAR Distribution Plots July 12, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue KlÈber F 92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 2 of 22 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850 HEAD.......................................................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD...................................................................................... 11 3 SAR DISTRIBUTION PLOTS, GSM 850 BODY WITH HEADSET IN GSM MODE............................ 15 4 SAR DISTRIBUTION PLOTS, GSM 850 BODY WITH DATA CABLE IN GPRS MODE................... 16 5 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET IN GSM MODE.......................... 17 6 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE IN GPRS MODE................. 18 7 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 19 8 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 21 SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 3 of 22 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH 1 SAR Distribution Plots, GSM 850 Head Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 447yalm_1.da4 DUT: Alcatel ; Type: OT-C652A; Serial: 001016000220447 Program Name: Cheek Left Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.87 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.88, 9.88, 9.88); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 16.12.2004 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.939 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = -0.178 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.948 mW/g; SAR(10 g) = 0.651 mW/g Maximum value of SAR (measured) = 0.970 mW/g Fig. 1: SAR distribution for GSM 850, channel 190, cheek position, left side of head (July 08, 2005; Ambient Temperature: 22∞ C; Liquid Temperature: 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 4 of 22 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 447yalm_2.da4 DUT: Alcatel ; Type: OT-C652A; Serial: 001016000220447 Program Name: Tilted Left Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.87 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.88, 9.88, 9.88); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 16.12.2004 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilted Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.253 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm;Reference Value = 12.6 V/m; Power Drift = -0.058 dB Peak SAR (extrapolated) = 0.329 W/kg SAR(1 g) = 0.244 mW/g; SAR(10 g) = 0.184 mW/g Maximum value of SAR (measured) = 0.257 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm;Reference Value = 12.6 V/m; Power Drift = -0.058 dB Peak SAR (extrapolated) = 0.341 W/kg SAR(1 g) = 0.195 mW/g; SAR(10 g) = 0.127 mW/g Maximum value of SAR (measured) = 0.223 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, tilted position, left side of head (July 08, 2005; Ambient Temperature: 22∞ C; Liquid Temperature : 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 5 of 22 dasy_report_fcc_850_1900_plots_1.1.doc/04.07.2005/CH Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 447yarm_1.da4 DUT: Alcatel ; Type: OT-C652A; Serial: 001016000220447 Program Name: Cheek Right Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.87 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.88, 9.88, 9.88); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 16.12.2004 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Right/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.973 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.1 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1 mW/g; SAR(10 g) = 0.665 mW/g Maximum value of SAR (measured) = 1.08 mW/g Fig. 3: SAR distribution for GSM 850, channel 190, cheek position, right side of head (July 08, 2005; Ambient Temperature: 22∞ C; Liquid Temperature : 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_850_1900_SAR Plots_C652a Page 6 of 22 das…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_850_1900_Caldata_OTC652a_2 Appendix for the Report Dosimetric Assessment of the Alcatel OT-C652a (FCC ID: RAD014) According to the FCC Requirements July 13, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue Kléber F 92707 Colombes Cedex This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_850_1900_OTC652a_3 Page 1 of 39 Report Dosimetric Assessment of the Portable Device Alcatel OT-C652a (FCC ID: RAD014) According to the FCC Requirements July 12, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue KlÈber F 92707 -Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_850_1900_4.1.doc/01.07.2005/CH SAR Report, Alcatel_6620_512_FCC_850_1900_OTC652a_3 Page 2 of 39 dasy_report_fcc_850_1900_4.1.doc/01.07.2005/CH Executive Summary The OT-C652a is a mobile phone (Portable Device) from Alcatel operating in the 850 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 850 and PCS 1900 standards including GPRS Class 10 capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards with open flip. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Alcatel OT-C652a mobile phone (FCC ID: RAD014) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM with headset (20 mm distance) • GPRS (Class 10) (20 mm distance) prepared by: ........................................... reviewed by: ..................................... Frank Schmidt Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Alcatel_6620_512_FCC_850_1900_OTC652a_3 Page 3 of 39 dasy_report_fcc_850_1900_4.1.doc/01.07.2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 18 8 APPENDIX....................................................................................................................................................... 21 8.1 ADMINISTRATIVE DATA............................................................................................................................ 21 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 21 8.3 TISSUE RECIPES...................................................................................................................................... 22 8.4 MATERIAL PARAMETERS......................................................................................................................... 22 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 23 8.6 ENVIRONMENT......................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-3978-02-01/05 Date: 2005-09-21 Page 1 of 79 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-3978-02-01/05 Applicant : TCL& ALCATEL Mobile Phones Type : OT-C652a Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : RAD014 Certification No. IC : -- CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-3978-02-01/05 Date: 2005-09-21 Page 2 of 79 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 3.2 PART GSM 850 .................................................................................................................................................. 43 3.2.1 RF Power Output ........................................................................................................................................ 43 3.2.2 Frequency Stability..................................................................................................................................... 46 3.2.3 Radiated Emissions..................................................................................................................................... 49 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 58 3.2.5 Conducted Spurious Emissions ................................................................................................................... 62 3.2.6 Block Edge Compliance .............................................................................................................................. 66 3.2.7 Occupied Bandwidth................................................................................................................................... 69 4 USED TESTEQUIPMENT ...................................................................................................................................... 76 CETECOM ICT Services GmbH Untertürkheimer Str. 6…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 17 of 33 5 Annex B Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 18 of 33 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-3978-01-01/05 Date: 2005-07-15 Page 19 of 33 Photo 3 (Radiated Emissions):
