RAD025GSM 850&GSM1900MHz MOBILE PHONE

TCT Mobile Limited

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Dec 13, 2005
Application Purpose: Original Equipment
Date of Application: Dec 13, 2005
Equipment Note: GSM 850&GSM1900MHz MOBILE PHONE
Frequency Range: 824.20000000 - 848.80000000
Company: TCT Mobile Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

English - 3DS11457AAAA 03 VLE5_UM_USA-08-12-05 8/12/05 9:07 Page 1 VLE5_UM_USA-08-12-05 8/12/05 9:07 Page 2 Table of contents ........................Safety and use ......................................................................4General information............................................................81. Your mobile ..................................................................10 1.1 Keys ......................................................................................................11 1.2 Main screen icons ..............................................................................13 2. Getting started ............................................................14 2.1 Set-up ..................................................................................................14 2.2 Switching your telephone ON ......................................................17 2.3 Switching your telephone OFF ......................................................17 3. Calls ..............................................................................18 3.1 Making a call........................................................................................18 3.2 Calling your voicemail ......................................................................19 3.3 Receiving a call ..................................................................................20 3.4 Available options during the call ....................................................21 3.5 Call waiting..........................................................................................22 3.6 Making a second call ........................................................................22 3.7 Conference call ..................................................................................22 4. Menu..............................................................................23 4.1 Accessing the menu ..........................................................................23 4.2 Organising functions ........................................................................23 5. Directory ......................................................................29 5.1 Directory menu ................................................................................29 5.2 Consulting your directory (“View”) ............................................30 5.2.1 Available options in the contacts list ..............................305.2.2 Making the call ......................................................................305.2.3 Caller group ..........................................................................315.2.4 Searching for a name by its first letter............................31 1 VLE5_UM_USA-08-12-05 8/12/05 9:07 Page 1 6. Messages ......................................................................32 6.1 Create an SMS....................................................................................32 6.2 Inbox/Outbox ....................................................................................33 6.3 Archives ..............................................................................................34 6.4 Predefined............................................................................................34 6.5 Delete ..................................................................................................34 6.6 Settings ................................................................................................35 6.7 SMS CB ................................................................................................35 7. Sounds ..........................................................................36 7.1 Mode ....................................................................................................36 7.2 Volume ................................................................................................36 7.3 Ringtone ..............................................................................................36 7.4 Alerts ....................................................................................................37 7.5 Key beep..............................................................................................37 8. Display ..........................................................................38 8.1 Wallpaper ............................................................................................38 8.2 ON/OFF screens ..............................................................................38 8.3 Colors/Reverse display ....................................................................38 8.4 Screensaver ........................................................................................38 8.5 Contrast ..............................................................................................38 9. Settings ........................................................................39 9.1 Clock ....................................................................................................39 9.2 Languages ............................................................................................39 9.3 Security ................................................................................................39 9.4 Auto power ........................................................................................40 9.5 Light alert ............................................................................................40 9.6 Answer mode ....................................................................................41 9.7 Factory reset ......................................................................................41 9.8 Dictionary............................................................................................41 2 VLE5_UM_USA-08-12-05 8/12/05 9:07 Page 2 10. Call services..................................................................42 10.1 Voicemail ..................................................…

Text truncated - open the document above for the full version.

External Photos

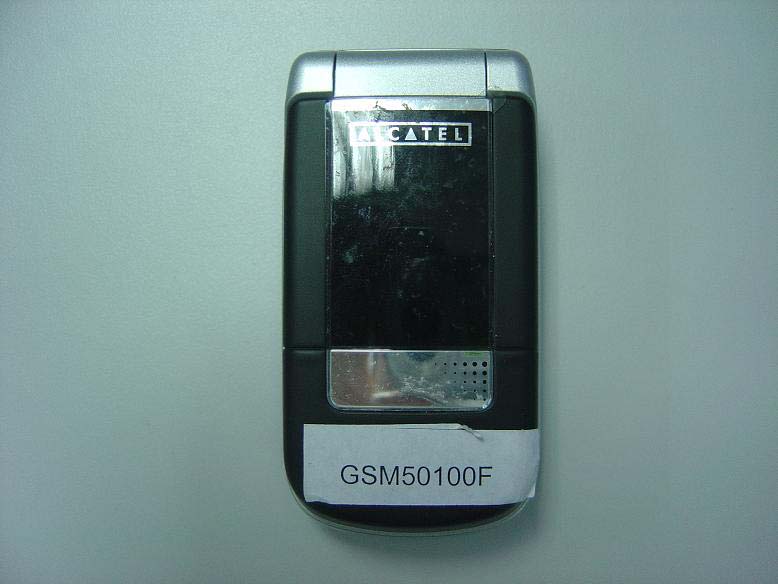

Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Top View of EUT Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT Adaptor-3DS09371AGAA Supplier: Leader Electronics Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor-3DS09371AGAA Supplier: Astec Adaptor-3DS09371AAAA Supplier: Astec Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor-3DS09371AGAA Supplier: Leader Electronics Adaptor-3DS07848AAAA Supplier :Primax Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT --- 1 Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 2 Internal of EUT --- 3 Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 4 Internal of EUT --- 5 Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 6

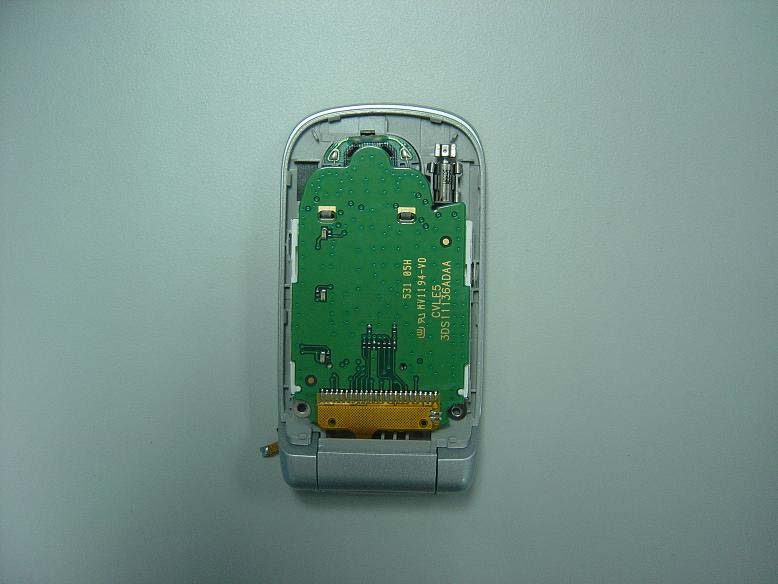

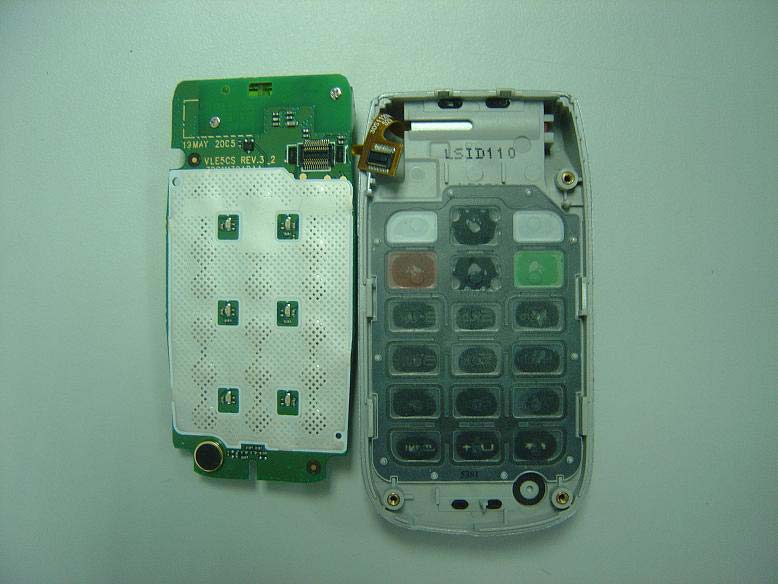

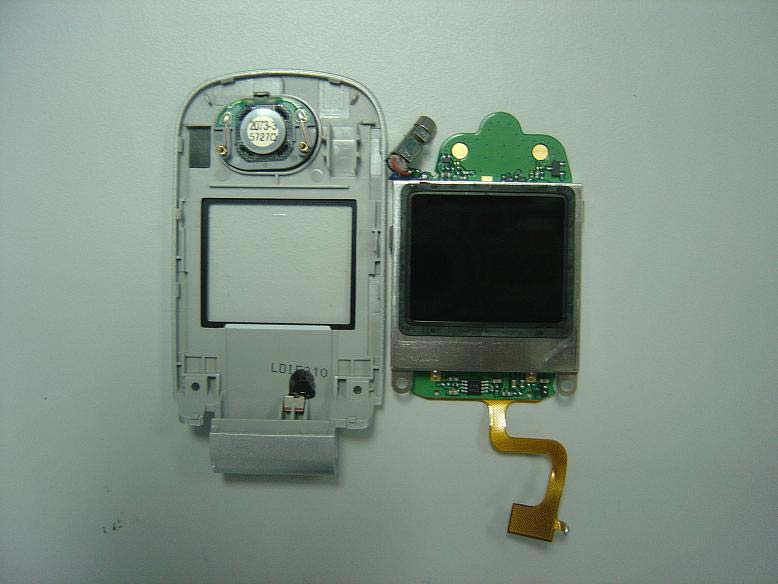

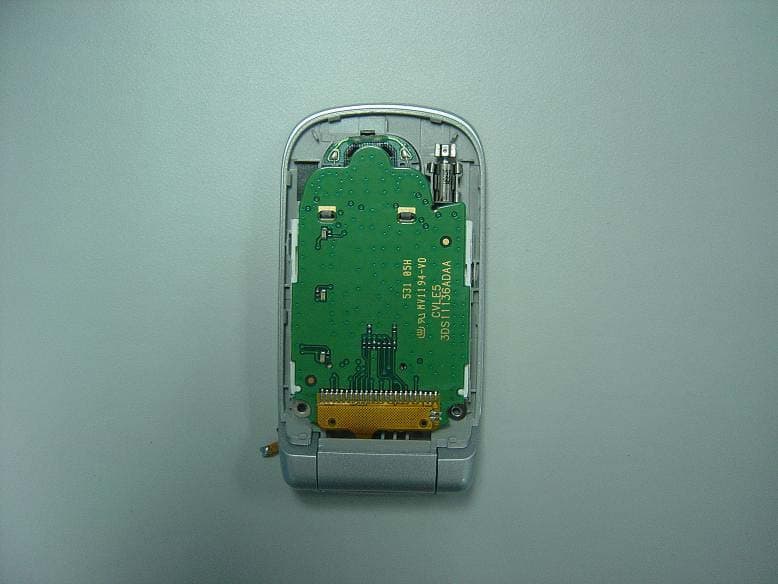

Internal Photos

RF Exposure Info

Order No: SHGLO051100100GSM Date: Dec. 06, 2005 Page: 1 of 88 SAR TEST REPORT Eequipment Under Test : GSM 850&GSM1900MHz MOBILE PHONE FCC ID : RAD025 Model No. : VLE5 Market Name : OT-E259a Applicant : TCL&Alcatel Mobile Phones Address of Applicant : 30/F, Times Square, 500 Zhangyang RD. Shanghai 200122, P.R.China Date of Receipt : 2005.11.01 Date of Test : 2005.11.15 – 2005.11.25 Date of Issue : 2005.12.06 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2005.12.06 Approved by : Date : 2005.12.06 Order No: SHGLO051100100GSM Date: Dec. 06, 2005 Page: 2 of 88 Contents 1. General Information.............................................................................5 1.1 Test Laboratory..........................................................................................................5 1.2 Details of Applicant...................................................................................................5 1.3 Description of EUT(s)................................................................................................5 1.4 Test Environment......................................................................................................6 1.5 Operation Configuration...........................................................................................6 1.6 The SAR Measurement System................................................................................6 1.7 SAR System Verification...........................................................................................8 1.8 Tissue Simulant Fluid for the Frequency Band 850MHz and 1900MHZ................9 1.9 Test Standards and Limits......................................................................................10 2. Summary of Results..........................................................................11 3. Instruments List.................................................................................13 4. Measurements....................................................................................14 4.1 FCC-OET65-LeftHandSide-Touch-GSM850-Low...................................................14 FCC-OET65-LeftHandSide-Touch-GSM850-Low..................................................................14 4.2 FCC-OET65-LeftHandSide-Touch-GSM850-Mid....................................................15 FCC-OET65-LeftHandSide-Touch-GSM850-Mid...................................................................16 4.3 FCC-OET65-LeftHandSide-Touch-GSM850-High..................................................17 FCC-OET65-LeftHandSide-Touch-GSM850-High.................................................................17 4.4 FCC-OET65-LeftHandSide-Tilt-GSM850-Low........................................................19 FCC-OET65-LeftHandSide-Tilt-GSM850-Low......................................................................19 4.5 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid.........................................................21 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid.......................................................................21 4.6 FCC-OET65-LeftHandSide-Tilt-GSM850-High........................................................23 FCC-OET65-LeftHandSide-Tilt-GSM850-High......................................................................23 4.7 FCC-OET65-RightHandSide-Touch-GSM850-Low................................................25 FCC-OET65-RightHandSide-Touch-GSM850-Low................................................................25 4.8 FCC-OET65-RightHandSide-Touch-GSM850-Mid.................................................27 FCC-OET65-RightHandSide-Touch-GSM850-Mid.................................................................27 4.9 FCC-OET65-RightHandSide-Touch-GSM850-High................................................29 FCC-OET65-RightHandSide-Touch-GSM850-High...............................................................29 4.10 FCC-OET65-RightHandSide-Tilt-GSM850-Low....................................................31 Order No: SHGLO051100100GSM Date: Dec. 06, 2005 Page: 3 of 88 FCC-OET65-RightHandSide-Tilt-GSM850-Low....................................................................31 4.11 FCC-OET65-RightHandSide-Tilt-GSM850-Mid.....................................................33 FCC-OET65-RightHandSide-Tilt-GSM850-Mid.....................................................................33 4.12 FCC-OET65-RightHandSide-Tilt-GSM850-High...................................................35 FCC-OET65-RightHandSide-Tilt-GSM850-High...................................................................35 4.13 FCC-OET65-Body-Worn-GSM850-Low.................................................................37 FCC-OET65-Body-Worn-GSM850-Low................................................................................37 4.14 FCC-OET65-Body-Worn-GSM850-Mid..................................................................39 FCC-OET65-Body-Worn-GSM850-Mid.................................................................................39 4.15 FCC-OET65-Body-Worn-GSM850-High.......................................…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. 1/F, 7/F, 9/F, 10/F, the 3rd Building No. 889, Yishan Road, Xuhui District, Shanghai, China Telephone: +86 (0) 21 6495 1616 Fax: +86 (0) 21 5450 0954 [email protected] Report No.: SHEMO051100561IT Page 1 of 30 Authorized Signature: Tino Pan Chester Zhao E&E Section Head E&E Project Engineer SGS-CSTC Co., Ltd. SGS-CSTC Co., Ltd This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) FCC TEST REPORT(DOC) Application No.: SHEMO051100561IT Applicant: TCL&Alcatel Mobile Phones. Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as EUT Name: GSM Mobile Phone Type.: VLE5 Marketing Name: OT-E259a Item No.: Not supplied by client Serial No.: Not supplied by client Standards: CFR 47 part 2: 2004, CFR 47 Part 15: 2005, ANSI C63.4: 2003 Date of Receipt: 3 November 2005 Date of Test: 3 November 2005 to 25 November 2005 Date of Issue: 28 November 2005 Test Result : PASS SGS-CSTC Standards Technical Services Co., Ltd. 1/F, 7/F, 9/F, 10/F, the 3rd Building No. 889, Yishan Road, Xuhui District, Shanghai, China Telephone: +86 (0) 21 6495 1616 Fax: +86 (0) 21 5450 0954 [email protected] Report No.: SHEMO051100561IT Page 2 of 30 2 Test Summary Test Test Requirement Test Method Class / Severity Result Radiated Emission 30MHz-1000MHz CFR 47 Part 15 ANSI C63.4: 2003 Class B PASS Conducted Emission 150KHz-30MHz CFR 47 Part 15 ANSI C63.4: 2003 Class B PASS Note: OT-E259a has five power adaptors (ASTEC: 3DS09371AGAA, 3DS09371AAAA , LEADER: 3DS09371AGAA, 3DS09371AAAA , Primax: 3DS07848AAAA) and one earphone. Because OT-E259a and OT-E256a have the same power adaptors but only different antenna, acoustic cavity and clamshell, So OT-E259a should undertake Radiated emission test only, the other detail of test please refer to the SHEMO050700252IT and SHEMO050700265IT reports. SGS-CSTC Standards Technical Services Co., Ltd. 1/F, 7/F, 9/F, 10/F, the 3rd Building No. 889, Yishan Road, Xuhui District, Shanghai, China Telephone: +86 (0) 21 6495 1616 Fax: +86 (0) 21 5450 0954 [email protected] Report No.: SHEMO051100561IT Page 3 of 30 3 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS ..............................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T. .................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST LOCATION......................................................................................................................................................5 4.6 DEVIATION FROM STANDARDS...............................................................................................................................6 4.7 ABNORMALITIES FROM STANDARD CONDITIONS....................................................................................................6 4.8 MONITORING OF EUT FOR ALL IMMUNITY TEST....................................................................................................6 4.9 TEST CONFIDENT LEVEL.........................................................................................................................................6 5 EQUIPMENTS USED DURING TEST .................................................................................................................7 6 EMISSION TEST RESULTS..................................................................................................................................8 6.1 RADIATED EMISSIONS, 30MHZ TO 1GHZ...............................................................................................................8 6.1.1 E.U.T. Operation...................................................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 Page: 1 of 78 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 22 SUBPART H and PART 24 SUBPART E REQUIREMENT OF Product Name: GSM 850/1900 mobile phone Brand Name: Alcatel Model Name: VLE5 Market Name: OT-E259a FCC ID: RAD025 Report No.: ER/2005/B0019 Issue Date: Dec. 07 2005 FCC Rule Part: 2 & 24E& 22H Prepared for TCL & Alcatel Mobile Phones 30/F, Times Square, 500 Zhangyang Rd., Shanghai 200122, P.R. China Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2005/B0019 ID: RAD025 Issue Date: Dec. 07, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unl…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Zhizhou Gong

[email protected]+86(0)2151798260Fax: +86(0)2161460600

Test Firm

SGS-CSTC Standards Technical Services Co., LtdJerry Chan

[email protected]860-208215-5331Fax: 860-208207-5059

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.2 MHz - 848.8 MHz	1.15 W	241KGXW	61 Hz

Confidentiality

Long Term

Grant Notes

Power Output is ERP for Part 22 and EIRP for Part 24. Body-worn operations are restricted to approved belt-clips, holsters or similar accessories tested for this filing and to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Part 22 Head: 1.41 W/kg; Body-worn 0.62 W/kg; PCS Band Head: 0.539 W/kg; Body-worn 0.369 W/kg.
