RAD026GSM 900/1800/1900 Mobile Phone with BT

M5_UM_FCC_07-10-05 7/10/05 15:15 Page 1 Ta b le of contents .................................................. Introduction ................................................................................................................... ...................1 Safety and Use ................................................................................................................. .................5 General Information ............................................................................................................ ............9 1. Your mobile .................................................................................................................. ..........10 1.1 Keys ........................................................................................................................ ....................................................................11 1.2 Main screen icons ........................................................................................................... .......................................................12 2. Getting started .............................................................................................................. ........14 2.1 Set-up ...................................................................................................................... ..................................................................14 2.2 Switching on your telephone ................................................................................................. .............................................16 2.3 Switching off your telephone ................................................................................................ ..............................................16 3. Calls ........................................................................................................................ ................17 3.1 Making a call ............................................................................................................... .............................................................17 3.2 Calling your voicemail...................................................................................................... ......................................................18 3.3 Receiving a call ............................................................................................................ ............................................................18 3.4 During the call ............................................................................................................. ...........................................................19 3.5 Conference calls............................................................................................................ ..........................................................21 3.6 Double line (ALS) ........................................................................................................... .......................................................21 4. Menu ......................................................................................................................... ...............22 5. Call log ..................................................................................................................... ...............24 5.1 Call memory ................................................................................................................. ...........................................................24 5.2 My Numbers .................................................................................................................. ..........................................................24 5.3 My e-mail ................................................................................................................... ...............................................................25 5.4 Billing..................................................................................................................... .....................................................................25 5.5 Call settings ............................................................................................................... ...............................................................26 6. Directory .................................................................................................................... ............29 6.1 Consulting your directory ................................................................................................... .................................................29 6.2 Creating a file ............................................................................................................. .............................................................31 6.3 Available options ........................................................................................................... .........................................................32 6.4 Creating a new directory.................................................................................................... ..................................................33 6.5 Assigning a ringtone to a directory......................................................................................... ...........................................33 6.6 Assigning an image, an animation or a video to a file ........................................................................ ............................33 6.7 Privacy ..................................................................................................................... .................................................................33 2 Introduction ..........................................................T&A Mobile Phones would like to thank you for purchasing this mobile phone.Stereo Surround 2.1 SoundMake the most of a full multimedia experience with you…

Text truncated - open the document above for the full version.

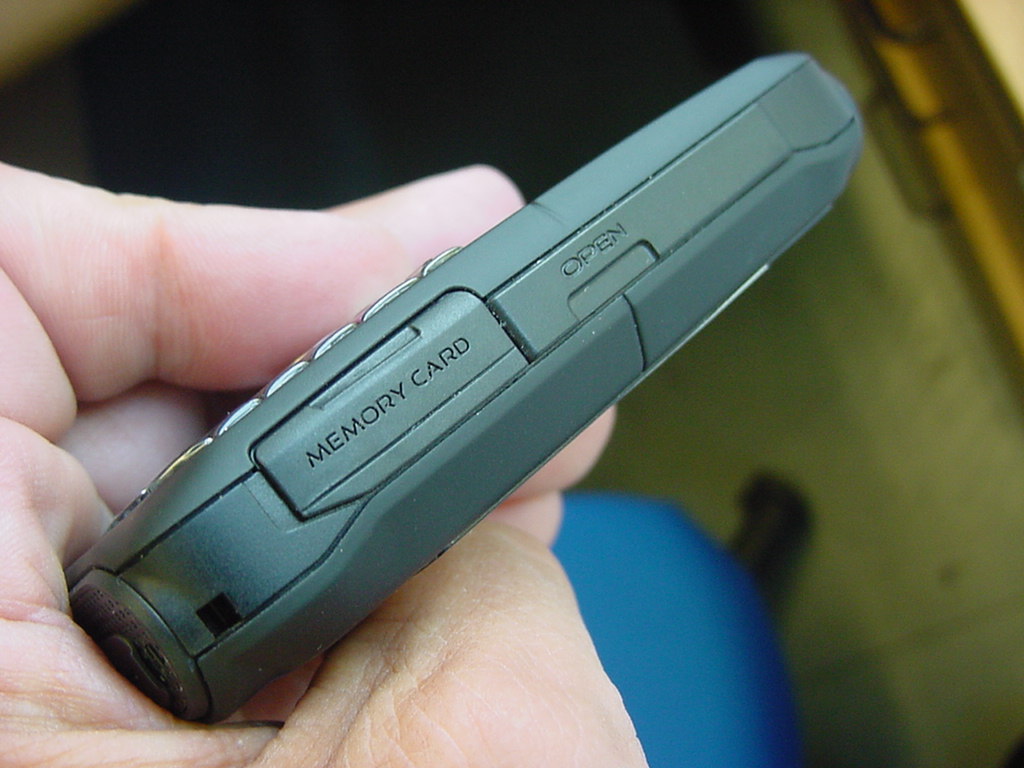

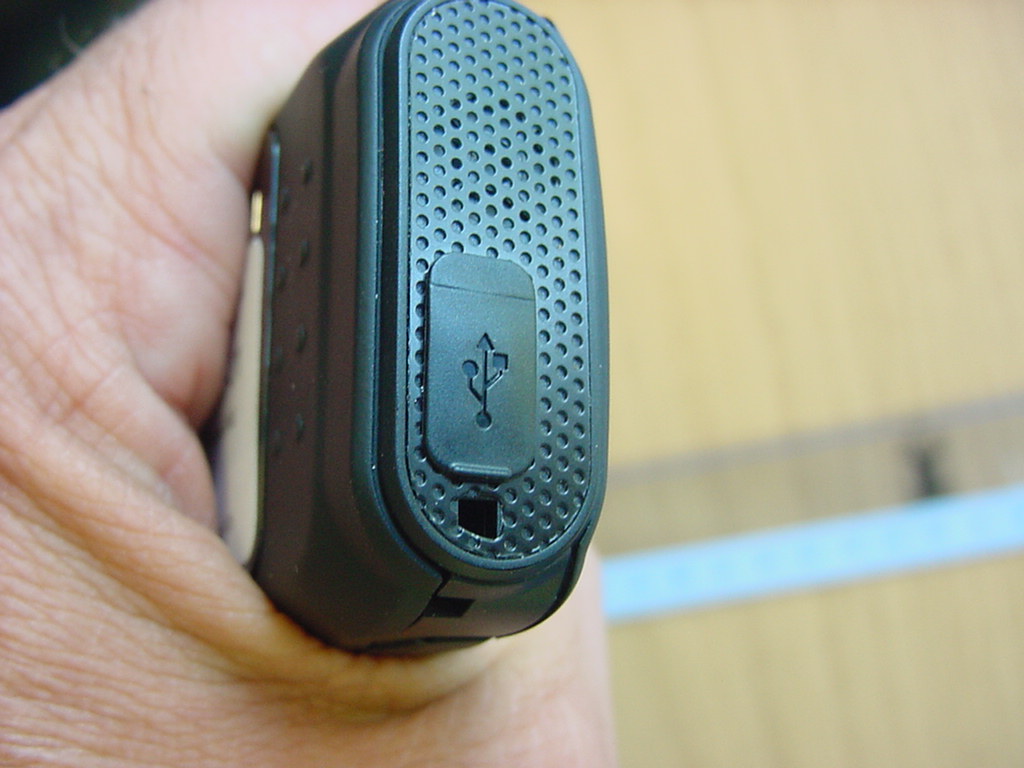

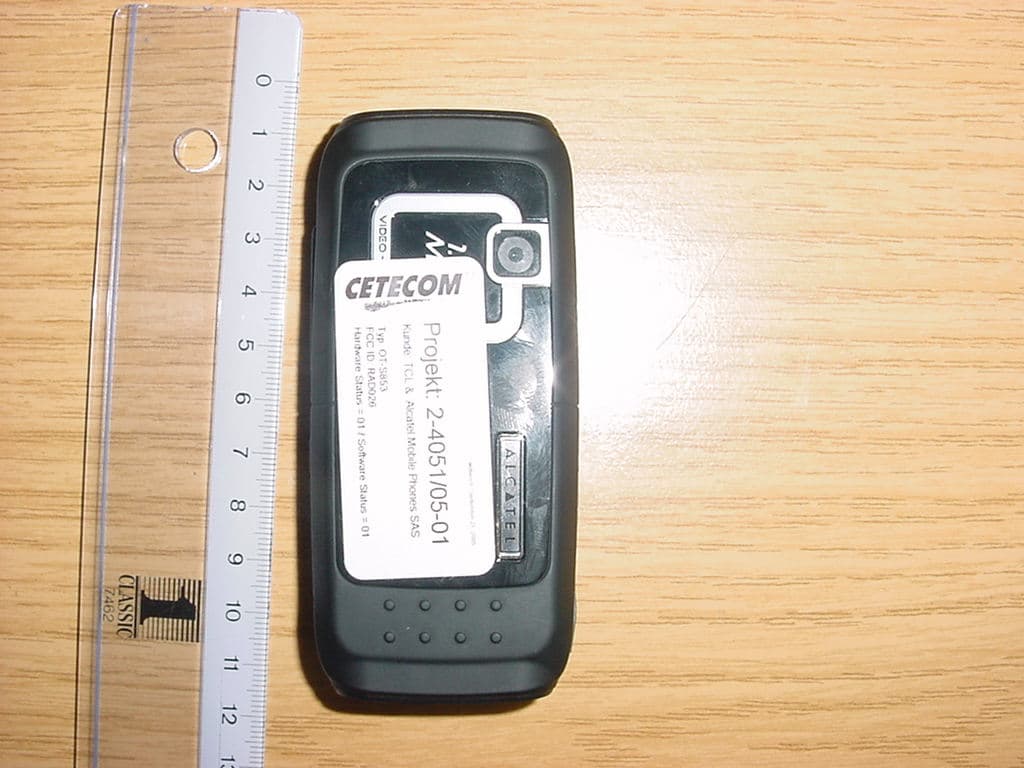

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 39 of 53 7 Annex C: External Photographs of the Equipment Photo N.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 40 of 53 Photo N.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 41 of 53 Photo N.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 42 of 53 Photo N.: 04

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 43 of 53 8 Annex D: Internal Photographs of the Equipment Photo N.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 44 of 53 Photo N.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 45 of 53 Photo N.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 46 of 53 Photo N.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 47 of 53 Photo N.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 48 of 53 Photo N.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 49 of 53 Photo N.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 50 of 53 Photo N.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 51 of 53 Photo N.: 09 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 52 of 53 Photo N.: 10 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4051-01-01/05 Date: 2005-09-26 Page 53 of 53 Photo N.: 11

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_1900_Caldata_OT-S853 Appendix for the Report Dosimetric Assessment of the Alcatel OT-S853 (FCC ID: RAD026) According to the FCC Requirements Calibration Data August 18, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL & Alcatel mobile phones 32, avenue Kléber F 97202 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 1 of 11 Appendix for the Report Dosimetric Assessment of the Alcatel OT-S853 (FCC ID: RAD026) According to the FCC Requirements SAR Distribution Plots August 19, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL&Alcatel mobile phones 32, avenue KlÈber F-92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 2 of 11 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD........................................................................................ 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH BLUETOOTH ACTIVATED........................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET IN GSM MODE............................ 8 4 SAR DISTRIBUTION PLOTS, GPRS 1900 BODY..................................................................................... 9 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 10 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 11 SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 3 of 11 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, PCS 1900 Head Test Laboratory: IMST GmbH, DASY Blue (I); File Name: xxxbplm_1.da4 DUT: Alcatel; Type: OT-S853; Serial: N/A Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.144 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.39 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 0.198 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.088 mW/g Maximum value of SAR (measured) = 0.154 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.39 V/m; Power Drift = -0.003 dB Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.134 mW/g; SAR(10 g) = 0.080 mW/g Maximum value of SAR (measured) = 0.146 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (August 15, 2005; Ambient Temperature: 22.0∞ C; Liquid Temperature : 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 4 of 11 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: xxxbplm_2.da4 DUT: Alcatel; Type: OT-S853; Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.152 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.52 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.271 W/kg SAR(1 g) = 0.160 mW/g; SAR(10 g) = 0.092 mW/g Maximum value of SAR (measured) = 0.177 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (August 15, 2005; Ambient Temperature: 22.0∞ C; Liquid Temperature : 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 5 of 11 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: xxxbprm_1.da4 DUT: Alcatel; Type: OT-S853; Serial: N/A Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 38.5; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.167 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 0.217 W/kg SAR(1 g) = 0.158 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.172 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.2 dB Peak SAR (extrapolated) = 0.277 W/kg SAR(1 g) = 0.166 mW/g; SAR(10 g) = 0.098 mW/g Maximum value of SAR (measured) = 0.181 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (August 15, 2005; Ambient Temperature: 22.0∞ C; Liquid Temperature : 21.8∞ C). SAR Report, Alcatel_6620_512_FCC_1900_SAR Plots_OT-S853 Page 6 of 11 dasy_report_fcc_1900_plots_1.1.do…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Alcatel_6620_512_FCC_1900_OT-S853_5 Page 1 of 33 Report Dosimetric Assessment of the Portable Device Alcatel OT-S853 (FCC ID: RAD026) According to the FCC Requirements August 18, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TCL&Alcatel mobile phones 32, avenue KlÈber F-92707 Colombes Cedex The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.3.doc/22.07.2005/CH SAR Report, Alcatel_6620_512_FCC_1900_OT-S853_5 Page 2 of 33 dasy_report_fcc_1900_4.3.doc/22.07.2005/CH Executive Summary The OT-S853 is a mobile phone (Portable Device) from Alcatel operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 10 and Bluetooth capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Alcatel OT-S853 mobile phone (FCC ID: RAD026) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM with headset (20 mm distance) • GPRS (Class 10) (20 mm distance) prepared by: ........................................... reviewed by: ..................................... AndrÈ van den Bosch Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Alcatel_6620_512_FCC_1900_OT-S853_5 Page 3 of 33 dasy_report_fcc_1900_4.3.doc/22.07.2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 17 8 APPENDIX....................................................................................................................................................... 19 8.1 ADMINISTRATIVE DATA............................................................................................................................ 19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 19 8.3 TISSUE RECIPES...................................................................................................................................... 20 8.4 MATERIAL PARAMETERS......................................................................................................................... 20 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 21 8.6 ENVIRONMENT......................................................…

Text truncated - open the document above for the full version.

Report No.: 21973RET.101 Date: 2005-08-30 Page: 2 of 7 FDT08_05 INDEX 1. COMPETENCE AND GUARANTEES..........................................................................................3 2. GENERAL CONDITIONS..............................................................................................................3 3. CHARACTERISTICS OF THE TEST............................................................................................3 3.1 TEST REQUESTED.................................................................................................................3 3.2 REQUIREMENTS AND METHOD........................................................................................3 4. IDENTIFICATION DATA SUPPLIED BY THE APPLICANT.....................................................4 4.1 APPLICANT.............................................................................................................................4 4.2 REPRESENTATIVE................................................................................................................4 4.3 TEST SAMPLES SUPPLIER...................................................................................................4 4.4 IDENTIFICATION OF ITEM/ITEMS TESTED.....................................................................5 5. USAGE OF SAMPLES, PERIOD OF TESTING AND ENVIRONMENTAL CONDITIONS.....5 5.1 USAGE OF SAMPLES............................................................................................................5 5.2 PERIOD OF TESTING............................................................................................................5 5.3 ENVIROMENTAL CONDITIONS..........................................................................................6 6. TEST RESULTS..............................................................................................................................7 7. REMARKS AND COMMENTS......................................................................................................7 8. SUMMARY......................................................................................................................................7 ANNEXES ANNEX A. TEST RESULTS ANNEX B. PHOTOGRAPHS Report No.: 21973RET.101 Date: 2005-08-30 Page: 3 of 7 FDT08_05 1. COMPETENCE AND GUARANTEES Centro de Tecnología de las Comunicaciones (CETECOM), S.A. is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjunction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 905266. Centro de Tecnología de las Comunicaciones (CETECOM), S.A. is a laboratory with a measurement site in compliance with the requirements of RSS 212, Issue 1 (Provisional) and has been added to the list of filed sites of the Canadian Certification and Engineering Bureau. Reference File Number: IC 4621. In order to assure the traceability to other national and international laboratories, CETECOM has a calibration and maintenance programme for its measuring equipment. CETECOM guarantees the reliability of the data presented in this report, which is the result of measurements and tests performed to the item under test on the date and under the conditions stated on the report and is based on the knowledge and technical facilities available at CETECOM at the time of execution of the test. CETECOM is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the item under test and the results of the test. 2. GENERAL CONDITIONS 1. This report only refers to the item that has undergone the test. 2. This report does not constitute or imply by its own an approval of the product by the Certification Bodies or competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without written approval of CETECOM. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of CETECOM and the Accreditation Bodies. 3. CHARACTERISTICS OF THE TEST 3.1 TEST REQUESTED Measurements for frequency hopping spread spectrum equipment (Bluetooth) operating in the 2400 MHz -2483.5 MHz band and using, according to FCC Part 15.247. 3.2 REQUIREMENTS AND METHOD The test has been carried out according to FCC parts 15.33, 15.35, 15.109, 15.207, 15.205, 15.209 and the document DA 00-705:"Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems". The testing was performed according to the procedure in ANSI C63.4. Radiated testing was performed in Cetecom's semi-anechoic chamber. This site has been fully described in a report submitted to the FCC and was accepted in a letter dated July 25, 2002. Report No.: 21973RET.101 Date: 2005-08-30 Page: 4 of 7 FDT08_05 The instrumentation used to perform the testing is listed below: 1. Semianechoic Absorber Lined Chamber IR 11. BS. 2. Control Chamber IR 12.BC. 3. Antenna mast EM 1072 NMT. 4. Rotating table EM 1084-4. ON. 5. Multi device controller ETS 2090. 6. Bluetooth test set Anritsu MT8852A. 7. Bilog antenna CHASE CBL6111. 8. Antenna tripod EMCO 11968C. 9. Double-ridge Guide Horn antenna 1-18 GHz HP 11966E. 10. Double-ridge Guide Horn antenna 18-40 GHz Agilent 119665J. 11. RF pre-amplifier Miteq JS4-12002600-30-5A. 12. Semianechoic Absorber Lined Chamber IR 11. BS. 13. RF pre-amplifier Miteq AFS5-04001300-15-10P-6. 14. Spectrum analyzer R&S ESIB 26. 15. Spectrum analyzer R&S FSM. 16. RF pre-amplifier Schaffner CPA 9231. 17. DC power supply R&S NGPE 40/40. 4. IDENTIFICATION DATA SUPPLIED BY THE APPLICANT Identification data in this section has been supplied by the client. 4.1 APPLICANT Name or Company: TCL & ALCATEL MOBILE PHONES V.A.T.: ----- Address: 165, Boulevard de Valmy City: Colombes Postal code: 92707 Country: FRANCE Telephone: +33 1 556630…
