RAD028GSM 850 & GSM 1900 MHz MOBILE PHONE

TCT Mobile Limited

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 16, 2006
Application Purpose: Original Equipment
Date of Application: Jan 16, 2006
Equipment Note: GSM 850 & GSM 1900 MHz MOBILE PHONE
Frequency Range: 1850.20000000 - 1909.80000000
Company: TCT Mobile Limited
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

English - 3DS12556AAAA 01 SVLE5_UM_USA-09-01-06 10/01/06 14:12 Page 1 6. Messages ......................................................................32 6.1 Create an SMS....................................................................................32 6.2 Inbox/Outbox ....................................................................................33 6.3 Archives ..............................................................................................34 6.4 Predefined............................................................................................34 6.5 Delete ..................................................................................................34 6.6 Settings ................................................................................................35 6.7 SMS CB ................................................................................................35 7. Sounds ..........................................................................36 7.1 Mode ....................................................................................................36 7.2 Volume ................................................................................................36 7.3 Ringtone ..............................................................................................36 7.4 Alerts ....................................................................................................37 7.5 Key beep..............................................................................................37 8. Display ..........................................................................38 8.1 Wallpaper ............................................................................................38 8.2 ON/OFF screens ..............................................................................38 8.3 Colors/Reverse display ....................................................................38 8.4 Screensaver ........................................................................................38 8.5 Contrast ..............................................................................................38 9. Settings ........................................................................39 9.1 Clock ....................................................................................................39 9.2 Languages ............................................................................................39 9.3 Security ................................................................................................39 9.4 Auto power ........................................................................................40 9.5 Light alert ............................................................................................40 9.6 Slider ....................................................................................................40 9.7 Answer mode ....................................................................................41 9.8 Factory reset ......................................................................................41 9.9 Dictionary............................................................................................41 2 Table of contents ........................Safety and use ......................................................................4General information............................................................81. Your mobile ..................................................................10 1.1 Keys ......................................................................................................11 1.2 Main screen icons ..............................................................................13 2. Getting started ............................................................14 2.1 Set-up ..................................................................................................14 2.2 Switching your telephone ON ......................................................17 2.3 Switching your telephone OFF ......................................................17 3. Calls ..............................................................................18 3.1 Making a call........................................................................................18 3.2 Calling your voicemail ......................................................................19 3.3 Receiving a call ..................................................................................20 3.4 Available options during the call ....................................................21 3.5 Call waiting..........................................................................................22 3.6 Making a second call ........................................................................22 3.7 Conference call ..................................................................................22 4. Menu..............................................................................23 4.1 Accessing the menu ..........................................................................23 4.2 Organising functions ........................................................................23 5. Directory ......................................................................29 5.1 Directory menu ................................................................................29 5.2 Consulting your directory (“View”) ............................................305.2.1 Available options in the contacts list ..............................305.2.2 Making the call ......................................................................305.2.3 Caller group ..........................................................................315.2.4 Searching for a name by its first letter............................31 1 SVLE5_UM_USA-09-01-06 10/01/06 14:12 Page 1 Safety and Use ............................We recommend that you read this chapter carefully before using your pho…

Text truncated - open the document above for the full version.

External Photos

Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Top View of EUT Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor-3DS09371AGAA Supplier: Astec Adaptor-3DS09371AAAA Supplier: Astec Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor-3DS09371AGAA Supplier: Leader Electronics Adaptor-3DS09371AGAA Supplier: Leader Electronics Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Adaptor-3DS07848AAAA Supplier :Primax Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT --- 1 Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 2 Internal of EUT --- 3 Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 4 Internal of EUT --- 5 Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT --- 6 Internal of EUT --- 7

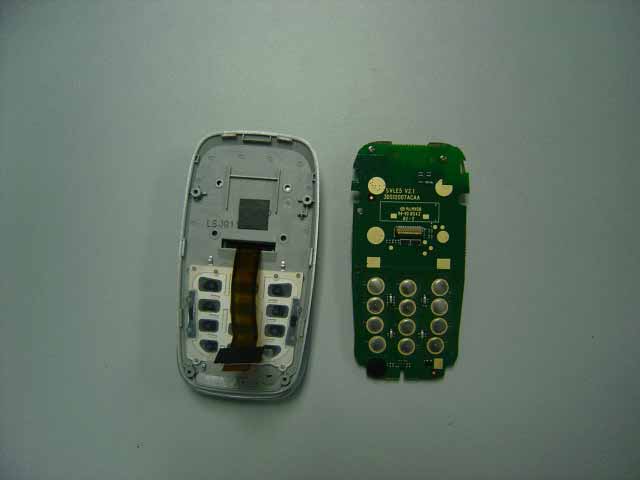

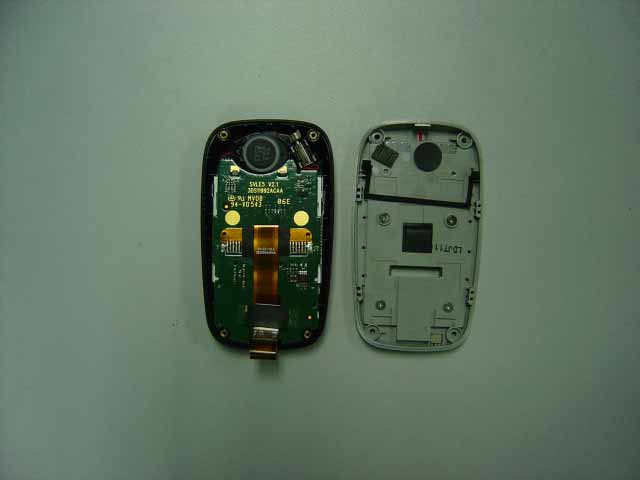

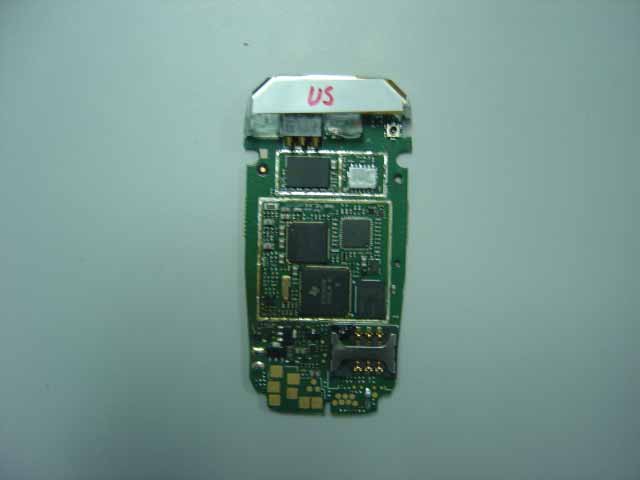

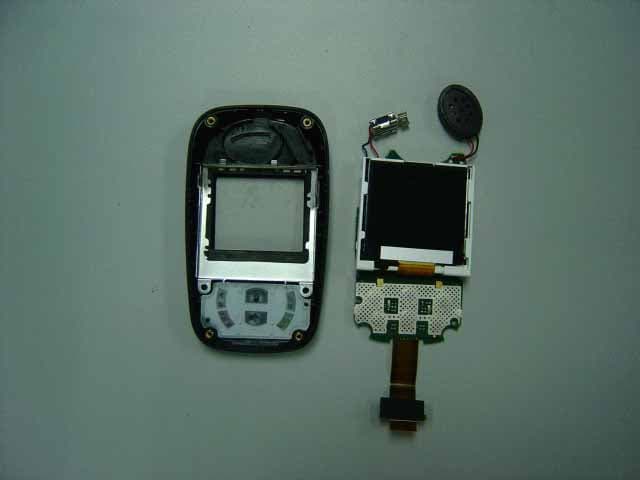

Internal Photos

Operational Description

Antenna

RF Exposure Info

Order No: SHGLO051200120GSM Date: Jan. 04, 2006 Page: 1 of 154 SAR TEST REPORT Eequipment Under Test : GSM 850&GSM1900MHz MOBILE PHONE FCC ID : RAD028 Model No. : VLE5 Market Name : OT-E260a Applicant : TCL&Alcatel Mobile Phones Address of Applicant : 30/F, Times Square, 500 Zhangyang RD. Shanghai 200122, P.R.China Date of Receipt : 2005.12.21 Date of Test : 2005.12.21 – 2005.12.30 Date of Issue : 2006.01.04 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2006.01.04 Approved by : Date : 2006.01.04 Order No: SHGLO051200120GSM Date: Jan. 04, 2006 Page: 2 of 154 Contents 1. General Information.............................................................................7 1.1 Test Laboratory..........................................................................................................7 1.2 Details of Applicant...................................................................................................7 1.3 Description of EUT(s)................................................................................................7 1.4 Test Environment......................................................................................................8 1.5 Operation Configuration...........................................................................................8 1.6 The SAR Measurement System................................................................................8 1.7 SAR System Verification.........................................................................................10 1.8 Tissue Simulant Fluid for the Frequency Band 850MHz and 1900MHZ..............11 1.9 Test Standards and Limits......................................................................................12 2. Summary of Results..........................................................................13 3. Instruments List.................................................................................16 4. Measurements....................................................................................17 4.1 FCC-OET65-LeftHandSide-Cheek-GSM850-Low-Slide-Off...................................17 FCC-OET65-LeftHandSide-Cheek-GSM850-Low-Slide-Off..................................................17 4.2 FCC-OET65-LeftHandSide-Cheek-GSM850-Mid-Slide-Off....................................19 FCC-OET65-LeftHandSide-Cheek-GSM850-Mid-Slide-Off...................................................19 4.3 FCC-OET65-LeftHandSide-Cheek-GSM850-High-Slide-Off..................................21 FCC-OET65-LeftHandSide-Cheek-GSM850-High-Slide-Off.................................................21 4.4 FCC-OET65-LeftHandSide-Tilt-GSM850-Low-Slide-Off........................................23 FCC-OET65-LeftHandSide-Tilt-GSM850-Low-Slide-Off.......................................................23 4.5 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid-Slide-Off.........................................25 FCC-OET65-LeftHandSide-Tilt-GSM850-Mid-Slide-Off.......................................................25 4.6 FCC-OET65-LeftHandSide-Tilt-GSM850-High-Slide-Off.......................................27 FCC-OET65-LeftHandSide-Tilt-GSM850-High-Slide-Off......................................................27 4.7 FCC-OET65-RightHandSide-Cheek-GSM850-Low-Slide-Off................................29 FCC-OET65-RightHandSide-Cheek-GSM850-Low-Slide-Off................................................29 4.8 FCC-OET65-RightHandSide-Cheek-GSM850-Mid-Slide-Off.................................31 FCC-OET65-RightHandSide-Cheek-GSM850-Mid-Slide-Off.................................................31 4.9 FCC-OET65-RightHandSide-Cheek-GSM850-High-Slide-Off...............................33 FCC-OET65-RightHandSide-Cheek-GSM850-High-Slide-Off...............................................33 4.10 FCC-OET65-RightHandSide-Tilt-GSM850-Low-Slide-Off....................................35 Order No: SHGLO051200120GSM Date: Jan. 04, 2006 Page: 3 of 154 FCC-OET65-RightHandSide-Tilt-GSM850-Low-Slide-Off....................................................35 4.11 FCC-OET65-RightHandSide-Tilt-GSM850-Mid-Slide-Off.....................................37 FCC-OET65-RightHandSide-Tilt-GSM850-Mid-Slide-Off.....................................................37 4.12 FCC-OET65-RightHandSide-Tilt-GSM850-High-Slide-Off...................................39 FCC-OET65-RightHandSide-Tilt-GSM850-High-Slide-Off....................................................39 4.13 FCC-OET65-Body-Worn-GSM850-Low-Slide-Off.................................................41 FCC-OET65-Body-Worn-GSM850-Low-Slide-Off.................................................................41 4.14 FCC-OET65-Body-Worn-GSM850-Mid-Slide-Off..................................................43 FCC-OET65-Body-Worn-GSM850-Mid-Slide-Off.................................................................43 4.15 FCC-OET65-Body-Worn-GSM850-High-Slide-Off................................................45 FCC-OET65-Body-Worn-GSM850-High-Slide-Off................................................................45 4.16 FCC-OET65-LeftHandSide-Cheek-GS…

Text truncated - open the document above for the full version.

Test Report

Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 Page: 1 of 87 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 22 SUBPART H and PART 24 SUBPART E REQUIREMENT OF Product Name: GSM 850/1900 mobile phone Brand Name: Alcatel Model Name: VLE5 Market Name: OT-E260a FCC ID: RAD028 Report No.: ER/2005/C0013 Issue Date: Jan. 02, 2006 FCC Rule Part: 2 , 22H & 24E Prepared for TCL&Alcatel Mobile Phones 30/F, Times Square, 500 Shen Minlei RD. Shanghai 200122, P.R.China Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: TCL&Alcatel Mobile Phones 30/F, Times Square, 500 Shen Minlei RD. Shanghai 200122, P.R.China Equipment Under Test: GSM 850/1900 mobile phone FCC ID Number: RAD028 Brand Name: Alcatel Model No.: VLE5 Market Name: OT-E260a Model Difference: N/A File Number: ER/2005/C0013 Date of test: Dec. 21, 2005 ~ Dec. 31, 2005 Date of EUT Received: Dec 21, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 subpart H and FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date Jan. 02, 2006 Henk Huang Prepared By: Date Jan. 02, 2006 Gigi Yeh Approved By Date Jan. 02, 2006 Vincent Su Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Jan. 02, 2006 Report No.: ER/2005/C0013 FCC ID: RAD028 Issue Date: Jan. 02, 2006 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test re- port cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Product Description ......................................................................................................................... 6 1.2 Related Submittal(s) / Grant (s) ....................................................................................................... 6 1.3 Test Methodology ............................................................................................................................ 6 1.4 Test Facility...................................................................................................................................... 7 1.5 Special Accessories .......................................................................................................................... 7 1.6 Equipment Modifications................................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ......................................................................................... 8 2.1 EUT Configuration .......................................................................................................................... 8 2.2 EUT Exercise ................................................................................................................................... 8 2.3 Test Procedure.................................................................................................................................. 8 2.4 Configuration of Tested System....................................................................................................... 9 3. SUMMARY OF TEST RESULTS ............................................................................................ 10 4. DESCRIPTION OF TEST MODES ......................................................................................... 10 5. RF POWER OUTPUT MEASUREMENT .............................................................................. 11 5.1 Standard Applicable ....................................................................................................................... 11 5.2 Test Set-up: .................................................................................................................................... 11 5.3 Measurement Procedure…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. 1/F, 7/F, 9/F, 10/F, the 3rd Building No. 889, Yishan Road, Xuhui District, Shanghai, China Telephone: +86 (0) 21 6495 1616 Fax: +86 (0) 21 5450 0954 [email protected] Report No.: SHEMO051200646IT Page 1 of 30 Authorized Signature: Tino Pan Chester Zhao E&E Section Head E&E Project Engineer SGS-CSTC Co., Ltd. SGS-CSTC Co., Ltd This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Zhizhou Gong

[email protected]+86(0)2151798260Fax: +86(0)2161460600

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	900.00 mW	240KGXW	511 Hz

Confidentiality

Long Term

Grant Notes

Power Output is ERP for Part 22 and EIRP for Part 24. Body-worn operations are restricted to approved belt-clips, holsters or similar accessories tested for this filing and to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Part 22 Head: 0.725 W/kg; Body-worn 0.779 W/kg; PCS Band Head: 0.247 W/kg; Body-worn 0.532 W/kg.
