RAD035GSM 850&DCS1900MHz MOBILE PHONE

English - T5000169AAAA 01 SVLE6_UM_USA-12-06-06 12/06/06 9:31 Page 1 6. Messages ......................................................................32 6.1 Create an SMS....................................................................................32 6.2 Inbox/Outbox ....................................................................................33 6.3 Archives ..............................................................................................34 6.4 Predefined............................................................................................34 6.5 Delete ..................................................................................................34 6.6 Settings ................................................................................................35 6.7 SMS CB ................................................................................................35 7. Sounds ..........................................................................36 7.1 Mode ....................................................................................................36 7.2 Volume ................................................................................................36 7.3 Ringtone ..............................................................................................36 7.4 Alerts ....................................................................................................37 7.5 Key beep..............................................................................................37 8. Display ..........................................................................38 8.1 Wallpaper ............................................................................................38 8.2 ON/OFF screens ..............................................................................38 8.3 Colors ..................................................................................................38 8.4 Screensaver ........................................................................................38 8.5 Contrast ..............................................................................................38 9. Settings ........................................................................39 9.1 Clock ....................................................................................................39 9.2 Languages ............................................................................................39 9.3 Security ................................................................................................39 9.4 Auto power ........................................................................................40 9.5 Slider ....................................................................................................40 9.6 Answer mode ....................................................................................41 9.7 Factory reset ......................................................................................41 9.8 Dictionary............................................................................................41 2 Table of contents ........................Safety and use ......................................................................4General information............................................................81. Your mobile ..................................................................10 1.1 Keys ......................................................................................................11 1.2 Main screen icons ..............................................................................13 2. Getting started ............................................................14 2.1 Set-up ..................................................................................................14 2.2 Switching your telephone ON ......................................................17 2.3 Switching your telephone OFF ......................................................17 3. Calls ..............................................................................18 3.1 Making a call........................................................................................18 3.2 Calling your voicemail ......................................................................19 3.3 Receiving a call ..................................................................................20 3.4 Available options during the call ....................................................21 3.5 Call waiting..........................................................................................22 3.6 Making a second call ........................................................................22 3.7 Conference call ..................................................................................22 4. Menu..............................................................................23 4.1 Accessing the menu ..........................................................................23 4.2 Organising functions ........................................................................23 5. Directory ......................................................................29 5.1 Directory menu ................................................................................29 5.2 Consulting your directory (“View”) ............................................305.2.1 Available options in the contacts list ..............................305.2.2 Making the call ......................................................................305.2.3 Caller group ..........................................................................315.2.4 Searching for a name by its first letter............................31 1 SVLE6_UM_USA-12-06-06 12/06/06 9:31 Page 1 Safety and Use ............................We recommend that you read this chapter carefully before using your phone. The manufacturerdisclaims any liability for damage, which may result as a consequence of improp…

Text truncated - open the document above for the full version.

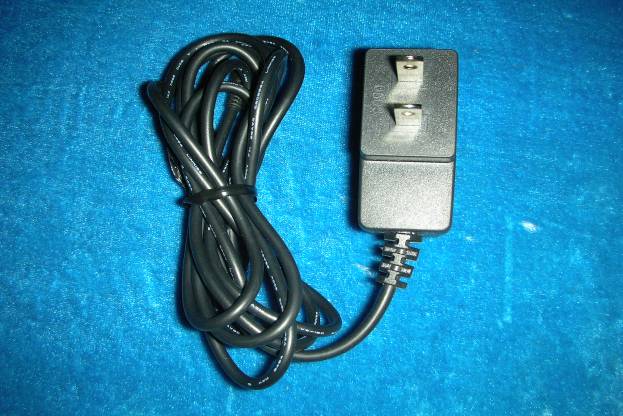

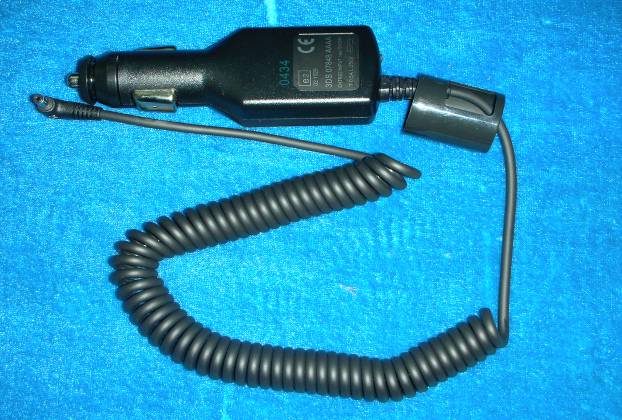

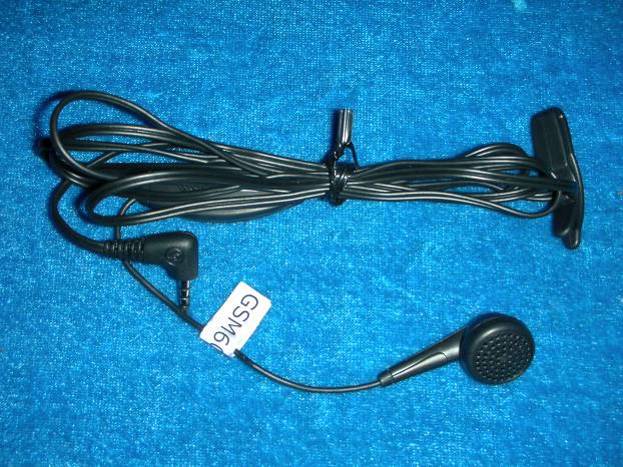

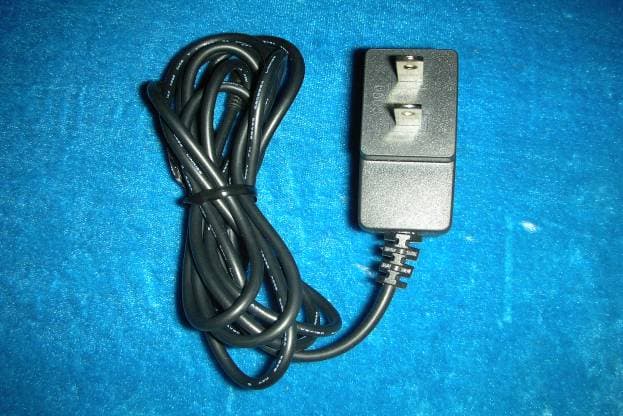

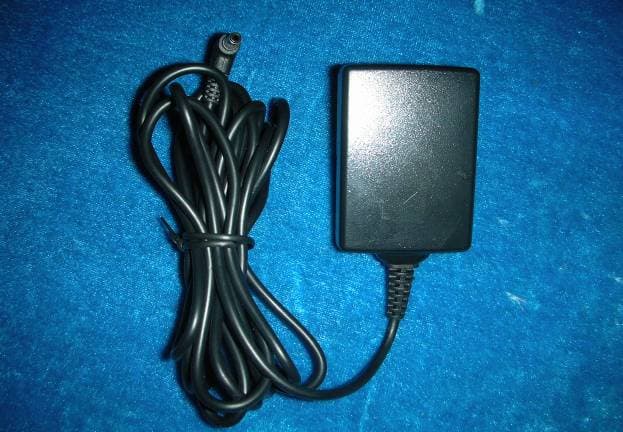

Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 AC to DC charger Manufactures: Astec Model Number: 3DS09371AGAA Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Manufactures: Leader Model Number :3DS09371AGAA Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Manufactures: Astec Model Number :3DS09371AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Manufactures: Leader Model Number : 3DS09371AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 DC to DC charger Model Number :3DS07848AAAA Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May18, 2006 Earphone

Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Antenna connected point Antenna connected point Antenna connected point Antenna connected point Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Antenna connected point Antenna connected point Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006

Order No: GSM10000064 Date: JUN. 23, 2006 Page: 1 of 179 SAR TEST REPORT Eequipment Under Test : GSM 850&PCS1900MHz MOBILE PHONE Model No. : SVLE6 Market name: OT-E265a FCC ID: RAD035 Applicant : T&A Mobile Phones Address of Applicant : 3/F,B2 Block, Digital Technology Yard, Gaoxin Nan Qi Road,Nan Shan District, Shenzhen, Guangdong, P.R. China Date of Receipt : 2006.05.08 Date of Test : 2006.05.25 – 2006.05.30 Date of Issue : 2006.06.23 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2003 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2006.06.23 Approved by : Date : 2006.06.23 Order No: GSM10000064 Date: JUN. 23, 2006 Page: 2 of 179 Contents 1. General Information.............................................................................7 1.1 Test Laboratory..........................................................................................................7 1.2 Details of Applicant...................................................................................................7 1.3 Description of EUT(s)................................................................................................7 1.4 Test Environment......................................................................................................8 1.5 Operation Configuration...........................................................................................8 1.6 The SAR Measurement System................................................................................8 1.7 SAR System Verification.........................................................................................10 1.8 Tissue Simulant Fluid for the Frequency Band 850MHz and 1900MHZ..............11 1.9 Test Standards and Limits......................................................................................12 2. Summary of Results..........................................................................13 3. Instruments List.................................................................................17 4. Measurements....................................................................................18 4.1 LeftHandSide-Cheek-GSM850-Low-off..................................................................18 GSM850-LeftHandSide-Cheek-Low-off.................................................................................18 4.2 LeftHandSide-Cheek-GSM850-Middle-off..............................................................19 GSM850-LeftHandSide-Cheek-Mid-off..................................................................................19 4.3 LeftHandSide-Cheek-GSM850-High-off.................................................................21 GSM850-LeftHandSide-Cheek-High-off.................................................................................21 4.4 LeftHandSide-Tilt-GSM850-Low-off........................................................................23 GSM850-LeftHandSide-Tilt-Low-off......................................................................................23 4.5 LeftHandSide-Tilt-GSM850-Middle-off...................................................................25 GSM850-LeftHandSide-Tilt-Mid-off......................................................................................25 4.6 LeftHandSide-Tilt-GSM850-High-off.......................................................................27 GSM850-LeftHandSide-Tilt-High-off.....................................................................................27 LeftHandSide-Cheek-GSM850-Low-off (Maximum Value)..........................................29 GSM850-LeftHandSide-Cheek-Low-off(conventional)...........................................................29 4.7 RightHandSide-Cheek-GSM850-Low-off................................................................31 GSM850-RightHandSide-Cheek-Low-off...............................................................................31 4.8 RightHandSide-Cheek-GSM850-Middle-off...........................................................33 Order No: GSM10000064 Date: JUN. 23, 2006 Page: 3 of 179 GSM850-RightHandSide-Cheek-Mid-off................................................................................33 4.9 RightHandSide-Cheek-GSM850-High-off...............................................................35 GSM850-RightHandSide-Cheek-High-off...............................................................................35 4.10 RightHandSide-Tilt-GSM850-Low-off...................................................................37 GSM850-RightHandSide-Tilt-Low-off....................................................................................37 4.11 RightHandSide-Tilt-GSM850-Middle-off...............................................................39 GSM850-RightHandSide-Tilt-Mid-off....................................................................................39 4.12 RightHandSide-Tilt-GSM850-High-off...................................................................41 GSM850-RightHandSide-Tilt-High-off...................................................................................41 RightHandSide-Cheek-GSM850-Low-off (Maximum Value)......................…

Text truncated - open the document above for the full version.

General Technical Description Model: OT-E265a Date: 2006-06-09 Band: 850MHz/1900MHz 1. Scope This document is shown and provided the more detail information about the platform we used. The basic description for the Baseband and RF section are also included. OT-E265a product is new model phone designed by T&A, it works at Dual-band, GSM850 and PCS1900 band its weight is only 91g, the size is 87x45x24mm. OT-E265a has a 4K color CSTN display which pixels is 102*80, and has 16 polyphonies. OT-E265a CPU runs at 52 MHz, with 32M Flash Memory and 4M pSRAM. The main IC include ABB（TWL3025）、 DBB(CALYPSO)、FLASH (S71PL032J40BFW)、 Transceiver(TRF6151)、PA(AWT6166), OT-E265a can dial 4 hours continuously and can be in idle mode up to 230hours ,using 650mAh LI battery. 2. Detail Block Diagram 3. RF Front End 3.1 Transceiver with Direct Conversion The chip supports GSM850/GSM900/DCS1800/PCS 1900 application. The chip integrates the receiver based on direct conversion architecture, the transmitter based on the modulation loop architecture, the frequency synthesis including a 26MHz VCXO, a MAIN N- integer synthesizer, 2 MAIN VCOs, a programmable MAIN loop filter, 2 TX VCOs, a TX loop filter, the voltage regulators to supply on chip and off chip RF functions and a power amplifier controller.It is housed in a 49 pins 7x7mm - 0.5mm pitch QFN package. 3.2 Power Amplifier This quad band power amplifier module is designed to support dual,tri and quad band applications.The module includes an integrated power control scheme that facilitates fast and easy production calibration and reduces the number of external components required to complete a power control function. 4. Baseband Baseband architecture comprise mainly two chips: 4.1 DBB(CALYPSO) CALYPSO is a chip implementing the digital base-band processes of a GSM/GPRS mobile phone. This chip combines a DSP sub-chip (LEAD2 CPU) with its program and data memories, a Micro-Controller core with emulation facilities (ARM7TDMIE), internal 8Kb of Boot ROM memory, 2M bit SRAM memory, a clock squarer cell, several compiled single-port or 2-ports RAM and CMOS gates. The application of this circuit is the management of the GSM/GPRS base-band processes through the GSM layer 1, 2 and 3 protocols as described in the ETSI standard with a specific attention to the power consumption in both GSM dedicated and idle modes, and GPRS (class 12) capability. The chip will fully support the GSM full-level test approval (FTA) for both Full-Rate, Enhanced Full-Rate and Half-Rate speech coding. CALYPSO implements all features for the structural test of the logic (full-SCAN, BIST, PMT,JTAG boundary-SCAN). 4.2 ABB(TWL3025) The TWL3025 device is an analog baseband (ABB) device which includes a complete set of baseband functions that perform the interface and processing of the following voice signals, the baseband in-phase (I) and quadrature (Q) signals, which support both the single-slot and multislot modes. The TWL3025 device also includes associated auxiliary RF control features, supply voltage regulation, battery charging controls, and switch on/off system analysis. The TWL3025 device interfaces with the DBB device through a digital baseband serial port (BSP) and a voiceband serial port (VSP). The signal ports communicate with a DSP core (LEAD). A microcontroller serial port (USP) communicates with the microcontroller core and a time serial port (TSP) communicates with the time processing unit (TPU) for real-time control. A specific module is dedicated to support the 1.8-V/3-V SIM card interface. The module includes the generation of the SIM card supply voltage, as well as level shifters to adapt the SIM card signal levels to the microcontroller I/O signal levels. The TWL3025 device meets JTAG testability standard (IEEE Std 1131.1 – 1990) through a standard test access port (TAP) and boundary scan. The TW3025 device also includes an on-chip voltage reference, under-voltage detection, and power-on reset circuits.The TWL3025 device is packaged in Texas Instruments 100-terminal, 0,8-mm pitch, MicroStar. ball grid array (GGM) and 143-terminal, 0,5-mm pitch, MicroStar. ball grid array (GQW).

Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No: KS060509A01 FCC ID: RAD035 Date of Issue: May10, 2006 RADIATED EMISSION TEST Front of view Back of view
